ANALOG DEVICES INC

Analog Devices, Inc.（NASDAQ: ADI)是全球领先的半导体公司，致力于在现实世界与数字世界之间架起桥梁，以实现智能边缘领域的突破性创新。ADI提供结合模拟、数字和软件技术的解决方案，推动数字化工厂、汽车和数字医疗等领域的持续发展，应对气候变化挑战，并建立人与世界万物的可靠互联。ADI公司2022财年收入超过120亿美元，全球员工约2.5万人。

ADTR1107ACCZ-R7

分类: 微电路 / 半导体集成电路 / 射频电路
数据:

简介: 6 GHz 至 18 GHz 前端 IC

RF Primary Function: Phased Array RF Front End, Power Amp Freq Response RF (min): 6GHz Freq Response RF (max): 18GHz Gain dB (typ): 17dB OP1dB (typ): 23.9dBm NF (typ): 2.3dB OIP3 (typ): 30.9dBm Vs (typ): 5V Is (typ): 80mA Package: 24-Lead LGA (5mm x 5mm x 1.13mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Specified at Freq: 12GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (24-Lead LGA (5mm x 5mm x 1.13mm w/ EP)) (ADTR1107ACCZ)mm² Package Height: 1.13mm (24-Lead LGA (5mm x 5mm x 1.13mm w/ EP)) (ADTR1107ACCZ)mm Launch Date: 2020-02-05 EP: No

ADPA7002AEHZ

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: GaAs pHEMT MMIC 1/2 W 20 GHz 至 44 GHz 功率放大器

RF Primary Function: Power Amp, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 44GHz Gain dB (typ): 17dB OP1dB (typ): 28dBm NF (typ): 5.8dB OIP3 (typ): 38dBm Vs (typ): 5V Is (typ): 700mA Package: CHIPS OR DIE,16-Lead LCC (6mm x 6mm x 1.32mm w/EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 5V Gain dB (min): 15dB Specified at Freq: 34GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2019-12-17 EP: No

ADPA7002AEHZ-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: GaAs pHEMT MMIC 1/2 W 20 GHz 至 44 GHz 功率放大器

RF Primary Function: Power Amp, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 44GHz Gain dB (typ): 17dB OP1dB (typ): 28dBm NF (typ): 5.8dB OIP3 (typ): 38dBm Vs (typ): 5V Is (typ): 700mA Package: CHIPS OR DIE,16-Lead LCC (6mm x 6mm x 1.32mm w/EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 5V Gain dB (min): 15dB Specified at Freq: 34GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2019-12-17 EP: No

ADPA7002C-KIT

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: GaAs pHEMT MMIC 1/2 W 20 GHz 至 44 GHz 功率放大器

RF Primary Function: Power Amp, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 44GHz Gain dB (typ): 17dB OP1dB (typ): 28dBm NF (typ): 5.8dB OIP3 (typ): 38dBm Vs (typ): 5V Is (typ): 700mA Package: CHIPS OR DIE,16-Lead LCC (6mm x 6mm x 1.32mm w/EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 5V Gain dB (min): 15dB Specified at Freq: 34GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2019-12-17 EP: No

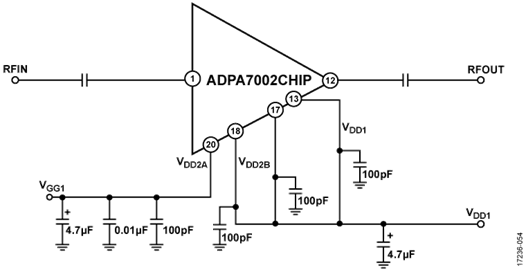

ADPA7002CHIP

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: GaAs pHEMT MMIC 1/2 W 20 GHz 至 44 GHz 功率放大器

RF Primary Function: Power Amp, Wideband Distributed Amps Freq Response RF (min): 18GHz Freq Response RF (max): 44GHz Gain dB (typ): 17dB OP1dB (typ): 28dBm NF (typ): 5.8dB OIP3 (typ): 38dBm Vs (typ): 5V Is (typ): 700mA Package: CHIPS OR DIE,16-Lead LCC (6mm x 6mm x 1.32mm w/EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 4V Vs+ (max): 5V Gain dB (min): 15dB Specified at Freq: 34GHz Eval / Ref Circuit: Evaluation board Export Classification: 3A001.b.2.d Automotive: No Temp Range: -40 to 85°C
Launch Date: 2019-12-17 EP: No

ADPA9002ACGZN

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: GaAs pHEMT MMIC 单一正电源直流至 10 GHz 功率放大器

RF Primary Function: Low Phase Noise, Power Amp Freq Response RF (max): 10GHz Gain dB (typ): 15.5dB OP1dB (typ): 28dBm NF (typ): 4dB OIP3 (typ): 40.5dBm Vs (typ): 12V Is (typ): 385mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 10V Vs+ (max): 15V Gain dB (min): 13.5dB Specified at Freq: 10GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9002ACGZN)mm²
Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9002ACGZN)mm Launch Date: 2019-11-25 EP: No

ADPA9002ACGZN-R7

分类: 微电路 / 微波半导体集成电路 / 放大器 / 功率放大器
数据:

简介: GaAs pHEMT MMIC 单一正电源直流至 10 GHz 功率放大器

RF Primary Function: Low Phase Noise, Power Amp Freq Response RF (max): 10GHz Gain dB (typ): 15.5dB OP1dB (typ): 28dBm NF (typ): 4dB OIP3 (typ): 40.5dBm Vs (typ): 12V Is (typ): 385mA Package: 32-Lead LFCSP (5mm x 5mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 1 Vs+ (min): 10V Vs+ (max): 15V Gain dB (min): 13.5dB Specified at Freq: 10GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 25mm² (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9002ACGZN)mm²
Package Height: 1.25mm (32-Lead LFCSP (5mm x 5mm w/ EP)) (ADPA9002ACGZN)mm Launch Date: 2019-11-25 EP: No

ADH8410-000C

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

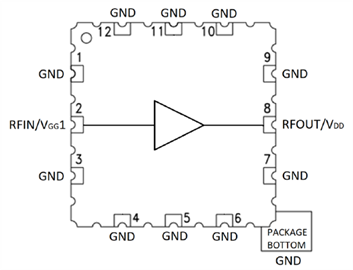

简介: 航空航天0.01 GHz至10 GHz、GaAs、pHEMT、MMIC、低噪声放大器

RF Primary Function: LNA Freq Response RF (min): 100MHz Freq Response RF (max): 10GHz Gain dB (typ): 18dB OP1dB (typ): 20.5dBm OIP3 (typ): 31.5dBm Vs (typ): 5V Is (typ): 65mA Package: 12-Lead LCC (5.08mmm x 5.08mm),CHIPS OR DIE Product Lifecycle: 推荐用于新设计 Export Classification: EAR99 Automotive: No Reliability Level: Class S Package Area: 25.8064mm² (12-Lead LCC (5.08mmm x 5.08mm)) (ADH8410-701LH5)mm² Package Height: 1.37mm (12-Lead LCC (5.08mmm x 5.08mm)) (ADH8410-701LH5)mm Launch Date: 2019-11-05 EP: No

ADH8410-701LH5

分类: 微电路 / 微波半导体集成电路 / 放大器 / 低噪声放大器
数据:

简介: 航空航天0.01 GHz至10 GHz、GaAs、pHEMT、MMIC、低噪声放大器

RF Primary Function: LNA Freq Response RF (min): 100MHz Freq Response RF (max): 10GHz Gain dB (typ): 18dB OP1dB (typ): 20.5dBm OIP3 (typ): 31.5dBm Vs (typ): 5V Is (typ): 65mA Package: 12-Lead LCC (5.08mmm x 5.08mm),CHIPS OR DIE Product Lifecycle: 推荐用于新设计 Export Classification: EAR99 Automotive: No Reliability Level: Class S Package Area: 25.8064mm² (12-Lead LCC (5.08mmm x 5.08mm)) (ADH8410-701LH5)mm² Package Height: 1.37mm (12-Lead LCC (5.08mmm x 5.08mm)) (ADH8410-701LH5)mm Launch Date: 2019-11-05 EP: No

ADRF5547BCPZN

分类: 微电路 / 半导体集成电路 / 射频电路
数据:

简介: 双通道 3.7 GHz 至 5.3 GHz 接收器前端

RF Primary Function: Massive MIMO Receiver Front End Freq Response RF (min): 3.7GHz Freq Response RF (max): 5.3GHz Gain dB (typ): 33dB OP1dB (typ): 18dBm NF (typ): 1.6dB OIP3 (typ): 31dBm Vs (typ): 5V Is (typ): 36mA Package: 40-Lead LFCSP (6mm x 6mm w/ EP) Product Lifecycle: 推荐用于新设计 # of Channels: 2 Vs+ (min): 4.75V Vs+ (max): 5.25V Gain dB (min): 17dB Gain dB (max): 33dB Specified at Freq: 4.6GHz Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No
Temp Range: -40 to 105°C Package Area: 36mm² (40-Lead LFCSP (6mm x 6mm w/ EP)) (ADRF5547BCPZN)mm² Package Height: 1mm (40-Lead LFCSP (6mm x 6mm w/ EP)) (ADRF5547BCPZN)mm Launch Date: 2019-10-15 EP: No
