Configuration: Discrete I[D ](@100°C) max: -0.33A I[D ](@25°C) max: -0.53A V[F] max: -5.0V Package: UBC Polarity: P V[BRDSS] min: -60.0V QPL Part Number: 2N7626UBC TID max: 100.0Krad(Si) ESD Class: Class 0 R[DS (on)](@25°C) max: 1300.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Q[G]: 3.6nC Die Size: Z Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -45.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Die Size: 6 V[BRDSS] min: -30.0V QPL Part Number: 2N7523T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 14.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 160.0nC Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -47.0A V[F] max: -5.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550U2 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -20.0A I[D ](@25°C) max: -30.0A V[F] max: -1.3V Package: TO-257AA Low Ohmic Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7659T3 TID max: 300.0Krad(Si) ESD Class: Class 2 SEE: Yes R[DS (on)](@25°C) max: 46.0mΩ Generation: R9 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 48.0nC Voltage Class: 100.0V Language: SPICE Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -16.0A I[D ](@25°C) max: -18.0A V[F] max: -5.0V Package: TO-257AA Polarity: P Die Size: 3 V[BRDSS] min: -60.0V TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 95.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

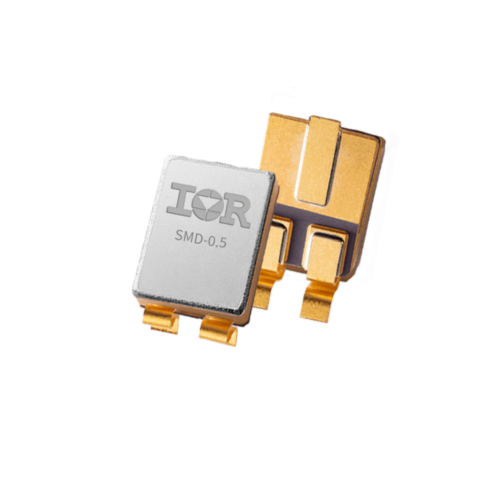

Configuration: Discrete I[D ](@100°C) max: -16.0A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7520U3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 85.0mΩ Generation: R5 Qualification: COTS Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -45.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Die Size: 6 V[BRDSS] min: -60.0V QPL Part Number: 2N7524T1 TID max: 300.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 16.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 160.0nC Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -5.0A I[D ](@25°C) max: -8.0A V[F] max: -5.0V Package: TO-257AA Polarity: P Qualification: QIRL Die Size: 3 V[BRDSS] min: -200.0V QPL Part Number: 2N7548T3 TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 550.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -17.0A I[D ](@25°C) max: -20.0A V[F] max: -5.0V Package: TO-257AA Low Ohmic Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7625T3 TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 72.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 36.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

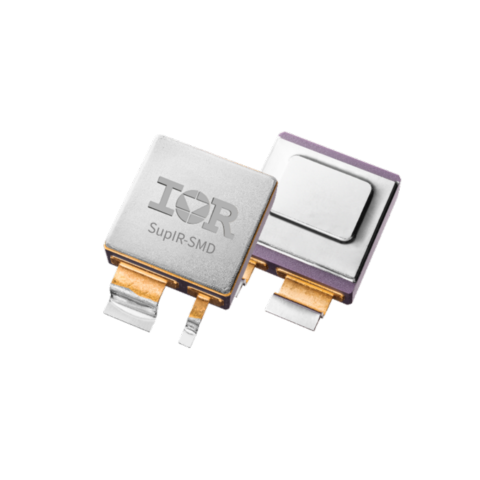

Configuration: Discrete I[D ](@100°C) max: -56.0A I[D ](@25°C) max: -56.0A V[F] max: -5.0V Package: SupIR-SMD Polarity: P V[BRDSS] min: -60.0V QPL Part Number: 2N7524U2A TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 16.0mΩ Qualification: COTS Generation: R5 Die Size: 6 Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS
