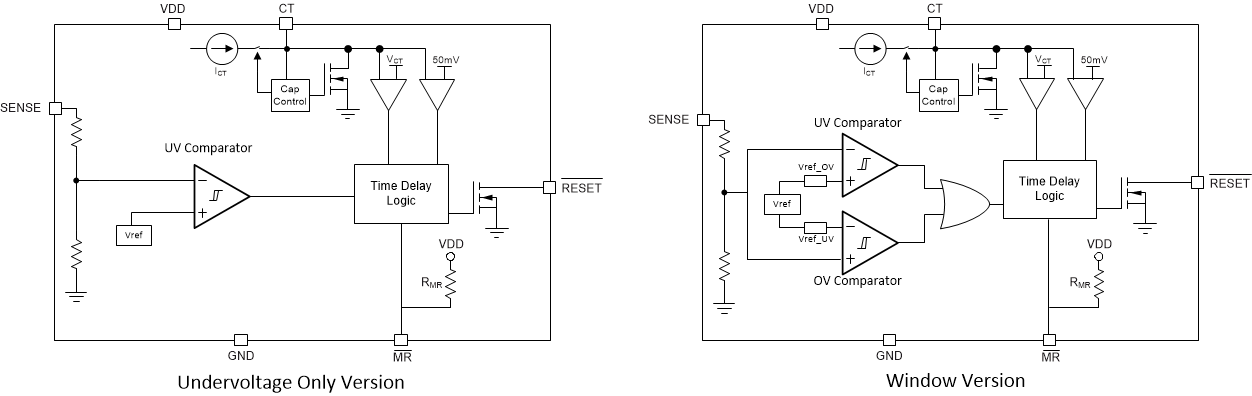

Number of supplies monitored: 1 Reset threshold accuracy (%): 0.7 Iq (typ) (mA): 0.0045 Output driver type/reset output: Active-low, Open-drain Time delay (ms): 1, 5, 10, 20, 100, 200 Supply voltage (min) (V): 1.7 Supply voltage (max) (V): 5.5 TI functional safety category: Functional Safety-Capable Rating: Automotive Watchdog timer WDI (s): None Operating temperature range (°C): -40 to 125 Number of supplies monitored: 1 Reset threshold accuracy (%): 0.7 Iq (typ) (mA): 0.0045 Output driver type/reset output: Active-low, Open-drain Time delay (ms): 1, 5, 10, 20, 100, 200 Supply voltage (min) (V): 1.7 Supply voltage (max) (V): 5.5 TI functional safety category: Functional Safety-Capable Rating: Automotive 更多

Number of supplies monitored: 1 Reset threshold accuracy (%): 1.5 Iq (typ) (mA): 0.0003 Output driver type/reset output: Active-high, Active-low, Open-drain, Push-Pull Time delay (ms): 0, 0.05 Supply voltage (min) (V): 1.5 Supply voltage (max) (V): 10 Rating: Catalog Watchdog timer WDI (s): None Operating temperature range (°C): -40 to 125 Number of supplies monitored: 1 Reset threshold accuracy (%): 1.5 Iq (typ) (mA): 0.0003 Output driver type/reset output: Active-high, Active-low, Open-drain, Push-Pull Time delay (ms): 0, 0.05 Supply voltage (min) (V): 1.5 Supply voltage (max) (V): 10 Rating: Catalog Watchdog timer WDI (s): None Operating temperature range (°C): -40 to 125

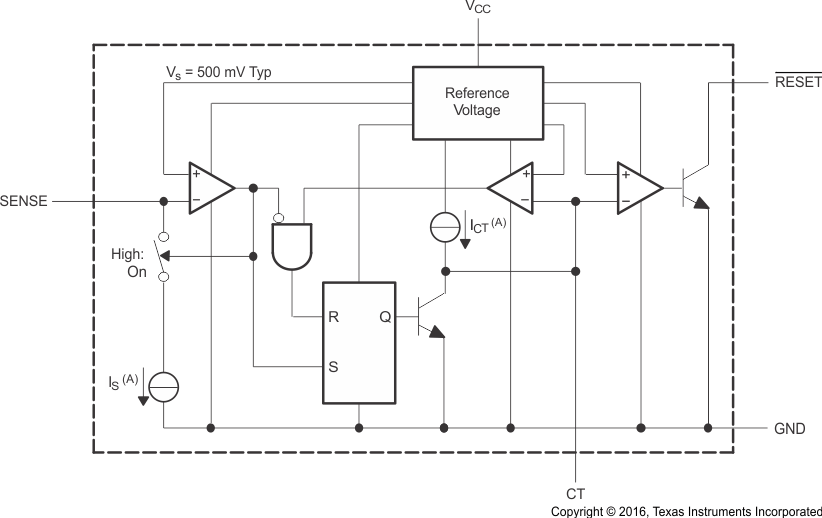

Number of supplies monitored: 1 Threshold voltage 1 (typ) (V): Adjustable Iq (typ) (mA): 0.6 Output driver type/reset output: Active-low, Open-drain Time delay (ms): 0.005 Supply voltage (min) (V): 1.8 Supply voltage (max) (V): 40 Rating: Space Watchdog timer WDI (s): None Operating temperature range (°C): -55 to 125 Number of supplies monitored: 1 Threshold voltage 1 (typ) (V): Adjustable Iq (typ) (mA): 0.6 Output driver type/reset output: Active-low, Open-drain Time delay (ms): 0.005 Supply voltage (min) (V): 1.8 Supply voltage (max) (V): 40 Rating: Space Watchdog timer WDI (s): None Operating temperature range (°C): -55 to 125

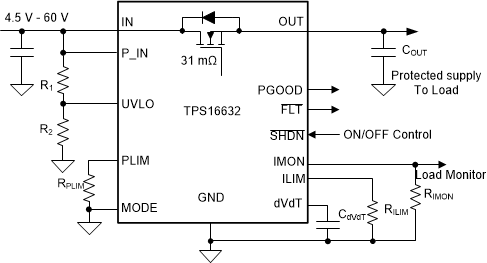

FET: Internal Ron (typ) (mΩ): 31 Vin (min) (V): 4.5 Vin (max) (V): 60 Vabsmax_cont (V): 67 Current limit (min) (A): 0.6 Current limit (max) (A): 6 Overcurrent response: Circuit breaker, Current limiting, current limiting Fault response: Auto-retry, Latch-off Soft start: Adjustable Overvoltage response: Clamp, Cut-off UL recognition: IEC62368, UL2367 TI functional safety category: Functional Safety-Capable Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008 FET: Internal Ron (typ) (mΩ): 31 更多

FET: Internal Ron (typ) (mΩ): 31 Vin (min) (V): 4.5 Vin (max) (V): 60 Vabsmax_cont (V): 67 Current limit (min) (A): 0.6 Current limit (max) (A): 6 Fault response: Auto-retry, Latch-off Soft start: Adjustable Overvoltage response: Clamp, Cut-off UL recognition: IEC62368, UL2367 TI functional safety category: Functional Safety-Capable Rating: Catalog Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008 FET: Internal Ron (typ) (mΩ): 31 Vin (min) (V): 4.5 Vin (max) (V): 60 更多

Number of channels: 1 Vin (min) (V): 1.6 Vin (max) (V): 5.5 Imax (A): 1.5 Ron (typ) (mΩ): 90 Shutdown current (ISD) (typ) (µA): 0.002 Quiescent current (Iq) (typ) (µA): 8 Soft start: Fixed Rise Time Current limit type: Fixed Rating: Catalog Operating temperature range (°C): -40 to 105 FET: Internal Device type: Load switches Number of channels: 1 Vin (min) (V): 1.6 Vin (max) (V): 5.5 Imax (A): 1.5 Ron (typ) (mΩ): 90 Shutdown current (ISD) (typ) (µA): 0.002 Quiescent current (Iq) (typ) (µA): 8 更多

Vin (min) (V): 3.2 Vin (max) (V): 65 Number of channels: 1 Iq (typ) (mA): 0.08 Iq (max) (mA): 0.13 TI functional safety category: Functional Safety-Capable FET: External single FET IGate source (typ) (µA): 11000 IGate sink (typ) (mA): 2370 IGate pulsed (typ) (A): 2.3 Operating temperature range (°C): -40 to 125 VSense reverse (typ) (mV): -11 Design support: EVM Rating: Automotive Imax (A): 250 Shutdown current (ISD) (mA) (A): 0.001 Device type: Ideal diode controller Product type: Ideal diode controller Vin (min) (V): 3.2 Vin (max) (V): 65 更多

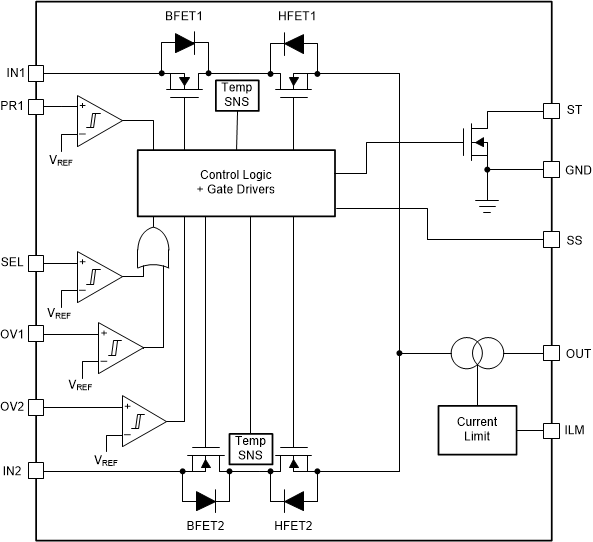

Number of input channels: 2 IN1, IN2 input voltage (min) (V): 2.8 IN1, IN2 input voltage (max) (V): 22 IN1 rDS(on) (typ) (mΩ): 62 IN2 rDS(on) (typ) (mΩ): 62 IN1 output current (max) (A): 3 IN2 output current (max) (A): 3 Rating: Catalog Quiescent current (Iq) (µA): 300 Operating temperature range (°C): -40 to 125 FET: Internal Imax (A): 3 Device type: Power muxes Number of input channels: 2 IN1, IN2 input voltage (min) (V): 2.8 IN1, IN2 input voltage (max) (V): 22 IN1 rDS(on) (typ) (mΩ): 62 IN2 rDS(on) (typ) (mΩ): 62 IN1 output current (max) (A): 3 IN2 output current (max) (A): 3 更多

Vin (min) (V): 10.2 Vin (max) (V): 57 PoE current limit (min) (mA): 405 PoE inrush limit (mA) (typ) (A): 0.14 rDS(on) per FET (typ) (mΩ): 360 PoE standards supported: 802.3at Type 1 (802.3af) PD power level: 13W DC/DC control: PD and DC/DC Fault response: Auto Retry Operating temperature range (°C): -40 to 125 Rating: Catalog Vin (min) (V): 10.2 Vin (max) (V): 57 PoE current limit (min) (mA): 405 PoE inrush limit (mA) (typ) (A): 0.14 rDS(on) per FET (typ) (mΩ): 360 PoE standards supported: 802.3at Type 1 (802.3af) PD power level: 13W DC/DC control: PD and DC/DC Fault response: Auto Retry 更多

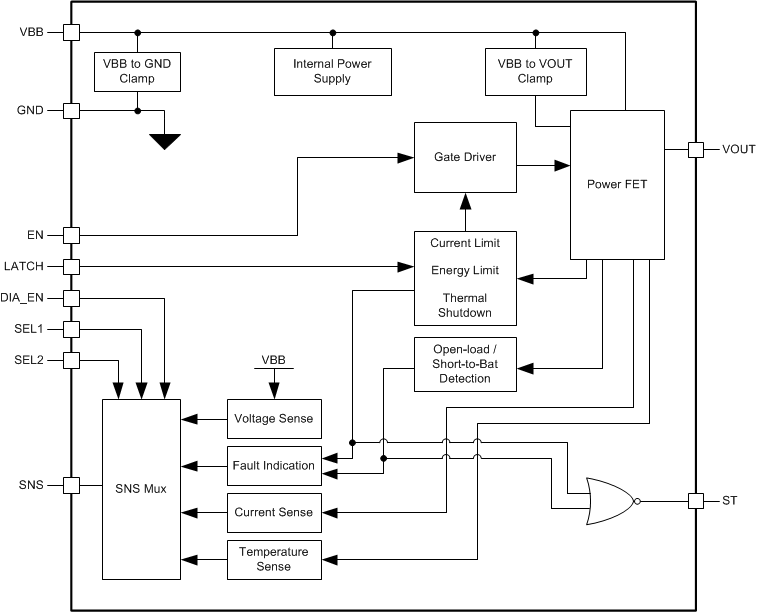

Number of channels: 1 Operating voltage (max) (V): 18 Operating voltage (min) (V): 8 Ron (typ) (mΩ): 8 Imax (A): 10 Current limit (min) (A): 20 Current limit (max) (A): 80 Current limit type: Adjustable TI functional safety category: Functional Safety-Capable Current sense accuracy: +13%/-5% @ 1A FET: Internal Operating temperature range (°C): -40 to 125 Rating: Automotive Number of channels: 1 Operating voltage (max) (V): 18 Operating voltage (min) (V): 8 Ron (typ) (mΩ): 8 Imax (A): 10 Current limit (min) (A): 20 Current limit (max) (A): 80 更多
