TPS22914

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 5.5V、2A、37mΩ 负载开关

Number of channels: 1 Vin (min) (V): 1.05 Vin (max) (V): 5.5 Imax (A): 2 Ron (typ) (mΩ): 38 Shutdown current (ISD) (typ) (µA): 0.5 Quiescent current (Iq) (typ) (µA): 7.7 Soft start: Fixed Rise Time Current limit type: None Rating: Catalog Operating temperature range (°C): -40 to 105 FET: Internal Device type: Load switches Function: Inrush current control Number of channels: 1 Vin (min) (V): 1.05 Vin (max) (V): 5.5 Imax (A): 2 Ron (typ) (mΩ): 38 Shutdown current (ISD) (typ) (µA): 0.5 更多

Quiescent current (Iq) (typ) (µA): 7.7 Soft start: Fixed Rise Time Current limit type: None Rating: Catalog Operating temperature range (°C): -40 to 105 FET: Internal Device type: Load switches Function: Inrush current control

TPS25940

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有反向电流阻断功能和 DevSleep 模式的 2.7V 至 18V、42mΩ、0.6A 至 5.2A 电子保险丝

FET: Internal Ron (typ) (mΩ): 42 Vin (min) (V): 2.7 Vin (max) (V): 18 Vabsmax_cont (V): 20 Current limit (min) (A): 0.6 Current limit (max) (A): 5.2 Overcurrent response: current limiting Soft start: Adjustable Overvoltage response: Cut-off UL recognition: UL2367, UL60950 Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 85 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008 FET: Internal Ron (typ) (mΩ): 42 Vin (min) (V): 2.7 Vin (max) (V): 18 更多

Vabsmax_cont (V): 20 Current limit (min) (A): 0.6 Current limit (max) (A): 5.2 Overcurrent response: current limiting Soft start: Adjustable Overvoltage response: Cut-off UL recognition: UL2367, UL60950 Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 85 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008

TPS25942A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有反向电流阻断、IMON 和 PG 功能的 2.7V 至 18V、42mΩ、0.6A 至 5.2A 电子保险丝

FET: Internal Ron (typ) (mΩ): 42 Vin (min) (V): 2.7 Vin (max) (V): 18 Vabsmax_cont (V): 20 Current limit (min) (A): 0.6 Current limit (max) (A): 5.2 Overcurrent response: current limiting Fault response: Auto-retry Soft start: Adjustable Overvoltage response: Cut-off UL recognition: UL2367, UL60950 Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008 FET: Internal Ron (typ) (mΩ): 42 Vin (min) (V): 2.7 更多

Vin (max) (V): 18 Vabsmax_cont (V): 20 Current limit (min) (A): 0.6 Current limit (max) (A): 5.2 Overcurrent response: current limiting Fault response: Auto-retry Soft start: Adjustable Overvoltage response: Cut-off UL recognition: UL2367, UL60950 Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008

TPS25942L

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有反向电流阻断和闭锁故障响应功能的 2.7V 至 18V、42mΩ、0.6A 至 5.2A 电子保险丝

FET: Internal Ron (typ) (mΩ): 42 Vin (min) (V): 2.7 Vin (max) (V): 18 Vabsmax_cont (V): 20 Current limit (min) (A): 0.6 Current limit (max) (A): 5.2 Overcurrent response: current limiting Fault response: Latch-off Soft start: Adjustable Overvoltage response: Cut-off UL recognition: UL2367, UL60950 Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008 FET: Internal Ron (typ) (mΩ): 42 Vin (min) (V): 2.7 更多

Vin (max) (V): 18 Vabsmax_cont (V): 20 Current limit (min) (A): 0.6 Current limit (max) (A): 5.2 Overcurrent response: current limiting Fault response: Latch-off Soft start: Adjustable Overvoltage response: Cut-off UL recognition: UL2367, UL60950 Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.0058 Quiescent current (Iq) (max) (A): 0.008

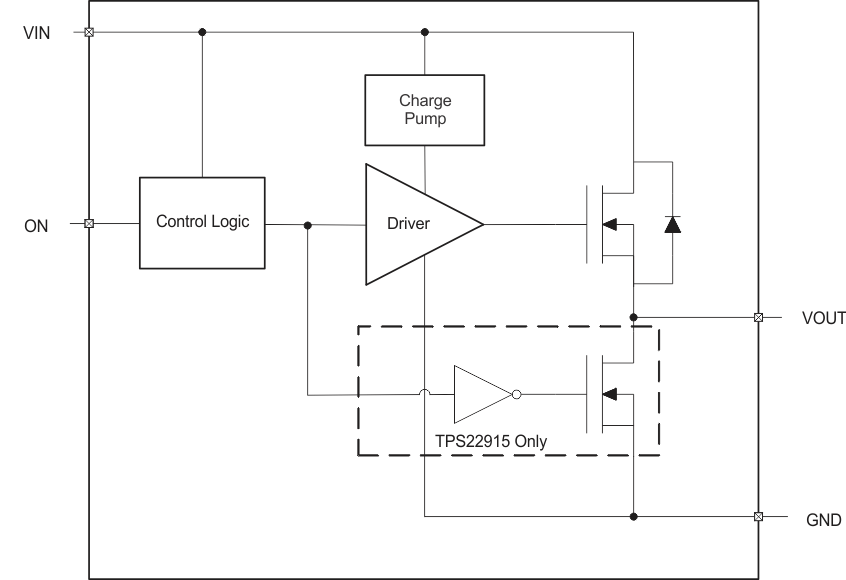

TPS22915

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有输出放电功能的 5.5V、2A、39mΩ 负载开关

Number of channels: 1 Vin (min) (V): 1.05 Vin (max) (V): 5.5 Imax (A): 2 Ron (typ) (mΩ): 38 Shutdown current (ISD) (typ) (µA): 0.5 Quiescent current (Iq) (typ) (µA): 7.7 Soft start: Fixed Rise Time Current limit type: None Features: Quick output discharge Rating: Catalog Operating temperature range (°C): -40 to 105 FET: Internal Device type: Load switches Function: Inrush current control Number of channels: 1 Vin (min) (V): 1.05 Vin (max) (V): 5.5 Imax (A): 2 Ron (typ) (mΩ): 38 更多

Shutdown current (ISD) (typ) (µA): 0.5 Quiescent current (Iq) (typ) (µA): 7.7 Soft start: Fixed Rise Time Current limit type: None Features: Quick output discharge Rating: Catalog Operating temperature range (°C): -40 to 105 FET: Internal Device type: Load switches Function: Inrush current control

TPS22959

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有输出放电功能的 5.5V、15A、4.4mΩ 负载开关

Number of channels: 1 Vin (min) (V): 0.8 Vin (max) (V): 5.5 Imax (A): 15 Ron (typ) (mΩ): 4.4 Shutdown current (ISD) (typ) (µA): 1.1 Quiescent current (Iq) (typ) (µA): 20.4 Soft start: Fixed Rise Time Current limit type: None Features: Quick output discharge Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control Number of channels: 1 Vin (min) (V): 0.8 Vin (max) (V): 5.5 Imax (A): 15 Ron (typ) (mΩ): 4.4 更多

Shutdown current (ISD) (typ) (µA): 1.1 Quiescent current (Iq) (typ) (µA): 20.4 Soft start: Fixed Rise Time Current limit type: None Features: Quick output discharge Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control

TPS22962

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有输出放电功能的 5.5V、10A、4.4mΩ 负载开关

Number of channels: 1 Vin (min) (V): 0.8 Vin (max) (V): 5.5 Imax (A): 10 Ron (typ) (mΩ): 4.4 Shutdown current (ISD) (typ) (µA): 1.1 Quiescent current (Iq) (typ) (µA): 20.4 Soft start: Fixed Rise Time Current limit type: None Features: Quick output discharge Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control Number of channels: 1 Vin (min) (V): 0.8 Vin (max) (V): 5.5 Imax (A): 10 Ron (typ) (mΩ): 4.4 更多

TPS2559

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 高电平有效的 1.2-4.7A 可调节 ILIMIT、2.5-6.5V、13mΩ USB 电源开关

Product type: Adjustable current limit, Power switch Vin (min) (V): 2.5 Vin (max) (V): 6.5 Continuous current (max) (A): 5 Current limit (A): 1.2 to 4.7 Operating temperature range (°C): -40 to 125 Enable: Active High Number of switches: 1 Current limit accuracy at 1 A: 0.04 Rating: Catalog Product type: Adjustable current limit, Power switch Vin (min) (V): 2.5 Vin (max) (V): 6.5 Continuous current (max) (A): 5 Current limit (A): 1.2 to 4.7 Operating temperature range (°C): -40 to 125 Enable: Active High Number of switches: 1 Current limit accuracy at 1 A: 0.04 Rating: Catalog

TPS2561A-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 高电平有效的汽车类双通道 0.25-2.8A 可调节ILIMIT（可实现 2.3±0.2A 设置）、2.5-6.5V、44mΩ USB 电源开关

Product type: Adjustable current limit, Power switch Vin (min) (V): 2.5 Vin (max) (V): 6.5 Continuous current (max) (A): 2.5 Current limit (A): 0.25 to 2.5 Operating temperature range (°C): -40 to 125 Enable: Active High Number of switches: 2 Current limit accuracy at 1 A: 2.1A Min / 2.5A Max Setting (Including Resistor) Rating: Automotive Product type: Adjustable current limit, Power switch Vin (min) (V): 2.5 Vin (max) (V): 6.5 Continuous current (max) (A): 2.5 Current limit (A): 0.25 to 2.5 Operating temperature range (°C): -40 to 125 Enable: Active High Number of switches: 2 Current limit accuracy at 1 A: 2.1A Min / 2.5A Max Setting (Including Resistor) Rating: Automotive

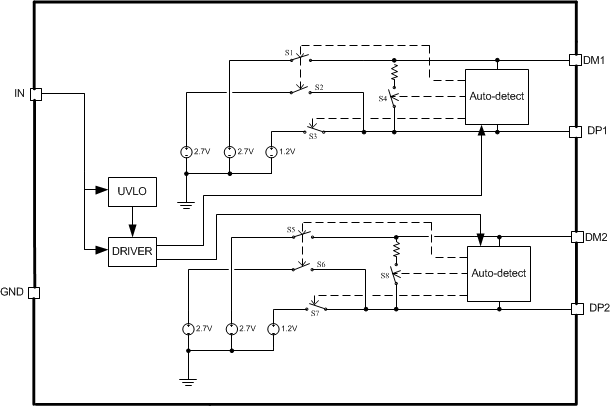

TPS2513A-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 汽车类 USB 充电端口双通道 DP/DM 管理器

Product type: Charge port controller Vin (min) (V): 4.5 Vin (max) (V): 5.5 Operating temperature range (°C): -40 to 125 Rating: Automotive Product type: Charge port controller Vin (min) (V): 4.5 Vin (max) (V): 5.5 Operating temperature range (°C): -40 to 125 Rating: Automotive
