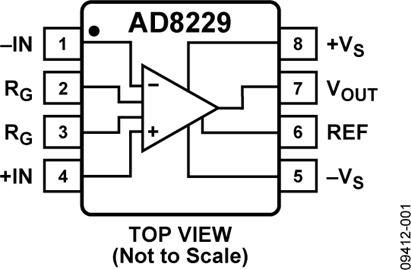

Product Lifecycle: 量产
Package: 8-Lead Side Brazed CerDIP,CHIPS OR DIE,8-Lead SOIC
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 15MHz
Ibias (max): 70nA
Input Voltage Noise (typ): 1nV/rtHz
Iq/Amp (max): 7mA
Vs span (min): 8V
Vs span (max): 34V
Slew Rate (typ): 22V/us
Short Circuit Current: 35mA
0.1 to 10 Hz VNoise (typ): 100nV p-p
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 134dB
Current Noise Density (typ): 1.5pA/rtHz
更多
In V+ Headroom (max): 2.5V
In V- Headroom (max): 2.8V
Out V+ Headroom (max): 1.5V
Out V- Headroom (max): 1.9V
Output Voltage Noise (typ): 45nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.03%
Ios (max): 35nA
0.1 to 10 Hz Current Noise (typ): 100pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Reliability Level: DIE,High Temp
Temp Range: -40 to 210°C
Package Area: 31mm² (8-Lead SOIC) (AD8229HRZ)mm²
Package Height: 1.75mm (8-Lead SOIC) (AD8229HRZ)mm
Launch Date: 2011-02-03
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 1.5pF
Ccm (typ): 6pF
Rdiff (typ): 3GOhms
Rcm (typ): 750MOhms
Output Type: Single Ended
Iq/Amp (typ): 6.7mA
Product Lifecycle: 量产
Package: 8-Lead Side Brazed CerDIP,CHIPS OR DIE,8-Lead SOIC
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 15MHz
Ibias (max): 70nA
Input Voltage Noise (typ): 1nV/rtHz
Iq/Amp (max): 7mA
Vs span (min): 8V
Vs span (max): 34V
Slew Rate (typ): 22V/us
Short Circuit Current: 35mA
0.1 to 10 Hz VNoise (typ): 100nV p-p
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 134dB
Current Noise Density (typ): 1.5pA/rtHz
更多
In V+ Headroom (max): 2.5V
In V- Headroom (max): 2.8V
Out V+ Headroom (max): 1.5V
Out V- Headroom (max): 1.9V
Output Voltage Noise (typ): 45nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.03%
Ios (max): 35nA
0.1 to 10 Hz Current Noise (typ): 100pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Reliability Level: DIE,High Temp
Temp Range: -40 to 210°C
Package Area: 31mm² (8-Lead SOIC) (AD8229HRZ)mm²
Package Height: 1.75mm (8-Lead SOIC) (AD8229HRZ)mm
Launch Date: 2011-02-03
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 1.5pF
Ccm (typ): 6pF
Rdiff (typ): 3GOhms
Rcm (typ): 750MOhms
Output Type: Single Ended
Iq/Amp (typ): 6.7mA
Product Lifecycle: 量产
Package: 8-Lead Side Brazed CerDIP,CHIPS OR DIE,8-Lead SOIC
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 15MHz
Ibias (max): 70nA
Input Voltage Noise (typ): 1nV/rtHz
Iq/Amp (max): 7mA
Vs span (min): 8V
Vs span (max): 34V
Slew Rate (typ): 22V/us
Short Circuit Current: 35mA
0.1 to 10 Hz VNoise (typ): 100nV p-p
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 134dB
Current Noise Density (typ): 1.5pA/rtHz
更多
In V+ Headroom (max): 2.5V
In V- Headroom (max): 2.8V
Out V+ Headroom (max): 1.5V
Out V- Headroom (max): 1.9V
Output Voltage Noise (typ): 45nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.03%
Ios (max): 35nA
0.1 to 10 Hz Current Noise (typ): 100pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Reliability Level: DIE,High Temp
Temp Range: -40 to 210°C
Package Area: 31mm² (8-Lead SOIC) (AD8229HRZ)mm²
Package Height: 1.75mm (8-Lead SOIC) (AD8229HRZ)mm
Launch Date: 2011-02-03
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 1.5pF
Ccm (typ): 6pF
Rdiff (typ): 3GOhms
Rcm (typ): 750MOhms
Output Type: Single Ended
Iq/Amp (typ): 6.7mA
Product Lifecycle: 量产
Package: 8-Lead Side Brazed CerDIP,CHIPS OR DIE,8-Lead SOIC
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 15MHz
Ibias (max): 70nA
Input Voltage Noise (typ): 1nV/rtHz
Iq/Amp (max): 7mA
Vs span (min): 8V
Vs span (max): 34V
Slew Rate (typ): 22V/us
Short Circuit Current: 35mA
0.1 to 10 Hz VNoise (typ): 100nV p-p
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 134dB
Current Noise Density (typ): 1.5pA/rtHz
更多
In V+ Headroom (max): 2.5V
In V- Headroom (max): 2.8V
Out V+ Headroom (max): 1.5V
Out V- Headroom (max): 1.9V
Output Voltage Noise (typ): 45nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.03%
Ios (max): 35nA
0.1 to 10 Hz Current Noise (typ): 100pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Reliability Level: DIE,High Temp
Temp Range: -40 to 210°C
Package Area: 31mm² (8-Lead SOIC) (AD8229HRZ)mm²
Package Height: 1.75mm (8-Lead SOIC) (AD8229HRZ)mm
Launch Date: 2011-02-03
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 1.5pF
Ccm (typ): 6pF
Rdiff (typ): 3GOhms
Rcm (typ): 750MOhms
Output Type: Single Ended
Iq/Amp (typ): 6.7mA

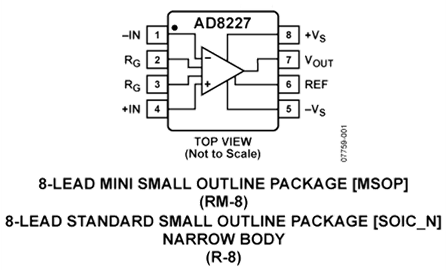

Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP,N/A
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 250kHz
Ibias (max): 27nA
Input Voltage Noise (typ): 24nV/rtHz
Iq/Amp (max): 425µA
Vs span (min): 2.2V
Vs span (max): 36V
Slew Rate (typ): 800mV/us
Short Circuit Current: 13mA
0.1 to 10 Hz VNoise (typ): 500nV p-p
Ibias TC (typ): 70pA/°C
CMRR - Low Gain (min): 100dB
CMRR - High Gain (min): 110dB
更多
Current Noise Density (typ): 100fA/rtHz
In V+ Headroom (max): 800mV
In V- Headroom (max): -100mV
Out V+ Headroom (max): 300mV
Out V- Headroom (max): 200mV
Output Voltage Noise (typ): 310nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.15%
Gain Error - Low Gain (max): 0.02%
Ios (max): 1.5nA
Ios drift (typ): 5pA/°C
Rail to Rail: Output
0.1 to 10 Hz Current Noise (typ): 3pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 125°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8227ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8227ARMZ)mm
Launch Date: 2009-06-04
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: Over Voltage Protection (OVP)
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 800MOhms
Rcm (typ): 400MOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP,N/A
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 250kHz
Ibias (max): 27nA
Input Voltage Noise (typ): 24nV/rtHz
Iq/Amp (max): 425µA
Vs span (min): 2.2V
Vs span (max): 36V
Slew Rate (typ): 800mV/us
Short Circuit Current: 13mA
0.1 to 10 Hz VNoise (typ): 500nV p-p
Ibias TC (typ): 70pA/°C
CMRR - Low Gain (min): 100dB
CMRR - High Gain (min): 110dB
更多
Current Noise Density (typ): 100fA/rtHz
In V+ Headroom (max): 800mV
In V- Headroom (max): -100mV
Out V+ Headroom (max): 300mV
Out V- Headroom (max): 200mV
Output Voltage Noise (typ): 310nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.15%
Gain Error - Low Gain (max): 0.02%
Ios (max): 1.5nA
Ios drift (typ): 5pA/°C
Rail to Rail: Output
0.1 to 10 Hz Current Noise (typ): 3pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 125°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8227ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8227ARMZ)mm
Launch Date: 2009-06-04
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: Over Voltage Protection (OVP)
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 800MOhms
Rcm (typ): 400MOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP,N/A
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 250kHz
Ibias (max): 27nA
Input Voltage Noise (typ): 24nV/rtHz
Iq/Amp (max): 425µA
Vs span (min): 2.2V
Vs span (max): 36V
Slew Rate (typ): 800mV/us
Short Circuit Current: 13mA
0.1 to 10 Hz VNoise (typ): 500nV p-p
Ibias TC (typ): 70pA/°C
CMRR - Low Gain (min): 100dB
CMRR - High Gain (min): 110dB
更多
Current Noise Density (typ): 100fA/rtHz
In V+ Headroom (max): 800mV
In V- Headroom (max): -100mV
Out V+ Headroom (max): 300mV
Out V- Headroom (max): 200mV
Output Voltage Noise (typ): 310nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.15%
Gain Error - Low Gain (max): 0.02%
Ios (max): 1.5nA
Ios drift (typ): 5pA/°C
Rail to Rail: Output
0.1 to 10 Hz Current Noise (typ): 3pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 125°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8227ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8227ARMZ)mm
Launch Date: 2009-06-04
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: Over Voltage Protection (OVP)
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 800MOhms
Rcm (typ): 400MOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP,N/A
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 250kHz
Ibias (max): 27nA
Input Voltage Noise (typ): 24nV/rtHz
Iq/Amp (max): 425µA
Vs span (min): 2.2V
Vs span (max): 36V
Slew Rate (typ): 800mV/us
Short Circuit Current: 13mA
0.1 to 10 Hz VNoise (typ): 500nV p-p
Ibias TC (typ): 70pA/°C
CMRR - Low Gain (min): 100dB
CMRR - High Gain (min): 110dB
更多
Current Noise Density (typ): 100fA/rtHz
In V+ Headroom (max): 800mV
In V- Headroom (max): -100mV
Out V+ Headroom (max): 300mV
Out V- Headroom (max): 200mV
Output Voltage Noise (typ): 310nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.15%
Gain Error - Low Gain (max): 0.02%
Ios (max): 1.5nA
Ios drift (typ): 5pA/°C
Rail to Rail: Output
0.1 to 10 Hz Current Noise (typ): 3pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 125°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8227ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8227ARMZ)mm
Launch Date: 2009-06-04
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: Over Voltage Protection (OVP)
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 800MOhms
Rcm (typ): 400MOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP,N/A
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 250kHz
Ibias (max): 27nA
Input Voltage Noise (typ): 24nV/rtHz
Iq/Amp (max): 425µA
Vs span (min): 2.2V
Vs span (max): 36V
Slew Rate (typ): 800mV/us
Short Circuit Current: 13mA
0.1 to 10 Hz VNoise (typ): 500nV p-p
Ibias TC (typ): 70pA/°C
CMRR - Low Gain (min): 100dB
CMRR - High Gain (min): 110dB
更多
Current Noise Density (typ): 100fA/rtHz
In V+ Headroom (max): 800mV
In V- Headroom (max): -100mV
Out V+ Headroom (max): 300mV
Out V- Headroom (max): 200mV
Output Voltage Noise (typ): 310nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.15%
Gain Error - Low Gain (max): 0.02%
Ios (max): 1.5nA
Ios drift (typ): 5pA/°C
Rail to Rail: Output
0.1 to 10 Hz Current Noise (typ): 3pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 125°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8227ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8227ARMZ)mm
Launch Date: 2009-06-04
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: Over Voltage Protection (OVP)
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 800MOhms
Rcm (typ): 400MOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP,N/A
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 250kHz
Ibias (max): 27nA
Input Voltage Noise (typ): 24nV/rtHz
Iq/Amp (max): 425µA
Vs span (min): 2.2V
Vs span (max): 36V
Slew Rate (typ): 800mV/us
Short Circuit Current: 13mA
0.1 to 10 Hz VNoise (typ): 500nV p-p
Ibias TC (typ): 70pA/°C
CMRR - Low Gain (min): 100dB
CMRR - High Gain (min): 110dB
更多
Current Noise Density (typ): 100fA/rtHz
In V+ Headroom (max): 800mV
In V- Headroom (max): -100mV
Out V+ Headroom (max): 300mV
Out V- Headroom (max): 200mV
Output Voltage Noise (typ): 310nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 100ppm/°C
Gain Error - High Gain (max): 0.15%
Gain Error - Low Gain (max): 0.02%
Ios (max): 1.5nA
Ios drift (typ): 5pA/°C
Rail to Rail: Output
0.1 to 10 Hz Current Noise (typ): 3pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 125°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8227ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8227ARMZ)mm
Launch Date: 2009-06-04
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: Over Voltage Protection (OVP)
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 800MOhms
Rcm (typ): 400MOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
