AD8226BRZ


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 宽电源电压范围、轨到轨输出仪表放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP # of Amps: 1 Vos (max): 50µV Vos TC (max): 1µV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.5MHz Ibias (max): 27nA Input Voltage Noise (typ): 22nV/rtHz Iq/Amp (max): 425µA Vs span (min): 2.2V Vs span (max): 36V Slew Rate (typ): 600mV/us Short Circuit Current: 13mA 0.1 to 10 Hz VNoise (typ): 400nV p-p Ibias TC (typ): 70pA/°C CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 120dB
Current Noise Density (typ): 100fA/rtHz In V+ Headroom (max): 800mV In V- Headroom (max): -100mV Out V+ Headroom (max): 100mV Out V- Headroom (max): 100mV Output Voltage Noise (typ): 120nV/rtHz Gain TC - Low Gain (max): 2ppm/°C Gain TC - High Gain (max): 100ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.01% Ios (max): 500pA Ios drift (typ): 5pA/°C Rail to Rail: Output 0.1 to 10 Hz Current Noise (typ): 3pA p-p Eval / Ref Circuit: Evaluation board, Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 125°C Package Area: 16.48mm² (8-Lead MSOP) (AD8226ARMZ)mm² Package Height: 1.1mm (8-Lead MSOP) (AD8226ARMZ)mm Launch Date: 2008-10-09 EP: No Design Tools: In-Amp Diamond Plot Tool, LTspice Amp Features: Over Voltage Protection (OVP) Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 800MOhms Rcm (typ): 400MOhms Output Type: Single Ended Iq/Amp (typ): 350µA

AD8226BRZ-R7


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 宽电源电压范围、轨到轨输出仪表放大器

Product Lifecycle: 量产 Package: 8-Lead SOIC,8-Lead MSOP # of Amps: 1 Vos (max): 50µV Vos TC (max): 1µV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.5MHz Ibias (max): 27nA Input Voltage Noise (typ): 22nV/rtHz Iq/Amp (max): 425µA Vs span (min): 2.2V Vs span (max): 36V Slew Rate (typ): 600mV/us Short Circuit Current: 13mA 0.1 to 10 Hz VNoise (typ): 400nV p-p Ibias TC (typ): 70pA/°C CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 120dB
Current Noise Density (typ): 100fA/rtHz In V+ Headroom (max): 800mV In V- Headroom (max): -100mV Out V+ Headroom (max): 100mV Out V- Headroom (max): 100mV Output Voltage Noise (typ): 120nV/rtHz Gain TC - Low Gain (max): 2ppm/°C Gain TC - High Gain (max): 100ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.01% Ios (max): 500pA Ios drift (typ): 5pA/°C Rail to Rail: Output 0.1 to 10 Hz Current Noise (typ): 3pA p-p Eval / Ref Circuit: Evaluation board, Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 125°C Package Area: 16.48mm² (8-Lead MSOP) (AD8226ARMZ)mm² Package Height: 1.1mm (8-Lead MSOP) (AD8226ARMZ)mm Launch Date: 2008-10-09 EP: No Design Tools: In-Amp Diamond Plot Tool, LTspice Amp Features: Over Voltage Protection (OVP) Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 800MOhms Rcm (typ): 400MOhms Output Type: Single Ended Iq/Amp (typ): 350µA

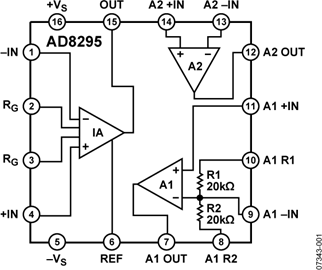

AD8295ACPZ-R7


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 精密仪表放大器，内置信号处理放大器

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm x 0.85mm) # of Amps: 1 Vos (max): 60µV Vos TC (max): 300nV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.2MHz Ibias (max): 800pA Input Voltage Noise (typ): 8nV/rtHz Iq/Amp (max): 2.3mA Vs span (min): 4.6V Vs span (max): 36V Slew Rate (typ): 2.5V/us Short Circuit Current: 18mA 0.1 to 10 Hz VNoise (typ): 250nV p-p CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 140dB Current Noise Density (typ): 40fA/rtHz
In V+ Headroom (max): 1.2V In V- Headroom (max): 1.9V Out V+ Headroom (max): 1.4V Out V- Headroom (max): 1.2V Output Voltage Noise (typ): 75nV/rtHz Gain TC - Low Gain (max): 1ppm/°C Gain TC - High Gain (max): 50ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.02% Ios (max): 500pA Ios drift (typ): 500fA/°C 0.1 to 10 Hz Current Noise (typ): 6pA p-p Eval / Ref Circuit: Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm² Package Height: 1mm (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm Launch Date: 2008-10-08 EP: No Amp Features: Signal Processing Amplifiers Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 100GOhms Rcm (typ): 100GOhms Output Type: Single Ended Iq/Amp (typ): 2mA

AD8295ACPZ-RL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 精密仪表放大器，内置信号处理放大器

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm x 0.85mm) # of Amps: 1 Vos (max): 60µV Vos TC (max): 300nV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.2MHz Ibias (max): 800pA Input Voltage Noise (typ): 8nV/rtHz Iq/Amp (max): 2.3mA Vs span (min): 4.6V Vs span (max): 36V Slew Rate (typ): 2.5V/us Short Circuit Current: 18mA 0.1 to 10 Hz VNoise (typ): 250nV p-p CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 140dB Current Noise Density (typ): 40fA/rtHz
In V+ Headroom (max): 1.2V In V- Headroom (max): 1.9V Out V+ Headroom (max): 1.4V Out V- Headroom (max): 1.2V Output Voltage Noise (typ): 75nV/rtHz Gain TC - Low Gain (max): 1ppm/°C Gain TC - High Gain (max): 50ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.02% Ios (max): 500pA Ios drift (typ): 500fA/°C 0.1 to 10 Hz Current Noise (typ): 6pA p-p Eval / Ref Circuit: Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm² Package Height: 1mm (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm Launch Date: 2008-10-08 EP: No Amp Features: Signal Processing Amplifiers Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 100GOhms Rcm (typ): 100GOhms Output Type: Single Ended Iq/Amp (typ): 2mA

AD8295ACPZ-WP


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 精密仪表放大器，内置信号处理放大器

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm x 0.85mm) # of Amps: 1 Vos (max): 60µV Vos TC (max): 300nV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.2MHz Ibias (max): 800pA Input Voltage Noise (typ): 8nV/rtHz Iq/Amp (max): 2.3mA Vs span (min): 4.6V Vs span (max): 36V Slew Rate (typ): 2.5V/us Short Circuit Current: 18mA 0.1 to 10 Hz VNoise (typ): 250nV p-p CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 140dB Current Noise Density (typ): 40fA/rtHz
In V+ Headroom (max): 1.2V In V- Headroom (max): 1.9V Out V+ Headroom (max): 1.4V Out V- Headroom (max): 1.2V Output Voltage Noise (typ): 75nV/rtHz Gain TC - Low Gain (max): 1ppm/°C Gain TC - High Gain (max): 50ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.02% Ios (max): 500pA Ios drift (typ): 500fA/°C 0.1 to 10 Hz Current Noise (typ): 6pA p-p Eval / Ref Circuit: Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm² Package Height: 1mm (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm Launch Date: 2008-10-08 EP: No Amp Features: Signal Processing Amplifiers Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 100GOhms Rcm (typ): 100GOhms Output Type: Single Ended Iq/Amp (typ): 2mA

AD8295BCPZ-R7


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 精密仪表放大器，内置信号处理放大器

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm x 0.85mm) # of Amps: 1 Vos (max): 60µV Vos TC (max): 300nV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.2MHz Ibias (max): 800pA Input Voltage Noise (typ): 8nV/rtHz Iq/Amp (max): 2.3mA Vs span (min): 4.6V Vs span (max): 36V Slew Rate (typ): 2.5V/us Short Circuit Current: 18mA 0.1 to 10 Hz VNoise (typ): 250nV p-p CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 140dB Current Noise Density (typ): 40fA/rtHz
In V+ Headroom (max): 1.2V In V- Headroom (max): 1.9V Out V+ Headroom (max): 1.4V Out V- Headroom (max): 1.2V Output Voltage Noise (typ): 75nV/rtHz Gain TC - Low Gain (max): 1ppm/°C Gain TC - High Gain (max): 50ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.02% Ios (max): 500pA Ios drift (typ): 500fA/°C 0.1 to 10 Hz Current Noise (typ): 6pA p-p Eval / Ref Circuit: Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm² Package Height: 1mm (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm Launch Date: 2008-10-08 EP: No Amp Features: Signal Processing Amplifiers Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 100GOhms Rcm (typ): 100GOhms Output Type: Single Ended Iq/Amp (typ): 2mA

AD8295BCPZ-RL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 精密仪表放大器，内置信号处理放大器

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm x 0.85mm) # of Amps: 1 Vos (max): 60µV Vos TC (max): 300nV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.2MHz Ibias (max): 800pA Input Voltage Noise (typ): 8nV/rtHz Iq/Amp (max): 2.3mA Vs span (min): 4.6V Vs span (max): 36V Slew Rate (typ): 2.5V/us Short Circuit Current: 18mA 0.1 to 10 Hz VNoise (typ): 250nV p-p CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 140dB Current Noise Density (typ): 40fA/rtHz
In V+ Headroom (max): 1.2V In V- Headroom (max): 1.9V Out V+ Headroom (max): 1.4V Out V- Headroom (max): 1.2V Output Voltage Noise (typ): 75nV/rtHz Gain TC - Low Gain (max): 1ppm/°C Gain TC - High Gain (max): 50ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.02% Ios (max): 500pA Ios drift (typ): 500fA/°C 0.1 to 10 Hz Current Noise (typ): 6pA p-p Eval / Ref Circuit: Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm² Package Height: 1mm (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm Launch Date: 2008-10-08 EP: No Amp Features: Signal Processing Amplifiers Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 100GOhms Rcm (typ): 100GOhms Output Type: Single Ended Iq/Amp (typ): 2mA

AD8295BCPZ-WP


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 精密仪表放大器，内置信号处理放大器

Product Lifecycle: 量产 Package: 16-Lead LFCSP (4mm x 4mm x 0.85mm) # of Amps: 1 Vos (max): 60µV Vos TC (max): 300nV/°C Gain Set: Resistor Gain (min): 1V/V Gain (max): 1000V/V BW - low gain (typ): 1.2MHz Ibias (max): 800pA Input Voltage Noise (typ): 8nV/rtHz Iq/Amp (max): 2.3mA Vs span (min): 4.6V Vs span (max): 36V Slew Rate (typ): 2.5V/us Short Circuit Current: 18mA 0.1 to 10 Hz VNoise (typ): 250nV p-p CMRR - Low Gain (min): 90dB CMRR - High Gain (min): 140dB Current Noise Density (typ): 40fA/rtHz
In V+ Headroom (max): 1.2V In V- Headroom (max): 1.9V Out V+ Headroom (max): 1.4V Out V- Headroom (max): 1.2V Output Voltage Noise (typ): 75nV/rtHz Gain TC - Low Gain (max): 1ppm/°C Gain TC - High Gain (max): 50ppm/°C Gain Error - High Gain (max): 0.1% Gain Error - Low Gain (max): 0.02% Ios (max): 500pA Ios drift (typ): 500fA/°C 0.1 to 10 Hz Current Noise (typ): 6pA p-p Eval / Ref Circuit: Reference circuit Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm² Package Height: 1mm (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8295ACPZ-R7)mm Launch Date: 2008-10-08 EP: No Amp Features: Signal Processing Amplifiers Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 100GOhms Rcm (typ): 100GOhms Output Type: Single Ended Iq/Amp (typ): 2mA

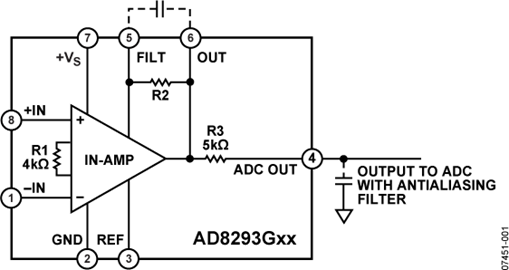

AD8293G160ARJZ-R7


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 低成本、零漂移仪表放大器，内置滤波器，具有固定增益G = 160

Product Lifecycle: 量产 Package: 8-Lead SOT-23 # of Amps: 1 Vos (max): 50µV Vos TC (max): 300nV/°C Gain Set: Fixed Gain Gain (min): 160V/V Gain (max): 160V/V BW - low gain (typ): 500kHz Ibias (max): 2nA Input Voltage Noise (typ): 35nV/rtHz Iq/Amp (max): 1.3mA Vs span (min): 1.8V Vs span (max): 5.5V Short Circuit Current: 35mA 0.1 to 10 Hz VNoise (typ): 700nV p-p CMRR - Low Gain (min): 94dB CMRR - High Gain (min): 94dB In V+ Headroom (max): 1.7V Out V+ Headroom (max): 75mV
Out V- Headroom (max): 75mV Gain TC - Low Gain (max): 25ppm/°C Gain Error - High Gain (max): 1% Gain Error - Low Gain (max): 1% Ios (max): 4nA Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 9mm² (8-Lead SOT-23) (AD8293G160ARJZ-R7)mm² Package Height: 1.45mm (8-Lead SOT-23) (AD8293G160ARJZ-R7)mm Launch Date: 2008-07-23 EP: No Amp Features: Filter Option Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 800MOhms Rcm (typ): 400MOhms Output Type: Single Ended Iq/Amp (typ): 1mA

AD8293G160ARJZ-RL


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 低成本、零漂移仪表放大器，内置滤波器，具有固定增益G = 160

Product Lifecycle: 量产 Package: 8-Lead SOT-23 # of Amps: 1 Vos (max): 50µV Vos TC (max): 300nV/°C Gain Set: Fixed Gain Gain (min): 160V/V Gain (max): 160V/V BW - low gain (typ): 500kHz Ibias (max): 2nA Input Voltage Noise (typ): 35nV/rtHz Iq/Amp (max): 1.3mA Vs span (min): 1.8V Vs span (max): 5.5V Short Circuit Current: 35mA 0.1 to 10 Hz VNoise (typ): 700nV p-p CMRR - Low Gain (min): 94dB CMRR - High Gain (min): 94dB In V+ Headroom (max): 1.7V Out V+ Headroom (max): 75mV
Out V- Headroom (max): 75mV Gain TC - Low Gain (max): 25ppm/°C Gain Error - High Gain (max): 1% Gain Error - Low Gain (max): 1% Ios (max): 4nA Export Classification: EAR99 Automotive: No Temp Range: -40 to 85°C Package Area: 9mm² (8-Lead SOT-23) (AD8293G160ARJZ-R7)mm² Package Height: 1.45mm (8-Lead SOT-23) (AD8293G160ARJZ-R7)mm Launch Date: 2008-07-23 EP: No Amp Features: Filter Option Cdiff (typ): 2pF Ccm (typ): 2pF Rdiff (typ): 800MOhms Rcm (typ): 400MOhms Output Type: Single Ended Iq/Amp (typ): 1mA
