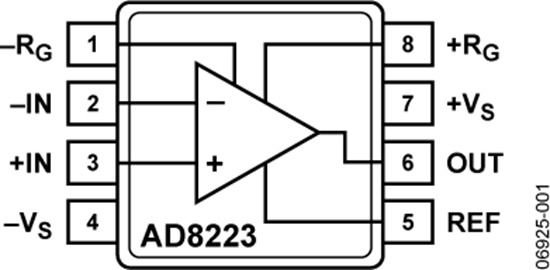

Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 125kHz
Ibias (max): 25nA
Input Voltage Noise (typ): 30nV/rtHz
Iq/Amp (max): 500µA
Vs span (min): 3V
Vs span (max): 24V
Slew Rate (typ): 300mV/us
0.1 to 10 Hz VNoise (typ): 600nV p-p
Ibias TC (typ): 50pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 96dB
Current Noise Density (typ): 70fA/rtHz
更多
In V+ Headroom (max): 1.5V
In V- Headroom (max): -150mV
Out V+ Headroom (max): 800mV
Out V- Headroom (max): 300mV
Output Voltage Noise (typ): 200nV/rtHz
Gain TC - Low Gain (max): 2ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.02%
Ios (max): 2nA
Ios drift (typ): 5pA/°C
0.1 to 10 Hz Current Noise (typ): 1.2pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8223ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8223ARMZ)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 2GOhms
Rcm (typ): 2GOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 125kHz
Ibias (max): 25nA
Input Voltage Noise (typ): 30nV/rtHz
Iq/Amp (max): 500µA
Vs span (min): 3V
Vs span (max): 24V
Slew Rate (typ): 300mV/us
0.1 to 10 Hz VNoise (typ): 600nV p-p
Ibias TC (typ): 50pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 96dB
Current Noise Density (typ): 70fA/rtHz
更多
In V+ Headroom (max): 1.5V
In V- Headroom (max): -150mV
Out V+ Headroom (max): 800mV
Out V- Headroom (max): 300mV
Output Voltage Noise (typ): 200nV/rtHz
Gain TC - Low Gain (max): 2ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.02%
Ios (max): 2nA
Ios drift (typ): 5pA/°C
0.1 to 10 Hz Current Noise (typ): 1.2pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8223ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8223ARMZ)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 2GOhms
Rcm (typ): 2GOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 125kHz
Ibias (max): 25nA
Input Voltage Noise (typ): 30nV/rtHz
Iq/Amp (max): 500µA
Vs span (min): 3V
Vs span (max): 24V
Slew Rate (typ): 300mV/us
0.1 to 10 Hz VNoise (typ): 600nV p-p
Ibias TC (typ): 50pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 96dB
Current Noise Density (typ): 70fA/rtHz
更多
In V+ Headroom (max): 1.5V
In V- Headroom (max): -150mV
Out V+ Headroom (max): 800mV
Out V- Headroom (max): 300mV
Output Voltage Noise (typ): 200nV/rtHz
Gain TC - Low Gain (max): 2ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.02%
Ios (max): 2nA
Ios drift (typ): 5pA/°C
0.1 to 10 Hz Current Noise (typ): 1.2pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8223ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8223ARMZ)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 2GOhms
Rcm (typ): 2GOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 125kHz
Ibias (max): 25nA
Input Voltage Noise (typ): 30nV/rtHz
Iq/Amp (max): 500µA
Vs span (min): 3V
Vs span (max): 24V
Slew Rate (typ): 300mV/us
0.1 to 10 Hz VNoise (typ): 600nV p-p
Ibias TC (typ): 50pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 96dB
Current Noise Density (typ): 70fA/rtHz
更多
In V+ Headroom (max): 1.5V
In V- Headroom (max): -150mV
Out V+ Headroom (max): 800mV
Out V- Headroom (max): 300mV
Output Voltage Noise (typ): 200nV/rtHz
Gain TC - Low Gain (max): 2ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.02%
Ios (max): 2nA
Ios drift (typ): 5pA/°C
0.1 to 10 Hz Current Noise (typ): 1.2pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8223ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8223ARMZ)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 2GOhms
Rcm (typ): 2GOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
Package: 8-Lead SOIC,8-Lead MSOP
# of Amps: 1
Vos (max): 100µV
Vos TC (max): 1µV/°C
Gain Set: Resistor
Gain (min): 5V/V
Gain (max): 1000V/V
BW - low gain (typ): 125kHz
Ibias (max): 25nA
Input Voltage Noise (typ): 30nV/rtHz
Iq/Amp (max): 500µA
Vs span (min): 3V
Vs span (max): 24V
Slew Rate (typ): 300mV/us
0.1 to 10 Hz VNoise (typ): 600nV p-p
Ibias TC (typ): 50pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 96dB
Current Noise Density (typ): 70fA/rtHz
更多
In V+ Headroom (max): 1.5V
In V- Headroom (max): -150mV
Out V+ Headroom (max): 800mV
Out V- Headroom (max): 300mV
Output Voltage Noise (typ): 200nV/rtHz
Gain TC - Low Gain (max): 2ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.3%
Gain Error - Low Gain (max): 0.02%
Ios (max): 2nA
Ios drift (typ): 5pA/°C
0.1 to 10 Hz Current Noise (typ): 1.2pA p-p
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16.48mm² (8-Lead MSOP) (AD8223ARMZ)mm²
Package Height: 1.1mm (8-Lead MSOP) (AD8223ARMZ)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool
Cdiff (typ): 2pF
Ccm (typ): 2pF
Rdiff (typ): 2GOhms
Rcm (typ): 2GOhms
Output Type: Single Ended
Iq/Amp (typ): 350µA
Product Lifecycle: 量产
# of Amps: 2
Vos (max): 175µV
Vos TC (max): 5µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 1.5MHz
Ibias (max): 10pA
Input Voltage Noise (typ): 14nV/rtHz
Iq/Amp (max): 800µA
Vs span (min): 4.5V
Vs span (max): 36V
Short Circuit Current: 15mA
0.1 to 10 Hz VNoise (typ): 800nV p-p
Ibias TC (typ): 300pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 100dB
Current Noise Density (typ): 1fA/rtHz
In V+ Headroom (max): 2V
更多
In V- Headroom (max): -100mV
Out V+ Headroom (max): 750mV
Out V- Headroom (max): 750mV
Output Voltage Noise (typ): 90nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.2%
Gain Error - Low Gain (max): 0.04%
Ios (max): 600fA
Ios drift (typ): 5pA/°C
Rail to Rail: Both
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8224HACPZ-R7)mm²
Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm w/ EP)) (AD8224ACPZ-R7)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: JFET Input
Cdiff (typ): 3pF
Ccm (typ): 12pF
Rdiff (typ): 20TOhms
Rcm (typ): 5TOhms
Output Type: Single Ended
Iq/Amp (typ): 750µA
Product Lifecycle: 量产
# of Amps: 2
Vos (max): 175µV
Vos TC (max): 5µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 1.5MHz
Ibias (max): 10pA
Input Voltage Noise (typ): 14nV/rtHz
Iq/Amp (max): 800µA
Vs span (min): 4.5V
Vs span (max): 36V
Short Circuit Current: 15mA
0.1 to 10 Hz VNoise (typ): 800nV p-p
Ibias TC (typ): 300pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 100dB
Current Noise Density (typ): 1fA/rtHz
In V+ Headroom (max): 2V
更多
In V- Headroom (max): -100mV
Out V+ Headroom (max): 750mV
Out V- Headroom (max): 750mV
Output Voltage Noise (typ): 90nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.2%
Gain Error - Low Gain (max): 0.04%
Ios (max): 600fA
Ios drift (typ): 5pA/°C
Rail to Rail: Both
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8224HACPZ-R7)mm²
Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm w/ EP)) (AD8224ACPZ-R7)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: JFET Input
Cdiff (typ): 3pF
Ccm (typ): 12pF
Rdiff (typ): 20TOhms
Rcm (typ): 5TOhms
Output Type: Single Ended
Iq/Amp (typ): 750µA
Product Lifecycle: 量产
# of Amps: 2
Vos (max): 175µV
Vos TC (max): 5µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 1.5MHz
Ibias (max): 10pA
Input Voltage Noise (typ): 14nV/rtHz
Iq/Amp (max): 800µA
Vs span (min): 4.5V
Vs span (max): 36V
Short Circuit Current: 15mA
0.1 to 10 Hz VNoise (typ): 800nV p-p
Ibias TC (typ): 300pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 100dB
Current Noise Density (typ): 1fA/rtHz
In V+ Headroom (max): 2V
更多
In V- Headroom (max): -100mV
Out V+ Headroom (max): 750mV
Out V- Headroom (max): 750mV
Output Voltage Noise (typ): 90nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.2%
Gain Error - Low Gain (max): 0.04%
Ios (max): 600fA
Ios drift (typ): 5pA/°C
Rail to Rail: Both
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8224HACPZ-R7)mm²
Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm w/ EP)) (AD8224ACPZ-R7)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: JFET Input
Cdiff (typ): 3pF
Ccm (typ): 12pF
Rdiff (typ): 20TOhms
Rcm (typ): 5TOhms
Output Type: Single Ended
Iq/Amp (typ): 750µA
Product Lifecycle: 量产
# of Amps: 2
Vos (max): 175µV
Vos TC (max): 5µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 1.5MHz
Ibias (max): 10pA
Input Voltage Noise (typ): 14nV/rtHz
Iq/Amp (max): 800µA
Vs span (min): 4.5V
Vs span (max): 36V
Short Circuit Current: 15mA
0.1 to 10 Hz VNoise (typ): 800nV p-p
Ibias TC (typ): 300pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 100dB
Current Noise Density (typ): 1fA/rtHz
In V+ Headroom (max): 2V
更多
In V- Headroom (max): -100mV
Out V+ Headroom (max): 750mV
Out V- Headroom (max): 750mV
Output Voltage Noise (typ): 90nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.2%
Gain Error - Low Gain (max): 0.04%
Ios (max): 600fA
Ios drift (typ): 5pA/°C
Rail to Rail: Both
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8224HACPZ-R7)mm²
Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm w/ EP)) (AD8224ACPZ-R7)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: JFET Input
Cdiff (typ): 3pF
Ccm (typ): 12pF
Rdiff (typ): 20TOhms
Rcm (typ): 5TOhms
Output Type: Single Ended
Iq/Amp (typ): 750µA
Product Lifecycle: 量产
# of Amps: 2
Vos (max): 175µV
Vos TC (max): 5µV/°C
Gain Set: Resistor
Gain (min): 1V/V
Gain (max): 1000V/V
BW - low gain (typ): 1.5MHz
Ibias (max): 10pA
Input Voltage Noise (typ): 14nV/rtHz
Iq/Amp (max): 800µA
Vs span (min): 4.5V
Vs span (max): 36V
Short Circuit Current: 15mA
0.1 to 10 Hz VNoise (typ): 800nV p-p
Ibias TC (typ): 300pA/°C
CMRR - Low Gain (min): 86dB
CMRR - High Gain (min): 100dB
Current Noise Density (typ): 1fA/rtHz
In V+ Headroom (max): 2V
更多
In V- Headroom (max): -100mV
Out V+ Headroom (max): 750mV
Out V- Headroom (max): 750mV
Output Voltage Noise (typ): 90nV/rtHz
Gain TC - Low Gain (max): 5ppm/°C
Gain TC - High Gain (max): 50ppm/°C
Gain Error - High Gain (max): 0.2%
Gain Error - Low Gain (max): 0.04%
Ios (max): 600fA
Ios drift (typ): 5pA/°C
Rail to Rail: Both
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16mm² (16-Lead LFCSP (4mm x 4mm x 0.85mm)) (AD8224HACPZ-R7)mm²
Package Height: 0.8mm (16-Lead LFCSP (4mm x 4mm w/ EP)) (AD8224ACPZ-R7)mm
Launch Date: 2008-02-25
EP: No
Design Tools: In-Amp Diamond Plot Tool, LTspice
Amp Features: JFET Input
Cdiff (typ): 3pF
Ccm (typ): 12pF
Rdiff (typ): 20TOhms
Rcm (typ): 5TOhms
Output Type: Single Ended
Iq/Amp (typ): 750µA
