Product Lifecycle: 量产 Package: 24-Lead LFCSP (4mm x 4mm w/ EP) # of Channels: 2 Amp Architecture: VGA Gain Set: Digital, Pin Strap Gain dB (min): 12dB Gain dB (max): 24dB Freq Response (min): 100kHz Freq Response (max): 200MHz BW -3 dB (typ): 200MHz Slew Rate (typ): 295V/us NF (typ): 2.3dB OP1dB (typ): 7.7dBm OIP3 (typ): 36.2dBm VNoise Density (typ): 850pV/rtHz Specified at Freq: 10MHz Is (typ): 24mA Vs span (min): 4.5V Vs span (max): 5.5V Amp Features: Shutdown 更多

Product Lifecycle: 量产 Package: 24-Lead LFCSP (4mm x 4mm w/ EP) # of Channels: 2 Amp Architecture: VGA Gain Set: Digital, Pin Strap Gain dB (min): 12dB Gain dB (max): 24dB Freq Response (min): 100kHz Freq Response (max): 200MHz BW -3 dB (typ): 200MHz Slew Rate (typ): 295V/us NF (typ): 2.3dB OP1dB (typ): 7.7dBm OIP3 (typ): 36.2dBm VNoise Density (typ): 850pV/rtHz Specified at Freq: 10MHz Is (typ): 24mA Vs span (min): 4.5V Vs span (max): 5.5V Amp Features: Shutdown 更多

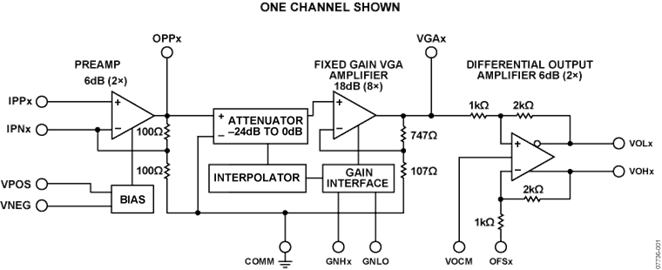

Product Lifecycle: 推荐用于新设计 Package: 40-Lead LFCSP (6mm x 6mm w/ EP) # of Channels: 4 Amp Architecture: VGA Gain Set: Analog Gain dB (max): 24dB Freq Response (max): 235MHz BW -3 dB (typ): 235MHz Input Type: Single-Ended Slew Rate (typ): 290V/us VNoise Density (typ): 2.3nV/rtHz Is (typ): 99mA Vs span (min): 5V Vs span (max): 10V Amp Features: DC-Coupled, SE to Differential Shutdown: No Distortion 2nd Harmonic (typ): 60dBc Distortion 3rd Harmonic (typ): 53dBc IIP3 (typ): 21dBm Eval / Ref Circuit: Evaluation board 更多

Product Lifecycle: 推荐用于新设计 Package: 40-Lead LFCSP (6mm x 6mm w/ EP) # of Channels: 4 Amp Architecture: VGA Gain Set: Analog Gain dB (max): 24dB Freq Response (max): 235MHz BW -3 dB (typ): 235MHz Input Type: Single-Ended Slew Rate (typ): 290V/us VNoise Density (typ): 2.3nV/rtHz Is (typ): 99mA Vs span (min): 5V Vs span (max): 10V Amp Features: DC-Coupled, SE to Differential Shutdown: No Distortion 2nd Harmonic (typ): 60dBc Distortion 3rd Harmonic (typ): 53dBc IIP3 (typ): 21dBm Eval / Ref Circuit: Evaluation board 更多

Product Lifecycle: 推荐用于新设计 Package: 40-Lead LFCSP (6mm x 6mm w/ EP) # of Channels: 4 Amp Architecture: VGA Gain Set: Analog Gain dB (max): 24dB Freq Response (max): 235MHz BW -3 dB (typ): 235MHz Input Type: Single-Ended Slew Rate (typ): 290V/us VNoise Density (typ): 2.3nV/rtHz Is (typ): 99mA Vs span (min): 5V Vs span (max): 10V Amp Features: DC-Coupled, SE to Differential Shutdown: No Distortion 2nd Harmonic (typ): 60dBc Distortion 3rd Harmonic (typ): 53dBc IIP3 (typ): 21dBm Eval / Ref Circuit: Evaluation board 更多

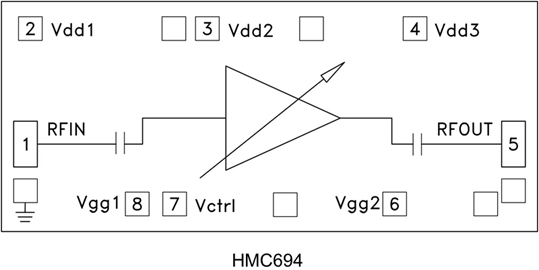

Product Lifecycle: 量产 Package: CHIPS OR DIE # of Channels: 1 Amp Architecture: VGA Gain Set: Analog Gain dB (min): 1dB Gain dB (max): 24dB Freq Response (min): 6GHz Freq Response (max): 17GHz Input Type: Single-Ended NF (typ): 5dB OP1dB (typ): 22dBm OIP3 (typ): 30dBm Is (typ): 170mA Vs span (min): 5V Vs span (max): 5.5V Amp Features: Gain Control Voltage Shutdown: No Vs (typ): 5V Export Classification: EAR99 更多

Product Lifecycle: 量产 Package: CHIPS OR DIE # of Channels: 1 Amp Architecture: VGA Gain Set: Analog Gain dB (min): 1dB Gain dB (max): 24dB Freq Response (min): 6GHz Freq Response (max): 17GHz Input Type: Single-Ended NF (typ): 5dB OP1dB (typ): 22dBm OIP3 (typ): 30dBm Is (typ): 170mA Vs span (min): 5V Vs span (max): 5.5V Amp Features: Gain Control Voltage Shutdown: No Vs (typ): 5V Export Classification: EAR99 更多

Product Lifecycle: 量产 Package: 24-Lead QFN (4mm x 4mm w/ EP) # of Channels: 1 Amp Architecture: VGA Gain Set: Analog Gain dB (max): 23dB Freq Response (min): 6GHz Freq Response (max): 17GHz Input Type: Single-Ended NF (typ): 6dB OP1dB (typ): 22dBm OIP3 (typ): 30dBm Is (typ): 175mA Vs span (min): 5V Vs span (max): 5.5V Amp Features: Gain Control Voltage Shutdown: No Vs (typ): 5V Export Classification: EAR99 Automotive: No 更多

Product Lifecycle: 量产 Package: 24-Lead QFN (4mm x 4mm w/ EP) # of Channels: 1 Amp Architecture: VGA Gain Set: Analog Gain dB (max): 23dB Freq Response (min): 6GHz Freq Response (max): 17GHz Input Type: Single-Ended NF (typ): 6dB OP1dB (typ): 22dBm OIP3 (typ): 30dBm Is (typ): 175mA Vs span (min): 5V Vs span (max): 5.5V Amp Features: Gain Control Voltage Shutdown: No Vs (typ): 5V Export Classification: EAR99 Automotive: No 更多

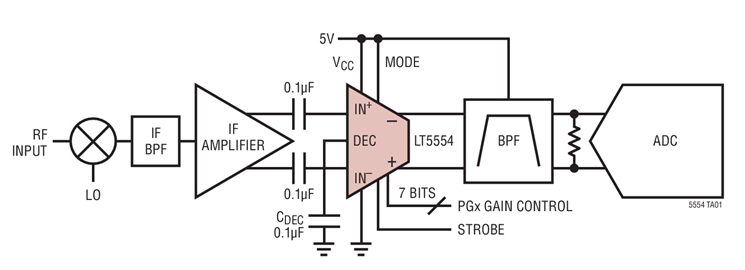

Product Lifecycle: 量产 Package: 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) # of Channels: 1 Amp Architecture: VGA Gain Set: Digital Gain dB (min): 2dB Gain dB (max): 18dB Control Step Size: 0.125dB Freq Response (max): 1GHz BW -3 dB (typ): 1GHz Input Type: Differential Gain Control Range: 16dB NF (typ): 10dB OIP3 (typ): 48dBm Is (typ): 110mA Vs span (min): 4.75V Vs span (max): 5.25V Rail to Rail: In to V- Amp Features: Digital Gain Control, Shutdown Shutdown: Yes 更多
