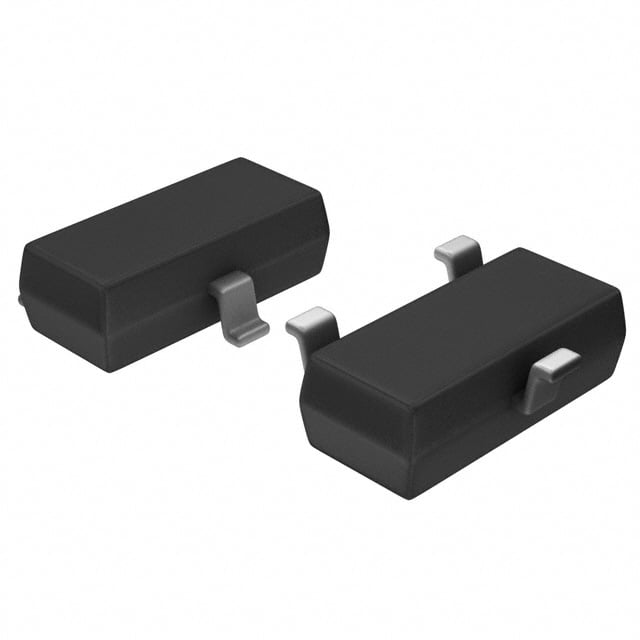

ADR5040ARTZ-REEL7
制造商: ANALOG DEVICES INC.数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 分流器 电压基准 IC ±0.2% SOT-23-3
参考类型: 分流器
输出类型: 固定
电压 - 输出（最小值/固定）: 2.048V
电流 - 输出: 15 mA
容差: ±0.2%
温度系数: 100ppm/°C
噪声 - 0.1Hz 至 10Hz: 2.8µVrms
噪声 - 10Hz 至 10Hz: 120µVrms
电压 - 输入: -
电流 - 供电: -
电流 - 阴极: 60 µA
工作温度: -40°C ~ 125°C（TA）
安装类型: 表面贴装型
封装/外壳: TO-236-3，SC-59，SOT-23-3
供应商器件封装: SOT-23-3
MAX6325ESA
制造商: ANALOG DEVICES INC./MAXIM INTEGRATED数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 串联，隐埋式齐纳 电压基准 IC ±0.04% 8-SOIC
参考类型: 串联，隐埋式齐纳
输出类型: 固定
电压 - 输出（最小值/固定）: 2.5V
电流 - 输出: 15 mA
容差: ±0.04%
温度系数: 1.5ppm/°C
噪声 - 0.1Hz 至 10Hz: 1.5µVp-p
噪声 - 10Hz 至 10Hz: 1.3µVrms
电压 - 输入: 8V ~ 36V
电流 - 供电: 3mA
工作温度: -40°C ~ 85°C（TA）
安装类型: 表面贴装型
封装/外壳: 8-SOIC（0.154，3.90mm 宽）
供应商器件封装: 8-SOIC
Iout/Iz (max) (mA): 0.1
Vin (min) (V): 2.5
Vin (max) (V): 40
Operating temperature range (°C): -25 to 85
Initial accuracy (max) (%): 1
Rating: Catalog
Iout/Iz (max) (mA): 0.1
Vin (min) (V): 2.5
Vin (max) (V): 40
Operating temperature range (°C): -25 to 85
Initial accuracy (max) (%): 1
Rating: Catalog
Iout/Iz (max) (mA): 0.01
Vin (min) (V): 0.8
Vin (max) (V): 40
Operating temperature range (°C): -55 to 125
Initial accuracy (max) (%): 3
Rating: Military
Iout/Iz (max) (mA): 0.01
Vin (min) (V): 0.8
Vin (max) (V): 40
Operating temperature range (°C): -55 to 125
Initial accuracy (max) (%): 3
Rating: Military
Iout/Iz (max) (mA): 0.01
Vin (min) (V): 0.8
Vin (max) (V): 40
Operating temperature range (°C): -25 to 100
Initial accuracy (max) (%): 3
Rating: Catalog
Iout/Iz (max) (mA): 0.01
Vin (min) (V): 0.8
Vin (max) (V): 40
Operating temperature range (°C): -25 to 100
Initial accuracy (max) (%): 3
Rating: Catalog
Iout/Iz (max) (mA): 0.01
Vin (min) (V): 0.8
Vin (max) (V): 40
Operating temperature range (°C): -40 to 85
Initial accuracy (max) (%): 6
Rating: Catalog
Iout/Iz (max) (mA): 0.01
Vin (min) (V): 0.8
Vin (max) (V): 40
Operating temperature range (°C): -40 to 85
Initial accuracy (max) (%): 6
Rating: Catalog
TS5A22364-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有负信号处理功能的汽车类 0.65Ω、5V、2:1 (SPDT) 2 通道模拟开关
Protocols: Analog Audio
Configuration: 2:1 SPDT
Number of channels: 2
Bandwidth (MHz): 18.3
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 2.3
Ron (typ) (mΩ): 520
Input/output voltage (min) (V): -3.2
Input/output voltage (max) (V): 5.5
Supply current (typ) (µA): 1
ESD HBM (typ) (kV): 1.5
Operating temperature range (°C): -40 to 125
Crosstalk (dB): -78
ESD CDM (kV): 1.5
Input/output continuous current (max) (mA): 150
CON (typ) (pF): 370
Off isolation (typ) (dB): -70
Ron (max) (mΩ): 1300
Ron channel match (max) (Ω): 0.3
RON flatness (typ) (Ω): 0.076
更多
Turnoff time (disable) (max) (ns): 70
Turnon time (enable) (max) (ns): 120
VIH (min) (V): 1.4
VIL (max) (V): 0.8
Protocols: Analog Audio
Configuration: 2:1 SPDT
Number of channels: 2
Bandwidth (MHz): 18.3
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 2.3
Ron (typ) (mΩ): 520
Input/output voltage (min) (V): -3.2
Input/output voltage (max) (V): 5.5
Supply current (typ) (µA): 1
ESD HBM (typ) (kV): 1.5
Operating temperature range (°C): -40 to 125
Crosstalk (dB): -78
ESD CDM (kV): 1.5
Input/output continuous current (max) (mA): 150
CON (typ) (pF): 370
Off isolation (typ) (dB): -70
Ron (max) (mΩ): 1300
Ron channel match (max) (Ω): 0.3
RON flatness (typ) (Ω): 0.076
Turnoff time (disable) (max) (ns): 70
Turnon time (enable) (max) (ns): 120
VIH (min) (V): 1.4
VIL (max) (V): 0.8
