IFX25401TEV
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: The IFX25401TEV is a monolithic integrated low dropout voltage regulator for load currents up to 400 mA.
Peak Reflow Temp max: 260.0°C
Dropout Voltage: 250.0mV
Accuracy: 4.0%
Operating Temperature max: 125.0°C
Quiescent Current: 100.0µA
Operating Voltage max: 40.0V
Product ID: SP000614698
Moisture Sensitivity Level: 1
Number Reflow: 3
Power Good: no
Watchdog: no
Over Voltage Protection: no
Regulator Type: Linear
Early Warning: no
Status Output: no
Qualification: Industrial
Power Fail: no
Enable (=Inhibit): yes
Reset: no
Output Voltage Type: adj.
更多
Hold: no
Replacement: TLE42764DV
Budgetary Price €/1k: 0.38
IFX27001TFV33
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: The IFX27001TF V33 is a monolithic integrated NPN type voltage regulator that can supply loads up to 1.0 A.
Peak Reflow Temp max: 260.0°C
Dropout Voltage: 1300.0mV
Accuracy: 3.0%
Operating Temperature max: 125.0°C
Quiescent Current: 800.0µA
Operating Voltage max: 40.0V
Product ID: SP000624112
Moisture Sensitivity Level: 1
Number Reflow: 3
Power Good: no
Watchdog: no
Over Voltage Protection: no
Regulator Type: Linear
Early Warning: no
Status Output: no
Qualification: Industrial
Power Fail: no
Enable (=Inhibit): no
Reset: no
Output Voltage Type: 3.3 V
更多
Hold: no
Replacement: TLE4284D V33
Budgetary Price €/1k: 0.39
IFX25401TEV50
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: The IFX25401TE V50 is a monolithic integrated low dropout voltage regulator for load currents up to 400 mA.
Peak Reflow Temp max: 260.0°C
Dropout Voltage: 250.0mV
Accuracy: 4.0%
Operating Temperature max: 125.0°C
Quiescent Current: 100.0µA
Operating Voltage max: 40.0V
Product ID: SP000623308
Moisture Sensitivity Level: 1
Number Reflow: 3
Power Good: no
Watchdog: no
Over Voltage Protection: no
Regulator Type: Linear
Early Warning: no
Status Output: no
Qualification: Industrial
Power Fail: no
Enable (=Inhibit): yes
Reset: no
Output Voltage Type: 5 V
更多
Hold: no
Replacement: TLE4276D V50

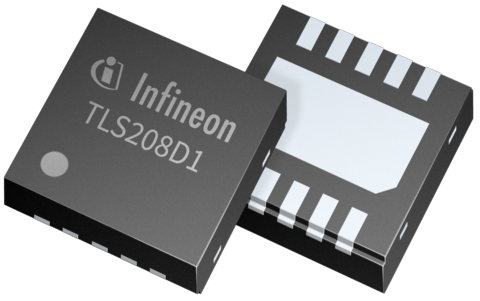

TLS208D1LDV
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: The TLS208D1LDV is a monolithic integrated linear voltage post regulator.
Operating Voltage max: 18.0V
Output Voltage Type: adj.
Accuracy: 2.0%
Dropout Voltage: 900.0mV
Quiescent Current: 90.0µA
Operating Temperature max: 150.0°C
Over Voltage Protection: no
Enable (=Inhibit): yes
Reset: yes
Power Fail: no
Power Good: no
Status Output: no
Hold: no
Early Warning: no
Watchdog: no
Qualification: Automotive
Output Current max: 800.0mA
Regulator Type: Post Regulator
Base Product: TLS208D1xxVxx
Budgetary Price €/1k: 0.73
IFX20002MBV33
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

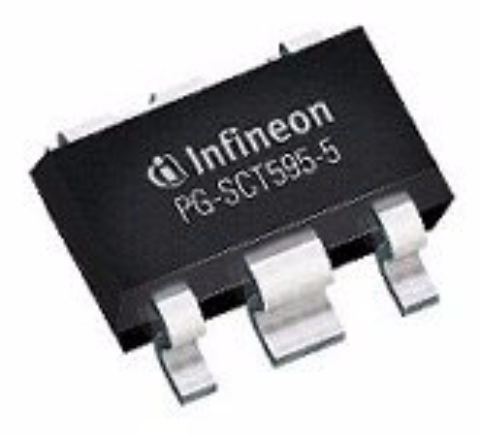

描述: The IFX20002MB V33 is a monolithic integrated low-drop voltage regulator in the very small SMD package PG-SCT595-5.
Peak Reflow Temp max: 260.0°C
Dropout Voltage: 250.0mV
Accuracy: 4.0%
Operating Temperature max: 125.0°C
Operating Voltage max: 45.0V
Product ID: SP001041636
Moisture Sensitivity Level: 1
Number Reflow: 3
Power Good: no
Watchdog: no
Over Voltage Protection: no
Regulator Type: Linear
Early Warning: no
Status Output: no
Qualification: Industrial
Power Fail: no
Enable (=Inhibit): yes
Reset: no
Output Voltage Type: 3.3 V
Hold: no
更多
Replacement: TLE4296-2G V33
Budgetary Price €/1k: 0.14
TLE4299GMV33
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: The OPTIREG™ Linear TLE4299GM V33 is a monolithic voltage regulator with fixed 3.3 V output, supplying loads up to 150 mA.
Operating Temperature max: 150.0°C
Dropout Voltage: 250.0mV
Accuracy: 2.0%
Quiescent Current: 65.0µA
Operating Voltage max: 45.0V
Power Good: no
Watchdog: no
Over Voltage Protection: no
Early Warning: yes
Status Output: no
Qualification: Automotive
Power Fail: no
Enable (=Inhibit): yes
Reset: yes
Output Voltage Type: 3.3 V
Hold: no
Output Current max: 150.0mA
Regulator Type: General Purpose
Budgetary Price €/1k: 0.92
IFX1963TEV
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

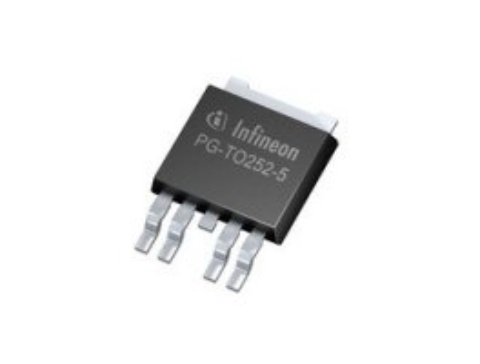

描述: The IFX1963TEV is a low dropout voltage regulator available in PG-TO252-5 SMD package. The device is capable to supply loads up to 1.5 A.
Peak Reflow Temp max: 260.0°C
Dropout Voltage: 340.0mV
Accuracy: 3.0%
Operating Temperature max: 125.0°C
Operating Voltage max: 20.0V
Product ID: SP001045788
Moisture Sensitivity Level: 1
Number Reflow: 3
Power Good: no
Watchdog: no
Over Voltage Protection: no
Regulator Type: Linear
Early Warning: no
Status Output: no
Qualification: Industrial
Power Fail: no
Enable (=Inhibit): yes
Reset: no
Output Voltage Type: adj.
Hold: no
更多
Replacement: TLF1963TE
Budgetary Price €/1k: 0.62
Output Voltage: NoneV
Channels: 2.0
Configuration: Low-side
VS: NoneV
Package: 8-Lead FlatPack
Supply Voltage: NoneV
tf: 15.0ns
toff: 85.0ns
ton: 100.0ns
tr: 20.0ns
TID: NoneKrad(Si)
SEE: 81.9MeV∙cm2/mg
Bias Supply Voltage: NoneV
Voltage Class: 100.0V
Voltage Class: 100.0V
Language: SPICE
Language: SPICE
Product Category: HiRel Power ICs
Channels: 2.0
Configuration: High-side and low-side
VS: NoneV
Supply Voltage: NoneV
tf: 17.0ns
toff: 100.0ns
ton: 120.0ns
tr: 25.0ns
OverClocking: Delay Matching 20 (ns)
TID: NoneKrad(Si)
Bias Supply Voltage: NoneV
Package: LCC-18
SEE: 81.9MeV∙cm2/mg
Output Voltage: NoneV
Voltage Class: 100.0V
Language: SPICE
Product Category: HiRel Power ICs
Channels: 2.0
Configuration: High-side and low-side
VS: NoneV
Supply Voltage: NoneV
tf: 17.0ns
toff: 100.0ns
ton: 120.0ns
tr: 25.0ns
OverClocking: Delay Matching 20 (ns)
TID: NoneKrad(Si)
Bias Supply Voltage: NoneV
SEE: 81.9MeV∙cm2/mg
Package: 14-pin ceramic flat pack
Output Voltage: NoneV
Voltage Class: 100.0V
Language: SPICE
Product Category: HiRel Power ICs
