Vin (min) (V): 1.5 Vout (max) (V): 5.5 Vout (min) (V): 0.55 Rating: Catalog Noise (µVrms): 53 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 80 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection, Output discharge Accuracy (%): 1 Dropout voltage (Vdo) (typ) (mV): 190 Operating temperature range (°C): -40 to 125

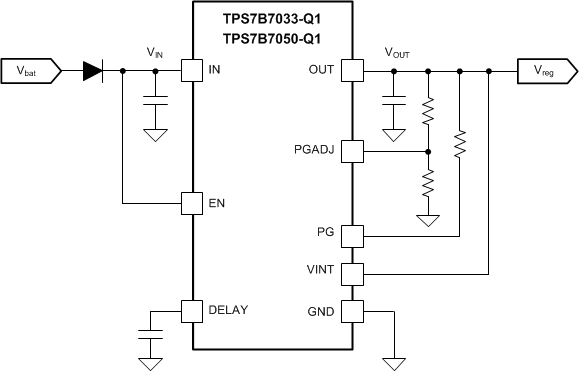

Vin (min) (V): 4 Vout (max) (V): 5 Vout (min) (V): 3.3 Fixed output options (V): 3.3, 5 Rating: Automotive PSRR at 100 KHz (dB): 40 Iq (typ) (mA): 0.019 Thermal resistance θJA (°C/W): 39.7 Load capacitance (min) (µF): 4.7 Regulated outputs (#): 1 Features: Enable, Power good Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 300 Operating temperature range (°C): -40 to 125

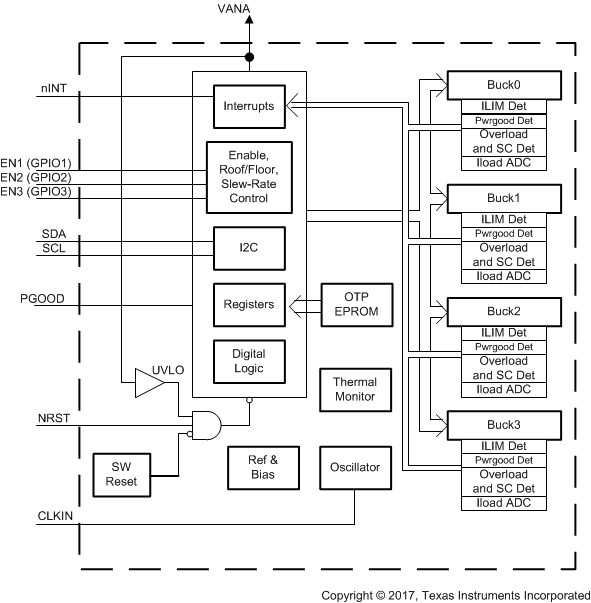

Product type: Processor and FPGA Processor supplier: Generic Processor name: Generic Regulated outputs (#): 4 Step-down DC/DC converter: 4 Step-up DC/DC converter: 0 LDO: 0 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.6 Vout (max) (V): 3.36 Iout (max) (A): 4 Configurability: Factory programmable, Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.0067 Switching frequency (max) (kHz): 2200 Shutdown current (ISD) (typ) (µA): 1.4 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: Sitara AM335x, Sitara AM43x, Sitara AMIC110, Sitara AMIC120 Regulated outputs (#): 5 Step-down DC/DC converter: 4 Step-up DC/DC converter: 0 LDO: 1 Vin (min) (V): 1.8 Vin (max) (V): 5.5 Vout (min) (V): -0.3 Vout (max) (V): 7 Iout (max) (A): 1.8 Configurability: Factory programmable, Software configurable Rating: Catalog Operating temperature range (°C): -40 to 105 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.22 Switching frequency (max) (kHz): 2400 Shutdown current (ISD) (typ) (µA): 5 Switching frequency (typ) (kHz): 2400 Product type: Processor and FPGA

Vin (min) (V): 0.75 Vout (max) (V): 3 Vout (min) (V): 0.5 Rating: Catalog Noise (µVrms): 93.9 PSRR at 100 KHz (dB): 37 Iq (typ) (mA): 0.0016 Thermal resistance θJA (°C/W): 77.3, 169.4 Load capacitance (min) (µF): 2.2 Regulated outputs (#): 1 Features: Enable Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 130 Operating temperature range (°C): -40 to 125

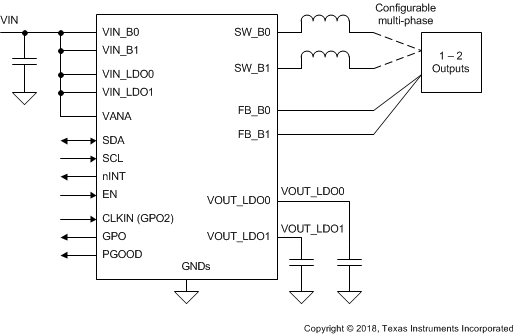

Product type: Processor and FPGA Processor supplier: Generic Processor name: Generic Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 3.36 Iout (max) (A): 2 Configurability: Factory programmable, Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.009 Switching frequency (max) (kHz): 2200 Shutdown current (ISD) (typ) (µA): 9 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Product type: Processor and FPGA Processor supplier: Generic Processor name: Generic Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 3.36 Iout (max) (A): 3 Configurability: Factory programmable, Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.009 Switching frequency (max) (kHz): 2200 Shutdown current (ISD) (typ) (µA): 9 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: Jacinto TDA2Px, Jacinto TDA7xP Regulated outputs (#): 2 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 0 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.6 Vout (max) (V): 3.36 Iout (max) (A): 8 Configurability: Factory programmable, Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.0067 Switching frequency (max) (kHz): 2200 Shutdown current (ISD) (typ) (µA): 1.4 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Switching frequency (typ) (kHz): 2000 Product type: Radar sensor Processor supplier: Texas Instruments Processor name: mmWave AWR, mmWave IWR Regulated outputs (#): 3 Step-down DC/DC converter: 2 Step-up DC/DC converter: 1 LDO: 0 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 5.2 Iout (max) (A): 3.5 TI functional safety category: Functional Safety Quality-Managed Configurability: Factory programmable, Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 27 Switching frequency (max) (kHz): 4000 Shutdown current (ISD) (typ) (µA): 1 Switching frequency (typ) (kHz): 2000 Product type: Radar sensor

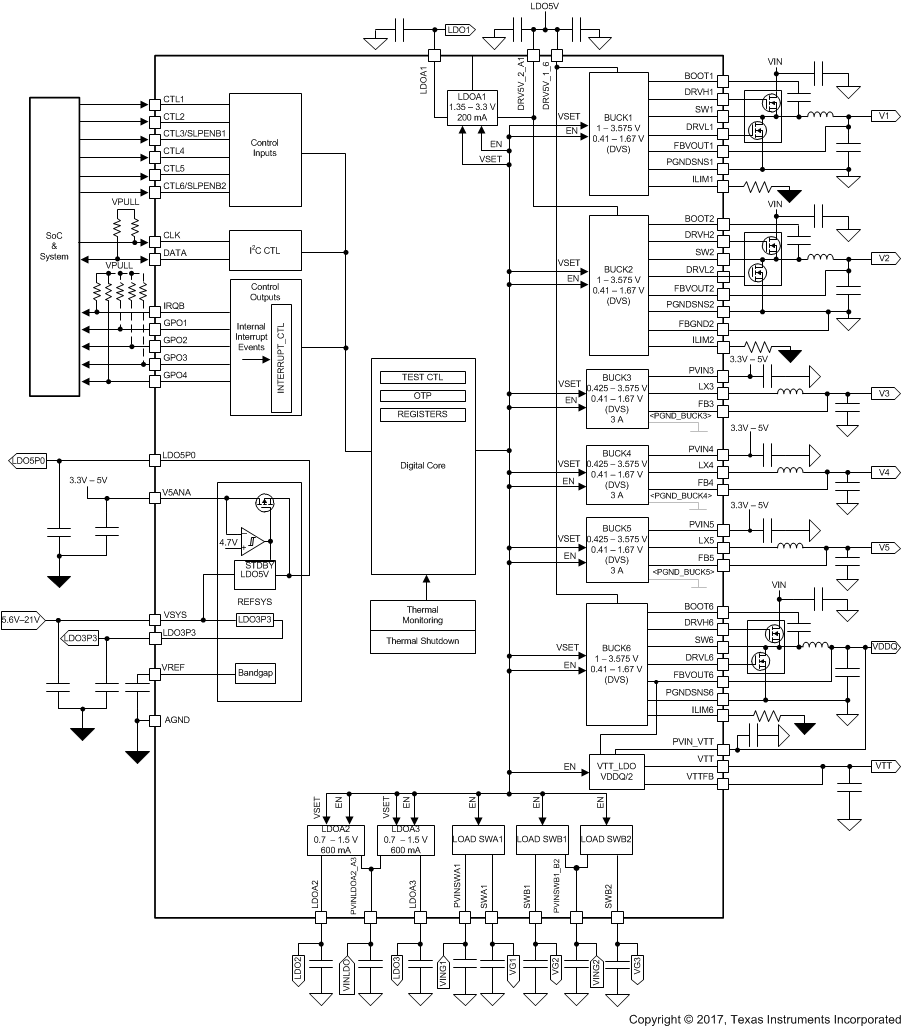

Product type: Processor and FPGA Processor supplier: Generic Processor name: Generic Regulated outputs (#): 13 Step-down DC/DC converter: 3 Step-up DC/DC converter: 0 LDO: 4 Vin (min) (V): 5.6 Vin (max) (V): 21 Vout (min) (V): -0.3 Vout (max) (V): 5 Iout (max) (A): 25 Configurability: Software configurable, User programmable Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 3 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.3 Switching frequency (max) (kHz): 3100 Shutdown current (ISD) (typ) (µA): 65 Switching frequency (typ) (kHz): 2500 Product type: Processor and FPGA
