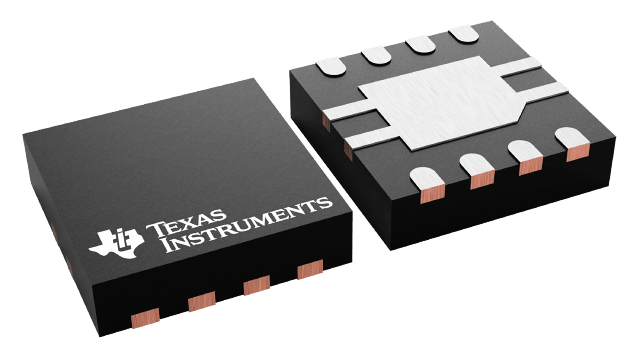

TLV705

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有低噪声和使能功能的 200mA、高 PSRR、低 IQ、低压降稳压器

Output options: Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 5.5 Vin (min) (V): 2 Vout (max) (V): 3.6 Vout (min) (V): 1.2 Rating: Catalog Noise (µVrms): 26 PSRR at 100 KHz (dB): 52 Iq (typ) (mA): 0.03 Thermal resistance θJA (°C/W): 160 Load capacitance (min) (µF): 0.1 Regulated outputs (#): 1 Features: Enable, Soft start Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 145 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 5.5 更多

Vin (min) (V): 2 Vout (max) (V): 3.6 Vout (min) (V): 1.2 Rating: Catalog Noise (µVrms): 26 PSRR at 100 KHz (dB): 52 Iq (typ) (mA): 0.03 Thermal resistance θJA (°C/W): 160 Load capacitance (min) (µF): 0.1 Regulated outputs (#): 1 Features: Enable, Soft start Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 145 Operating temperature range (°C): -40 to 125

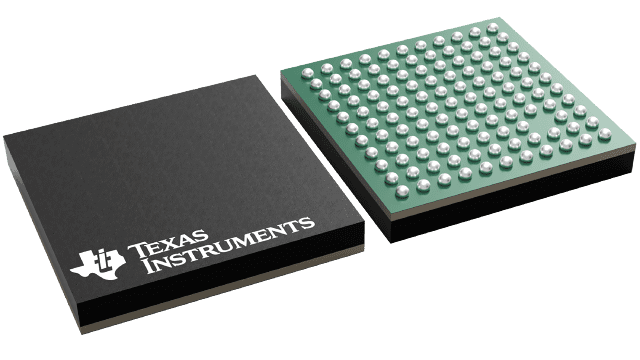

TPS65951

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 集成电源管理 IC (PMIC) 音频编解码器芯片

Processor supplier: Texas Instruments Processor name: OMAP Regulated outputs (#): 14 Step-down DC/DC converter: 3 Step-up DC/DC converter: 0 LDO: 11 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Vout (min) (V): 0.6 Vout (max) (V): 3.15 Iout (max) (A): 1.4 TI functional safety category: Functional Safety-Capable Configurability: Factory programmable Features: Comm control, Power sequencing Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.03 Switching frequency (typ) (kHz): 3200 更多

Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: OMAP Regulated outputs (#): 14 Step-down DC/DC converter: 3 Step-up DC/DC converter: 0 LDO: 11 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Vout (min) (V): 0.6 Vout (max) (V): 3.15 Iout (max) (A): 1.4 TI functional safety category: Functional Safety-Capable Configurability: Factory programmable Features: Comm control, Power sequencing Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.03 Switching frequency (typ) (kHz): 3200 Product type: Processor and FPGA

TPS715A-NM

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 24V、80mA、低 Iq、低压降线性稳压器

Output options: Adjustable Output Iout (max) (A): 0.08 Vin (max) (V): 24 Vin (min) (V): 2.5 Vout (max) (V): 15 Vout (min) (V): 1.2 Rating: Catalog Noise (µVrms): 575 PSRR at 100 KHz (dB): 42 Iq (typ) (mA): 0.003 Thermal resistance θJA (°C/W): 69 Load capacitance (min) (µF): 0.47 Regulated outputs (#): 1 Accuracy (%): 4 Dropout voltage (Vdo) (typ) (mV): 670 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output Iout (max) (A): 0.08 Vin (max) (V): 24 Vin (min) (V): 2.5 更多

Vout (max) (V): 15 Vout (min) (V): 1.2 Rating: Catalog Noise (µVrms): 575 PSRR at 100 KHz (dB): 42 Iq (typ) (mA): 0.003 Thermal resistance θJA (°C/W): 69 Load capacitance (min) (µF): 0.47 Regulated outputs (#): 1 Accuracy (%): 4 Dropout voltage (Vdo) (typ) (mV): 670 Operating temperature range (°C): -40 to 125

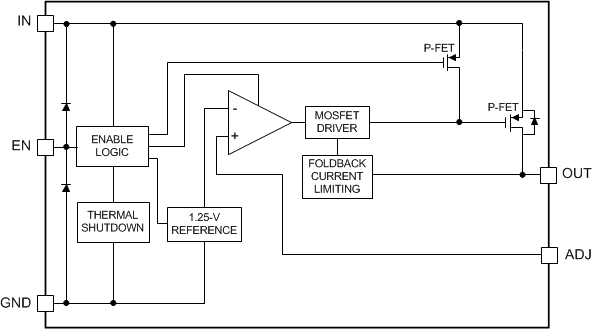

LP38693-ADJ-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有使能功能的汽车类 500mA、10V、可调节低压降稳压器

Output options: Adjustable Output Iout (max) (A): 0.5 Vin (max) (V): 10 Vin (min) (V): 2.7 Vout (max) (V): 9 Vout (min) (V): 1.25 Rating: Automotive Noise (µVrms): 80 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.055 Thermal resistance θJA (°C/W): 51 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 5 Dropout voltage (Vdo) (typ) (mV): 250 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output Iout (max) (A): 0.5 Vin (max) (V): 10 更多

Vin (min) (V): 2.7 Vout (max) (V): 9 Vout (min) (V): 1.25 Rating: Automotive Noise (µVrms): 80 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.055 Thermal resistance θJA (°C/W): 51 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 5 Dropout voltage (Vdo) (typ) (mV): 250 Operating temperature range (°C): -40 to 125

LP38693-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有使能功能的汽车类 500mA、10V、低压降稳压器

Output options: Fixed Output Iout (max) (A): 0.5 Vin (max) (V): 10 Vin (min) (V): 2.7 Vout (max) (V): 5 Vout (min) (V): 1.8 Fixed output options (V): 1.8, 2.5, 3.3, 5 Rating: Automotive Noise (µVrms): 80 PSRR at 100 KHz (dB): 50 Iq (typ) (mA): 0.055 Thermal resistance θJA (°C/W): 51 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 4 Dropout voltage (Vdo) (typ) (mV): 250 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 0.5 更多

Vin (max) (V): 10 Vin (min) (V): 2.7 Vout (max) (V): 5 Vout (min) (V): 1.8 Fixed output options (V): 1.8, 2.5, 3.3, 5 Rating: Automotive Noise (µVrms): 80 PSRR at 100 KHz (dB): 50 Iq (typ) (mA): 0.055 Thermal resistance θJA (°C/W): 51 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 4 Dropout voltage (Vdo) (typ) (mV): 250 Operating temperature range (°C): -40 to 125

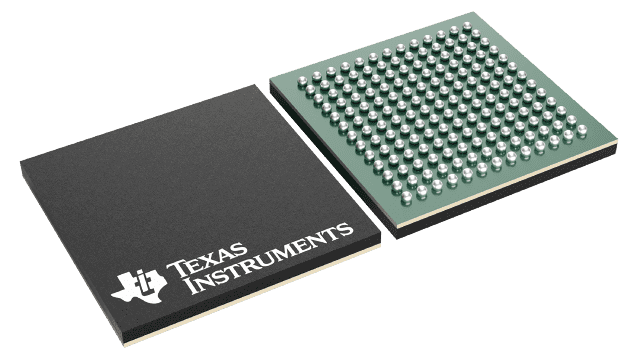

TWL6040

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 用于便携应用领域的 8 通道高质量低功耗音频编解码器

Processor supplier: Texas Instruments Processor name: OMAP Regulated outputs (#): 8 Step-down DC/DC converter: 0 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.3 Vin (max) (V): 5.5 Vout (min) (V): 1.8 Vout (max) (V): 2.1 Iout (max) (A): 0.01 Configurability: Factory programmable Features: Comm control Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.2 Shutdown current (ISD) (typ) (µA): 0.54 Product type: Processor and FPGA 更多

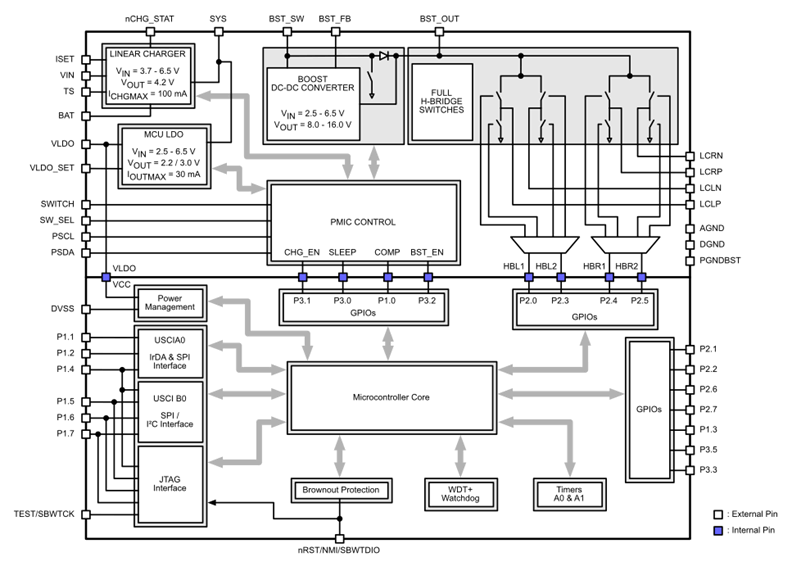

TPS65835

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 面向主动快门 3D 眼镜的高级电源管理 IC (PMIC)，具有集成 MSP430

Regulated outputs (#): 2 Step-down DC/DC converter: 0 Step-up DC/DC converter: 0 LDO: 1 Vin (min) (V): 2.5 Vin (max) (V): 6.5 Vout (min) (V): 2.2 Vout (max) (V): 16 Iout (max) (A): 0.15 Configurability: Software configurable Features: Comm control, Power good Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 1 Iq (typ) (mA): 0.039 Shutdown current (ISD) (typ) (µA): 0.5 Regulated outputs (#): 2 Step-down DC/DC converter: 0 Step-up DC/DC converter: 0 更多

LDO: 1 Vin (min) (V): 2.5 Vin (max) (V): 6.5 Vout (min) (V): 2.2 Vout (max) (V): 16 Iout (max) (A): 0.15 Configurability: Software configurable Features: Comm control, Power good Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 1 Iq (typ) (mA): 0.039 Shutdown current (ISD) (typ) (µA): 0.5

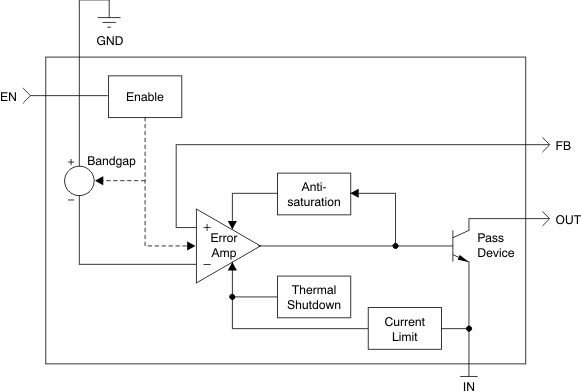

TPS7A3401

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有使能功能的汽车类 200mA、低 IQ、负电压、可调节低压降稳压器

Output options: Adjustable Output Iout (max) (A): 0.2 Vin (max) (V): -3 Vin (min) (V): -20 Vout (max) (V): -1.2 Vout (min) (V): -18 Rating: Catalog Noise (µVrms): 80 PSRR at 100 KHz (dB): 31 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 63 Load capacitance (min) (µF): 2.2 Regulated outputs (#): 1 Features: Enable Accuracy (%): 2.5 Dropout voltage (Vdo) (typ) (mV): 216 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output Iout (max) (A): 0.2 Vin (max) (V): -3 更多

Vin (min) (V): -20 Vout (max) (V): -1.2 Vout (min) (V): -18 Rating: Catalog Noise (µVrms): 80 PSRR at 100 KHz (dB): 31 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 63 Load capacitance (min) (µF): 2.2 Regulated outputs (#): 1 Features: Enable Accuracy (%): 2.5 Dropout voltage (Vdo) (typ) (mV): 216 Operating temperature range (°C): -40 to 125

LP2951-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有电源正常指示和使能功能的汽车级 100mA 30V 低压降稳压器

Output options: Fixed Output Iout (max) (A): 0.1 Vin (max) (V): 30 Vin (min) (V): 2 Vout (max) (V): 29 Vout (min) (V): 3.3 Fixed output options (V): 3.3, 5 Rating: Automotive Noise (µVrms): 430 PSRR at 100 KHz (dB): 54 Iq (typ) (mA): 0.075 Thermal resistance θJA (°C/W): 56, 122 TI functional safety category: Functional Safety-Capable Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Power good Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 380 Operating temperature range (°C): -40 to 125 Output options: Fixed Output 更多

Iout (max) (A): 0.1 Vin (max) (V): 30 Vin (min) (V): 2 Vout (max) (V): 29 Vout (min) (V): 3.3 Fixed output options (V): 3.3, 5 Rating: Automotive Noise (µVrms): 430 PSRR at 100 KHz (dB): 54 Iq (typ) (mA): 0.075 Thermal resistance θJA (°C/W): 56, 122 TI functional safety category: Functional Safety-Capable Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Power good Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 380 Operating temperature range (°C): -40 to 125

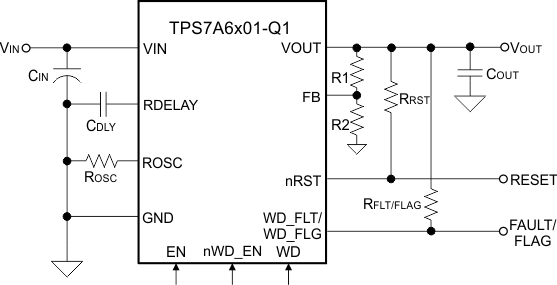

TPS7A63-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有看门狗计时器的汽车类 300mA、电池供电运行 (40V)、低 IQ、低压降稳压器

Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.3 Vin (max) (V): 40 Vin (min) (V): 11 Vout (max) (V): 7 Vout (min) (V): 2.5 Fixed output options (V): 3.3, 5 Rating: Automotive PSRR at 100 KHz (dB): 40 Iq (typ) (mA): 0.035 Thermal resistance θJA (°C/W): 37 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 300 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.3 Vin (max) (V): 40 Vin (min) (V): 11 更多

Vout (max) (V): 7 Vout (min) (V): 2.5 Fixed output options (V): 3.3, 5 Rating: Automotive PSRR at 100 KHz (dB): 40 Iq (typ) (mA): 0.035 Thermal resistance θJA (°C/W): 37 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 300 Operating temperature range (°C): -40 to 125
