天天芯片 - 物料搜索

TPS718

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有使能功能的 200mA、高 PSRR、双通道低压降稳压器

Output options: Dual output, Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 6.5 Vin (min) (V): 2.7 Vout (max) (V): 3.3 Vout (min) (V): 1.2 Fixed output options (V): 1.2, 1.8, 2.5, 2.8, 3, 3.3 Rating: Catalog Noise (µVrms): 84 PSRR at 100 KHz (dB): 58 Iq (typ) (mA): 0.09 Thermal resistance θJA (°C/W): 95 Load capacitance (min) (µF): 1 Regulated outputs (#): 2 Features: Enable Accuracy (%): 2.5 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 125 Output options: Dual output, Fixed Output Iout (max) (A): 0.2 更多

Vin (max) (V): 6.5 Vin (min) (V): 2.7 Vout (max) (V): 3.3 Vout (min) (V): 1.2 Fixed output options (V): 1.2, 1.8, 2.5, 2.8, 3, 3.3 Rating: Catalog Noise (µVrms): 84 PSRR at 100 KHz (dB): 58 Iq (typ) (mA): 0.09 Thermal resistance θJA (°C/W): 95 Load capacitance (min) (µF): 1 Regulated outputs (#): 2 Features: Enable Accuracy (%): 2.5 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 125

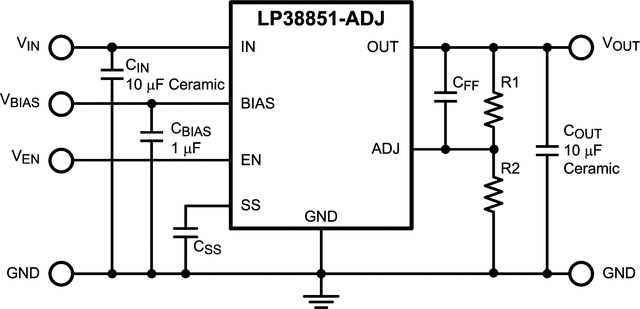

LP38851

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有使能功能的 800mA、低输入电压 (0.915V)、可调节超低压降稳压器

Output options: Adjustable Output Iout (max) (A): 0.8 Vin (max) (V): 5.5 Vin (min) (V): 0.915 Vout (max) (V): 1.8 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 90 PSRR at 100 KHz (dB): 50 Iq (typ) (mA): 10 Thermal resistance θJA (°C/W): 60 Load capacitance (min) (µF): 10 Regulated outputs (#): 1 Features: Enable, Soft start Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 115 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output Iout (max) (A): 0.8 Vin (max) (V): 5.5 更多

Vin (min) (V): 0.915 Vout (max) (V): 1.8 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 90 PSRR at 100 KHz (dB): 50 Iq (typ) (mA): 10 Thermal resistance θJA (°C/W): 60 Load capacitance (min) (µF): 10 Regulated outputs (#): 1 Features: Enable, Soft start Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 115 Operating temperature range (°C): -40 to 125

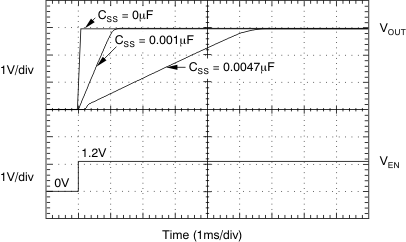

TPS74901

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有电源正常指示和使能功能的 3A、低 VIN (0.8V)、可调节超低压降稳压器

Output options: Adjustable Output Iout (max) (A): 3 Vin (max) (V): 5.5 Vin (min) (V): 0.8 Vout (max) (V): 3.6 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 20 PSRR at 100 KHz (dB): 28 Iq (typ) (mA): 3 Thermal resistance θJA (°C/W): 34, 36 Load capacitance (min) (µF): 2.2 Regulated outputs (#): 1 Features: Enable, Power good, Soft start Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 60, 120 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output Iout (max) (A): 3 Vin (max) (V): 5.5 更多

Vin (min) (V): 0.8 Vout (max) (V): 3.6 Vout (min) (V): 0.8 Rating: Catalog Noise (µVrms): 20 PSRR at 100 KHz (dB): 28 Iq (typ) (mA): 3 Thermal resistance θJA (°C/W): 34, 36 Load capacitance (min) (µF): 2.2 Regulated outputs (#): 1 Features: Enable, Power good, Soft start Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 60, 120 Operating temperature range (°C): -40 to 125

LM26480

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有独立使能和电源正常指示功能的双路 2MHz 1.5A 降压稳压器和双路 300mA LDO

Processor supplier: Generic Processor name: Generic Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 1 Vout (max) (V): 3.3 Iout (max) (A): 1.5 Configurability: Hardware configurable Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.033 Switching frequency (max) (kHz): 2500 Switching frequency (typ) (kHz): 2100 Product type: Processor and FPGA 更多

LM26480-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 支持外部配置的双路 1.5A 降压直流/直流和双路 300mA 线性稳压器

Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 1 Vout (max) (V): 3.3 Iout (max) (A): 1.5 Configurability: Hardware configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.033 Switching frequency (max) (kHz): 2500 Switching frequency (typ) (kHz): 2100 Product type: Processor and FPGA Regulated outputs (#): 4 Step-down DC/DC converter: 2 更多

Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 1 Vout (max) (V): 3.3 Iout (max) (A): 1.5 Configurability: Hardware configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.033 Switching frequency (max) (kHz): 2500 Switching frequency (typ) (kHz): 2100 Product type: Processor and FPGA

LP2998

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有关断引脚的 1.5A DDR 终端稳压器

Vin (min) (V): 1.35 Vin (max) (V): 5.5 Vout (min) (V): 0.656 Vout (max) (V): 0.698 Features: Shutdown Pin for S3 Rating: Catalog Operating temperature range (°C): -40 to 125 Iq (typ) (mA): 0.32 Product type: DDR DDR memory type: DDR, DDR2, DDR3, DDR3L Vin (min) (V): 1.35 Vin (max) (V): 5.5 Vout (min) (V): 0.656 Vout (max) (V): 0.698 Features: Shutdown Pin for S3 Rating: Catalog Operating temperature range (°C): -40 to 125 Iq (typ) (mA): 0.32 Product type: DDR DDR memory type: DDR, DDR2, DDR3, DDR3L

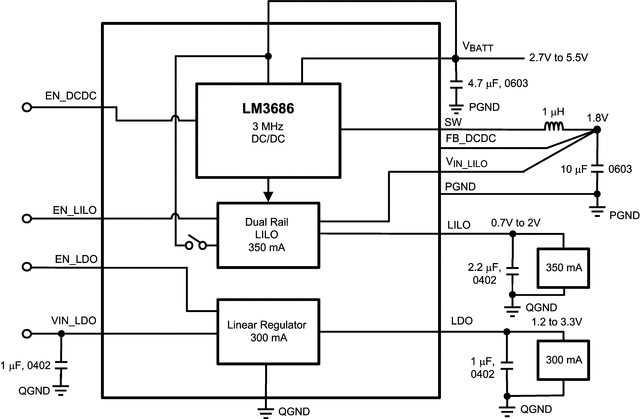

LM3686

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有集成后置线性稳压器系统和低噪声线性稳压器的降压 DC-DC 转换器

Processor supplier: Generic Processor name: Generic Regulated outputs (#): 3 Step-down DC/DC converter: 1 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Iout (max) (A): 0.9 Configurability: Factory programmable Rating: Catalog Operating temperature range (°C): -30 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.07 Switching frequency (max) (kHz): 3400 Shutdown current (ISD) (typ) (µA): 2.5 Switching frequency (typ) (kHz): 3000 Processor supplier: Generic Processor name: Generic 更多

Regulated outputs (#): 3 Step-down DC/DC converter: 1 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Iout (max) (A): 0.9 Configurability: Factory programmable Rating: Catalog Operating temperature range (°C): -30 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.07 Switching frequency (max) (kHz): 3400 Shutdown current (ISD) (typ) (µA): 2.5 Switching frequency (typ) (kHz): 3000

TPS65053

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有 2 个直流/直流转换器和 3 个 LDO 的可配置集成电源管理 (PMIC)

Processor supplier: NXP/Freescale, Texas Instruments Processor name: DM35x, i.MX27 Regulated outputs (#): 5 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 3 Vin (min) (V): 1.5 Vin (max) (V): 6.5 Vout (min) (V): 0.6 Vout (max) (V): 6 Iout (max) (A): 1 Configurability: Hardware configurable Features: I2C control Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.02 Switching frequency (max) (kHz): 2475 Shutdown current (ISD) (typ) (µA): 9 更多

Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA Processor supplier: NXP/Freescale, Texas Instruments Processor name: DM35x, i.MX27 Regulated outputs (#): 5 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 3 Vin (min) (V): 1.5 Vin (max) (V): 6.5 Vout (min) (V): 0.6 Vout (max) (V): 6 Iout (max) (A): 1 Configurability: Hardware configurable Features: I2C control Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.02 Switching frequency (max) (kHz): 2475 Shutdown current (ISD) (typ) (µA): 9 Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA

TPS719

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有有源下拉的 200mA、低 IQ、高 PSRR、双通道低压降稳压器

Output options: Dual output, Fixed Output Iout (max) (A): 0.2 Vin (max) (V): 6.5 Vin (min) (V): 2.7 Vout (max) (V): 3.6 Vout (min) (V): 1.3 Fixed output options (V): 1.2, 1.3, 1.8, 2.1, 2.2, 2.8, 2.85, 3.1, 3.3, 3.6 Rating: Catalog Noise (µVrms): 84 PSRR at 100 KHz (dB): 58 Iq (typ) (mA): 0.09 Thermal resistance θJA (°C/W): 95 Load capacitance (min) (µF): 1 Regulated outputs (#): 2 Features: Enable, Output discharge Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 125 Output options: Dual output, Fixed Output Iout (max) (A): 0.2 更多

Vin (max) (V): 6.5 Vin (min) (V): 2.7 Vout (max) (V): 3.6 Vout (min) (V): 1.3 Fixed output options (V): 1.2, 1.3, 1.8, 2.1, 2.2, 2.8, 2.85, 3.1, 3.3, 3.6 Rating: Catalog Noise (µVrms): 84 PSRR at 100 KHz (dB): 58 Iq (typ) (mA): 0.09 Thermal resistance θJA (°C/W): 95 Load capacitance (min) (µF): 1 Regulated outputs (#): 2 Features: Enable, Output discharge Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 125

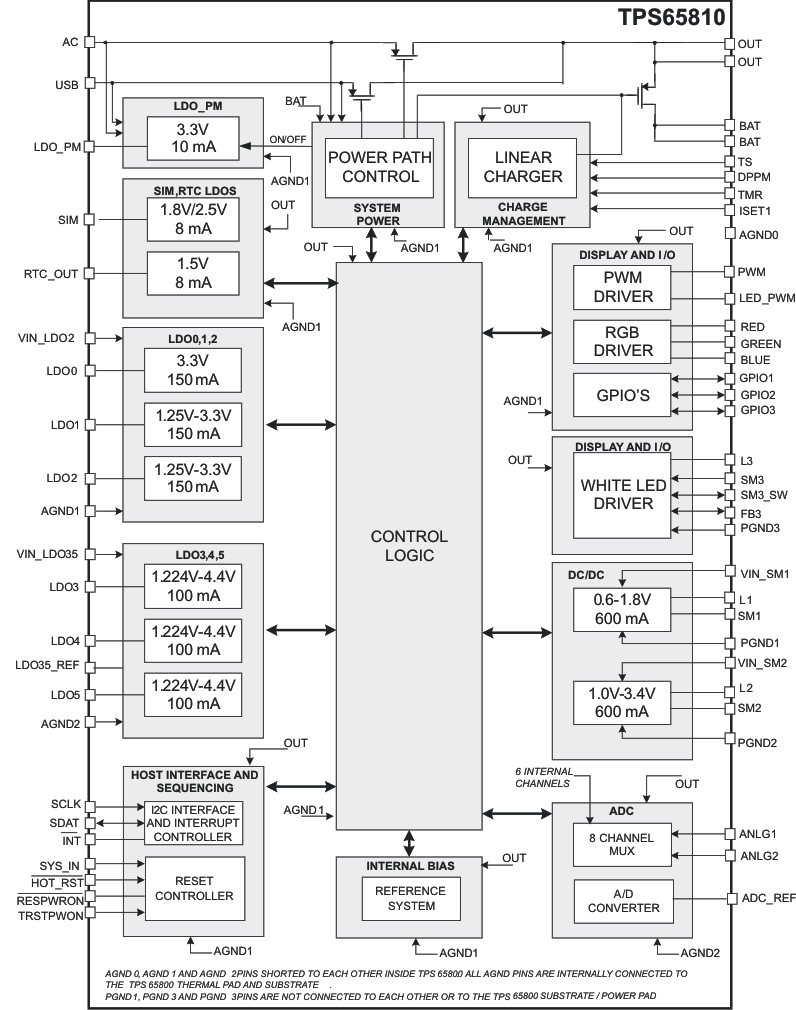

TPS65811

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 集成式单节锂离子电池和电源管理 IC (PMIC)

Regulated outputs (#): 11 Vin (min) (V): 4.3 Vin (max) (V): 16 Vout (min) (V): 0.6 Vout (max) (V): 4.46 Iout (max) (A): 0.75 Features: Comm control, Power sequencing Step-up DC/DC converter: 0 Step-down DC/DC converter: 2 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 LDO: 9 Rating: Catalog Operating temperature range (°C): -40 to 125 Processor supplier: NXP/Freescale Processor name: i.MX21 Regulated outputs (#): 11 Vin (min) (V): 4.3 Vin (max) (V): 16 Vout (min) (V): 0.6 更多

Vout (max) (V): 4.46 Iout (max) (A): 0.75 Features: Comm control, Power sequencing Step-up DC/DC converter: 0 Step-down DC/DC converter: 2 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 LDO: 9 Rating: Catalog Operating temperature range (°C): -40 to 125 Processor supplier: NXP/Freescale Processor name: i.MX21
