Output options: Fixed Output Iout (max) (A): 3 Vin (max) (V): 5.5 Vin (min) (V): 1.426 Vout (max) (V): 1.5 Vout (min) (V): 1.2 Fixed output options (V): 1.2, 1.5 Rating: Catalog Noise (µVrms): 90 PSRR at 100 KHz (dB): 30 Iq (typ) (mA): 4 Thermal resistance θJA (°C/W): 40 Load capacitance (min) (µF): 4.7 Regulated outputs (#): 1 Features: Enable Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 210 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 3 更多

Output options: Fixed Output Iout (max) (A): 1 Vin (max) (V): 6 Vin (min) (V): 1.8 Vout (max) (V): 2.5 Vout (min) (V): 1.26 Fixed output options (V): 1.26, 1.5, 1.6, 1.8, 2.5 Rating: Catalog Noise (µVrms): 150 PSRR at 100 KHz (dB): 20 Iq (typ) (mA): 0.075 Thermal resistance θJA (°C/W): 23 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable, Power good Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 170 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 1 更多

Output options: Adjustable Output, Fixed Output Iout (max) (A): 1 Vin (max) (V): 6 Vin (min) (V): 1.8 Vout (max) (V): 5.5 Vout (min) (V): 1.22 Fixed output options (V): 1.5, 1.6, 1.8, 2.5 Rating: Catalog Noise (µVrms): 150 PSRR at 100 KHz (dB): 20 Iq (typ) (mA): 0.075 Thermal resistance θJA (°C/W): 23, 55.5 Load capacitance (min) (µF): 10 Regulated outputs (#): 1 Features: Enable, Power good Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 170 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Fixed Output Iout (max) (A): 1 更多

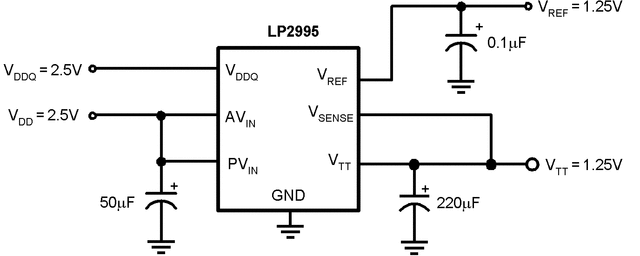

Vin (min) (V): 2.2 Vin (max) (V): 5.5 Vout (min) (V): 1.21 Vout (max) (V): 1.26 Features: No external resistors Rating: Catalog Operating temperature range (°C): 0 to 125 Iq (typ) (mA): 0.25 Product type: DDR DDR memory type: DDR Vin (min) (V): 2.2 Vin (max) (V): 5.5 Vout (min) (V): 1.21 Vout (max) (V): 1.26 Features: No external resistors Rating: Catalog Operating temperature range (°C): 0 to 125 Iq (typ) (mA): 0.25 Product type: DDR DDR memory type: DDR

Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.3 Vin (max) (V): 6 Vin (min) (V): 2.5 Vout (max) (V): 3.3 Vout (min) (V): 1.8 Fixed output options (V): 1.8, 2.5, 2.82, 3, 3.3 Rating: Catalog Noise (µVrms): 37 PSRR at 100 KHz (dB): 20 Iq (typ) (mA): 0.09 Thermal resistance θJA (°C/W): 53 Load capacitance (min) (µF): 2.2 Regulated outputs (#): 1 Features: Enable, Power good Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 120 Operating temperature range (°C): -40 to 85 Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.3 更多

Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.1 Vin (max) (V): 10 Vin (min) (V): 2.7 Vout (max) (V): 5.5 Vout (min) (V): 1.2 Fixed output options (V): 1.2, 1.5, 1.8, 2.5, 2.7, 2.8, 3, 3.3, 5, 5.5 Rating: Automotive Noise (µVrms): 190 PSRR at 100 KHz (dB): 28 Iq (typ) (mA): 0.017 Thermal resistance θJA (°C/W): 205 Load capacitance (min) (µF): 4.7 Regulated outputs (#): 1 Features: Enable Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 71 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.1 更多

Output options: Dual output, Fixed Output Iout (max) (A): 1.5 Vin (max) (V): 5.3 Vin (min) (V): 4.7 Vout (max) (V): 3.3 Vout (min) (V): 3.3 Fixed output options (V): 1.5, 3.3 Rating: Catalog Iq (typ) (mA): 1 Thermal resistance θJA (°C/W): 33 Load capacitance (min) (µF): 4.7 Regulated outputs (#): 2 Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 1000 Operating temperature range (°C): 0 to 70 Output options: Dual output, Fixed Output Iout (max) (A): 1.5 Vin (max) (V): 5.3 Vin (min) (V): 4.7 Vout (max) (V): 3.3 更多

Output options: Fixed Output Iout (max) (A): 3 Vin (max) (V): 7 Vin (min) (V): 2.5 Vout (max) (V): 5 Vout (min) (V): 1.8 Fixed output options (V): 1.8, 2.5, 3.3, 5 Rating: Catalog Noise (µVrms): 100 Iq (typ) (mA): 4 Thermal resistance θJA (°C/W): 50 Load capacitance (min) (µF): 10 Regulated outputs (#): 1 Features: Enable Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 390 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 3 Vin (max) (V): 7 更多

Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.25 Vin (max) (V): 10 Vin (min) (V): 2.2 Vout (max) (V): 5.5 Vout (min) (V): 2.5 Fixed output options (V): 2.5, 2.8, 2.85, 3, 3.3, 5, 5.5 Rating: Catalog Noise (µVrms): 28 PSRR at 100 KHz (dB): 46 Iq (typ) (mA): 0.4 Thermal resistance θJA (°C/W): 150 Load capacitance (min) (µF): 0 Regulated outputs (#): 1 Features: Enable Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 150 Operating temperature range (°C): -40 to 85 Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.25 更多

Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.5 Vin (max) (V): 30 Vin (min) (V): 5.3 Vout (max) (V): 12 Vout (min) (V): 3.3 Fixed output options (V): 3.3, 5, 6, 8, 9, 10, 12 Rating: Catalog Noise (µVrms): 40 PSRR at 100 KHz (dB): 40 Iq (typ) (mA): 4.5 Thermal resistance θJA (°C/W): 23 Load capacitance (min) (µF): 0.1 Regulated outputs (#): 1 Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 2000 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.5 Vin (max) (V): 30 更多
