Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 3
CON (typ) (pF): 23
ON-state leakage current (max) (µA): 0.08
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 3
CON (typ) (pF): 23
更多
ON-state leakage current (max) (µA): 0.08
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5

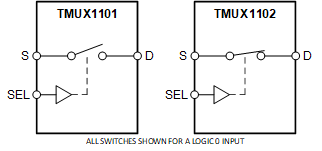

TMUX1102
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 3pA 导通状态漏电流、5V、1:1 (SPST)、单通道精密开关（低电平有效）
Configuration: 1:1 SPST
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 18
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 300
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 1:1 SPST
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 18
更多
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 300
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TMUX1101
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 3pA 导通状态漏电流、5V、1:1 (SPST)、单通道精密开关（高电平有效）
Configuration: 1:1 SPST
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 18
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 300
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 1:1 SPST
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 18
更多
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 300
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TMUX1111
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 3pA 导通状态泄漏电流、5V、1:1 (SPST)、4 通道精密开关（4 个低电平有效）
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 19
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.009
Bandwidth (MHz): 400
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 19
更多
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.009
Bandwidth (MHz): 400
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 1.8
CON (typ) (pF): 20
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 1.8
CON (typ) (pF): 20
更多
ON-state leakage current (max) (µA): 0.002
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 3
CON (typ) (pF): 23
ON-state leakage current (max) (µA): 0.08
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 3
CON (typ) (pF): 23
更多
ON-state leakage current (max) (µA): 0.08
Supply current (typ) (µA): 0.003
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 4:1
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 9
CON (typ) (pF): 42
ON-state leakage current (max) (µA): 0.75
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 125
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 4:1
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 9
CON (typ) (pF): 42
更多
ON-state leakage current (max) (µA): 0.75
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 125
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2.5
CON (typ) (pF): 21
ON-state leakage current (max) (µA): 0.004
Supply current (typ) (µA): 0.006
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2.5
CON (typ) (pF): 21
更多
ON-state leakage current (max) (µA): 0.004
Supply current (typ) (µA): 0.006
Bandwidth (MHz): 250
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 4:1
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2.5
CON (typ) (pF): 40
ON-state leakage current (max) (µA): 0.0035
Supply current (typ) (µA): 0.005
Bandwidth (MHz): 150
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 4:1
Number of channels: 1
Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 2.5
CON (typ) (pF): 40
更多
ON-state leakage current (max) (µA): 0.0035
Supply current (typ) (µA): 0.005
Bandwidth (MHz): 150
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TMUX6121
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 5pA、±16.5V、1:1 (SPST)、2 通道精密模拟开关（高电平有效）
Configuration: 1:1 SPST
Number of channels: 2
Power supply voltage - single (V): 12, 16
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5
Protocols: Analog
Ron (typ) (Ω): 120
CON (typ) (pF): 4.2
ON-state leakage current (max) (µA): 0.0004
Supply current (typ) (µA): 16
Bandwidth (MHz): 630
Operating temperature range (°C): -40 to 125
Features: Integrated pulldown resistor on logic pin
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 16.5
Supply voltage (max) (V): 33
Negative rail supply voltage (max) (V): -5
Configuration: 1:1 SPST
Number of channels: 2
Power supply voltage - single (V): 12, 16
更多
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5
Protocols: Analog
Ron (typ) (Ω): 120
CON (typ) (pF): 4.2
ON-state leakage current (max) (µA): 0.0004
Supply current (typ) (µA): 16
Bandwidth (MHz): 630
Operating temperature range (°C): -40 to 125
Features: Integrated pulldown resistor on logic pin
Input/output continuous current (max) (mA): 30
Rating: Catalog
Drain supply voltage (max) (V): 16.5
Supply voltage (max) (V): 33
Negative rail supply voltage (max) (V): -5
