Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 12, 16 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 120 CON (typ) (pF): 4.2 ON-state leakage current (max) (µA): 0.0005 Supply current (typ) (µA): 17 Bandwidth (MHz): 800 Operating temperature range (°C): -40 to 125 Features: Integrated pulldown resistor on logic pin Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 16.5 Supply voltage (max) (V): 33 Negative rail supply voltage (max) (V): -5 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 12, 16 更多

Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 11 CON (typ) (pF): 27 ON-state leakage current (max) (µA): 0.3 Supply current (typ) (µA): 2.5 Bandwidth (MHz): 165 Operating temperature range (°C): -40 to 125 Features: Powered-off protection Input/output continuous current (max) (mA): 128 Rating: Automotive Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 1.3 Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 11 更多

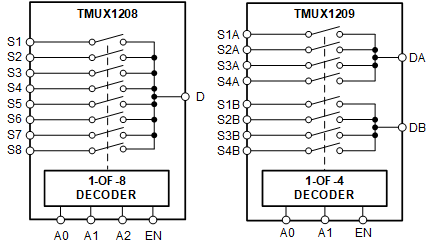

Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 5 CON (typ) (pF): 85 ON-state leakage current (max) (µA): 0.75 Supply current (typ) (µA): 0.02 Bandwidth (MHz): 65 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 5 CON (typ) (pF): 85 更多

Configuration: 4:1 Number of channels: 1 Power supply voltage - single (V): 12, 16 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 5 ON-state leakage current (max) (µA): 0.001 Supply current (typ) (µA): 17 Bandwidth (MHz): 400 Operating temperature range (°C): -40 to 125 Features: Break-before-make, Integrated pulldown resistor on logic pin Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 16.5 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -5 Configuration: 4:1 Number of channels: 1 Power supply voltage - single (V): 12, 16 更多

Configuration: 2:1 SPDT Number of channels: 2 Power supply voltage - single (V): 2.5, 3.3, 5 Protocols: Analog, I2C, LVDS, UART Ron (typ) (Ω): 6 CON (typ) (pF): 4.5 ON-state leakage current (max) (µA): 11.5 Supply current (typ) (µA): 75 Bandwidth (MHz): 1200 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 50 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 3.2 Configuration: 2:1 SPDT Number of channels: 2 Power supply voltage - single (V): 2.5, 3.3, 5 Protocols: Analog, I2C, LVDS, UART Ron (typ) (Ω): 6 CON (typ) (pF): 4.5 更多

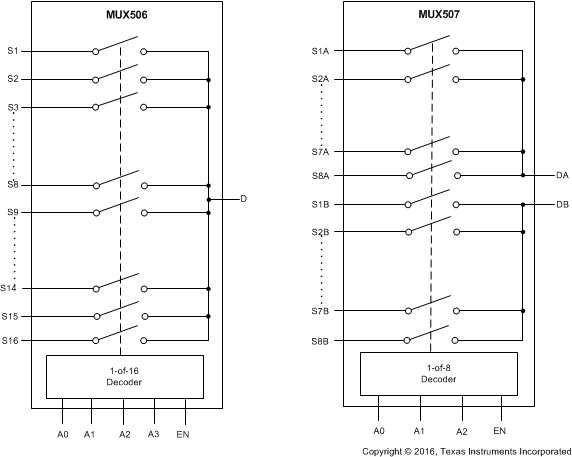

Configuration: 16:1 Number of channels: 1 Power supply voltage - single (V): 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 13.5 ON-state leakage current (max) (µA): 0.05 Supply current (typ) (µA): 45 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -5 Configuration: 16:1 Number of channels: 1 Power supply voltage - single (V): 12, 16, 20, 36 更多

Configuration: 8:1 Number of channels: 2 Power supply voltage - single (V): 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 8.7 ON-state leakage current (max) (µA): 0.05 Supply current (typ) (µA): 45 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -5 Configuration: 8:1 Number of channels: 2 Power supply voltage - single (V): 12, 16, 20, 36 更多

Configuration: 8:1 Number of channels: 2 Power supply voltage - single (V): 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 8.7 ON-state leakage current (max) (µA): 0.0053 Supply current (typ) (µA): 45 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -5 Configuration: 8:1 Number of channels: 2 Power supply voltage - single (V): 12, 16, 20, 36 更多

Configuration: 16:1 Number of channels: 1 Power supply voltage - single (V): 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 13.5 ON-state leakage current (max) (µA): 0.0053 Supply current (typ) (µA): 45 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -5 Configuration: 16:1 Number of channels: 1 Power supply voltage - single (V): 12, 16, 20, 36 更多

Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 6.7 ON-state leakage current (max) (µA): 0.05 Supply current (typ) (µA): 45 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -5 Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 12, 16, 20, 36 更多
