TS3A4742
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有 1.8V 输入逻辑的 0.9Ω、3.3V、1:1 (SPST)、2 通道模拟开关（低电平有效）
Configuration: 1:1 SPST
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog
Ron (typ) (Ω): 0.7
CON (typ) (pF): 43
ON-state leakage current (max) (µA): 0.005
Bandwidth (MHz): 125
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs
Input/output continuous current (max) (mA): 100
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6
Configuration: 1:1 SPST
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog
Ron (typ) (Ω): 0.7
CON (typ) (pF): 43
更多
ON-state leakage current (max) (µA): 0.005
Bandwidth (MHz): 125
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs
Input/output continuous current (max) (mA): 100
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 4
CON (typ) (pF): 14.5
ON-state leakage current (max) (µA): 0.15
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 371
Operating temperature range (°C): -40 to 85
Features: Break-before-make, Overvoltage protection, Undershoot protection
Input/output continuous current (max) (mA): 50
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 4
更多
CON (typ) (pF): 14.5
ON-state leakage current (max) (µA): 0.15
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 371
Operating temperature range (°C): -40 to 85
Features: Break-before-make, Overvoltage protection, Undershoot protection
Input/output continuous current (max) (mA): 50
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TS3USB30
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有单使能端的高速 USB 2.0 (480Mbps) 1:2 多路复用器和多路信号分离器开关
Protocols: USB 2.0
Configuration: 2:1 SPDT
Number of channels: 2
Bandwidth (MHz): 955
Supply voltage (max) (V): 4.3
Supply voltage (min) (V): 3
Ron (typ) (mΩ): 6000
Input/output voltage (min) (V): 0
Input/output voltage (max) (V): 4.3
Supply current (typ) (µA): 1
ESD HBM (typ) (kV): 6
Operating temperature range (°C): -40 to 85
Crosstalk (dB): -56
ESD CDM (kV): 1
Input/output continuous current (max) (mA): 64
COFF (typ) (pF): 2
CON (typ) (pF): 7
Off isolation (typ) (dB): -39
OFF-state leakage current (max) (µA): 2
Propagation delay time (µs): 0.00025
更多
Ron (max) (mΩ): 10000
Ron channel match (max) (Ω): 0.35
RON flatness (typ) (Ω): 2
Turnoff time (disable) (max) (ns): 25
Turnon time (enable) (max) (ns): 30
VIH (min) (V): 1.3
VIL (max) (V): 0.7
Protocols: USB 2.0
Configuration: 2:1 SPDT
Number of channels: 2
Bandwidth (MHz): 955
Supply voltage (max) (V): 4.3
Supply voltage (min) (V): 3
Ron (typ) (mΩ): 6000
Input/output voltage (min) (V): 0
Input/output voltage (max) (V): 4.3
Supply current (typ) (µA): 1
ESD HBM (typ) (kV): 6
Operating temperature range (°C): -40 to 85
Crosstalk (dB): -56
ESD CDM (kV): 1
Input/output continuous current (max) (mA): 64
COFF (typ) (pF): 2
CON (typ) (pF): 7
Off isolation (typ) (dB): -39
OFF-state leakage current (max) (µA): 2
Propagation delay time (µs): 0.00025
Ron (max) (mΩ): 10000
Ron channel match (max) (Ω): 0.35
RON flatness (typ) (Ω): 2
Turnoff time (disable) (max) (ns): 25
Turnon time (enable) (max) (ns): 30
VIH (min) (V): 1.3
VIL (max) (V): 0.7
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog, I2C, UART
Ron (typ) (Ω): 0.45
CON (typ) (pF): 140
ON-state leakage current (max) (µA): 0.4
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 50
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 300
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog, I2C, UART
Ron (typ) (Ω): 0.45
更多
CON (typ) (pF): 140
ON-state leakage current (max) (µA): 0.4
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 50
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 300
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6

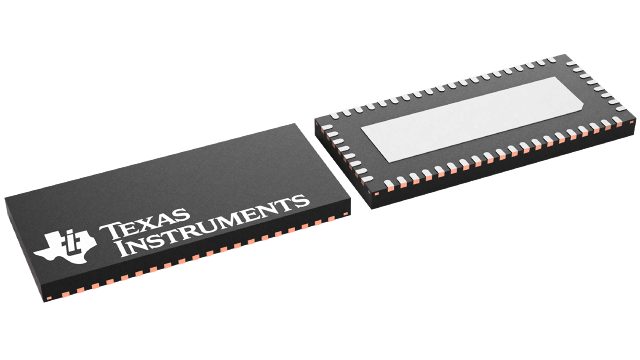

TS3L500AE
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有 LED 开关和增强型 ESD 保护的 3.3V、2:1 (SPDT)、8 通道千兆通道 LAN 交换机
Protocols: 10 BASE-T, 100 BASE-T, 1000 BASE-T, LAN, LVDS
Configuration: 2:1 SPDT
Number of channels: 11
Bandwidth (MHz): 950
Supply voltage (max) (V): 3.6
Supply voltage (min) (V): 3
Ron (typ) (mΩ): 4000
Input/output voltage (min) (V): 0
Input/output voltage (max) (V): 3.6
Supply current (typ) (µA): 250
ESD HBM (typ) (kV): 14
Operating temperature range (°C): -40 to 85
Crosstalk (dB): -37
ESD CDM (kV): 8
Input/output continuous current (max) (mA): 128
COFF (typ) (pF): 3
CON (typ) (pF): 3
Off isolation (typ) (dB): -37
OFF-state leakage current (max) (µA): 1
Propagation delay time (µs): 0.00025
更多
Ron (max) (mΩ): 6000
Ron channel match (max) (Ω): 1
RON flatness (typ) (Ω): 0.5
Turnoff time (disable) (max) (ns): 9
Turnon time (enable) (max) (ns): 15
VIH (min) (V): 2
VIL (max) (V): 0.8
Protocols: 10 BASE-T, 100 BASE-T, 1000 BASE-T, LAN, LVDS
Configuration: 2:1 SPDT
Number of channels: 11
Bandwidth (MHz): 950
Supply voltage (max) (V): 3.6
Supply voltage (min) (V): 3
Ron (typ) (mΩ): 4000
Input/output voltage (min) (V): 0
Input/output voltage (max) (V): 3.6
Supply current (typ) (µA): 250
ESD HBM (typ) (kV): 14
Operating temperature range (°C): -40 to 85
Crosstalk (dB): -37
ESD CDM (kV): 8
Input/output continuous current (max) (mA): 128
COFF (typ) (pF): 3
CON (typ) (pF): 3
Off isolation (typ) (dB): -37
OFF-state leakage current (max) (µA): 1
Propagation delay time (µs): 0.00025
Ron (max) (mΩ): 6000
Ron channel match (max) (Ω): 1
RON flatness (typ) (Ω): 0.5
Turnoff time (disable) (max) (ns): 9
Turnon time (enable) (max) (ns): 15
VIH (min) (V): 2
VIL (max) (V): 0.8

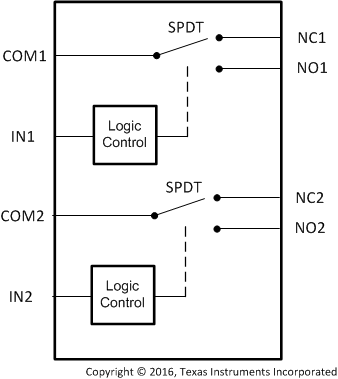

TS3A24159
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有 1.8V 输入逻辑电平的 0.3Ω 导通状态电阻、3.3V、2:1 (SPDT)、2 通道模拟开关
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog, I2C, UART
Ron (typ) (Ω): 0.26
CON (typ) (pF): 250
ON-state leakage current (max) (µA): 0.1
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 23
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 300
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog, I2C, UART
Ron (typ) (Ω): 0.26
更多
CON (typ) (pF): 250
ON-state leakage current (max) (µA): 0.1
Supply current (typ) (µA): 0.01
Bandwidth (MHz): 23
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 300
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6
Configuration: 2:1 SPDT
Number of channels: 4
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog
Ron (typ) (Ω): 0.3
CON (typ) (pF): 162
ON-state leakage current (max) (µA): 0.05
Supply current (typ) (µA): 0.001
Bandwidth (MHz): 35
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 200
Rating: Catalog
Drain supply voltage (max) (V): 4.3
Supply voltage (max) (V): 4.3
Configuration: 2:1 SPDT
Number of channels: 4
Power supply voltage - single (V): 1.8, 2.5, 3.3
Protocols: Analog
Ron (typ) (Ω): 0.3
更多
CON (typ) (pF): 162
ON-state leakage current (max) (µA): 0.05
Supply current (typ) (µA): 0.001
Bandwidth (MHz): 35
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 200
Rating: Catalog
Drain supply voltage (max) (V): 4.3
Supply voltage (max) (V): 4.3

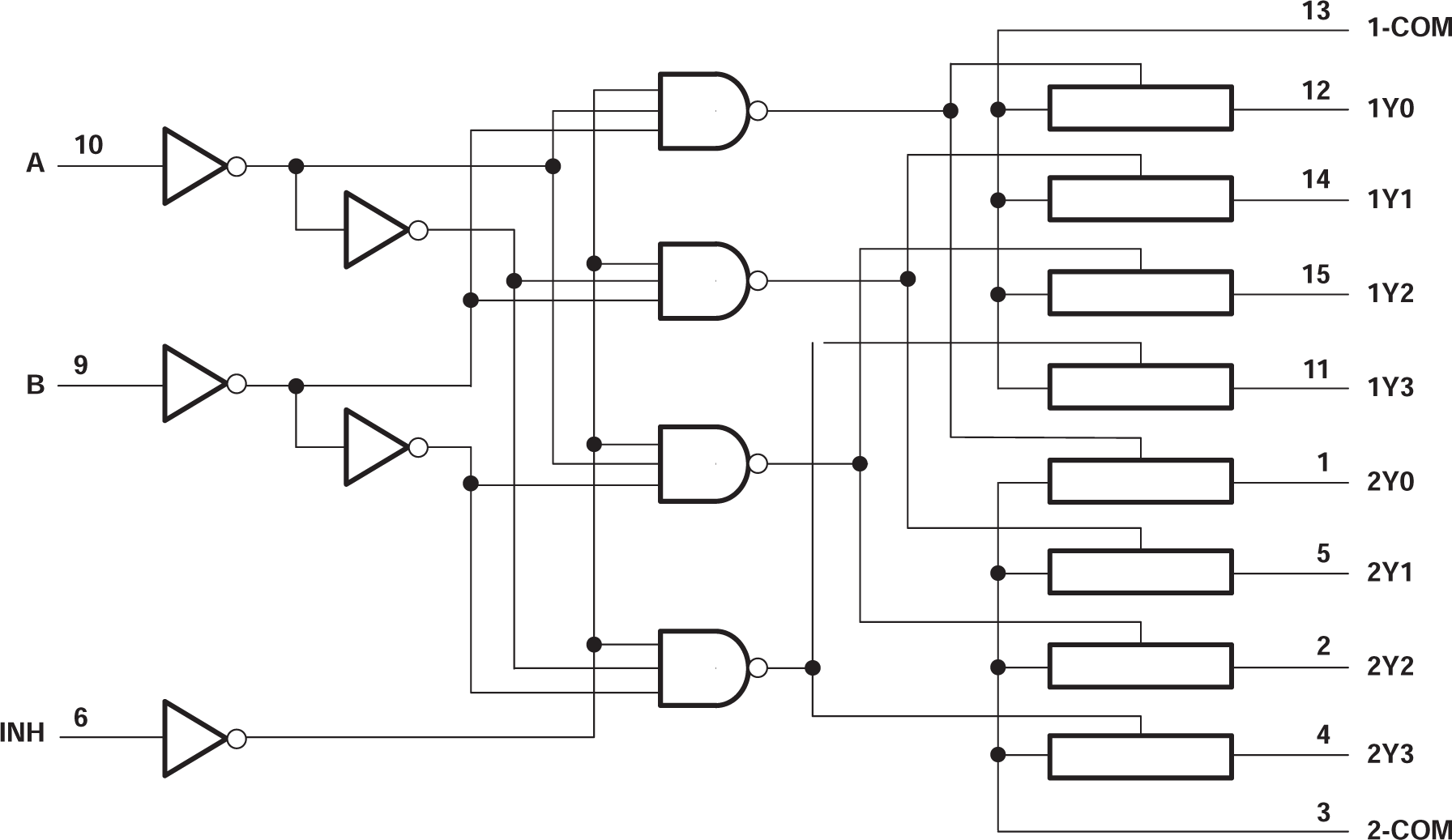

SN74HC4852-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有注入电流效应控制功能的汽车类 5V、4:1、2 通道模拟多路复用器
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 150
CON (typ) (pF): 6.7
ON-state leakage current (max) (µA): 1
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 25
Rating: Automotive
Drain supply voltage (max) (V): 6
Supply voltage (max) (V): 6
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 150
CON (typ) (pF): 6.7
ON-state leakage current (max) (µA): 1
Operating temperature range (°C): -40 to 125
更多
Input/output continuous current (max) (mA): 25
Rating: Automotive
Drain supply voltage (max) (V): 6
Supply voltage (max) (V): 6
TS5A26542
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有输入逻辑转换功能的 0.75Ω 导通状态电阻、5V、2:1 (SPDT)、2 通道模拟开关
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 0.5
CON (typ) (pF): 130
ON-state leakage current (max) (µA): 0.2
Supply current (typ) (µA): 0.001
Bandwidth (MHz): 43
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 450
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 2.5, 3.3, 5
Protocols: Analog
Ron (typ) (Ω): 0.5
更多
CON (typ) (pF): 130
ON-state leakage current (max) (µA): 0.2
Supply current (typ) (µA): 0.001
Bandwidth (MHz): 43
Operating temperature range (°C): -40 to 85
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 450
Rating: Catalog
Drain supply voltage (max) (V): 5.5
Supply voltage (max) (V): 5.5
TS3DS26227
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有输入逻辑转换功能的 3.3V、2:1 (SPDT)、2 通道差分信号开关
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 2.5, 3.3
Protocols: MIPI
Ron (typ) (Ω): 3.5
CON (typ) (pF): 10.5
ON-state leakage current (max) (µA): 0.03
Supply current (typ) (µA): 0.1
Bandwidth (MHz): 800
Operating temperature range (°C): -40 to 85
Features: Break-before-make
Input/output continuous current (max) (mA): 64
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 2.5, 3.3
Protocols: MIPI
Ron (typ) (Ω): 3.5
更多
CON (typ) (pF): 10.5
ON-state leakage current (max) (µA): 0.03
Supply current (typ) (µA): 0.1
Bandwidth (MHz): 800
Operating temperature range (°C): -40 to 85
Features: Break-before-make
Input/output continuous current (max) (mA): 64
Rating: Catalog
Drain supply voltage (max) (V): 3.6
Supply voltage (max) (V): 3.6
