CD4052B


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 20V、4:1、2 通道通用多路复用器

Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 3.3, 5, 12, 16, 20 Power supply voltage - dual (V): +/-10, +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 18 ON-state leakage current (max) (µA): 0.3 Supply current (typ) (µA): 0.04 Bandwidth (MHz): 25 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 10 Rating: Catalog Drain supply voltage (max) (V): 20 Supply voltage (max) (V): 20 Negative rail supply voltage (max) (V): 0 Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 3.3, 5, 12, 16, 20
Power supply voltage - dual (V): +/-10, +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 18 ON-state leakage current (max) (µA): 0.3 Supply current (typ) (µA): 0.04 Bandwidth (MHz): 25 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 10 Rating: Catalog Drain supply voltage (max) (V): 20 Supply voltage (max) (V): 20 Negative rail supply voltage (max) (V): 0

CD4053B


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有逻辑电平转换功能的 20V、2:1 (SPDT)、3 通道模拟多路复用器

Configuration: 2:1 SPDT Number of channels: 3 Power supply voltage - single (V): 5, 12, 16, 20 Power supply voltage - dual (V): +/-10, +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 9 ON-state leakage current (max) (µA): 0.3 Supply current (typ) (µA): 0.04 Bandwidth (MHz): 30 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 10 Rating: Catalog Drain supply voltage (max) (V): 20 Supply voltage (max) (V): 20 Negative rail supply voltage (max) (V): 0 Configuration: 2:1 SPDT Number of channels: 3 Power supply voltage - single (V): 5, 12, 16, 20
Power supply voltage - dual (V): +/-10, +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 9 ON-state leakage current (max) (µA): 0.3 Supply current (typ) (µA): 0.04 Bandwidth (MHz): 30 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 10 Rating: Catalog Drain supply voltage (max) (V): 20 Supply voltage (max) (V): 20 Negative rail supply voltage (max) (V): 0

CD4066B


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 10pA 开路漏电流、20V、1:1 (SPST)、4 通道模拟开关

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 3.3, 5, 12, 16, 20 Power supply voltage - dual (V): +/-10, +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 125 CON (typ) (pF): 8 Supply current (typ) (µA): 0.01 Bandwidth (MHz): 40 Operating temperature range (°C): -55 to 125 Input/output continuous current (max) (mA): 10 Rating: Catalog Drain supply voltage (max) (V): 18 Supply voltage (max) (V): 18 Negative rail supply voltage (max) (V): 0 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 3.3, 5, 12, 16, 20 Power supply voltage - dual (V): +/-10, +/-2.5, +/-5 Protocols: Analog
Ron (typ) (Ω): 125 CON (typ) (pF): 8 Supply current (typ) (µA): 0.01 Bandwidth (MHz): 40 Operating temperature range (°C): -55 to 125 Input/output continuous current (max) (mA): 10 Rating: Catalog Drain supply voltage (max) (V): 18 Supply voltage (max) (V): 18 Negative rail supply voltage (max) (V): 0

CD74HC4051


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 5V、8:1、单通道模拟多路复用器

Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 40 CON (typ) (pF): 25 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 8 Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0 Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 40 CON (typ) (pF): 25 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 8 Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0

CD74HC4052


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 5V、4:1 差分 2 通道模拟多路复用器

Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 40 CON (typ) (pF): 12 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0 Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Power supply voltage - dual (V): +/-2.5, +/-5
Protocols: Analog Ron (typ) (Ω): 40 CON (typ) (pF): 12 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0

CD74HC4053


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 5V、2:1 (SPDT)、3 通道模拟开关

Configuration: 2:1 SPDT Number of channels: 3 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 45 CON (typ) (pF): 25 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 8 Bandwidth (MHz): 180 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0 Configuration: 2:1 SPDT Number of channels: 3 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5
Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 45 CON (typ) (pF): 25 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 8 Bandwidth (MHz): 180 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0

CD74HC4066


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 12V、1:1 (SPST)、(SPST) 4 通道模拟开关

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3, 5, 12 Protocols: Analog Ron (typ) (Ω): 15 CON (typ) (pF): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 10 Supply voltage (max) (V): 10 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3, 5, 12 Protocols: Analog Ron (typ) (Ω): 15 CON (typ) (pF): 5 ON-state leakage current (max) (µA): 1
Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 10 Supply voltage (max) (V): 10

CD74HC4067


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 5V, 16:1, single channel analog multiplexer

Configuration: 16:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 60 CON (typ) (pF): 50 ON-state leakage current (max) (µA): 8 Bandwidth (MHz): 89 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 6 Configuration: 16:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 60 CON (typ) (pF): 50
ON-state leakage current (max) (µA): 8 Bandwidth (MHz): 89 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 6

CD74HC4316


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有电平转换功能的 5V、1:1 (SPST)、4 通道模拟开关

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 30 CON (typ) (pF): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Power supply voltage - dual (V): +/-2.5, +/-5
Protocols: Analog Ron (typ) (Ω): 30 CON (typ) (pF): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0

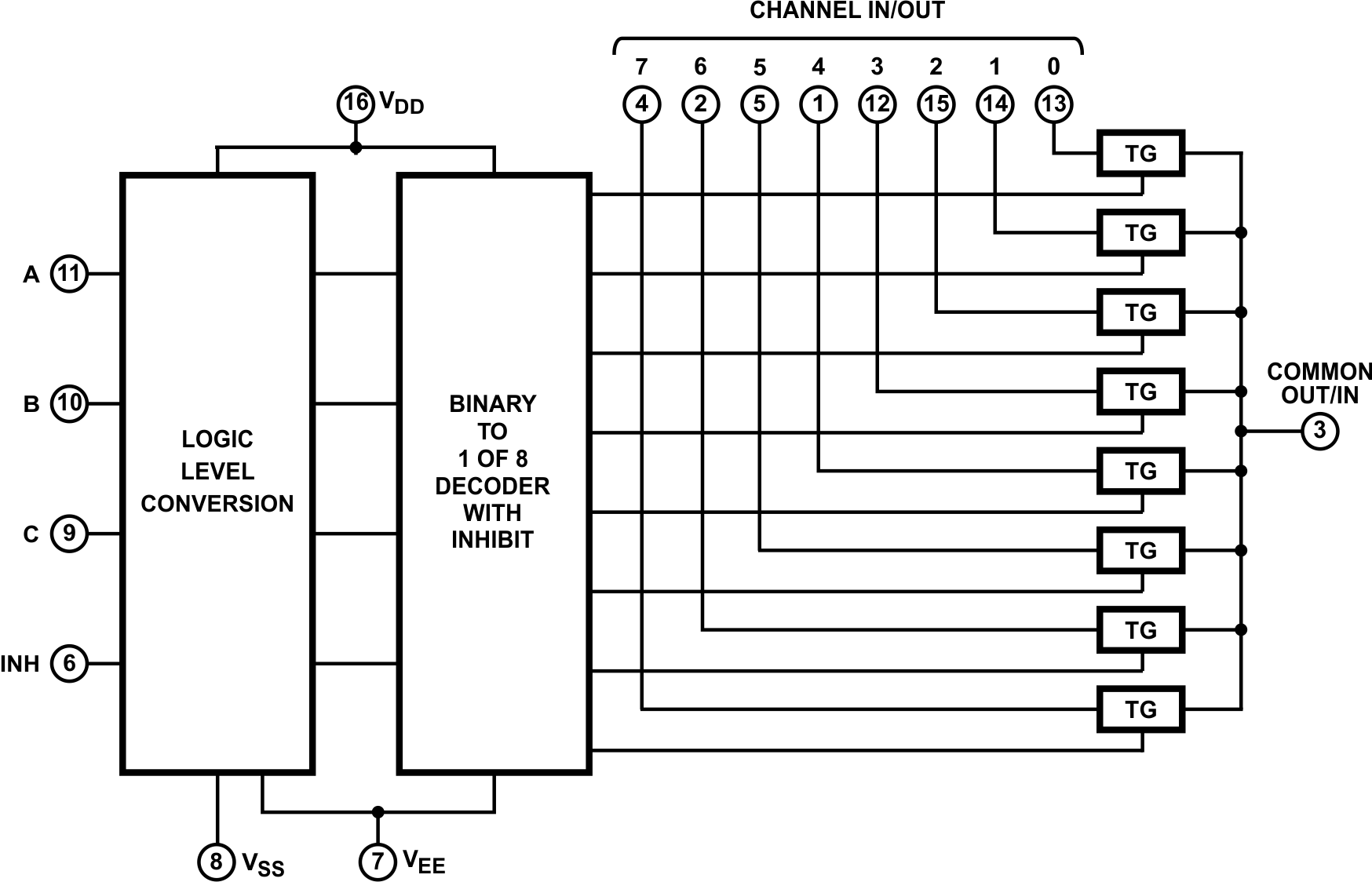

CD74HCT4051


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 TTL 输入的 5V、8:1、单通道模拟多路复用器

Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 5 Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 40 CON (typ) (pF): 25 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 8 Bandwidth (MHz): 180 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0 Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 5
Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 40 CON (typ) (pF): 25 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 8 Bandwidth (MHz): 180 Operating temperature range (°C): -55 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0
