SN74CBTLV3125

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有断电保护功能的 3.3V、1:1 (SPST)、4 通道 FET 总线开关

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog, I2C, I2S, JTAG, RGMII, SPI, TDM, UART Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog, I2C, I2S, JTAG, RGMII, SPI, TDM, UART Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 更多

Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6

SN74CBTLV3126

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 3.3V、1:1 (SPST)、4 通道 FET 总线开关

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog, I2C, I2S, JTAG, RGMII, SPI, TDM, UART Ron (typ) (Ω): 5 CON (typ) (pF): 2.5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 Features: Powered-off protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog, I2C, I2S, JTAG, RGMII, SPI, TDM, UART Ron (typ) (Ω): 5 CON (typ) (pF): 2.5 更多

ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 Features: Powered-off protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6

SN74CBTLV3245A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 3.3V、1:1 (SPST)、8 通道通用 FET 总线开关

Configuration: 1:1 SPST Number of channels: 8 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 60 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 Features: Powered-off protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6 Configuration: 1:1 SPST Number of channels: 8 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 60 Bandwidth (MHz): 200 更多

Operating temperature range (°C): -40 to 85 Features: Powered-off protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6

SN74CBTLV3383

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 3.3V、交叉点/交换、10 通道 FET 总线开关

Configuration: Crosspoint/exchange Number of channels: 10 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 Features: Powered-off protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6 Configuration: Crosspoint/exchange Number of channels: 10 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 更多

SN74CBTLV3384

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 2 个控制输入的 3.3V、1:1 (SPST)、10 通道通用 FET 总线开关

Configuration: 1:1 SPST Number of channels: 10 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 Features: Powered-off protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6 Configuration: 1:1 SPST Number of channels: 10 Power supply voltage - single (V): 2.5, 3.3 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 200 更多

SN74CBTS3384

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有肖特基二极管钳位功能的 5V、1:1 (SPST)、10 通道通用 FET 总线开关

Configuration: 1:1 SPST Number of channels: 10 Power supply voltage - single (V): 5 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 150 Bandwidth (MHz): 200 Operating temperature range (°C): -40 to 85 Features: Undershoot protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 1:1 SPST Number of channels: 10 Power supply voltage - single (V): 5 Protocols: Analog Ron (typ) (Ω): 5 ON-state leakage current (max) (µA): 150 Bandwidth (MHz): 200 更多

Operating temperature range (°C): -40 to 85 Features: Undershoot protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5

SN74HC4066

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 5V、1:1 (SPST)、4 通道模拟开关

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 30 CON (typ) (pF): 3 ON-state leakage current (max) (µA): 5 Supply current (typ) (µA): 2 Bandwidth (MHz): 30 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 6 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 30 CON (typ) (pF): 3 更多

ON-state leakage current (max) (µA): 5 Supply current (typ) (µA): 2 Bandwidth (MHz): 30 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 6

SN74LV4051A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

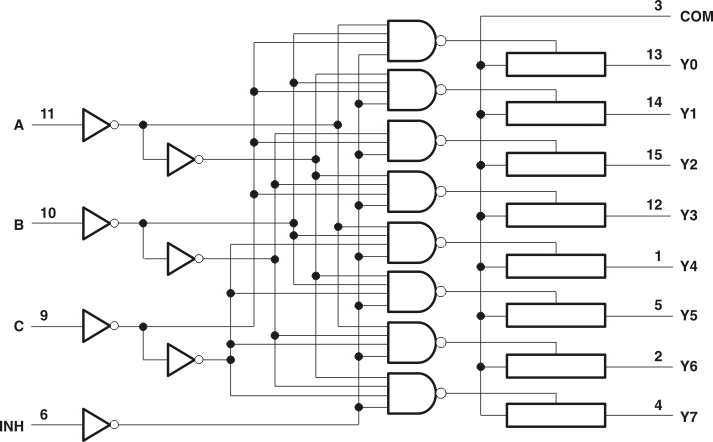

描述: 5V 8:1 单通道通用模拟多路复用器

Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 22 CON (typ) (pF): 23.4 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 35 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 22 CON (typ) (pF): 23.4 ON-state leakage current (max) (µA): 1 更多

Bandwidth (MHz): 35 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5

SN74LV4052A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

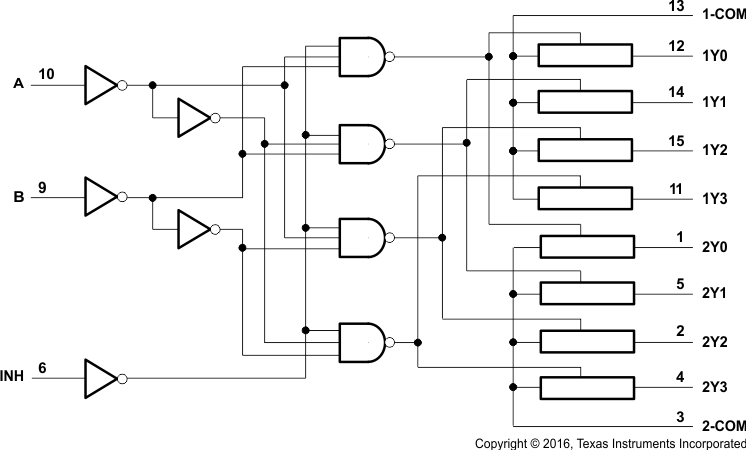

描述: 5V 4:1 双通道模拟多路复用器

Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 25 CON (typ) (pF): 5.6 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 50 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 25 CON (typ) (pF): 5.6 ON-state leakage current (max) (µA): 1 更多

Bandwidth (MHz): 50 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5

SN74LV4053A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

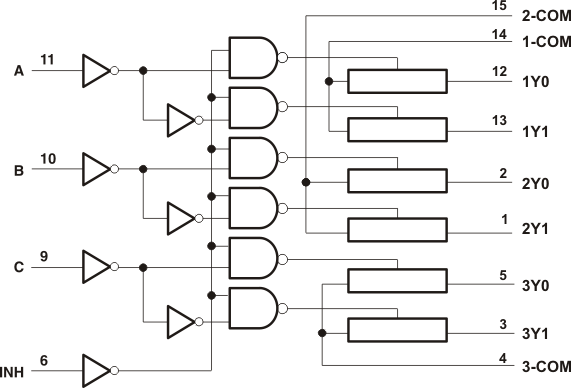

描述: 5V 2:1 (SPDT) 三通道模拟开关

Configuration: 2:1 SPDT Number of channels: 3 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 23 CON (typ) (pF): 5.6 ON-state leakage current (max) (µA): 1 Bandwidth (MHz): 50 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 2:1 SPDT Number of channels: 3 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 23 CON (typ) (pF): 5.6 ON-state leakage current (max) (µA): 1 更多

Bandwidth (MHz): 50 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 25 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5
