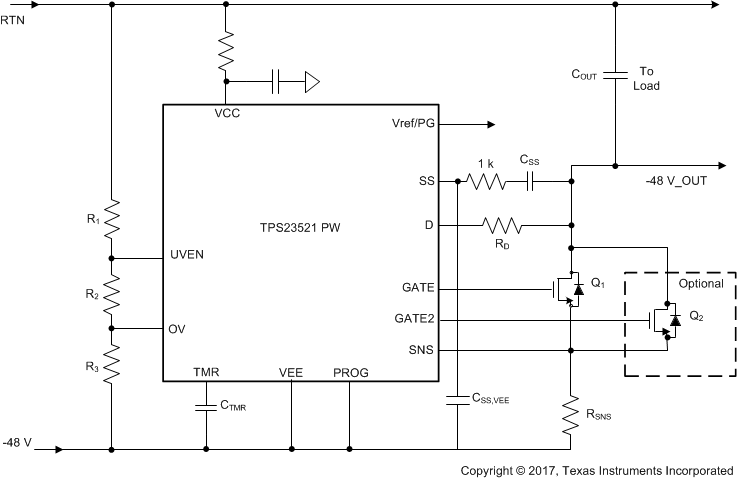

FET: External Vin (min) (V): -80 Vin (max) (V): -10 Vabsmax_cont (V): -200 Current limit (min) (A): 0.01 Current limit (max) (A): 500 Overcurrent response: Circuit breaker, Current limiting, current limiting Fault response: Auto-retry Soft start: Adjustable Overvoltage response: Cut-off Features: Fault output, Power good signal Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.001 Quiescent current (Iq) (max) (A): 0.001 FET: External Vin (min) (V): -80 Vin (max) (V): -10 Vabsmax_cont (V): -200 更多

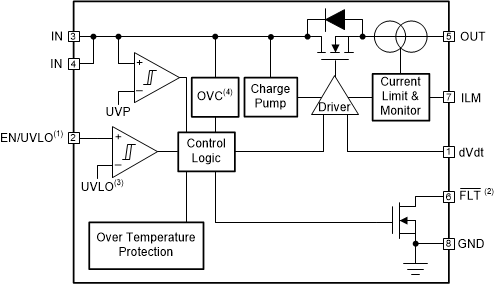

FET: Internal Ron (typ) (mΩ): 34 Vin (min) (V): 2.7, 3 Vin (max) (V): 18 Vabsmax_cont (V): 20 Current limit (min) (A): 0.5 Current limit (max) (A): 4 Overcurrent response: Current limiting, current limiting Fault response: Auto-retry, Latch-off Soft start: Adjustable Overvoltage response: Clamp, Cut-off Features: Current monitoring, Fault output, Quick output discharge UL recognition: IEC62368, UL2367 Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.000175 Quiescent current (Iq) (max) (A): 0.00025 FET: Internal Ron (typ) (mΩ): 34 更多

FET: External Vin (min) (V): -80 Vin (max) (V): -10 Vabsmax_cont (V): -200 Current limit (min) (A): 0.01 Current limit (max) (A): 500 Overcurrent response: current limiting Fault response: Auto-retry Soft start: Adjustable Overvoltage response: Cut-off Features: Fault output, Power good signal, Reverse current blocking always Rating: Catalog Device type: eFuses and hot swap controllers Operating temperature range (°C): -40 to 125 Quiescent current (Iq) (typ) (A): 0.001 Quiescent current (Iq) (max) (A): 0.001 FET: External Vin (min) (V): -80 Vin (max) (V): -10 Vabsmax_cont (V): -200 更多

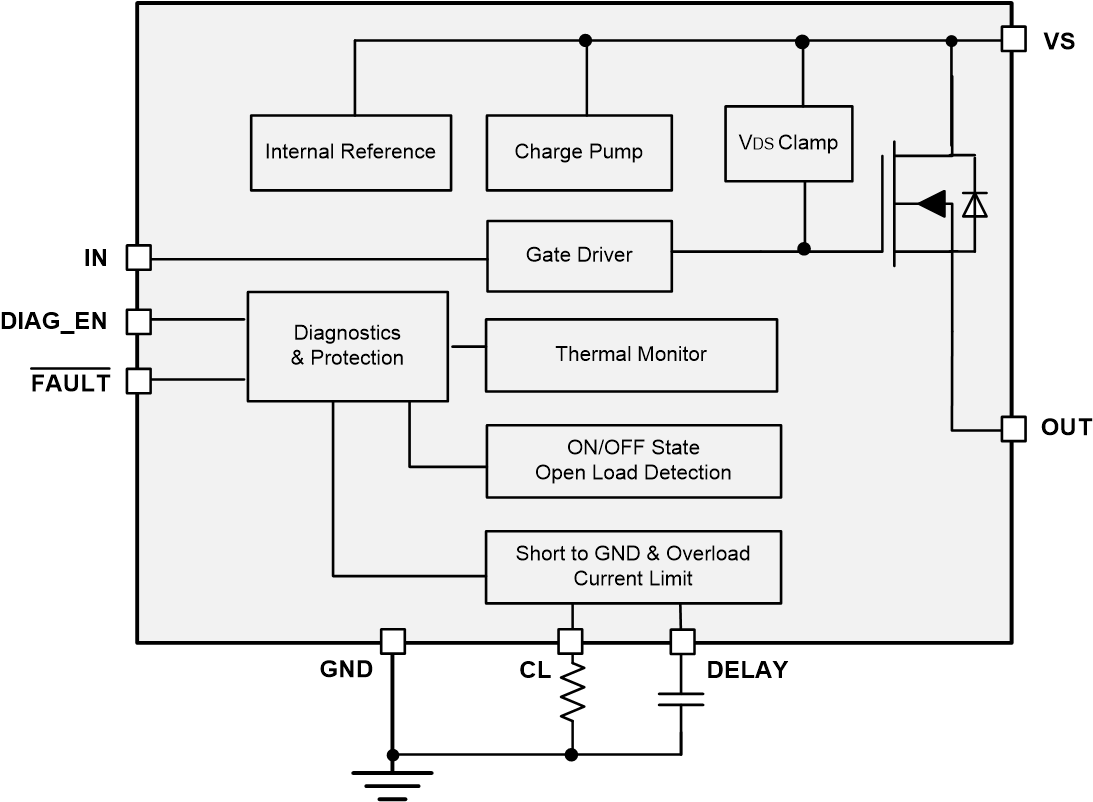

Number of channels: 1 Operating voltage (max) (V): 40 Operating voltage (min) (V): 4 Ron (typ) (mΩ): 1000 Imax (A): 0.9 Current limit (min) (A): 0.05 Current limit (max) (A): 1 Current limit type: Adjustable Current limit accuracy: +/- 10% @ 0.15A FET: Internal Features: Digital output, Programmable current limit Operating temperature range (°C): -40 to 125 Rating: Automotive Number of channels: 1 Operating voltage (max) (V): 40 Operating voltage (min) (V): 4 Ron (typ) (mΩ): 1000 Imax (A): 0.9 Current limit (min) (A): 0.05 Current limit (max) (A): 1 更多

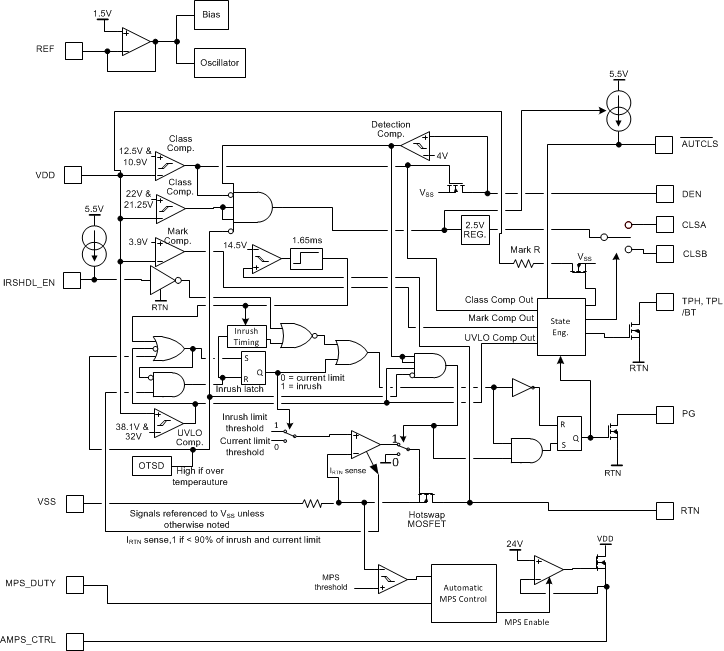

Vin (min) (V): 8 Vin (max) (V): 57 PoE current limit (min) (mA): 1550, 1900 PoE inrush limit (mA) (typ) (A): 0.2, 0.335, 200, 335 rDS(on) per FET (typ) (mΩ): 100, 300 PoE standards supported: 802.3bt Type 3, 802.3bt Type 4 PD power level: 13W, 25W, 51W, 71W DC/DC control: PD Only Fault response: Auto Retry Operating temperature range (°C): -40 to 125 Rating: Catalog Vin (min) (V): 8 Vin (max) (V): 57 PoE current limit (min) (mA): 1550, 1900 PoE inrush limit (mA) (typ) (A): 0.2, 0.335, 200, 335 rDS(on) per FET (typ) (mΩ): 100, 300 PoE standards supported: 802.3bt Type 3, 802.3bt Type 4 PD power level: 13W, 25W, 51W, 71W DC/DC control: PD Only Fault response: Auto Retry 更多

Number of channels: 1 Operating voltage (max) (V): 40 Operating voltage (min) (V): 4 Ron (typ) (mΩ): 80 Imax (A): 4 Current limit (min) (A): 0.5 Current limit (max) (A): 7 Current limit type: Adjustable Current limit accuracy: +/-20% @ 0.5A Current sense accuracy: +/-30mA @ 1A, 3mA @ 25mA FET: Internal Operating temperature range (°C): -40 to 125 Rating: Catalog Number of channels: 1 Operating voltage (max) (V): 40 Operating voltage (min) (V): 4 Ron (typ) (mΩ): 80 Imax (A): 4 Current limit (min) (A): 0.5 Current limit (max) (A): 7 更多

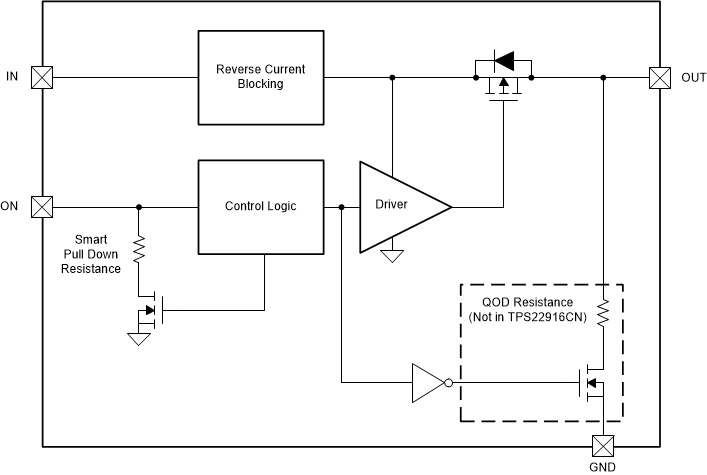

Number of channels: 1 Vin (min) (V): 1 Vin (max) (V): 5.5 Imax (A): 2 Ron (typ) (mΩ): 60 Shutdown current (ISD) (typ) (µA): 0.01, 0.1 Quiescent current (Iq) (typ) (µA): 0.5 Soft start: Fixed Rise Time Current limit type: None Features: Active low, Quick output discharge, Reverse current protection Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control, Reverse current blocking Number of channels: 1 Vin (min) (V): 1 Vin (max) (V): 5.5 Imax (A): 2 Ron (typ) (mΩ): 60 更多

Number of channels: 1 Vin (min) (V): 0.65 Vin (max) (V): 3.6 Imax (A): 4 Ron (typ) (mΩ): 4.7 Shutdown current (ISD) (typ) (µA): 1 Quiescent current (Iq) (typ) (µA): 35 Soft start: Fixed Rise Time Current limit type: None Features: Quick output discharge, Thermal shutdown Rating: Catalog Operating temperature range (°C): -40 to 105 FET: Internal Device type: Load switches Function: Inrush current control, Thermal shutdown Number of channels: 1 Vin (min) (V): 0.65 Vin (max) (V): 3.6 Imax (A): 4 Ron (typ) (mΩ): 4.7 更多

Number of channels: 1 Vin (min) (V): 0.65 Vin (max) (V): 3.6 Imax (A): 3 Ron (typ) (mΩ): 6.7 Shutdown current (ISD) (typ) (µA): 1.1 Quiescent current (Iq) (typ) (µA): 30 Soft start: Adjustable Rise Time Current limit type: None Features: Power good signal, Quick output discharge, Thermal shutdown Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control, Power good signal Number of channels: 1 Vin (min) (V): 0.65 Vin (max) (V): 3.6 Imax (A): 3 Ron (typ) (mΩ): 6.7 更多

Number of supplies monitored: 1 Threshold voltage 1 (typ) (V): adjustable Reset threshold accuracy (%): 1 Iq (typ) (mA): 0.0055 Output driver type/reset output: Active-low, Open-drain Time delay (ms): 0 Supply voltage (min) (V): 1.8 Supply voltage (max) (V): 18 Rating: Automotive Watchdog timer WDI (s): None Operating temperature range (°C): -40 to 125 Number of supplies monitored: 1 Threshold voltage 1 (typ) (V): adjustable Reset threshold accuracy (%): 1 Iq (typ) (mA): 0.0055 Output driver type/reset output: Active-low, Open-drain Time delay (ms): 0 Supply voltage (min) (V): 1.8 Supply voltage (max) (V): 18 Rating: Automotive 更多
