天天芯片 - 物料搜索

BQ25173

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 适用于 1 至 4 节超级电容器电池的 800mA 线性充电器

Number of series cells: 1, 2, 3, 4 Charge current (max) (A): 0.8 Vin (max) (V): 18 Cell chemistry: SuperCap Battery charge voltage (max) (V): 10.5 Absolute max Vin (max) (V): 40 Control topology: Linear Control interface: Standalone (RC-Settable) Features: IC thermal regulation, Input OVP Vin (min) (V): 3 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1, 2, 3, 4 Charge current (max) (A): 0.8 Vin (max) (V): 18 Cell chemistry: SuperCap Battery charge voltage (max) (V): 10.5 Absolute max Vin (max) (V): 40 Control topology: Linear Control interface: Standalone (RC-Settable) 更多

Features: IC thermal regulation, Input OVP Vin (min) (V): 3 Rating: Catalog Operating temperature range (°C): -40 to 125

BQ27Z746

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有集成保护器、采用 Impedance Track™ 技术的电池包侧单节电池电量监测计

Cell chemistry: Li-Ion/Li-Polymer, LiFePO4 Number of series cells: Single Cell Communication interface: HDQ, I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 32000 Implementation: Pack External capacity indication: None Operating temperature range (°C): -40 to 85 Rating: Catalog Cell chemistry: Li-Ion/Li-Polymer, LiFePO4 Number of series cells: Single Cell Communication interface: HDQ, I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 32000 Implementation: Pack External capacity indication: None Operating temperature range (°C): -40 to 85 Rating: Catalog

BQ25170J

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 适用于单节锂离子和磷酸铁锂电池、符合 JEITA 标准的 800mA 线性电池充电器

Number of series cells: 1 Charge current (max) (A): 0.8 Vin (max) (V): 6.5 Cell chemistry: Li-Ion/Li-Polymer, Lithium Phosphate/LiFePO4 Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.4 Absolute max Vin (max) (V): 30 Control topology: Linear Control interface: Standalone (RC-Settable) Vin (min) (V): 3 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1 Charge current (max) (A): 0.8 Vin (max) (V): 6.5 Cell chemistry: Li-Ion/Li-Polymer, Lithium Phosphate/LiFePO4 Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.4 Absolute max Vin (max) (V): 30 Control topology: Linear 更多

Control interface: Standalone (RC-Settable) Vin (min) (V): 3 Rating: Catalog Operating temperature range (°C): -40 to 125

BQ25175

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 采用 WCSP 封装的独立单节 800mA 线性电池充电器

Number of series cells: 1 Charge current (max) (A): 0.8 Vin (max) (V): 6.5 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.35 Battery charge voltage (max) (V): 4.35 Absolute max Vin (max) (V): 30 Control topology: Linear Control interface: Standalone (RC-Settable) Vin (min) (V): 3 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 0.8 Vin (max) (V): 6.5 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.35 Battery charge voltage (max) (V): 4.35 Absolute max Vin (max) (V): 30 Control topology: Linear 更多

Control interface: Standalone (RC-Settable) Vin (min) (V): 3 Rating: Catalog Operating temperature range (°C): -40 to 85

BQ51013B-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 符合 WPC 1.2 标准的汽车类完全集成式无线电源接收器 IC

Vin (max) (V): 7 Absolute max Vin (max) (V): 20 Vin (min) (V): 4 Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (max) (V): 7 Absolute max Vin (max) (V): 20 Vin (min) (V): 4 Rating: Automotive Operating temperature range (°C): -40 to 125

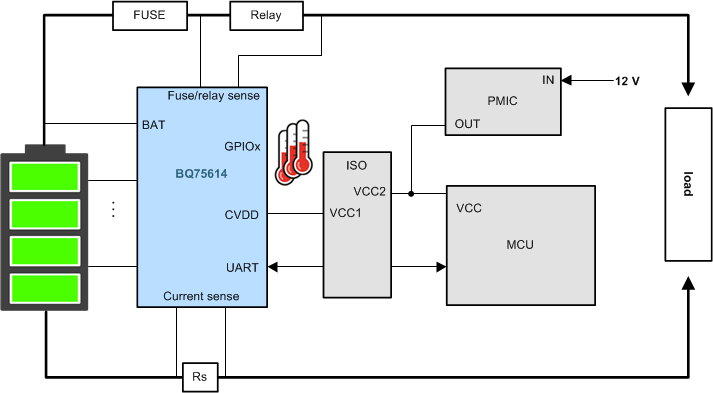

BQ75614-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 符合 ASIL-D 标准的汽车级 16 节串联精密电池监测器、平衡器和集成保护器

Number of series cells (min): 6 Vin (max) (V): 80 Device type: Cell monitor and balancer Number of series cells (max): 14 Operating temperature range (°C): -40 to 125 Rating: Automotive Battery overvoltage protection (min) (V): 2.7 Battery overvoltage protection (max) (V): 4.5 TI functional safety category: Functional Safety-Compliant Communication interface: UART Operating current (typ) (µA): 9000 Number of series cells (min): 6 Vin (max) (V): 80 Device type: Cell monitor and balancer Number of series cells (max): 14 Operating temperature range (°C): -40 to 125 Rating: Automotive Battery overvoltage protection (min) (V): 2.7 Battery overvoltage protection (max) (V): 4.5 TI functional safety category: Functional Safety-Compliant 更多

Communication interface: UART Operating current (typ) (µA): 9000

BQ79614-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 符合 ASIL-D 标准的汽车级 14 节串联精密电池监测器、平衡器和集成保护器

Number of series cells (min): 6 Vin (max) (V): 80 Device type: Cell monitor and balancer Number of series cells (max): 14 Operating temperature range (°C): -40 to 125 Rating: Automotive Battery overvoltage protection (min) (V): 2.7 Battery overvoltage protection (max) (V): 4.5 TI functional safety category: Functional Safety-Compliant Communication interface: Daisy chain, SPI controller, UART Operating current (typ) (µA): 9000 Number of series cells (min): 6 Vin (max) (V): 80 Device type: Cell monitor and balancer Number of series cells (max): 14 Operating temperature range (°C): -40 to 125 Rating: Automotive Battery overvoltage protection (min) (V): 2.7 Battery overvoltage protection (max) (V): 4.5 TI functional safety category: Functional Safety-Compliant 更多

Communication interface: Daisy chain, SPI controller, UART Operating current (typ) (µA): 9000

BQ79612-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 符合 ASIL-D 标准的汽车级 12 节串联精密电池监测器、平衡器和集成保护器

Number of series cells (min): 6 Vin (max) (V): 80 Device type: Cell monitor and balancer Number of series cells (max): 12 Operating temperature range (°C): -40 to 125 Rating: Automotive Battery overvoltage protection (min) (V): 2.7 Battery overvoltage protection (max) (V): 4.5 TI functional safety category: Functional Safety-Compliant Communication interface: Daisy chain, SPI controller, UART Operating current (typ) (µA): 9000 Number of series cells (min): 6 Vin (max) (V): 80 Device type: Cell monitor and balancer Number of series cells (max): 12 Operating temperature range (°C): -40 to 125 Rating: Automotive Battery overvoltage protection (min) (V): 2.7 Battery overvoltage protection (max) (V): 4.5 TI functional safety category: Functional Safety-Compliant 更多

Communication interface: Daisy chain, SPI controller, UART Operating current (typ) (µA): 9000

BQ25798

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有双输入选择器和 MPPT 的 I²C 控制型 1-4 节、5A 降压/升压太阳能电池充电器

Number of series cells: 1, 2, 3, 4 Charge current (max) (A): 5 Vin (max) (V): 24 Cell chemistry: Li-Ion/Li-Polymer, Lithium Phosphate/LiFePO4 Battery charge voltage (min) (V): 3 Battery charge voltage (max) (V): 18.8 Absolute max Vin (max) (V): 30 Control topology: Switch-Mode Buck-boost Control interface: I2C Vin (min) (V): 3.6 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1, 2, 3, 4 Charge current (max) (A): 5 Vin (max) (V): 24 Cell chemistry: Li-Ion/Li-Polymer, Lithium Phosphate/LiFePO4 Battery charge voltage (min) (V): 3 Battery charge voltage (max) (V): 18.8 Absolute max Vin (max) (V): 30 Control topology: Switch-Mode Buck-boost 更多

Control interface: I2C Vin (min) (V): 3.6 Rating: Catalog Operating temperature range (°C): -40 to 85

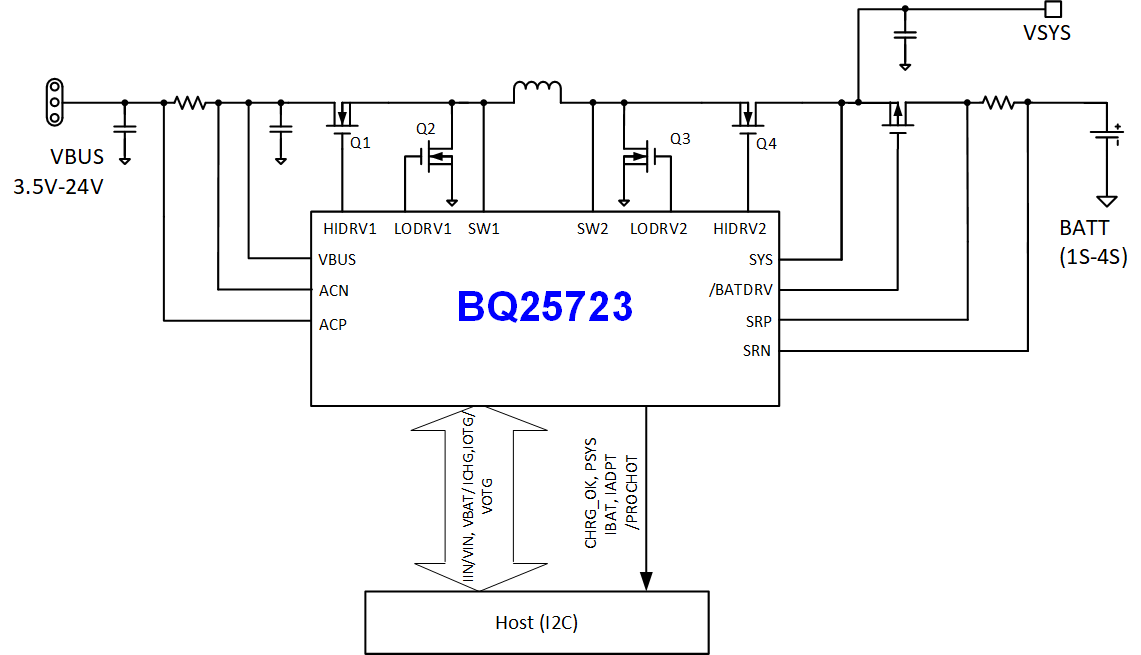

BQ25723

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有电源路径和 USB-C® PD OTG 的 I²C 1-4 节电池 NVDC 降压/升压电池充电控制器

Number of series cells: 1, 2, 3, 4 Charge current (max) (A): 16.2 Vin (max) (V): 26 Battery charge voltage (min) (V): 1.024 Battery charge voltage (max) (V): 19.2 Absolute max Vin (max) (V): 32 Control topology: Switch-Mode Buck-boost Control interface: I2C Vin (min) (V): 3.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1, 2, 3, 4 Charge current (max) (A): 16.2 Vin (max) (V): 26 Battery charge voltage (min) (V): 1.024 Battery charge voltage (max) (V): 19.2 Absolute max Vin (max) (V): 32 Control topology: Switch-Mode Buck-boost Control interface: I2C Vin (min) (V): 3.5 更多

Rating: Catalog Operating temperature range (°C): -40 to 125
