BQ30Z554-R1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 2 节、3 节和 4 节串联锂离子电池组管理器

Cell chemistry: Li-Ion/Li-Polymer Number of series cells: 2-4 Cells Communication interface: SMBus Battery capacity (min) (mAh): 800 Battery capacity (max) (mAh): 32000 Implementation: Pack External capacity indication: None Features: Integrated Protector, SHA-1 Authentication, Turbo Mode Operating temperature range (°C): -40 to 85 Cell balancing: Internal Rating: Catalog Cell chemistry: Li-Ion/Li-Polymer Number of series cells: 2-4 Cells Communication interface: SMBus Battery capacity (min) (mAh): 800 Battery capacity (max) (mAh): 32000 Implementation: Pack External capacity indication: None Features: Integrated Protector, SHA-1 Authentication, Turbo Mode Operating temperature range (°C): -40 to 85
Cell balancing: Internal Rating: Catalog

BQ76940


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 9 至 15 节串联锂离子和锂磷酸盐电池监控器（bq76940 系列）

Number of series cells (min): 9 Vin (max) (V): 75 Device type: Cell monitor and balancer Number of series cells (max): 15 Operating temperature range (°C): -40 to 85 Rating: Catalog Battery overvoltage protection (min) (V): 3.15 Battery overvoltage protection (max) (V): 4.7 Communication interface: I2C Operating current (typ) (µA): 40 Number of series cells (min): 9 Vin (max) (V): 75 Device type: Cell monitor and balancer Number of series cells (max): 15 Operating temperature range (°C): -40 to 85 Rating: Catalog Battery overvoltage protection (min) (V): 3.15 Battery overvoltage protection (max) (V): 4.7 Communication interface: I2C Operating current (typ) (µA): 40

BQ76930


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 6 至 10 节电池锂离子和锂磷酸盐电池监视器（bq76940 系列）

Number of series cells (min): 6 Vin (max) (V): 50 Device type: Cell monitor and balancer Number of series cells (max): 10 Operating temperature range (°C): -40 to 85 Rating: Catalog Battery overvoltage protection (min) (V): 3.15 Battery overvoltage protection (max) (V): 4.7 Communication interface: I2C Operating current (typ) (µA): 40 Number of series cells (min): 6 Vin (max) (V): 50 Device type: Cell monitor and balancer Number of series cells (max): 10 Operating temperature range (°C): -40 to 85 Rating: Catalog Battery overvoltage protection (min) (V): 3.15 Battery overvoltage protection (max) (V): 4.7 Communication interface: I2C Operating current (typ) (µA): 40

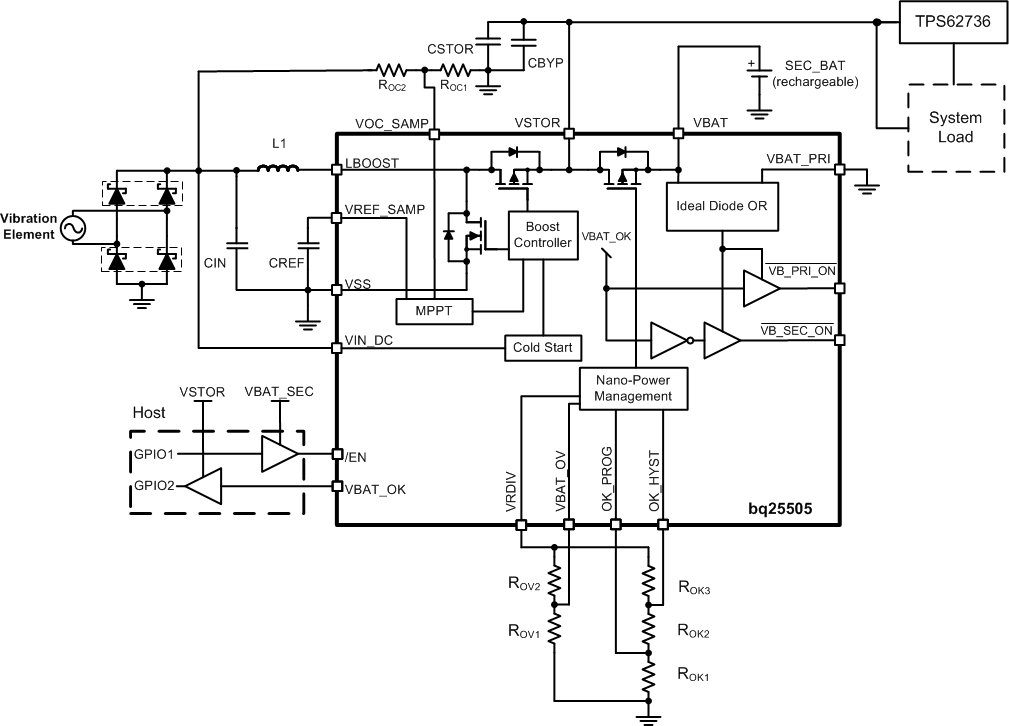

BQ25505


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有升压充电器和自主电源多路复用器的超低功耗能量收集器电源管理 IC

Number of series cells: 1 Charge current (max) (A): 0.1 Vin (max) (V): 5.1 Cell chemistry: Li-Ion/Li-Polymer, SuperCap Battery charge voltage (min) (V): 2.2 Battery charge voltage (max) (V): 5.5 Absolute max Vin (max) (V): 5.5 Control topology: Switch-Mode Boost Control interface: Standalone (RC-Settable) Features: Input OVP, Solar input/MPPT Vin (min) (V): 0.6 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1 Charge current (max) (A): 0.1 Vin (max) (V): 5.1 Cell chemistry: Li-Ion/Li-Polymer, SuperCap Battery charge voltage (min) (V): 2.2 Battery charge voltage (max) (V): 5.5 Absolute max Vin (max) (V): 5.5
Control topology: Switch-Mode Boost Control interface: Standalone (RC-Settable) Features: Input OVP, Solar input/MPPT Vin (min) (V): 0.6 Rating: Catalog Operating temperature range (°C): -40 to 125

BQ76920


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 3 至 5 节电池锂离子和锂磷酸盐电池监视器（bq76940 系列）

Number of series cells (min): 3 Vin (max) (V): 25 Device type: Cell monitor and balancer Number of series cells (max): 5 Operating temperature range (°C): -40 to 85 Rating: Catalog Battery overvoltage protection (min) (V): 3.15 Battery overvoltage protection (max) (V): 4.7 Communication interface: I2C Operating current (typ) (µA): 40 Number of series cells (min): 3 Vin (max) (V): 25 Device type: Cell monitor and balancer Number of series cells (max): 5 Operating temperature range (°C): -40 to 85 Rating: Catalog Battery overvoltage protection (min) (V): 3.15 Battery overvoltage protection (max) (V): 4.7 Communication interface: I2C Operating current (typ) (µA): 40

BQ24296


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有可调节电压和 USB OTG 及最小系统调节的 I2C 控制型、单节 3A 降压型充电器

Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck
Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85

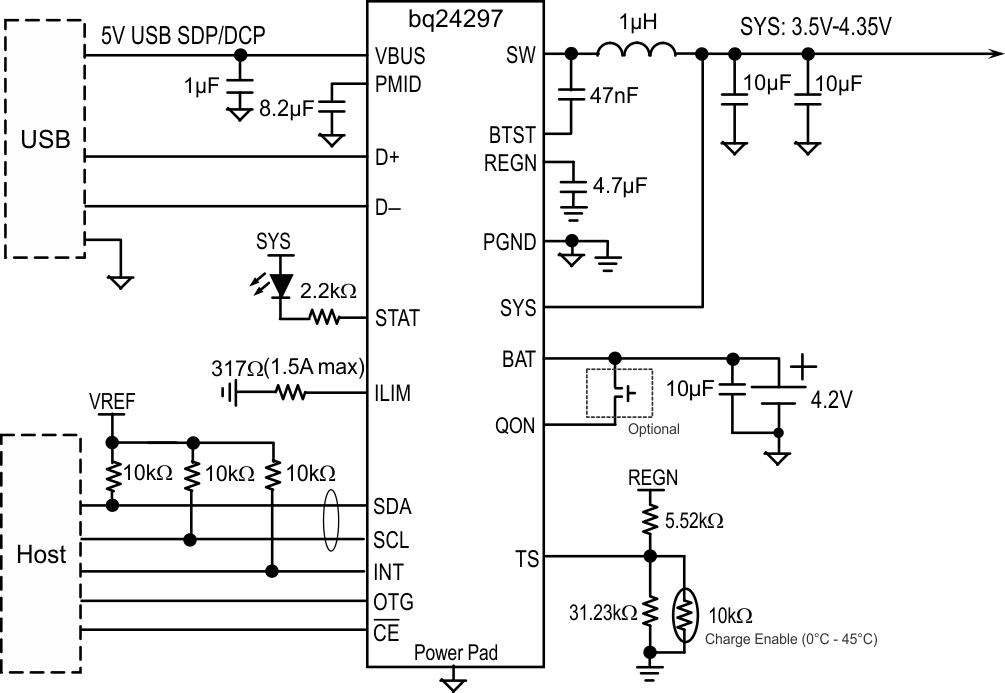

BQ24297


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有 USB NVDC-1、可调节电压和 USB OTG 及 D+/D- 的 I2C 控制型单节电池 3A 电池充电器

Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck
Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85

BQ24295


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有 USB、可调节电压和 1.5A OTG 的 I2C 控制型单节电池 3A 电池充电器

Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck
Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85

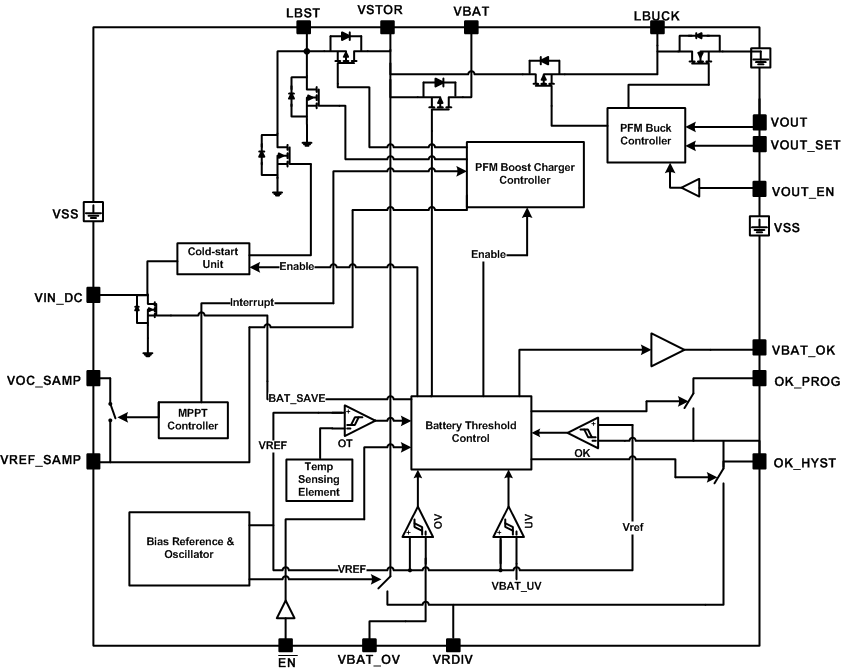

BQ25570


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有升压充电器和毫微功耗降压转换器的超低功耗能量收集器电源管理 IC

Number of series cells: 1 Charge current (max) (A): 0.1 Vin (max) (V): 5.1 Cell chemistry: Li-Ion/Li-Polymer, SuperCap Battery charge voltage (min) (V): 2.2 Battery charge voltage (max) (V): 5.5 Absolute max Vin (max) (V): 5.5 Control topology: Switch-Mode Boost Control interface: Standalone (RC-Settable) Features: Input OVP, Solar input/MPPT Vin (min) (V): 0.6 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1 Charge current (max) (A): 0.1 Vin (max) (V): 5.1 Cell chemistry: Li-Ion/Li-Polymer, SuperCap Battery charge voltage (min) (V): 2.2 Battery charge voltage (max) (V): 5.5 Absolute max Vin (max) (V): 5.5
Control topology: Switch-Mode Boost Control interface: Standalone (RC-Settable) Features: Input OVP, Solar input/MPPT Vin (min) (V): 0.6 Rating: Catalog Operating temperature range (°C): -40 to 125

BQ27741-G1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 带集成保护器的电池组侧 Impedance Track™(tm) 电量监测计

Cell chemistry: Li-Ion/Li-Polymer Number of series cells: Single Cell Communication interface: HDQ, I2C Battery capacity (min) (mAh): 500 Battery capacity (max) (mAh): 16000 Implementation: Pack External capacity indication: None Operating temperature range (°C): -40 to 85 Rating: Catalog Cell chemistry: Li-Ion/Li-Polymer Number of series cells: Single Cell Communication interface: HDQ, I2C Battery capacity (min) (mAh): 500 Battery capacity (max) (mAh): 16000 Implementation: Pack External capacity indication: None Operating temperature range (°C): -40 to 85 Rating: Catalog
