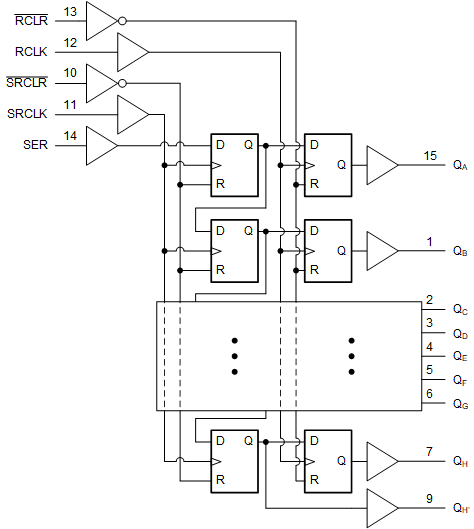

SN74LV594A-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有输出寄存器的汽车类八位移位寄存器

Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Input type: Standard CMOS Output type: Push-Pull Clock frequency (MHz): 85 IOL (max) (mA): 12 IOH (max) (mA): -12 Supply current (max) (µA): 20 Operating temperature range (°C): -40 to 125 Rating: Automotive Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Input type: Standard CMOS Output type: Push-Pull
Clock frequency (MHz): 85 IOL (max) (mA): 12 IOH (max) (mA): -12 Supply current (max) (µA): 20 Operating temperature range (°C): -40 to 125 Rating: Automotive

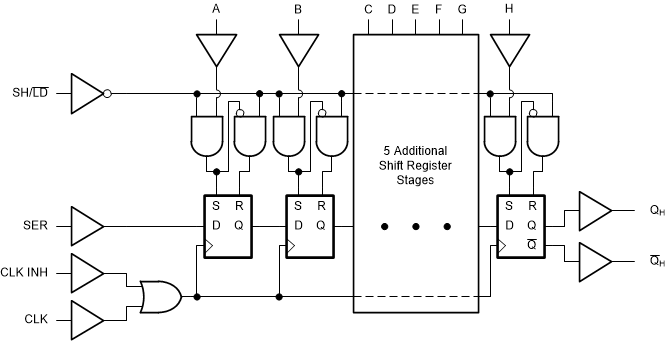

SN74LV165A-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 汽车类八位并行负载移位寄存器

Configuration: Parallel-in, Serial-out Bits (#): 8 Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Input type: Standard CMOS Output type: Push-Pull Clock frequency (MHz): 85 IOL (max) (mA): 12 IOH (max) (mA): -12 Supply current (max) (µA): 20 Operating temperature range (°C): -40 to 125 Rating: Automotive Configuration: Parallel-in, Serial-out Bits (#): 8 Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Input type: Standard CMOS Output type: Push-Pull
Clock frequency (MHz): 85 IOL (max) (mA): 12 IOH (max) (mA): -12 Supply current (max) (µA): 20 Operating temperature range (°C): -40 to 125 Rating: Automotive

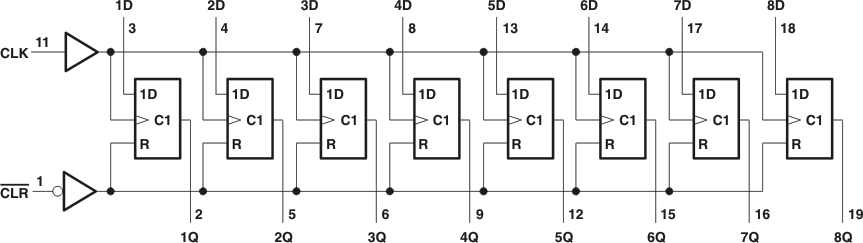

SN74LV273A-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有清零功能的汽车级八路 D 类触发器

Number of channels: 8 Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 70 IOL (max) (mA): 12 IOH (max) (mA): -12 Supply current (max) (µA): 20 Operating temperature range (°C): -40 to 125 Rating: Automotive Number of channels: 8 Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 70 IOL (max) (mA): 12
IOH (max) (mA): -12 Supply current (max) (µA): 20 Operating temperature range (°C): -40 to 125 Rating: Automotive

SN74HCS373-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有三态输出的汽车类八路透明 D 类锁存器

Number of channels: 8 Technology family: HCS Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Schmitt-Trigger Output type: 3-State Clock frequency (max) (MHz): 135 IOL (max) (mA): 7.8 IOH (max) (mA): -7.8 Supply current (max) (µA): 2 Operating temperature range (°C): -40 to 125 Rating: Automotive Number of channels: 8 Technology family: HCS Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Schmitt-Trigger Output type: 3-State Clock frequency (max) (MHz): 135 IOL (max) (mA): 7.8
IOH (max) (mA): -7.8 Supply current (max) (µA): 2 Operating temperature range (°C): -40 to 125 Rating: Automotive

SN74HCS574-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有三态输出的汽车类八路边沿触发式 D 类触发器

Number of channels: 8 Technology family: HCS Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Schmitt-Trigger Output type: 3-State Clock frequency (max) (MHz): 135 IOL (max) (mA): 7.8 IOH (max) (mA): -7.8 Supply current (max) (µA): 2 Operating temperature range (°C): -40 to 125 Rating: Automotive Number of channels: 8 Technology family: HCS Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Schmitt-Trigger Output type: 3-State Clock frequency (max) (MHz): 135 IOL (max) (mA): 7.8
IOH (max) (mA): -7.8 Supply current (max) (µA): 2 Operating temperature range (°C): -40 to 125 Rating: Automotive

SN74HCS573-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有三态输出和施密特触发输入的汽车类八路透明 D 类锁存器

Number of channels: 8 Technology family: HCS Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Schmitt-Trigger Output type: 3-State Clock frequency (max) (MHz): 135 IOL (max) (mA): 7.8 IOH (max) (mA): -7.8 Supply current (max) (µA): 2 Operating temperature range (°C): -40 to 125 Rating: Automotive Number of channels: 8 Technology family: HCS Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Schmitt-Trigger Output type: 3-State Clock frequency (max) (MHz): 135 IOL (max) (mA): 7.8
IOH (max) (mA): -7.8 Supply current (max) (µA): 2 Operating temperature range (°C): -40 to 125 Rating: Automotive

SN74HCT165


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 8 位并行输入/串行输出移位寄存器

Configuration: Parallel-in, Serial-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: Push-Pull Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Catalog Configuration: Parallel-in, Serial-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: Push-Pull
Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Catalog

SN74HCT165-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有 TLL 兼容输入的汽车类 8 位并行负载移位寄存器

Configuration: Parallel-in, Serial-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: Push-Pull Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Automotive Configuration: Parallel-in, Serial-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: Push-Pull
Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Automotive

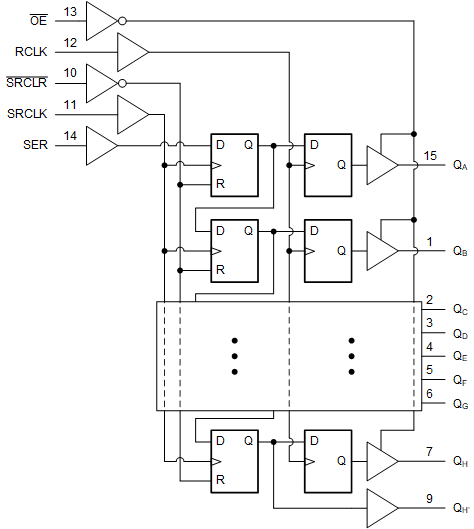

SN74HCT595


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有 TLL 兼容 CMOS 输入和三态输出寄存器的 8 位移位寄存器

Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: 3-State Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Catalog Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: 3-State
Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Catalog

SN74HCT595-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有 TLL 兼容 CMOS 输入和三态输出寄存器的汽车类 8 位移位寄存器

Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: 3-State Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Automotive Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: TTL-Compatible CMOS Output type: 3-State
Clock frequency (MHz): 25 IOL (max) (mA): 6 IOH (max) (mA): -6 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Automotive
