CD4011B-MIL

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 军用 4 通道、双输入、3V 至 18V 与非门

Technology family: CD4000 Supply voltage (min) (V): 3 Supply voltage (max) (V): 18 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 1.5 IOH (max) (mA): -1.5 Input type: Standard CMOS Output type: Push-Pull Features: Standard speed (tpd > 50ns) Data rate (max) (Mbps): 8 Rating: Military Operating temperature range (°C): -55 to 125 Technology family: CD4000 Supply voltage (min) (V): 3 Supply voltage (max) (V): 18 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 1.5 IOH (max) (mA): -1.5 更多

Input type: Standard CMOS Output type: Push-Pull Features: Standard speed (tpd > 50ns) Data rate (max) (Mbps): 8 Rating: Military Operating temperature range (°C): -55 to 125

SN54F32

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 军用 4 通道、双输入、4.5V 至 5.5V、高输出驱动双极或门

Technology family: F Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 1 IOH (max) (mA): -20 Input type: Bipolar Output type: Push-Pull Features: Very high speed (tpd 5-10ns) Data rate (max) (Mbps): 70 Rating: Military Operating temperature range (°C): -55 to 125 Technology family: F Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 1 IOH (max) (mA): -20 更多

Input type: Bipolar Output type: Push-Pull Features: Very high speed (tpd 5-10ns) Data rate (max) (Mbps): 70 Rating: Military Operating temperature range (°C): -55 to 125

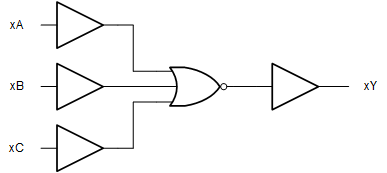

CD54HC27

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: Military 3-ch, 3-input, 2-V to 6-V 5.2 mA drive strength NOR gate

Technology family: HC Number of channels: 3 Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Inputs per channel: 3 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Output type: Push-Pull Input type: Standard CMOS Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Military Operating temperature range (°C): -55 to 125 Technology family: HC Number of channels: 3 Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Inputs per channel: 3 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 更多

Output type: Push-Pull Input type: Standard CMOS Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Military Operating temperature range (°C): -55 to 125

SN54HC10

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: Military 3-ch, 3-input, 2-V to 6-V 5.2 mA drive strength NAND gate

Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Number of channels: 3 Inputs per channel: 3 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Input type: Standard CMOS Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Military Operating temperature range (°C): -55 to 125 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Number of channels: 3 Inputs per channel: 3 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 更多

Input type: Standard CMOS Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Military Operating temperature range (°C): -55 to 125

SN54HC27

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: Military 3-ch, 3-input, 2-V to 6-V 5.2 mA drive strength NOR gate

Technology family: HC Number of channels: 3 Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Inputs per channel: 3 IOL (max) (mA): 4 IOH (max) (mA): -4 Output type: Push-Pull Input type: Standard CMOS Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Military Operating temperature range (°C): -55 to 125 Technology family: HC Number of channels: 3 Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Inputs per channel: 3 IOL (max) (mA): 4 IOH (max) (mA): -4 更多

Output type: Push-Pull Input type: Standard CMOS Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Military Operating temperature range (°C): -55 to 125

SN54ALS08

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 军用 4 通道、双输入、4.5V 至 5.5V 超高速 (4ns) 双极与门

Technology family: ALS Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 8 IOH (max) (mA): -0.4 Input type: Bipolar Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 75 Rating: Military Operating temperature range (°C): -55 to 125 Technology family: ALS Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 8 IOH (max) (mA): -0.4 更多

Input type: Bipolar Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 75 Rating: Military Operating temperature range (°C): -55 to 125

SN54LS164

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 8 位并行输出串行移位寄存器

Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: LS Supply voltage (min) (V): 4.75 Supply voltage (max) (V): 5.25 Input type: Bipolar Output type: Push-Pull Clock frequency (MHz): 25 IOL (max) (mA): 8 IOH (max) (mA): -0.4 Supply current (max) (µA): 27000 Features: High speed (tpd 10-50ns) Operating temperature range (°C): -55 to 125 Rating: Military Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: LS Supply voltage (min) (V): 4.75 Supply voltage (max) (V): 5.25 Input type: Bipolar 更多

Output type: Push-Pull Clock frequency (MHz): 25 IOL (max) (mA): 8 IOH (max) (mA): -0.4 Supply current (max) (µA): 27000 Features: High speed (tpd 10-50ns) Operating temperature range (°C): -55 to 125 Rating: Military

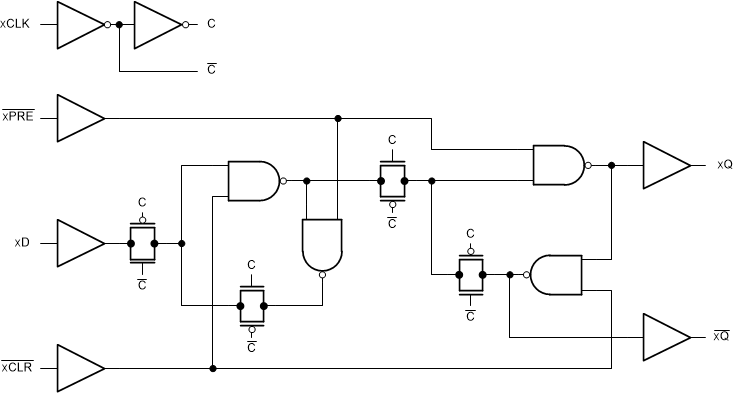

CD54HC74

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有设置和复位的高速 CMOS 逻辑双通道上升沿 D 触发器

Number of channels: 2 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 23 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Supply current (max) (µA): 40 Operating temperature range (°C): -55 to 125 Rating: Military Number of channels: 2 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 23 IOL (max) (mA): 5.2 更多

IOH (max) (mA): -5.2 Supply current (max) (µA): 40 Operating temperature range (°C): -55 to 125 Rating: Military

SN54LS03

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有集电极开路输出的军用 4 通道、双输入、4.5V 至 5.5V 双极与非门

Technology family: LS Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 0 IOH (max) (mA): -16 Input type: Bipolar Output type: Open-collector Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 35 Rating: Military Operating temperature range (°C): -55 to 125 Technology family: LS Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 0 IOH (max) (mA): -16 更多

Input type: Bipolar Output type: Open-collector Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 35 Rating: Military Operating temperature range (°C): -55 to 125

SN54ALS74A

数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有清零和预设功能的双通道上升沿触发 D 类触发器

Number of channels: 2 Technology family: ALS Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: Bipolar Output type: Push-Pull Clock frequency (max) (MHz): 75 IOL (max) (mA): 8 IOH (max) (mA): -0.4 Supply current (max) (µA): 4000 Features: High speed (tpd 10-50ns) Operating temperature range (°C): -55 to 125 Rating: Military Number of channels: 2 Technology family: ALS Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Input type: Bipolar Output type: Push-Pull Clock frequency (max) (MHz): 75 更多

IOL (max) (mA): 8 IOH (max) (mA): -0.4 Supply current (max) (µA): 4000 Features: High speed (tpd 10-50ns) Operating temperature range (°C): -55 to 125 Rating: Military
