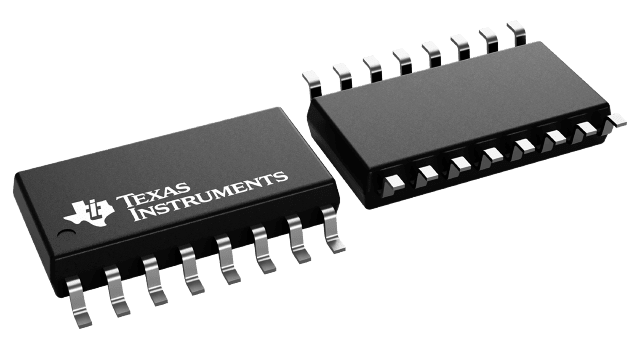

CD74HC4002
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

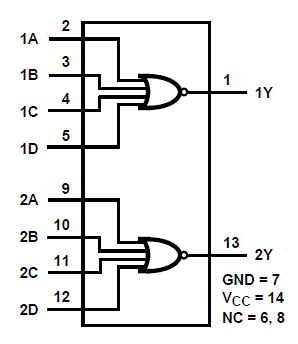

描述: 2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength NOR gate
Technology family: HC
Number of channels: 2
Supply voltage (min) (V): 2
Supply voltage (max) (V): 6
Inputs per channel: 4
IOL (max) (mA): 5.2
IOH (max) (mA): -5.2
Output type: Push-Pull
Input type: Standard CMOS
Features: High speed (tpd 10- 50ns)
Data rate (max) (Mbps): 28
Rating: Catalog
Operating temperature range (°C): -55 to 125
Technology family: HC
Number of channels: 2
Supply voltage (min) (V): 2
Supply voltage (max) (V): 6
Inputs per channel: 4
IOL (max) (mA): 5.2
IOH (max) (mA): -5.2
更多
Output type: Push-Pull
Input type: Standard CMOS
Features: High speed (tpd 10- 50ns)
Data rate (max) (Mbps): 28
Rating: Catalog
Operating temperature range (°C): -55 to 125
