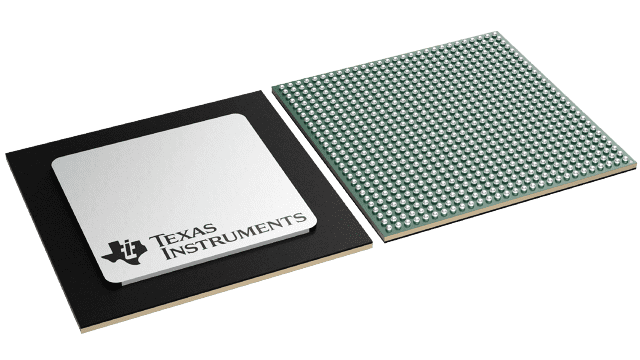

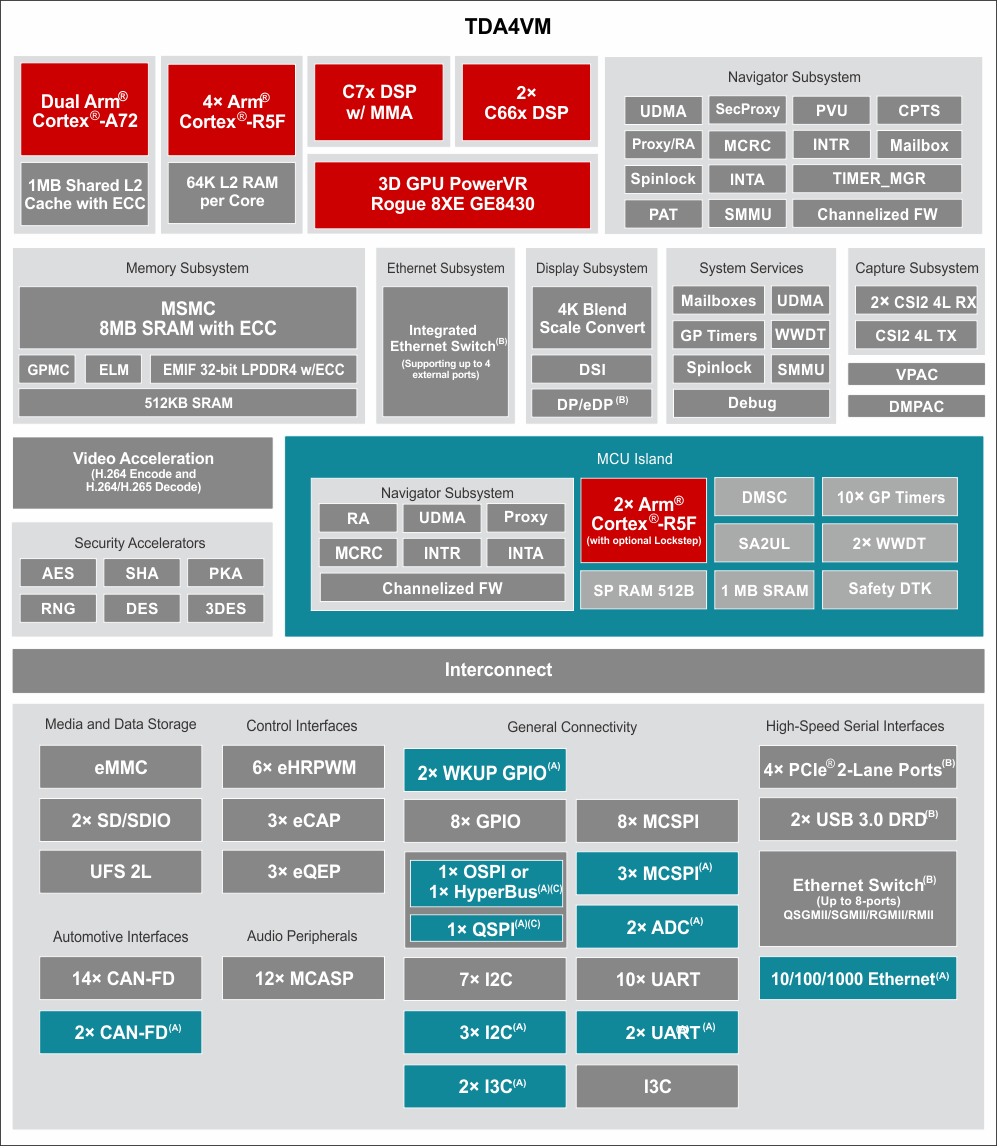

TDA4VM


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: 具有深度学习、视觉功能和多媒体加速器的双核 Arm® Cortex®-A72 SoC 和 C7x DSP

Arm CPU: 2 Arm Cortex-A72 Arm (max) (MHz): 2000 CPU: 64-bit Graphics acceleration: 1 3D Display type: 1 DSI, 1 EDP, 2 DPI Protocols: Ethernet Ethernet MAC: 8-Port 2.5Gb switch PCIe: 4 PCIe Gen 3 switch Features: Vision Analytics Operating system: Linux, QNX, RTOS Rating: Automotive Power supply solution: LP8764-Q1, TPS6594-Q1 Operating temperature range (°C): -40 to 105 Arm CPU: 2 Arm Cortex-A72 Arm (max) (MHz): 2000 CPU: 64-bit Graphics acceleration: 1 3D Display type: 1 DSI, 1 EDP, 2 DPI Protocols: Ethernet Ethernet MAC: 8-Port 2.5Gb switch
PCIe: 4 PCIe Gen 3 switch Features: Vision Analytics Operating system: Linux, QNX, RTOS Rating: Automotive Power supply solution: LP8764-Q1, TPS6594-Q1 Operating temperature range (°C): -40 to 105

AM6526


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: 具有千兆位 PRU-ICSS 的双核 Arm® Cortex®-A53 和双核 Arm Cortex-R5F Sitara™ 处理器

Arm CPU: 2 Arm Cortex-A53 Arm (max) (MHz): 1100 Coprocessors: 2 Arm Cortex-R5F CPU: 64-bit Display type: MIPI DPI, OLDI Protocols: EtherCAT, Ethernet, ICSS, Profibus, Profinet, TSN Ethernet MAC: 1-Port 10/100/1000, 6-Port 10/100/1000 PRU EMAC PCIe: 2 PCIe Gen 3 Features: Networking Operating system: Android, Linux, RTOS TI functional safety category: Functional Safety-Compliant Rating: Catalog Power supply solution: TPS6594-Q1 Operating temperature range (°C): -40 to 105 Arm CPU: 2 Arm Cortex-A53 Arm (max) (MHz): 1100 Coprocessors: 2 Arm Cortex-R5F CPU: 64-bit Display type: MIPI DPI, OLDI Protocols: EtherCAT, Ethernet, ICSS, Profibus, Profinet, TSN
Ethernet MAC: 1-Port 10/100/1000, 6-Port 10/100/1000 PRU EMAC PCIe: 2 PCIe Gen 3 Features: Networking Operating system: Android, Linux, RTOS TI functional safety category: Functional Safety-Compliant Rating: Catalog Power supply solution: TPS6594-Q1 Operating temperature range (°C): -40 to 105

AM6528


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: Sitara 处理器：双核 Arm Cortex-A53 和双核 Arm Cortex-R5F、千兆位 PRU-ICSS、3D 图形

Arm CPU: 2 Arm Cortex-A53 Arm (max) (MHz): 1100 Coprocessors: 2 Arm Cortex-R5F CPU: 64-bit Graphics acceleration: 1 3D Display type: MIPI DPI, OLDI Protocols: EtherCAT, Ethernet, ICSS, Profibus, Profinet, TSN Ethernet MAC: 1-Port 10/100/1000, 6-Port 10/100/1000 PRU EMAC PCIe: 2 PCIe Gen 3 Features: Networking Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: TPS6594-Q1 Operating temperature range (°C): -40 to 105 Arm CPU: 2 Arm Cortex-A53 Arm (max) (MHz): 1100 Coprocessors: 2 Arm Cortex-R5F CPU: 64-bit Graphics acceleration: 1 3D Display type: MIPI DPI, OLDI
Protocols: EtherCAT, Ethernet, ICSS, Profibus, Profinet, TSN Ethernet MAC: 1-Port 10/100/1000, 6-Port 10/100/1000 PRU EMAC PCIe: 2 PCIe Gen 3 Features: Networking Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: TPS6594-Q1 Operating temperature range (°C): -40 to 105

AM6548


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: 具有千兆位 PRU-ICSS 和 3D 图形的四核 Arm® Cortex®-A53 和双核 Arm Cortex-R5F Sitara™ 处理器

Arm CPU: 4 Arm Cortex-A53 Arm (max) (MHz): 1100 Coprocessors: 2 Arm Cortex-R5F CPU: 64-bit Graphics acceleration: 1 3D Display type: MIPI DPI, OLDI Protocols: EtherCAT, Ethernet, ICSS, Profibus, Profinet, TSN Ethernet MAC: 1-Port 10/100/1000, 6-Port 10/100/1000 PRU EMAC PCIe: 2 PCIe Gen 3 Features: Networking Operating system: Linux, RTOS Security: Secure boot TI functional safety category: Functional Safety-Compliant Rating: Catalog Power supply solution: TPS6594-Q1 Operating temperature range (°C): -40 to 105 Arm CPU: 4 Arm Cortex-A53 Arm (max) (MHz): 1100 Coprocessors: 2 Arm Cortex-R5F CPU: 64-bit
Graphics acceleration: 1 3D Display type: MIPI DPI, OLDI Protocols: EtherCAT, Ethernet, ICSS, Profibus, Profinet, TSN Ethernet MAC: 1-Port 10/100/1000, 6-Port 10/100/1000 PRU EMAC PCIe: 2 PCIe Gen 3 Features: Networking Operating system: Linux, RTOS Security: Secure boot TI functional safety category: Functional Safety-Compliant Rating: Catalog Power supply solution: TPS6594-Q1 Operating temperature range (°C): -40 to 105

TDA4VM-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: 适用于 L2、L3 和近场分析系统且采用深度学习的汽车片上系统

Arm CPU: 2 Arm Cortex-A72 Arm (max) (MHz): 2000 CPU: 64-bit Graphics acceleration: 1 3D Display type: 1 DSI, 1 EDP, 2 DPI Protocols: Ethernet Ethernet MAC: 8-Port 2.5Gb switch PCIe: 4 PCIe Gen 3 switch Features: Vision Analytics Operating system: Linux, QNX, RTOS Rating: Automotive Power supply solution: LP8764-Q1, TPS6594-Q1 Operating temperature range (°C): -40 to 125 Arm CPU: 2 Arm Cortex-A72 Arm (max) (MHz): 2000 CPU: 64-bit Graphics acceleration: 1 3D Display type: 1 DSI, 1 EDP, 2 DPI Protocols: Ethernet Ethernet MAC: 8-Port 2.5Gb switch
PCIe: 4 PCIe Gen 3 switch Features: Vision Analytics Operating system: Linux, QNX, RTOS Rating: Automotive Power supply solution: LP8764-Q1, TPS6594-Q1 Operating temperature range (°C): -40 to 125

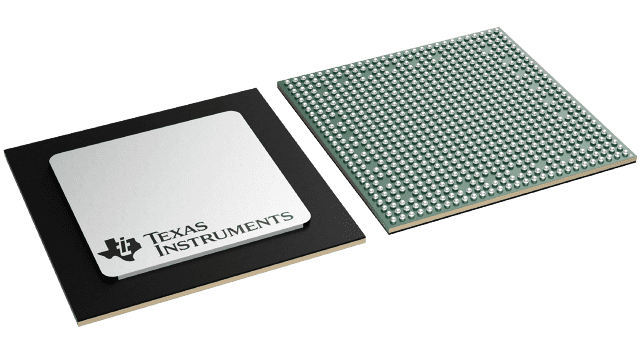

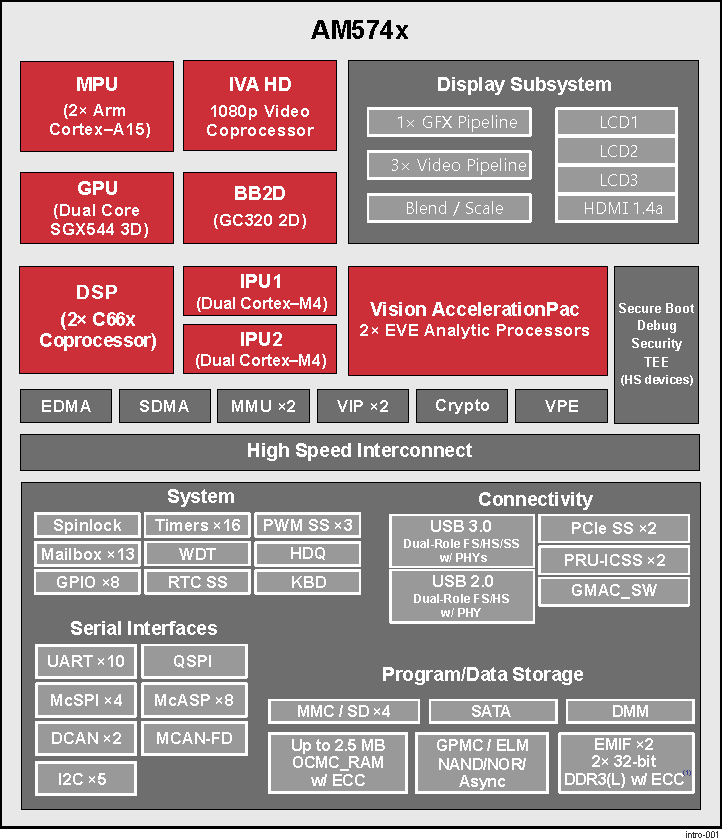

AM5746


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: Sitara 处理器：双核 arm Cortex-A15 和双核 DSP，支持 ECC 的 DDR 和安全引导

Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Protocols: Ethernet, ICSS, Profibus, Profinet PCIe: 2 PCIe Gen 2 Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: LP8733 + LP873220, TPS65916 Operating temperature range (°C): -40 to 105 Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Protocols: Ethernet, ICSS, Profibus, Profinet PCIe: 2 PCIe Gen 2 Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: LP8733 + LP873220, TPS65916 Operating temperature range (°C): -40 to 105

AM5749


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: Sitara 处理器：双核 Arm Cortex-A15 和双核 DSP、多媒体、支持 ECC 的 DDR、安全引导、深度学习

Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet, ICSS, Profibus, Profinet PCIe: 2 PCIe Gen 2 Hardware accelerators: 2 Embedded Vision Engines (EVE) Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: LP8733 + LP873220, TPS65916 Operating temperature range (°C): -40 to 105 Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet, ICSS, Profibus, Profinet
PCIe: 2 PCIe Gen 2 Hardware accelerators: 2 Embedded Vision Engines (EVE) Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: LP8733 + LP873220, TPS65916 Operating temperature range (°C): -40 to 105

DRA74P


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: 具有 ISP 并与 DRA74x SoC 处理器实现引脚兼容的多核 SoC 处理器

Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet Ethernet MAC: 1-Port 10/100/1000, 2-Port 1Gb switch PCIe: 1 PCIe Gen 2 Features: Multimedia Operating system: Android, Linux, RTOS Rating: Automotive Operating temperature range (°C): -40 to 125 Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet
Ethernet MAC: 1-Port 10/100/1000, 2-Port 1Gb switch PCIe: 1 PCIe Gen 2 Features: Multimedia Operating system: Android, Linux, RTOS Rating: Automotive Operating temperature range (°C): -40 to 125

DRA75P


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: 适用于信息娱乐应用、具有 ISP 并与 DRA75x SoC 实现引脚兼容的多核 SoC 处理器

Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet Ethernet MAC: 1-Port 10/100/1000, 2-Port 1Gb switch PCIe: 2 PCIe Gen 2 Features: Multimedia Operating system: Android, Linux, RTOS Rating: Automotive Operating temperature range (°C): -40 to 125 Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet
Ethernet MAC: 1-Port 10/100/1000, 2-Port 1Gb switch PCIe: 2 PCIe Gen 2 Features: Multimedia Operating system: Android, Linux, RTOS Rating: Automotive Operating temperature range (°C): -40 to 125

AM5748


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU)

描述: Sitara 处理器：双核 arm Cortex-A15 和双核 DSP，多媒体、支持 ECC 的 DDR 和安全引导

Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet, ICSS, Profibus, Profinet PCIe: 2 PCIe Gen 2 Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: LP8733 + LP873220, TPS65916 Operating temperature range (°C): -40 to 105 Arm CPU: 2 Arm Cortex-A15 Arm (max) (MHz): 1500 Coprocessors: 2 Dual Arm Cortex-M4 CPU: 32-bit Graphics acceleration: 1 2D, 2 3D Display type: 1 HDMI, 3 LCD Protocols: Ethernet, ICSS, Profibus, Profinet PCIe: 2 PCIe Gen 2
Operating system: Android, Linux, RTOS Rating: Catalog Power supply solution: LP8733 + LP873220, TPS65916 Operating temperature range (°C): -40 to 105
