SAL-TC275TP-64F200WDC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

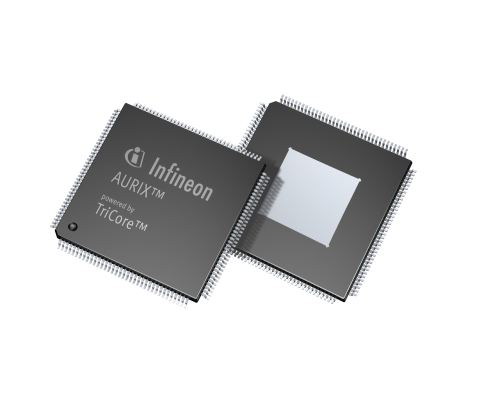

描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200 MHz, up to 4MB of Flash and a LQFP-176 package
SRAM (incl. Cache): 472.0kByte
CAN Nodes: 4
A/D Input Lines(incl. FADC): 48
Program Memory: 4.0MByte
Number of ADC Modules: 14.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 64
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: yes
Oscillator Watchdog: yes
Watchdog Timer: yes
更多
eMMC: no
SPI: 4.0
LIN: 4.0
# of cores / lockstep cores: 3/2
Hardware Accelerator: no
Additional Features: Ethernet
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 17.52
ASIL/SIL support: ASIL-D/SIL-3
SAL-TC277T-64F200SDC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, up to 4MB of Flash and a LFBGA-292 Package
SRAM (incl. Cache): 472.0kByte
CAN Nodes: 4
A/D Input Lines(incl. FADC): 60
Program Memory: 4.0MByte
Number of ADC Modules: 14.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 64
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: yes
Watchdog Timer: yes
Oscillator Watchdog: yes
更多
LIN: 4.0
SPI: 4.0
eMMC: no
# of cores / lockstep cores: 3/2
Hardware Accelerator: no
Additional Features: Ethernet
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 17.03
Budgetary Price €/1k: 17.03
ASIL/SIL support: ASIL-D/SIL-3
SAL-TC277TP-64F200NDC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 200MHz, up to 4MB of Flash and a LFBGA-292 Package
SRAM (incl. Cache): 472.0kByte
CAN Nodes: 4
A/D Input Lines(incl. FADC): 60
Program Memory: 4.0MByte
Number of ADC Modules: 14.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 64
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: yes
Watchdog Timer: yes
Oscillator Watchdog: yes
更多
eMMC: no
SPI: 4.0
LIN: 4.0
# of cores / lockstep cores: 3/2
Hardware Accelerator: no
Additional Features: Ethernet
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 20.25
ASIL/SIL support: ASIL-D/SIL-3
SAL-TC290TC-96F300BC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 6MB of Flash and a S-BDWBT-0 Package
SRAM (incl. Cache): 456.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 6.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
更多
Additional Features: Ethernet
LIN: 6.0
SPI: 4.0
eMMC: no
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
ASIL/SIL support: ASIL-D/SIL-3
SAL-TC290TP-128F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a S-BDWBT-0 Package
SRAM (incl. Cache): 728.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
更多
Additional Features: Hardware Security Module
Additional Features: Ethernet
eMMC: no
SPI: 4.0
LIN: 6.0
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
ASIL/SIL support: ASIL-D/SIL-3
SAL-TC298TP-128F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a BGA-416 Package
SRAM (incl. Cache): 728.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Floating Point Unit: yes
Oscillator Watchdog: yes
Real Time Clock: yes
Watchdog Timer: yes
更多
Additional Features: Hardware Security Module
Additional Features: Ethernet
LIN: 6.0
SPI: 4.0
eMMC: no
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO26262-compliant
ASIL/SIL support: ASIL-D/SIL-3
SAL-TC299TP-128F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 Package
SRAM (incl. Cache): 728.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: yes
Oscillator Watchdog: yes
Watchdog Timer: yes
更多
Additional Features: Hardware Security Module
Additional Features: Ethernet
Additional Features: Safety IO Monitor
eMMC: no
SPI: 4.0
LIN: 6.0
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +150 °C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 36.39
Budgetary Price €/1k: 36.39
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC212L-8F133FAC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 14
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
# of cores / lockstep cores: 1/1
Hardware Accelerator: no
更多
LIN: 2.0
SPI: 4.0
eMMC: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 6.13
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC212L-8F133NAC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller with a frequency of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 14
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
Hardware Accelerator: no
# of cores / lockstep cores: 1/1
更多
eMMC: no
SPI: 4.0
LIN: 2.0
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 7.25
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC212S-8F133FAC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of of 133 MHz, up to 0.5MB of Flash and a TQFP-80 package.
SRAM (incl. Cache): 56.0kByte
CAN Nodes: 3
A/D Input Lines(incl. FADC): 14
Program Memory: 0.5MByte
Number of ADC Modules: 2.0
Instruction Width([bits]): 32/16
DMA Channels: 16
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
Floating Point Unit: yes
On-chip Voltage Regulator: yes
Oscillator Watchdog: yes
Real Time Clock: yes
Watchdog Timer: yes
I/O Operation Voltages: 3.3V
Touch/LED Matrix Control: no
Hardware Accelerator: no
# of cores / lockstep cores: 1/0
更多
LIN: 2.0
SPI: 4.0
eMMC: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 5.6
ASIL/SIL support: ASIL-B/SIL-2
