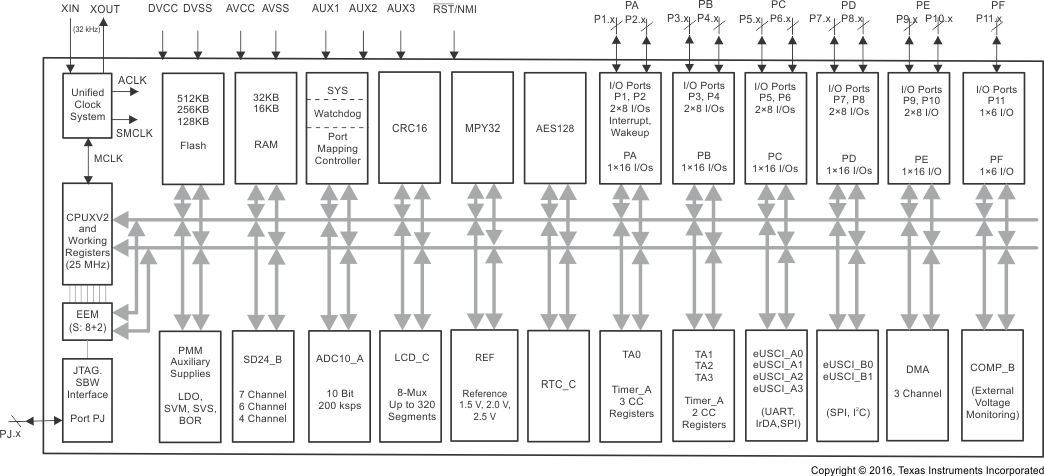

MSP430F6778A


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 7 个 Σ-Δ ADC、LCD、实时时钟、AES、512KB 闪存和 16KB RAM 的多相位计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 16 ADC type: 24-bit Sigma Delta Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 16 ADC type: 24-bit Sigma Delta
Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

MSP430F67791A


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 7 个 Σ-Δ ADC、LCD、实时时钟、512KB 闪存和 32KB RAM 的多相位计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta
Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

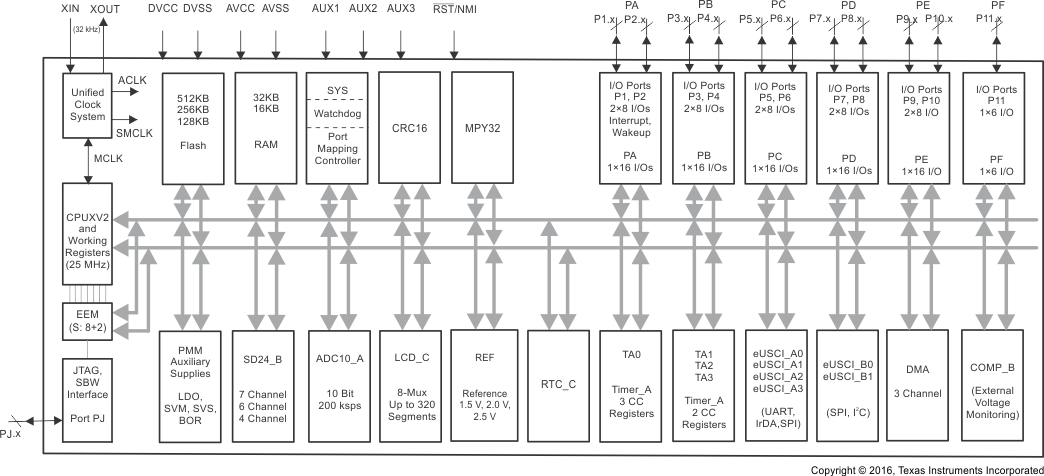

MSP430F6779A


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 7 个 Σ-Δ ADC、LCD、实时时钟、AES、512KB 闪存和 32KB RAM 的多相位计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta
Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

MSP430F2252-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 16KB 闪存、512B SRAM、10 位 ADC 和 I2C/SPI/UART 的汽车级 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 16 RAM (kByte): 0.5 ADC type: 10-bit SAR Number of ADC channels: 12 Features: OpAmp UART: 1 USB: No Number of I2Cs: 1 SPI: 2 Number of comparator channels: 0 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Automotive Frequency (MHz): 16 Nonvolatile memory (kByte): 16 RAM (kByte): 0.5 ADC type: 10-bit SAR Number of ADC channels: 12
Features: OpAmp UART: 1 USB: No Number of I2Cs: 1 SPI: 2 Number of comparator channels: 0 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Automotive

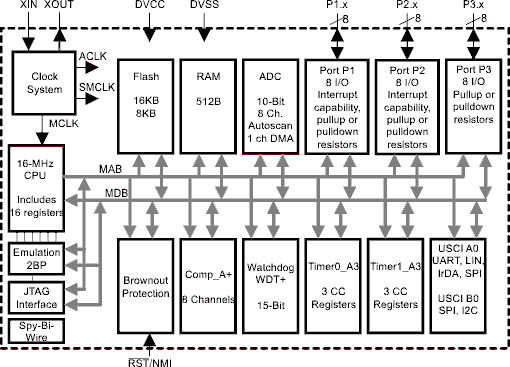

MSP430G2553-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 16KB 闪存、512B SRAM、10 位 ADC、比较器、UART/SPI/I2C、计时器的汽车级 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 16 RAM (kByte): 0.5 ADC type: 10-bit SAR Number of ADC channels: 8 Number of GPIOs: 24 Features: Real-time clock, Spy-bi-wire, Watchdog timer UART: 1 USB: No Number of I2Cs: 1 SPI: 2 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Automotive Frequency (MHz): 16 Nonvolatile memory (kByte): 16 RAM (kByte): 0.5 ADC type: 10-bit SAR
Number of ADC channels: 8 Number of GPIOs: 24 Features: Real-time clock, Spy-bi-wire, Watchdog timer UART: 1 USB: No Number of I2Cs: 1 SPI: 2 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Automotive

MSP430F5658


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 384KB 闪存、32KB SRAM、12 位 ADC、12 位 DAC、比较器、DMA 和 USB 的 20MHz MCU

Frequency (MHz): 20 Nonvolatile memory (kByte): 384 RAM (kByte): 32 ADC type: 12-bit SAR Number of ADC channels: 12 Number of GPIOs: 74 Features: DAC, Real-time clock UART: 3 USB: Yes Number of I2Cs: 3 SPI: 6 Number of comparator channels: 12 Timers - 16-bit: 4 Bootloader (BSL): USB Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 20 Nonvolatile memory (kByte): 384 RAM (kByte): 32 ADC type: 12-bit SAR
Number of ADC channels: 12 Number of GPIOs: 74 Features: DAC, Real-time clock UART: 3 USB: Yes Number of I2Cs: 3 SPI: 6 Number of comparator channels: 12 Timers - 16-bit: 4 Bootloader (BSL): USB Operating temperature range (°C): -40 to 85 Rating: Catalog

TMS320F28067-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 90MHz 频率、FPU、256KB 闪存、100KB RAM 的汽车类 C2000™ 32 位 MCU

CPU: C28x Frequency (MHz): 90 Flash memory (kByte): 256 RAM (kByte): 100 ADC resolution (bps): 12 Total processing (MIPS): 90 Features: FPU32 UART: 2 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 14, 16 TI functional safety category: Functional Safety Quality-Managed Number of ADC channels: 12, 16 Direct memory access (Ch): 6 SPI: 2 QEP: 1, 2 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART
CPU: C28x Frequency (MHz): 90 Flash memory (kByte): 256 RAM (kByte): 100 ADC resolution (bps): 12 Total processing (MIPS): 90 Features: FPU32 UART: 2 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 14, 16 TI functional safety category: Functional Safety Quality-Managed Number of ADC channels: 12, 16 Direct memory access (Ch): 6 SPI: 2 QEP: 1, 2 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART

TM4C1294NCPDT


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 120MHZ 频率、1MB 闪存、256KB RAM、USB 和 ENET MAC+PHY、基于 Arm Cortex-M4F 的 32 位 MCU

Frequency (MHz): 120 Flash memory (kByte): 1024 RAM (kByte): 256 ADC type: 12-bit SAR Number of GPIOs: 90 UART: 8 Number of I2Cs: 10 Features: 8-/16-/32-bit EPI, Hibernation with calendar mode Operating temperature range (°C): -40 to 105 Ethernet: Yes PWM (Ch): 8 SPI: 4 USB: Yes CAN (#): 2 Rating: Catalog Frequency (MHz): 120 Flash memory (kByte): 1024 RAM (kByte): 256 ADC type: 12-bit SAR Number of GPIOs: 90
UART: 8 Number of I2Cs: 10 Features: 8-/16-/32-bit EPI, Hibernation with calendar mode Operating temperature range (°C): -40 to 105 Ethernet: Yes PWM (Ch): 8 SPI: 4 USB: Yes CAN (#): 2 Rating: Catalog

TMS320F28053


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 60MHz 频率、64KB 闪存、CLA、PGA、3.75MSPS ADC 的 C2000™ 32 位 MCU

CPU: C28x Frequency (MHz): 60 Flash memory (kByte): 64 RAM (kByte): 20 ADC resolution (bps): 12 Total processing (MIPS): 60 UART: 3 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 14 TI functional safety category: Functional Safety Quality-Managed Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 1 QEP: 1 USB: No Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART CPU: C28x
Frequency (MHz): 60 Flash memory (kByte): 64 RAM (kByte): 20 ADC resolution (bps): 12 Total processing (MIPS): 60 UART: 3 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 14 TI functional safety category: Functional Safety Quality-Managed Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 1 QEP: 1 USB: No Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART

MSP430F67691


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 6 个 Σ-Δ ADC、LCD、实时时钟、512KB 闪存、32KB RAM 的多相计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta Number of ADC channels: 6 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta
Number of ADC channels: 6 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog
