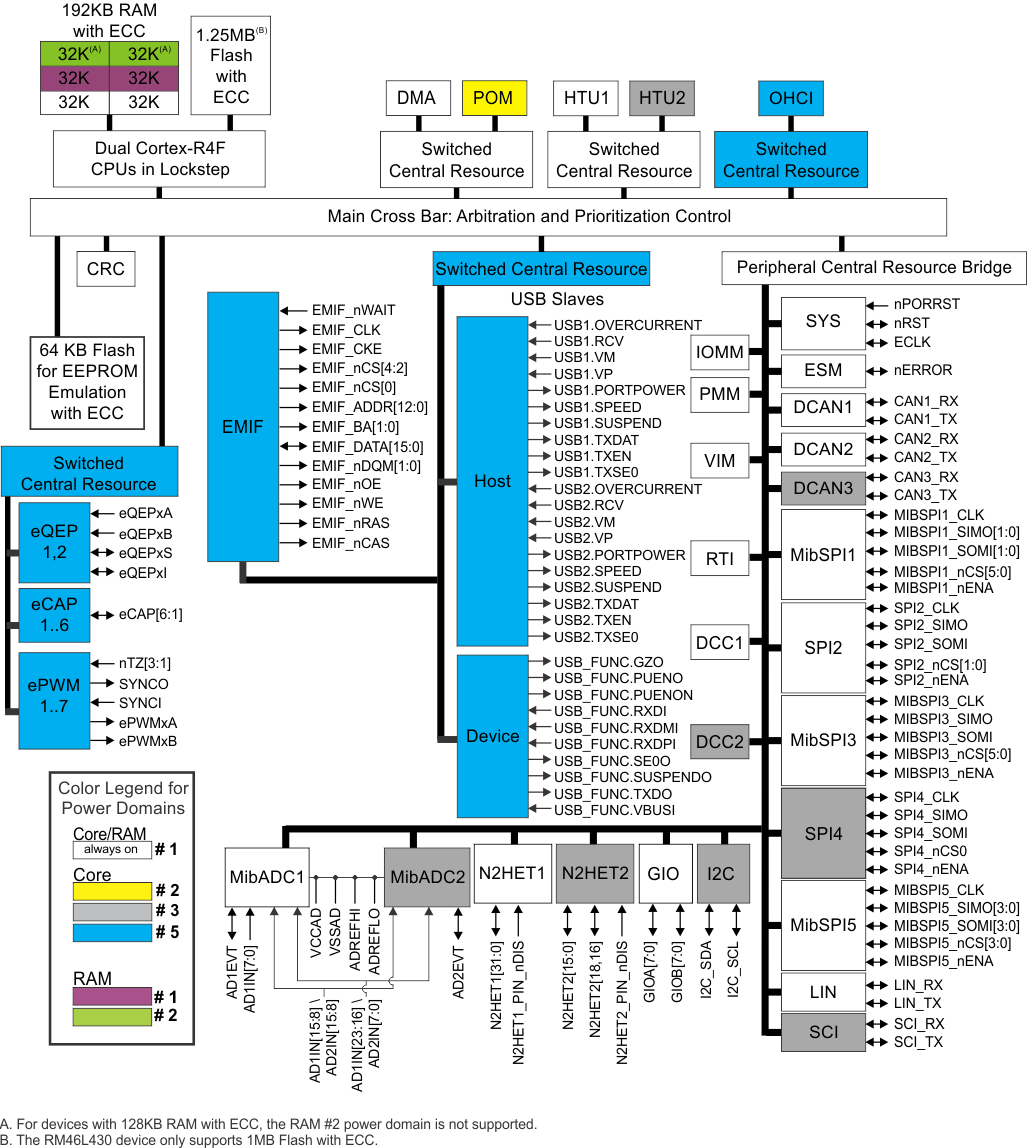

RM46L830


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 16/32 位 RISC 闪存 MCU，Cortex R4F，USB

Frequency (MHz): 200 Flash memory (kByte): 1280 RAM (kByte): 192 ADC type: 2 x 12-bit (24ch) Number of GPIOs: 64 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 105 Ethernet: No PWM (Ch): 54, 58 SPI: 1, 2 USB: 1 host + 1 device, 2 host CAN (#): 3 Communication interface: CAN, SPI, UART, USB Rating: Catalog Frequency (MHz): 200 Flash memory (kByte): 1280 RAM (kByte): 192 ADC type: 2 x 12-bit (24ch)
Number of GPIOs: 64 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 105 Ethernet: No PWM (Ch): 54, 58 SPI: 1, 2 USB: 1 host + 1 device, 2 host CAN (#): 3 Communication interface: CAN, SPI, UART, USB Rating: Catalog

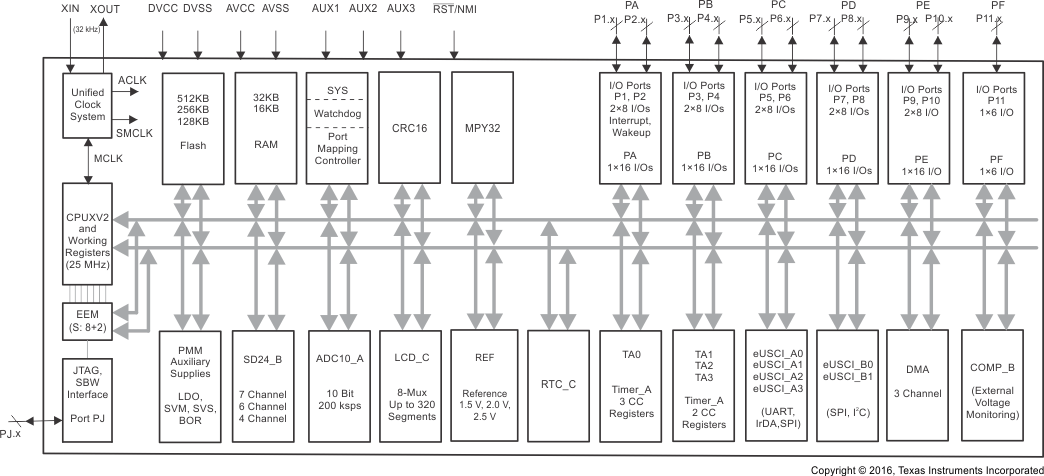

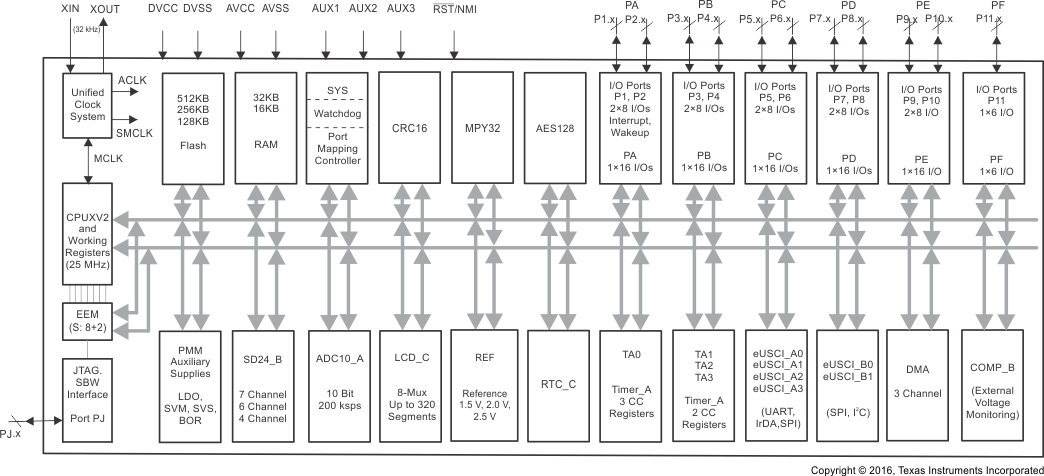

MSP430F6775


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 7 个 Σ-Δ ADC、LCD、实时时钟、AES、128KB 闪存、16KB RAM 的多相计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 16 ADC type: 24-bit Sigma Delta Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 16 ADC type: 24-bit Sigma Delta
Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

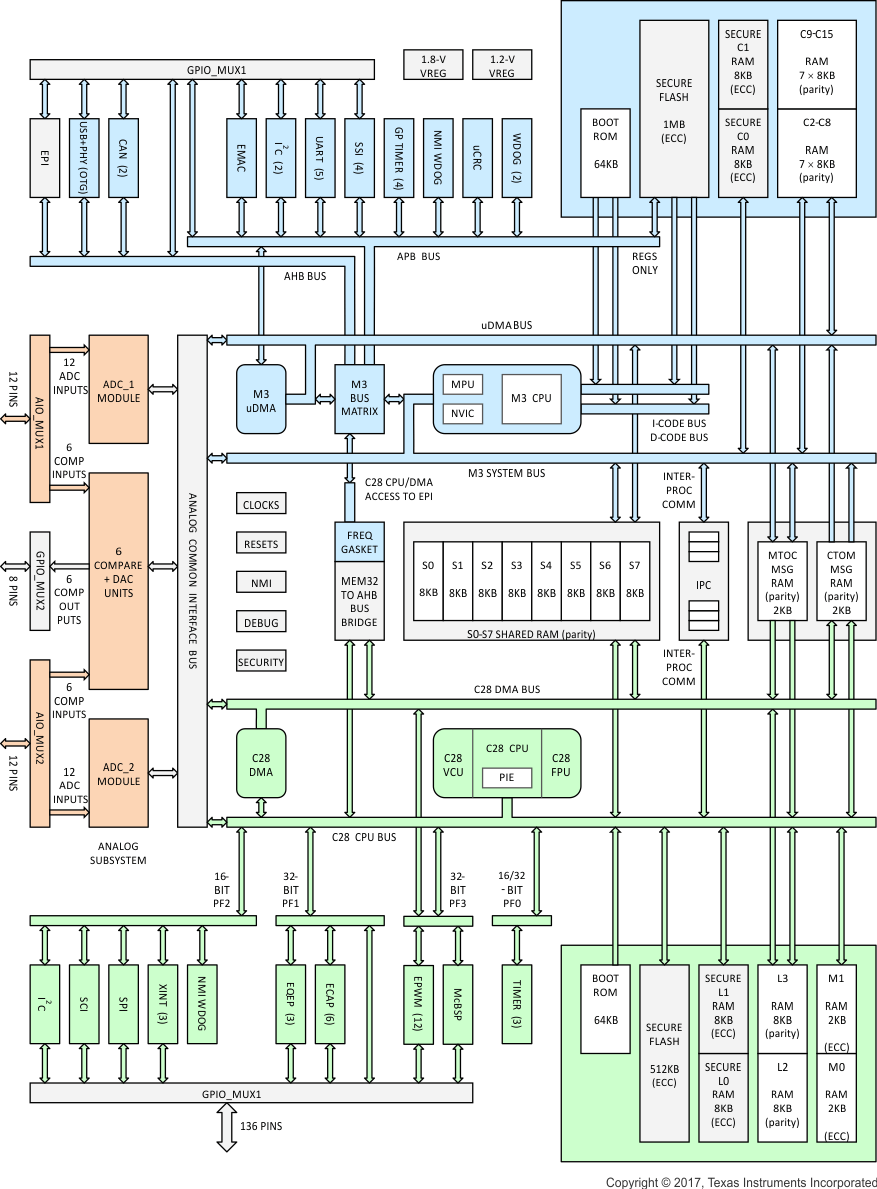

F28M36P53C2


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 275MIPS、1024KB 闪存、ENET、USB 的 C2000™ 双核 32 位 MCU

CPU: C28x, Cortex-M3 Frequency (MHz): 125, 150 Flash memory (kByte): 1024 RAM (kByte): 232 ADC resolution (bps): 12 Total processing (MIPS): 275 Features: Dual security zones, FPU32, VCU, Watchdog timer UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 24 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART CPU: C28x, Cortex-M3
Frequency (MHz): 125, 150 Flash memory (kByte): 1024 RAM (kByte): 232 ADC resolution (bps): 12 Total processing (MIPS): 275 Features: Dual security zones, FPU32, VCU, Watchdog timer UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 24 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART

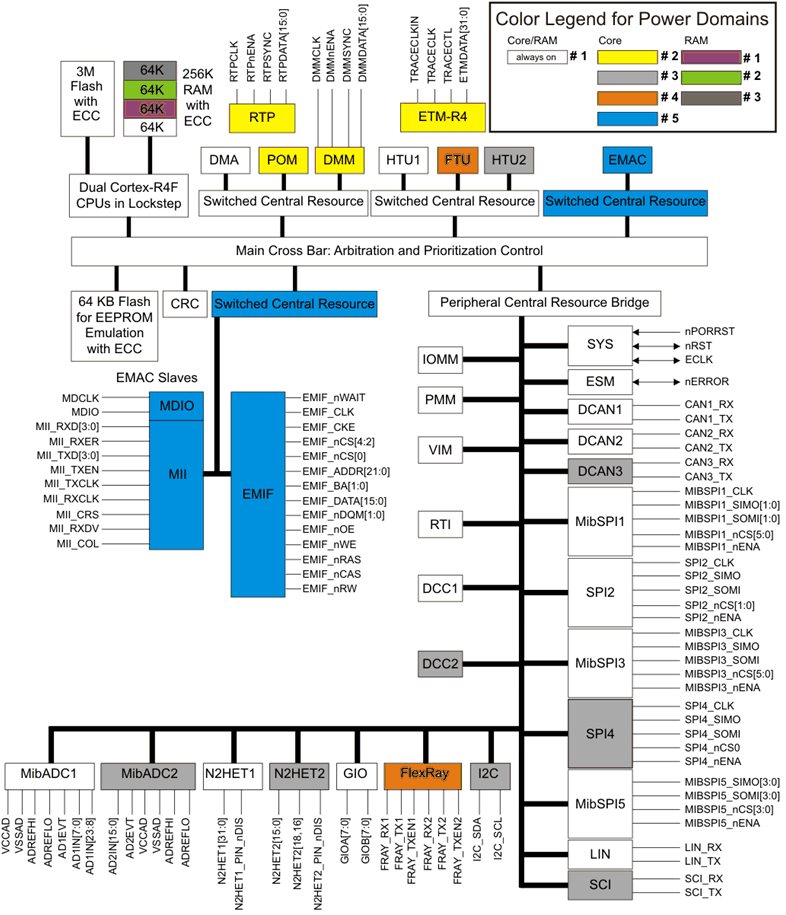

TMS570LS3137-EP


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 增强型产品 16/32 位 RISC 闪存 Arm Cortex-R4F、EMAC、FlexRay

Frequency (MHz): 180 Flash memory (kByte): 3072 RAM (kByte): 256 ADC type: 2 x 12-bit (24ch) Number of GPIOs: 144 UART: 2 Features: Hercules high-performance microcontroller Operating temperature range (°C): -55 to 125 Ethernet: Yes PWM (Ch): 44 SPI: 2 CAN (#): 3 Power supply solution: TPS65381A-Q1 Communication interface: CAN, Ethernet, FlexRay, SPI, UART Rating: HiRel Enhanced Product Frequency (MHz): 180 Flash memory (kByte): 3072 RAM (kByte): 256 ADC type: 2 x 12-bit (24ch) Number of GPIOs: 144
UART: 2 Features: Hercules high-performance microcontroller Operating temperature range (°C): -55 to 125 Ethernet: Yes PWM (Ch): 44 SPI: 2 CAN (#): 3 Power supply solution: TPS65381A-Q1 Communication interface: CAN, Ethernet, FlexRay, SPI, UART Rating: HiRel Enhanced Product

MSP430F67781


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 7 个 Σ-Δ ADC、LCD、实时时钟、512KB 闪存和 16KB RAM 的多相位计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 16 ADC type: 24-bit Sigma Delta Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 16 ADC type: 24-bit Sigma Delta
Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

RM46L430


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 16/32 位 RISC 闪存 MCU，Cortex R4F，USB

Frequency (MHz): 200 Flash memory (kByte): 1024 RAM (kByte): 128 ADC type: 2 x 12-bit (24ch) Number of GPIOs: 64, 101 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 105 Ethernet: No PWM (Ch): 54, 58 SPI: 1, 2 USB: 1 host + 1 device, 2 host CAN (#): 3 Communication interface: CAN, SPI, UART, USB Rating: Catalog Frequency (MHz): 200 Flash memory (kByte): 1024 RAM (kByte): 128 ADC type: 2 x 12-bit (24ch)
Number of GPIOs: 64, 101 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 105 Ethernet: No PWM (Ch): 54, 58 SPI: 1, 2 USB: 1 host + 1 device, 2 host CAN (#): 3 Communication interface: CAN, SPI, UART, USB Rating: Catalog

MSP430F6458


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 384KB 闪存、34KB SRAM、12 位 ADC、12 位 DAC、比较器、DMA、160 段 LCD 的 20MHz MCU

Frequency (MHz): 20 Nonvolatile memory (kByte): 384 RAM (kByte): 34 ADC type: 12-bit SAR Number of ADC channels: 12 Number of GPIOs: 74 Features: DAC, LCD, Real-time clock UART: 3 USB: No Number of I2Cs: 3 SPI: 6 Number of comparator channels: 12 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 20 Nonvolatile memory (kByte): 384 RAM (kByte): 34 ADC type: 12-bit SAR
Number of ADC channels: 12 Number of GPIOs: 74 Features: DAC, LCD, Real-time clock UART: 3 USB: No Number of I2Cs: 3 SPI: 6 Number of comparator channels: 12 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

RM42L432


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 16/32 位 RISC 闪存 MCU，Arm Cortex-R4F

Frequency (MHz): 100 Flash memory (kByte): 384 RAM (kByte): 32 ADC type: 12-bit (16ch) Number of GPIOs: 45 UART: 1 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 105 Ethernet: No PWM (Ch): 19 SPI: 2 CAN (#): 2 Communication interface: CAN, SPI, UART Rating: Catalog Frequency (MHz): 100 Flash memory (kByte): 384 RAM (kByte): 32 ADC type: 12-bit (16ch) Number of GPIOs: 45
UART: 1 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 105 Ethernet: No PWM (Ch): 19 SPI: 2 CAN (#): 2 Communication interface: CAN, SPI, UART Rating: Catalog

MSP430F67461


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 4 个 Σ-Δ ADC、LCD、实时时钟、256KB 闪存、16KB RAM 的多相计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 256 RAM (kByte): 16 ADC type: 24-bit Sigma Delta Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 256 RAM (kByte): 16 ADC type: 24-bit Sigma Delta
Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

MSP430F67491


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 4 个 Σ-Δ ADC、LCD、实时时钟、512KB 闪存、32KB RAM 的多相计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 512 RAM (kByte): 32 ADC type: 24-bit Sigma Delta
Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog
