MSP430F5249


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 128KB 闪存、8KB SRAM、10 位 ADC、比较器、DMA、UART/SPI/I2C 和硬件乘法器的 25MHz MCU

Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 8 ADC type: 10-bit SAR Number of ADC channels: 10 Number of GPIOs: 53 Features: Real-time clock UART: 2 USB: No Number of I2Cs: 2 SPI: 4 Number of comparator channels: 8 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 8 ADC type: 10-bit SAR
Number of ADC channels: 10 Number of GPIOs: 53 Features: Real-time clock UART: 2 USB: No Number of I2Cs: 2 SPI: 4 Number of comparator channels: 8 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

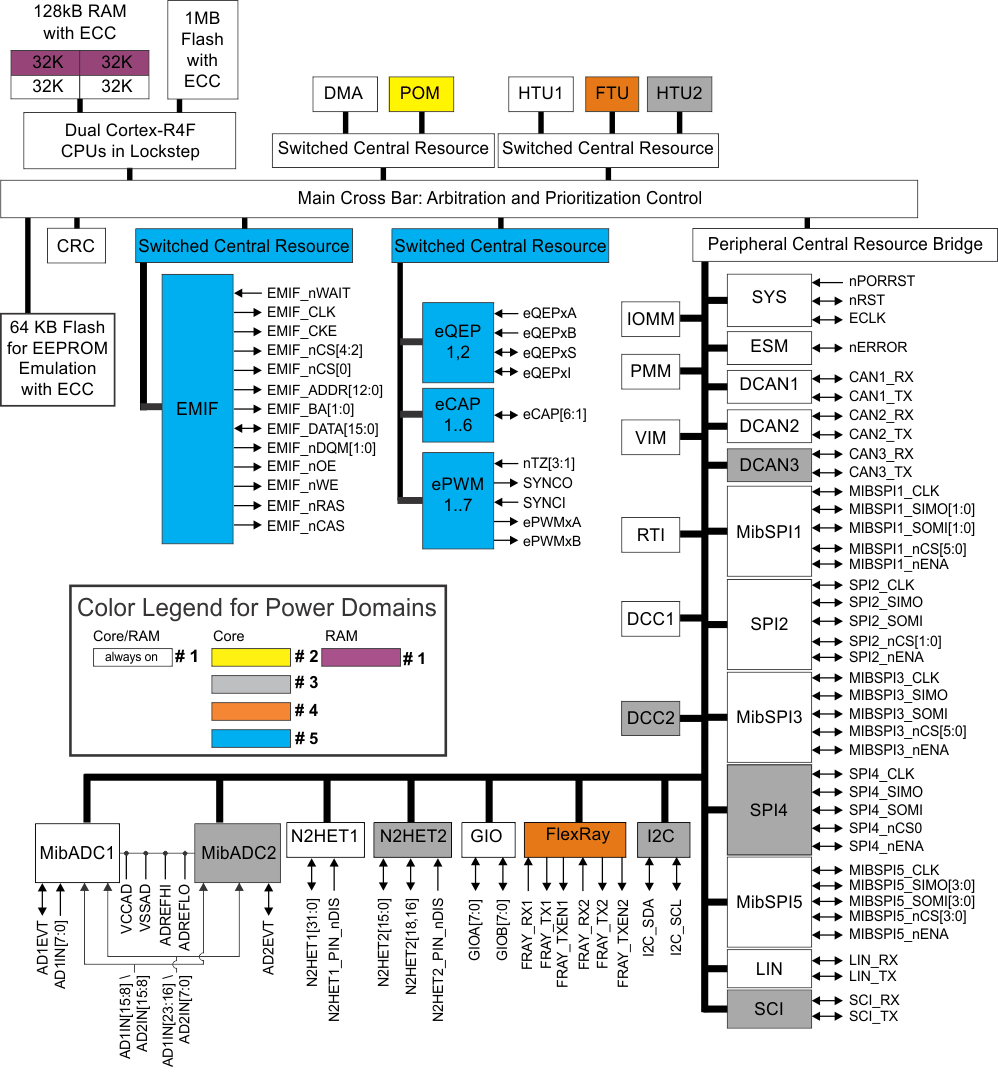

TMS570LS1115


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 16/32 位 RISC 闪存 MCU，Cortex R4F，通过 Q100 车规认证，Flexray

Frequency (MHz): 160, 180 Flash memory (kByte): 1024 RAM (kByte): 128 ADC type: 2 x 12-bit (24ch) Number of GPIOs: 101 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 125 Ethernet: No PWM (Ch): 54, 58 SPI: 1, 2 CAN (#): 3 Power supply solution: TPS65381A-Q1 Communication interface: CAN, FlexRay, SPI, UART Rating: Automotive Frequency (MHz): 160, 180 Flash memory (kByte): 1024 RAM (kByte): 128 ADC type: 2 x 12-bit (24ch)
Number of GPIOs: 101 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 125 Ethernet: No PWM (Ch): 54, 58 SPI: 1, 2 CAN (#): 3 Power supply solution: TPS65381A-Q1 Communication interface: CAN, FlexRay, SPI, UART Rating: Automotive

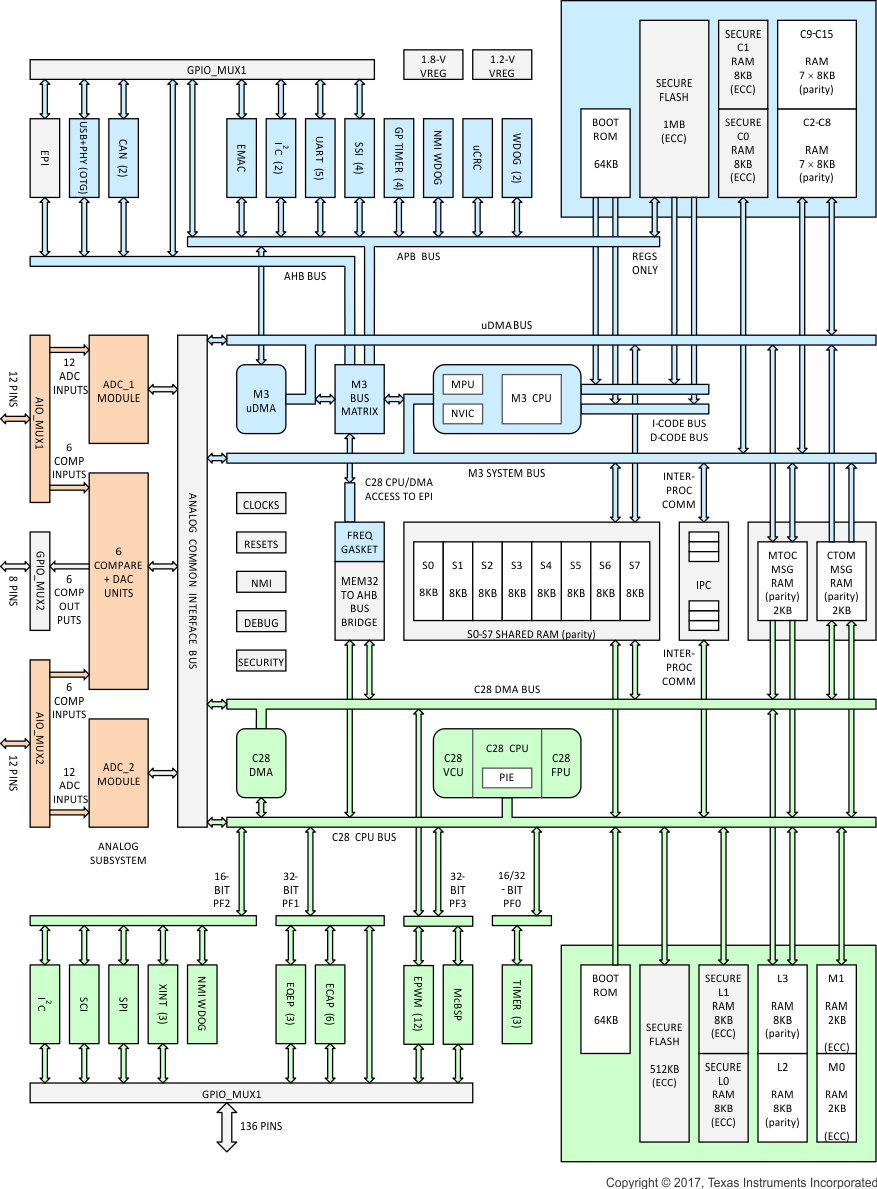

F28M36P63C2


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 275MIPS、1536KB 闪存、ENET、USB 的 C2000™ 双核 32 位 MCU

CPU: C28x, Cortex-M3 Frequency (MHz): 125, 150 Flash memory (kByte): 1536 RAM (kByte): 232 ADC resolution (bps): 12 Total processing (MIPS): 275 Features: Single zone code security UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 24 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART CPU: C28x, Cortex-M3
Frequency (MHz): 125, 150 Flash memory (kByte): 1536 RAM (kByte): 232 ADC resolution (bps): 12 Total processing (MIPS): 275 Features: Single zone code security UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 24 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART

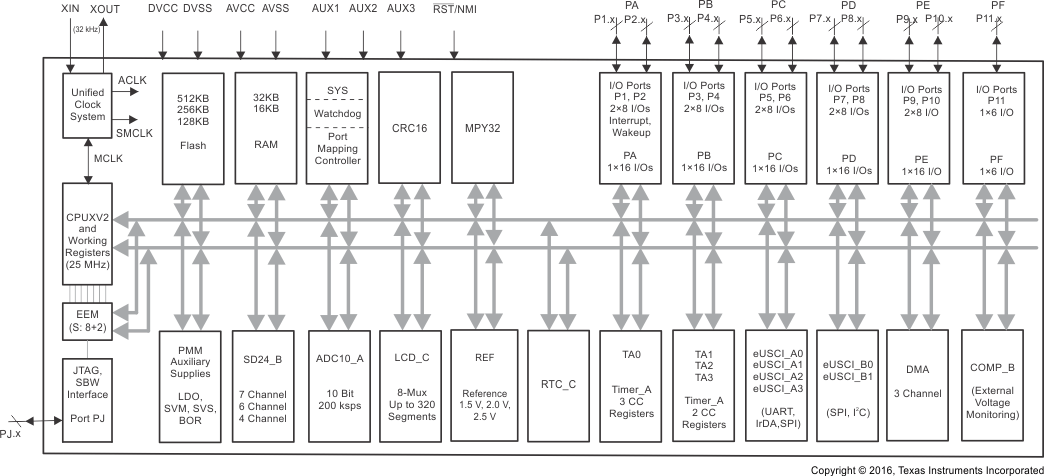

MSP430F67471


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 4 个 Σ-Δ ADC、LCD、实时时钟、256KB 闪存、32KB RAM 的多相计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 256 RAM (kByte): 32 ADC type: 24-bit Sigma Delta Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 256 RAM (kByte): 32 ADC type: 24-bit Sigma Delta
Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

MSP430F67751


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 7 个 Σ-Δ ADC、LCD、实时时钟、128KB 闪存和 16KB RAM 的多相位计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 16 ADC type: 24-bit Sigma Delta Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 16 ADC type: 24-bit Sigma Delta
Number of ADC channels: 7 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

F28M35H22C


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 250MIPS、512KB 闪存的 C2000™ 双核 32 位 MCU

CPU: C28x, Cortex-M3 Frequency (MHz): 100, 150 Flash memory (kByte): 512 RAM (kByte): 136 ADC resolution (bps): 12 Total processing (MIPS): 250 UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 20 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 105 Rating: Catalog Communication interface: CAN, I2C, SPI, UART CPU: C28x, Cortex-M3 Frequency (MHz): 100, 150
Flash memory (kByte): 512 RAM (kByte): 136 ADC resolution (bps): 12 Total processing (MIPS): 250 UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 20 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 105 Rating: Catalog Communication interface: CAN, I2C, SPI, UART

F28M35H52C


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 250MIPS、1024KB 闪存的 C2000™ 双核 32 位 MCU

CPU: C28x, Cortex-M3 Frequency (MHz): 100, 150 Flash memory (kByte): 1024 RAM (kByte): 136 ADC resolution (bps): 12 Total processing (MIPS): 250 UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 20 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART CPU: C28x, Cortex-M3 Frequency (MHz): 100, 150
Flash memory (kByte): 1024 RAM (kByte): 136 ADC resolution (bps): 12 Total processing (MIPS): 250 UART: 6 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 24 Number of ADC channels: 20 Direct memory access (Ch): 1 32-ch DMA, 1 6-Ch DMA SPI: 5 QEP: 3 USB: Yes Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART

MSP430F5219


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 128KB 闪存、8KB SRAM、比较器、DMA、UART/SPI/I2C 和 1.8V 双电源 I/O 的 25MHz MCU

Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 8 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 53 Features: Real-time clock UART: 2 USB: No Number of I2Cs: 2 SPI: 4 Number of comparator channels: 8 Timers - 16-bit: 4 Bootloader (BSL): UART Special I/O: 1.8V I/O Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 8
ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 53 Features: Real-time clock UART: 2 USB: No Number of I2Cs: 2 SPI: 4 Number of comparator channels: 8 Timers - 16-bit: 4 Bootloader (BSL): UART Special I/O: 1.8V I/O Operating temperature range (°C): -40 to 85 Rating: Catalog

TMS570LS1227


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 16/32 位 RISC 闪存 MCU，Cortex R4F，通过 Q100 车规认证，EMAC

Frequency (MHz): 160, 180 Flash memory (kByte): 1280 RAM (kByte): 192 ADC type: 2 x 12-bit (24ch) Number of GPIOs: 58 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 125 Ethernet: Yes PWM (Ch): 54, 58 SPI: 1, 2 CAN (#): 3 Power supply solution: TPS65381A-Q1 Communication interface: CAN, Ethernet, FlexRay, SPI, UART Rating: Automotive Frequency (MHz): 160, 180 Flash memory (kByte): 1280 RAM (kByte): 192 ADC type: 2 x 12-bit (24ch)
Number of GPIOs: 58 UART: 2 Features: Hercules high-performance microcontroller TI functional safety category: Functional Safety-Compliant Operating temperature range (°C): -40 to 125 Ethernet: Yes PWM (Ch): 54, 58 SPI: 1, 2 CAN (#): 3 Power supply solution: TPS65381A-Q1 Communication interface: CAN, Ethernet, FlexRay, SPI, UART Rating: Automotive

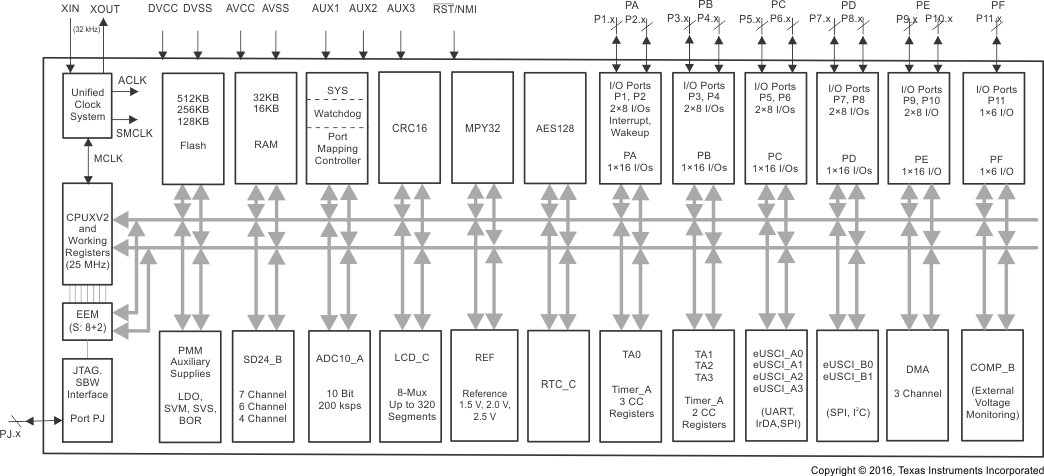

MSP430F6745


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 4 个 Σ-Δ ADC、LCD、实时时钟、AES、128KB 闪存、16KB RAM 的多相计量 SoC

Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 16 ADC type: 24-bit Sigma Delta Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 25 Nonvolatile memory (kByte): 128 RAM (kByte): 16 ADC type: 24-bit Sigma Delta
Number of ADC channels: 4 Number of GPIOs: 90 Features: Advanced sensing, LCD, Real-time clock UART: 4 USB: No Number of I2Cs: 2 SPI: 6 Number of comparator channels: 0 Timers - 16-bit: 4 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog
