MSP430F5630
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 128KB 闪存、16KB SRAM、比较器、DMA、UART/SPI/I2C、USB、计时器和硬件乘法器的 20 MHz MCU
Frequency (MHz): 20
Nonvolatile memory (kByte): 128
RAM (kByte): 16
ADC type: Slope
Number of ADC channels: 0
Number of GPIOs: 74
Features: Real-time clock
UART: 2
USB: Yes
Number of I2Cs: 2
SPI: 4
Number of comparator channels: 12
Timers - 16-bit: 4
Bootloader (BSL): USB
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 20
Nonvolatile memory (kByte): 128
RAM (kByte): 16
ADC type: Slope
更多
Number of ADC channels: 0
Number of GPIOs: 74
Features: Real-time clock
UART: 2
USB: Yes
Number of I2Cs: 2
SPI: 4
Number of comparator channels: 12
Timers - 16-bit: 4
Bootloader (BSL): USB
Operating temperature range (°C): -40 to 85
Rating: Catalog
MSP430F5659
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 512KB 闪存、64KB SRAM、12 位 ADC、12 位 DAC、比较器、DMA 和 USB 的 20MHz MCU
Frequency (MHz): 20
Nonvolatile memory (kByte): 512
RAM (kByte): 64
ADC type: 12-bit SAR
Number of ADC channels: 12
Number of GPIOs: 74
Features: DAC, Real-time clock
UART: 3
USB: Yes
Number of I2Cs: 3
SPI: 6
Number of comparator channels: 12
Timers - 16-bit: 4
Bootloader (BSL): USB
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 20
Nonvolatile memory (kByte): 512
RAM (kByte): 64
ADC type: 12-bit SAR
更多
Number of ADC channels: 12
Number of GPIOs: 74
Features: DAC, Real-time clock
UART: 3
USB: Yes
Number of I2Cs: 3
SPI: 6
Number of comparator channels: 12
Timers - 16-bit: 4
Bootloader (BSL): USB
Operating temperature range (°C): -40 to 85
Rating: Catalog
MSP430F6659
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 512KB 闪存、64KB SRAM、12 位 ADC、12 位 DAC、比较器、DMA、160 段 LCD、USB 的 20MHz MCU
Frequency (MHz): 20
Nonvolatile memory (kByte): 512
RAM (kByte): 64
ADC type: 12-bit SAR
Number of ADC channels: 12
Number of GPIOs: 74
Features: DAC, LCD, Real-time clock
UART: 3
USB: Yes
Number of I2Cs: 3
SPI: 6
Number of comparator channels: 12
Timers - 16-bit: 4
Bootloader (BSL): USB
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 20
Nonvolatile memory (kByte): 512
RAM (kByte): 64
ADC type: 12-bit SAR
更多
Number of ADC channels: 12
Number of GPIOs: 74
Features: DAC, LCD, Real-time clock
UART: 3
USB: Yes
Number of I2Cs: 3
SPI: 6
Number of comparator channels: 12
Timers - 16-bit: 4
Bootloader (BSL): USB
Operating temperature range (°C): -40 to 85
Rating: Catalog
MSP430G2744
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 32KB 闪存、1KB SRAM、10 位 ADC、UART/SPI/I2C、计时器的 16MHz MCU
Frequency (MHz): 16
Nonvolatile memory (kByte): 32
RAM (kByte): 1
ADC type: 10-bit SAR
Number of ADC channels: 12
Number of GPIOs: 32
Features: Real-time clock, Spy-bi-wire, Watchdog timer
UART: 1
USB: No
Number of I2Cs: 1
SPI: 1
Number of comparator channels: 0
Timers - 16-bit: 2
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 16
Nonvolatile memory (kByte): 32
RAM (kByte): 1
ADC type: 10-bit SAR
更多
Number of ADC channels: 12
Number of GPIOs: 32
Features: Real-time clock, Spy-bi-wire, Watchdog timer
UART: 1
USB: No
Number of I2Cs: 1
SPI: 1
Number of comparator channels: 0
Timers - 16-bit: 2
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
TMS320F28026F
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 60MHz 频率、32KB 闪存、InstaSPIN-FOC 的 C2000™ 32 位 MCU
CPU: C28x
Frequency (MHz): 60
Flash memory (kByte): 32
RAM (kByte): 12
ADC resolution (bps): 12
Total processing (MIPS): 60
Features: InstaSPIN-FOC technology
UART: 1
CAN (#): 0
Sigma-delta filter: 0
PWM (Ch): 8
TI functional safety category: Functional Safety Quality-Managed
Number of ADC channels: 7, 13
Direct memory access (Ch): 0
SPI: 1
QEP: 0
USB: No
Operating temperature range (°C): -40 to 105
Rating: Catalog
Communication interface: I2C, SPI, UART
更多
CPU: C28x
Frequency (MHz): 60
Flash memory (kByte): 32
RAM (kByte): 12
ADC resolution (bps): 12
Total processing (MIPS): 60
Features: InstaSPIN-FOC technology
UART: 1
CAN (#): 0
Sigma-delta filter: 0
PWM (Ch): 8
TI functional safety category: Functional Safety Quality-Managed
Number of ADC channels: 7, 13
Direct memory access (Ch): 0
SPI: 1
QEP: 0
USB: No
Operating temperature range (°C): -40 to 105
Rating: Catalog
Communication interface: I2C, SPI, UART
MSP430F5212
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 64KB 闪存、8KB SRAM、10 位 ADC、比较器、DMA、双电源 IO 和 I2C/SPI/UART 的 25MHz MCU
Frequency (MHz): 25
Nonvolatile memory (kByte): 64
RAM (kByte): 8
ADC type: Slope
Number of ADC channels: 0
Number of GPIOs: 37
Features: Real-time clock
UART: 2
USB: No
Number of I2Cs: 2
SPI: 4
Number of comparator channels: 6
Timers - 16-bit: 4
Bootloader (BSL): UART
Special I/O: 1.8V I/O
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 25
Nonvolatile memory (kByte): 64
RAM (kByte): 8
更多
ADC type: Slope
Number of ADC channels: 0
Number of GPIOs: 37
Features: Real-time clock
UART: 2
USB: No
Number of I2Cs: 2
SPI: 4
Number of comparator channels: 6
Timers - 16-bit: 4
Bootloader (BSL): UART
Special I/O: 1.8V I/O
Operating temperature range (°C): -40 to 85
Rating: Catalog
MSP430F5214
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 128KB 闪存、8KB SRAM、比较器、DMA、UART/SPI/I2C 和 1.8V 双电源 I/O 的 25MHz MCU
Frequency (MHz): 25
Nonvolatile memory (kByte): 128
RAM (kByte): 8
ADC type: Slope
Number of ADC channels: 0
Number of GPIOs: 37
Features: Real-time clock
UART: 2
USB: No
Number of I2Cs: 2
SPI: 4
Number of comparator channels: 6
Timers - 16-bit: 4
Bootloader (BSL): UART
Special I/O: 1.8V I/O
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 25
Nonvolatile memory (kByte): 128
RAM (kByte): 8
更多
ADC type: Slope
Number of ADC channels: 0
Number of GPIOs: 37
Features: Real-time clock
UART: 2
USB: No
Number of I2Cs: 2
SPI: 4
Number of comparator channels: 6
Timers - 16-bit: 4
Bootloader (BSL): UART
Special I/O: 1.8V I/O
Operating temperature range (°C): -40 to 85
Rating: Catalog

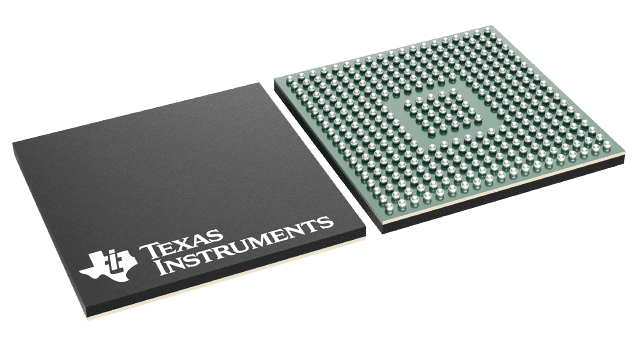

Frequency (MHz): 220
Flash memory (kByte): 3072
RAM (kByte): 256
ADC type: 2 x 12-bit (24ch)
Number of GPIOs: 144
UART: 2
Features: Hercules high-performance microcontroller
TI functional safety category: Functional Safety-Compliant
Operating temperature range (°C): -40 to 105
Ethernet: Yes
PWM (Ch): 40, 44
SPI: 1, 2
USB: 1 host + 1 device, 2 host
CAN (#): 3
Communication interface: CAN, Ethernet, SPI, UART, USB
Rating: Catalog
Frequency (MHz): 220
Flash memory (kByte): 3072
RAM (kByte): 256
ADC type: 2 x 12-bit (24ch)
更多
Number of GPIOs: 144
UART: 2
Features: Hercules high-performance microcontroller
TI functional safety category: Functional Safety-Compliant
Operating temperature range (°C): -40 to 105
Ethernet: Yes
PWM (Ch): 40, 44
SPI: 1, 2
USB: 1 host + 1 device, 2 host
CAN (#): 3
Communication interface: CAN, Ethernet, SPI, UART, USB
Rating: Catalog

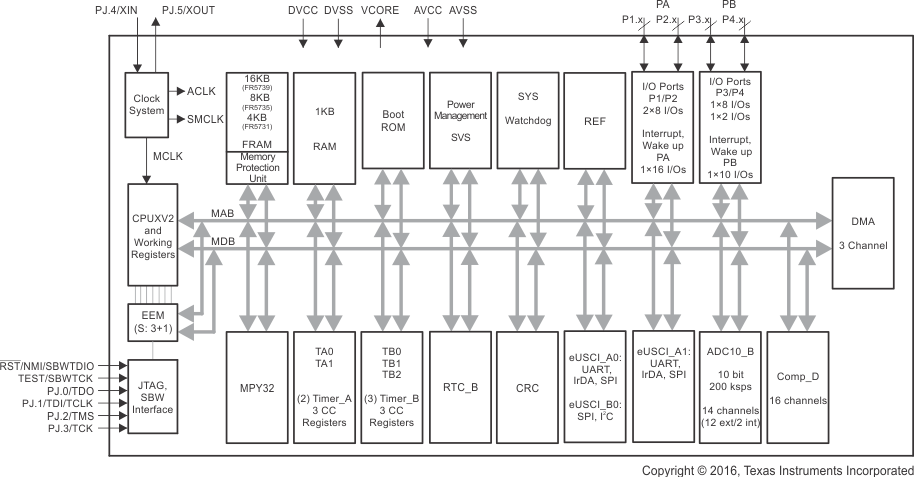

MSP430FR5734
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 8KB FRAM、1KB SRAM、10 位 ADC、比较器、UART/SPI/I2C、计时器的 24MHz MCU
Frequency (MHz): 24
Nonvolatile memory (kByte): 8
RAM (kByte): 1
ADC type: 10-bit SAR
Number of ADC channels: 8
Number of GPIOs: 21
Features: DMA, Real-time clock
UART: 1
USB: No
Number of I2Cs: 1
SPI: 2
Number of comparator channels: 12
Timers - 16-bit: 3
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 24
Nonvolatile memory (kByte): 8
RAM (kByte): 1
ADC type: 10-bit SAR
更多
Number of ADC channels: 8
Number of GPIOs: 21
Features: DMA, Real-time clock
UART: 1
USB: No
Number of I2Cs: 1
SPI: 2
Number of comparator channels: 12
Timers - 16-bit: 3
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
MSP430FR5726
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 16KB FRAM、1KB SRAM、比较器、UART/SPI/I2C、计时器的 8MHz MCU
Frequency (MHz): 8
Nonvolatile memory (kByte): 16
RAM (kByte): 1
ADC type: Slope
Number of ADC channels: 0
Number of GPIOs: 21
Features: DMA, Real-time clock
UART: 1
USB: No
Number of I2Cs: 1
SPI: 2
Number of comparator channels: 12
Timers - 16-bit: 3
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 8
Nonvolatile memory (kByte): 16
RAM (kByte): 1
ADC type: Slope
更多
Number of ADC channels: 0
Number of GPIOs: 21
Features: DMA, Real-time clock
UART: 1
USB: No
Number of I2Cs: 1
SPI: 2
Number of comparator channels: 12
Timers - 16-bit: 3
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
