TMS320F2809


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 100 MHz 频率、256 KB 闪存、12 通道 PWM 的 C2000™ 32 位 MCU

CPU: C28x Frequency (MHz): 100 Flash memory (kByte): 256 RAM (kByte): 36 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 2 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 12 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 4 QEP: 2 USB: No Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART CPU: C28x
Frequency (MHz): 100 Flash memory (kByte): 256 RAM (kByte): 36 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 2 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 12 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 4 QEP: 2 USB: No Operating temperature range (°C): -40 to 125 Rating: Catalog Communication interface: CAN, I2C, SPI, UART

MSP430F2350


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 16KB 闪存、512B SRAM、10 位 ADC、比较器、UART/SPI/I2C、计时器的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 16 RAM (kByte): 2 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 32 Features: Bootstrap loader, Brown out detector UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 16 RAM (kByte): 2 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 32 Features: Bootstrap loader, Brown out detector UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog

MSP430F2370


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 32KB 闪存、2KB SRAM、比较器、I2C/SPI/UART 和硬件乘法器的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 32 RAM (kByte): 2 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 32 Features: Bootstrap loader, Brown out detector UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 32 RAM (kByte): 2 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 32 Features: Bootstrap loader, Brown out detector UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog

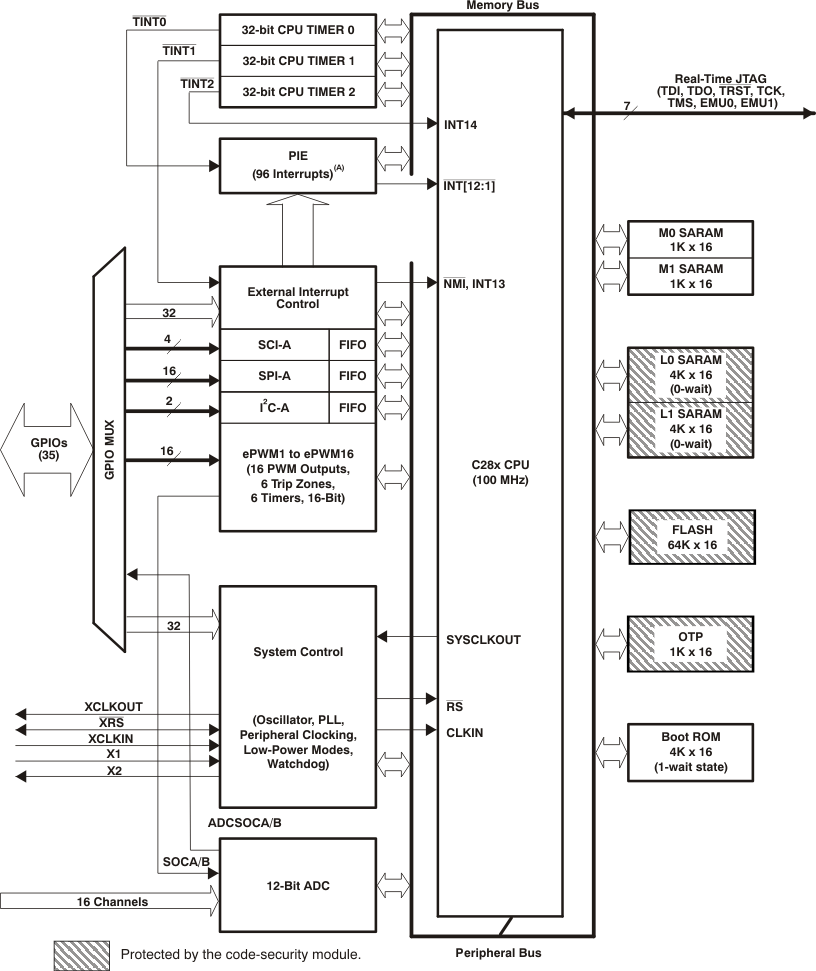

TMS320F28044


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 100MHz 频率、128KB 闪存、16 个 HRPWM 通道的 C2000™ 32 位 MCU

CPU: C28x Frequency (MHz): 100 Flash memory (kByte): 128 RAM (kByte): 20 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 32-bit CPU timers, Single zone code security, Watchdog timer UART: 1 CAN (#): 0 Sigma-delta filter: 0 PWM (Ch): 16 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 1 QEP: 1 USB: No Operating temperature range (°C): -40 to 85 Rating: Catalog Communication interface: I2C, SCI, SPI CPU: C28x
Frequency (MHz): 100 Flash memory (kByte): 128 RAM (kByte): 20 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 32-bit CPU timers, Single zone code security, Watchdog timer UART: 1 CAN (#): 0 Sigma-delta filter: 0 PWM (Ch): 16 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 1 QEP: 1 USB: No Operating temperature range (°C): -40 to 85 Rating: Catalog Communication interface: I2C, SCI, SPI

MSP430F4351


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 16KB 闪存、512B SRAM、比较器、SPI/UART、160 段 LCD 的 8MHz MCU

Frequency (MHz): 8 Nonvolatile memory (kByte): 16 RAM (kByte): 0.5 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 48 Features: LCD UART: 1 USB: No Number of I2Cs: 0 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 8 Nonvolatile memory (kByte): 16 RAM (kByte): 0.5 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 48 Features: LCD UART: 1 USB: No Number of I2Cs: 0 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

MSP430F4361


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 24KB 闪存、1KB SRAM、比较器、SPI/UART 和 160 段 LCD 的 8MHz MCU

Frequency (MHz): 8 Nonvolatile memory (kByte): 24 RAM (kByte): 1 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 48 Features: LCD UART: 1 USB: No Number of I2Cs: 0 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 8 Nonvolatile memory (kByte): 24 RAM (kByte): 1 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 48 Features: LCD UART: 1 USB: No Number of I2Cs: 0 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

MSP430F4371


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 32KB 闪存、1KB SRAM、比较器、SPI/UART 和 160 段 LCD 的 8MHz MCU

Frequency (MHz): 8 Nonvolatile memory (kByte): 32 RAM (kByte): 1 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 48 Features: LCD UART: 1 USB: No Number of I2Cs: 0 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 8 Nonvolatile memory (kByte): 32 RAM (kByte): 1 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 48 Features: LCD UART: 1 USB: No Number of I2Cs: 0 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

SM320F2801-EP


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 100MHz 频率、32kb 闪存、6 PWM、扩展温度范围的 C2000™ 增强型产品 32 位 MCU

CPU: C28x Frequency (MHz): 100 Flash memory (kByte): 32 RAM (kByte): 12 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 1 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 6 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 2 QEP: 1 USB: No Operating temperature range (°C): -55 to 125 Rating: HiRel Enhanced Product Communication interface: CAN, I2C, SPI, UART CPU: C28x
Frequency (MHz): 100 Flash memory (kByte): 32 RAM (kByte): 12 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 1 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 6 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 2 QEP: 1 USB: No Operating temperature range (°C): -55 to 125 Rating: HiRel Enhanced Product Communication interface: CAN, I2C, SPI, UART

TMS320F2802-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 100 MHz 频率、64 KB 闪存、6 通道 PWM 的汽车类 C2000™ 32 位 MCU

CPU: C28x Frequency (MHz): 100 Flash memory (kByte): 64 RAM (kByte): 12 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 1 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 6 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 2 QEP: 1 USB: No Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART CPU: C28x
Frequency (MHz): 100 Flash memory (kByte): 64 RAM (kByte): 12 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 1 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 6 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 2 QEP: 1 USB: No Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART

MSP430F2232


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 8KB 闪存、512B SRAM、UART/SPI/I2C、计时器的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 8 RAM (kByte): 0.5 ADC type: 10-bit SAR Number of ADC channels: 12 Number of GPIOs: 32 Features: Brown out detector, Real-time clock UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 0 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 8 RAM (kByte): 0.5 ADC type: 10-bit SAR
Number of ADC channels: 12 Number of GPIOs: 32 Features: Brown out detector, Real-time clock UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 0 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog
