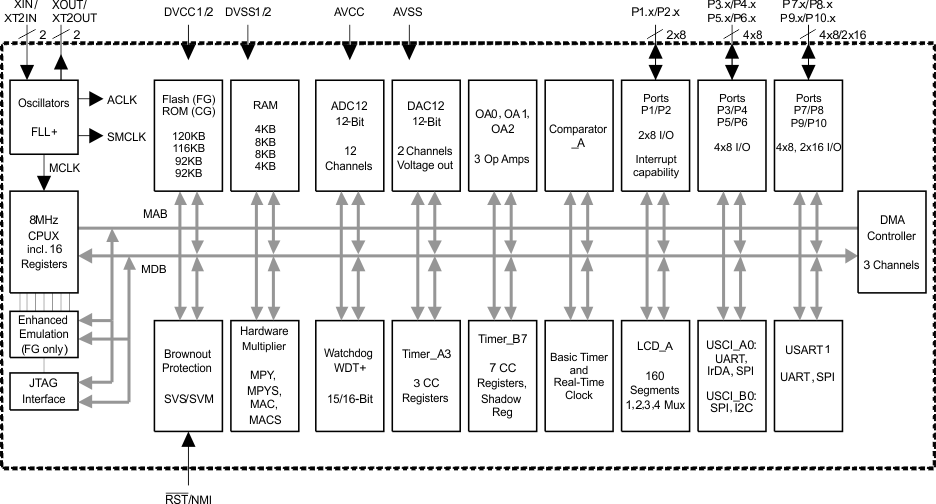

MSP430FG4619


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 120KB 闪存、4KB SRAM、12 位 ADC、双通道 DAC、DMA、3 个运算放大器和 160 段 LCD 的 8MHz MCU

Frequency (MHz): 8 Nonvolatile memory (kByte): 120 RAM (kByte): 4 ADC type: 12-bit SAR Number of ADC channels: 12 Number of GPIOs: 80 Features: Advanced sensing, LCD, OpAmp, Real-time clock UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (MHz): 8 Nonvolatile memory (kByte): 120 RAM (kByte): 4 ADC type: 12-bit SAR
Number of ADC channels: 12 Number of GPIOs: 80 Features: Advanced sensing, LCD, OpAmp, Real-time clock UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 2 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 85 Rating: Catalog

TMS320F2801-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 100MHz 频率、32KB 闪存、6 通道 PWM 的汽车类 C2000™ 32 位 MCU

CPU: C28x Frequency (MHz): 100 Flash memory (kByte): 16 RAM (kByte): 12 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 1 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 6 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 2 QEP: 1 USB: No Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART CPU: C28x
Frequency (MHz): 100 Flash memory (kByte): 16 RAM (kByte): 12 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 1 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 6 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 2 QEP: 1 USB: No Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART

TMS320F2806-Q1


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 100MHz 频率、64KB 闪存、12 通道 PWM 的汽车类 C2000™ 32 位 MCU

CPU: C28x Frequency (MHz): 100 Flash memory (kByte): 32 RAM (kByte): 20 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 2 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 12 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 4 QEP: 2 USB: No Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART CPU: C28x
Frequency (MHz): 100 Flash memory (kByte): 32 RAM (kByte): 20 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 2 CAN (#): 1 Sigma-delta filter: 0 PWM (Ch): 12 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 4 QEP: 2 USB: No Operating temperature range (°C): -40 to 125 Rating: Automotive Communication interface: CAN, I2C, SPI, UART

SMJ320F2812


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 150MHz 频率、256kB 闪存、EMIF 的 C2000™ 军用 32 位 MCU

CPU: C28x Frequency (MHz): 150 Flash memory (kByte): 256 RAM (kByte): 36 ADC resolution (bps): 12 Total processing (MIPS): 150 UART: 2 CAN (#): 1 PWM (Ch): 16 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 1 QEP: 2 Operating temperature range (°C): -55 to 125 Rating: Military Communication interface: CAN, McBSP, SPI, UART CPU: C28x Frequency (MHz): 150 Flash memory (kByte): 256 RAM (kByte): 36
ADC resolution (bps): 12 Total processing (MIPS): 150 UART: 2 CAN (#): 1 PWM (Ch): 16 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 1 QEP: 2 Operating temperature range (°C): -55 to 125 Rating: Military Communication interface: CAN, McBSP, SPI, UART

MSP430F2002


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 1KB 闪存、128B SRAM、SPI/I2C、比较器和计时器的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 1 RAM (kByte): 0.125 ADC type: 10-bit SAR Number of ADC channels: 8 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 0 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 1 RAM (kByte): 0.125 ADC type: 10-bit SAR
Number of ADC channels: 8 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 0 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog

MSP430F2012


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 2KB 闪存、128B SRAM、10 位 ADC、计时器和 I2C/SPI 的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 2 RAM (kByte): 0.125 ADC type: 10-bit SAR Number of ADC channels: 8 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 0 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 2 RAM (kByte): 0.125 ADC type: 10-bit SAR
Number of ADC channels: 8 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 0 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog

MSP430F2001


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 1KB 闪存、128B SRAM、计时器、比较器的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 1 RAM (kByte): 0.125 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 0 SPI: 0 Number of comparator channels: 6 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 1 RAM (kByte): 0.125 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 0 SPI: 0 Number of comparator channels: 6 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog

MSP430F2011


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 2KB 闪存、128B SRAM、计时器、比较器的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 2 RAM (kByte): 0.125 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 0 SPI: 0 Number of comparator channels: 6 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 2 RAM (kByte): 0.125 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 10 Features: Brown out detector, Real-time clock, Sigma delta UART: 0 USB: No Number of I2Cs: 0 SPI: 0 Number of comparator channels: 6 Timers - 16-bit: 1 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog

MSP430F2330


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 8KB 闪存、1KB SRAM、比较器、I2C/SPI/UART 和硬件乘法器的 16MHz MCU

Frequency (MHz): 16 Nonvolatile memory (kByte): 8 RAM (kByte): 1 ADC type: Slope Number of ADC channels: 0 Number of GPIOs: 32 Features: Bootstrap loader, Brown out detector UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog Frequency (MHz): 16 Nonvolatile memory (kByte): 8 RAM (kByte): 1 ADC type: Slope
Number of ADC channels: 0 Number of GPIOs: 32 Features: Bootstrap loader, Brown out detector UART: 1 USB: No Number of I2Cs: 1 SPI: 1 Number of comparator channels: 8 Timers - 16-bit: 2 Bootloader (BSL): UART Operating temperature range (°C): -40 to 105 Rating: Catalog

SM320F2808-EP


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

描述: 具有 100MHz 频率、128kB 闪存和 12 PWM 的 C2000™ 32 位 MCU（增强型产品）

CPU: C28x Frequency (MHz): 100 Flash memory (kByte): 128 RAM (kByte): 36 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 2 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 12 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 4 QEP: 2 USB: No Operating temperature range (°C): -55 to 125 Rating: HiRel Enhanced Product Communication interface: CAN, I2C, SPI, UART CPU: C28x
Frequency (MHz): 100 Flash memory (kByte): 128 RAM (kByte): 36 ADC resolution (bps): 12 Total processing (MIPS): 100 Features: 2-pin oscillator, 32-bit CPU timers, Watchdog timer UART: 2 CAN (#): 2 Sigma-delta filter: 0 PWM (Ch): 12 Number of ADC channels: 16 Direct memory access (Ch): 0 SPI: 4 QEP: 2 USB: No Operating temperature range (°C): -55 to 125 Rating: HiRel Enhanced Product Communication interface: CAN, I2C, SPI, UART
