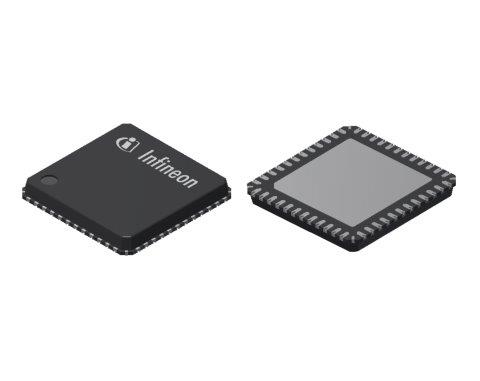

TLE9872QXA40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9872QXA40 is cost- and performance-optimized solution for BLDC wiper applications
Frequency: 40.0MHz
Interfaces: PWM + LIN
Operational Amplifier: Yes
RAM: 8.0kByte
Solid Flash: 256.0kByte
T[j] max: 150.0°C
Language: PSpice
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Product Category: Microcontroller (MCU)
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9873QXW40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9873QXW40 provides high reliability and increased lifetime for pumps and fans
Solid Flash: 48.0kByte
RAM: 3.0kByte
Frequency: 40.0MHz
High Side Switch: 0
High Voltage Monitor Input: 1
Low Side Switch: 0
GPIO: 10
Interfaces: PWM + LIN
Operational Amplifier: Yes
MOSFET Drivers(Low Side): 3
PN MOS DRIVER: No
MOSFET Drivers(High Side): 3
T[j] max: 175.0°C
Language: SPICE
Product Category: Microcontroller (MCU)
Temperature: - 40°C - 175°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Technology: MOTIX™ MCU (SoC)
更多
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9891-2QTW60
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9891-2QTW60 is a perfect fir tor auxiliary drives like fuel pumps
Clock Frequency max: 60.0MHz
GPIO: 14
High Voltage Monitor Input: 1
Instruction Set Architecture: Arm® Cortex®-M3
Interfaces: CAN2.0
Low Side Switch: 0
MOSFET Drivers(Low Side): 3
MOSFET Drivers(High Side): 3
Operating Voltage max: 28.0V
Operational Amplifier: Yes
PN MOS DRIVER: No
Product Category: Microcontroller (MCU)
RAM: 16.0kByte
Solid Flash: 128.0kByte
T[j] max: 175.0°C
Temperature: - 40°C - 175°C
Frequency: 60.0MHz
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2038
Family: MOTIX™ 32-bit motor control SoC
TLE9893QKW62S
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9893QKW62S is suitable for high temperature environments up to 175°C
Clock Frequency max: 60.0MHz
GPIO: 25
High Voltage Monitor Input: 4
Instruction Set Architecture: Arm® Cortex®-M3
Interfaces: CAN-FD
Low Side Switch: 0
MOSFET Drivers(Low Side): 3
MOSFET Drivers(High Side): 3
Operating Voltage max: 28.0V
Operational Amplifier: Yes
PN MOS DRIVER: No
Product Category: Microcontroller (MCU)
RAM: 32.0kByte
Solid Flash: 256.0kByte
T[j] max: 175.0°C
Temperature: - 40°C - 175°C
Frequency: 60.0MHz
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2038
Family: MOTIX™ 32-bit motor control SoC
TLE9893-2QTA62
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9893-2QTA62 offers high-performance with a size-optimized package
Clock Frequency max: 60.0MHz
GPIO: 14
High Voltage Monitor Input: 1
Instruction Set Architecture: Arm® Cortex®-M3
Interfaces: CAN-FD
Low Side Switch: 0
MOSFET Drivers(Low Side): 3
MOSFET Drivers(High Side): 3
Operating Voltage max: 28.0V
Operational Amplifier: Yes
PN MOS DRIVER: No
Product Category: Microcontroller (MCU)
RAM: 32.0kByte
Solid Flash: 256.0kByte
T[j] max: 150.0°C
Temperature: - 40°C - 150°C
Frequency: 60.0MHz
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2038
Family: MOTIX™ 32-bit motor control SoC
TLE9893-2QKW62S
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9893-2QKW62S comes in a 64-pin LQFP package and CAN-FD interface
Clock Frequency max: 60.0MHz
GPIO: 25
High Voltage Monitor Input: 4
Instruction Set Architecture: Arm® Cortex®-M3
Interfaces: CAN-FD
Low Side Switch: 0
MOSFET Drivers(Low Side): 3
MOSFET Drivers(High Side): 3
Operating Voltage max: 28.0V
Operational Amplifier: Yes
PN MOS DRIVER: No
Product Category: Microcontroller (MCU)
RAM: 32.0kByte
Solid Flash: 256.0kByte
T[j] max: 175.0°C
Temperature: - 40°C - 175°C
Frequency: 60.0MHz
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2038
Family: MOTIX™ 32-bit motor control SoC
ADC (#, Max. Resolution @ Sample Rate): DelSig (1, 12-bit @ 192 ksps)
Boost Converter (V): 0.5V
CapSense: Y
Category: CY8C32xx
Comparators: 2.0
DAC (#, Max. Resolution @ Sample Rate): (1, 8-bit @ 8 msps)
DMA Channels: 24
EEPROM: 0.5kByte
Flash: 16.0kByte
Frequency max: 50.0MHz
GPIOs: 62.0
JTAG and Si ID: 0x1E099069
LCD Direct Drive: Y
Lead Ball Finish: Pure Sn
Operating Temperature max: 85.0°C
Operating Voltage max: 5.5V
Operational Amplifier: 0
Publish in NPSG: Y
SRAM: 2.0kByte
Timer/Counter/PWM Blocks: 4.0
更多
Trace Buffer: 4.0kByte
USB Type: None
Peak Reflow Temp: 260.0°C
CAN: 0
Development Software: PSoC Creator
Publish in PSG: Y
CPU: 8051
On-chip Clock Generation: Y
I2C: 1.0
Universal Digital Blocks: 16.0
Number of ADC Modules: 1.0
Family: PSOC 32xxx
I/O Pins: 62.0
TLE9872-2QXA40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9872-2QXA40 is a perfect fir for cost optimized BLDC wiper applications
T[j] max: 150.0°C
Solid Flash: 256.0kByte
RAM: 8.0kByte
Operational Amplifier: Yes
Interfaces: PWM + LIN
Frequency: 40.0MHz
Language: PSpice
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Product Category: Microcontroller (MCU)
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9872-2QTW40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9872-2QTW40 offers high reliability within automotive BLDC applications in TQFP package
Frequency: 40.0MHz
Interfaces: PWM + LIN
Operational Amplifier: Yes
RAM: 8.0kByte
Solid Flash: 256.0kByte
T[j] max: 175.0°C
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Operating Voltage max: 28.0V
Temperature: - 40°C - 175°C
Family: MOTIX™ MCU (SoC)
Technology: MOTIX™ MCU (SoC)
ADC (#, Max. Resolution @ Sample Rate): DelSig (1, 12-bit @ 192 ksps)
CapSense: Y
Comparators: 2.0
CPU: 8051
DAC (#, Max. Resolution @ Sample Rate): (1, 8-bit @ 8 msps)
Development Software: PSoC Creator
DMA Channels: 24
EEPROM: 0.5kByte
Flash: 16.0kByte
Frequency max: 50.0MHz
GPIOs: 62.0
I2C: 1.0
JTAG and Si ID: 0x1E099069
Lead Ball Finish: Pure Sn;Ni/Pd/Au
On-chip Clock Generation: Y
Operating Temperature max: 85.0°C
Operational Amplifier: 0
Peak Reflow Temp: 260.0°C
Publish in NPSG: Y
Publish in PSG: N
更多
SRAM: 2.0kByte
Timer/Counter/PWM Blocks: 4.0
Trace Buffer: 4.0kByte
USB Type: None
Category: CY8C32xx
LCD Direct Drive: Y
CAN: 0
Operating Voltage max: 5.5V
Boost Converter (V): 0.5V
Universal Digital Blocks: 16.0
Number of ADC Modules: 1.0
Family: PSOC 32xxx
I/O Pins: 62.0
