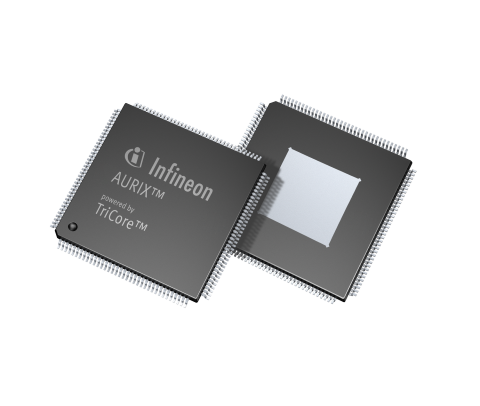

SAK-TC297TP-96F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 6MB of Flash and a LFBGA-292 package
SRAM (incl. Cache): 728.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 72
Program Memory: 6.0MByte
Number of ADC Modules: 16.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
On-chip Voltage Regulator: yes
Oscillator Watchdog: yes
Floating Point Unit: yes
更多
Additional Features: Hardware Security Module
Additional Features: Ethernet
eMMC: no
SPI: 4.0
LIN: 5.0
Hardware Accelerator: no
# of cores / lockstep cores: 3/1
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO26262-compliant
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC297TX-128F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-292 package
SRAM (incl. Cache): 2776.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 72
Program Memory: 8.0MByte
Number of ADC Modules: 16.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/17
DMA Channels: 128
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
更多
Additional Features: Lockstep
Additional Features: Hardware Security Module
Additional Features: Safety IO Monitor
Additional Features: Ethernet
Additional Features: CAN-FD
Additional Features: Extended SRAM
eMMC: no
LIN: 5.0
SPI: 4.0
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 40.75
Budgetary Price €/1k: 40.75
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC297TX-128F300SBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-292 package
SRAM (incl. Cache): 2776.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/18
DMA Channels: 128
External Bus Interface: no
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
更多
Additional Features: Lockstep
Additional Features: Hardware Security Module
Additional Features: Safety IO Monitor
Additional Features: Ethernet
Additional Features: Extended SRAM
LIN: 5.0
SPI: 4.0
eMMC: no
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 34.62
Budgetary Price €/1k: 34.62
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC299T-128F300SBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package
SRAM (incl. Cache): 728.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: yes
Oscillator Watchdog: yes
Watchdog Timer: yes
更多
Additional Features: Ethernet
eMMC: no
SPI: 4.0
LIN: 6.0
Hardware Accelerator: no
# of cores / lockstep cores: 3/1
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 30.42
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC299TC-96F300SBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package
SRAM (incl. Cache): 456.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 6.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: yes
Oscillator Watchdog: yes
Watchdog Timer: yes
更多
Additional Features: Ethernet
LIN: 6.0
SPI: 4.0
eMMC: no
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
ASIL/SIL support: ASIL-D/SIL-3

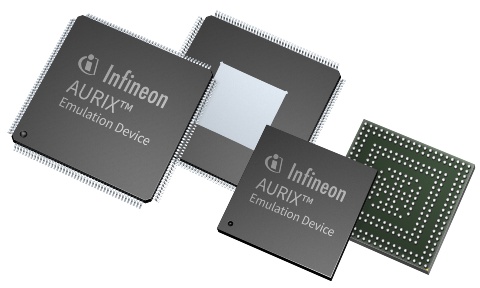

SAK-TC299TF-128F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: Debug, Trave, Measure and Calibrate
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
On-chip Clock Generation: yes
Program Memory: 8.0MByte
SRAM (incl. Cache): 728.0kByte
eMMC: no
SPI: 4.0
Oscillator Watchdog: yes
LIN: 6.0
Hardware Accelerator: no
Floating Point Unit: yes
DMA Channels: 128
Watchdog Timer: yes
Real Time Clock: yes
DSP Functionality: yes
# of cores / lockstep cores: 3/1
External Bus Interface: no
On-chip Voltage Regulator: yes
I/O Operation Voltages max: 5.0V
Type of Memory: Flash
更多
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Number of ADC Modules: 21.0
ASIL/SIL support: PG-LFBGA-516
SAK-TC299TP-128F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package
SRAM (incl. Cache): 728.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
更多
Additional Features: Hardware Security Module
Additional Features: Ethernet
Additional Features: Safety IO Monitor
eMMC: no
SPI: 4.0
LIN: 6.0
Hardware Accelerator: no
# of cores / lockstep cores: 3/1
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 33.08
Budgetary Price €/1k: 33.08
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC299TP-128F300SBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package
SRAM (incl. Cache): 728.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: yes
Oscillator Watchdog: yes
Watchdog Timer: yes
更多
Additional Features: Hardware Security Module
Additional Features: Ethernet
Additional Features: Safety IO Monitor
LIN: 6.0
SPI: 4.0
eMMC: no
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO26262-compliant
Budgetary Price €/1k: 31.13
Budgetary Price €/1k: 31.13
ASIL/SIL support: ASIL-D/SIL-3
SAK-TC299TX-128F300NBC
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 300MHz, up to 8MB of Flash and a LFBGA-516 package
SRAM (incl. Cache): 2776.0kByte
CAN Nodes: 6
A/D Input Lines(incl. FADC): 94
Program Memory: 8.0MByte
Number of ADC Modules: 21.0
EEPROM Emulation: yes
Instruction Width([bits]): 32/16
DMA Channels: 128
External Bus Interface: 1
Fast Flash Programming: no
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
Watchdog Timer: yes
Real Time Clock: yes
Oscillator Watchdog: yes
On-chip Voltage Regulator: yes
Floating Point Unit: yes
更多
Additional Features: Lockstep
Additional Features: Hardware Security Module
eMMC: no
SPI: 4.0
LIN: 5.0
# of cores / lockstep cores: 3/1
Hardware Accelerator: no
Type of Memory: Flash
Temperature: -40°C - +125°C
Family: AURIX™ 1G
Classification: ISO 26262-compliant
Budgetary Price €/1k: 45.54
ASIL/SIL support: ASIL-D/SIL-3
