TPS65988

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有集成电源开关的双端口 USB-C® 电力输送控制器

Function: Type-C Type: PD controller Power role: DRP, Sink, Source Alternate mode: Yes External power-path control: GPIO, I2C Data role: DFP, DRD, UFP Internal power path: 20 V 5 A Rating: Catalog Dead battery support: Yes Operating temperature range (°C): -10 to 75 Function: Type-C Type: PD controller Power role: DRP, Sink, Source Alternate mode: Yes External power-path control: GPIO, I2C Data role: DFP, DRD, UFP Internal power path: 20 V 5 A Rating: Catalog Dead battery support: Yes Operating temperature range (°C): -10 to 75

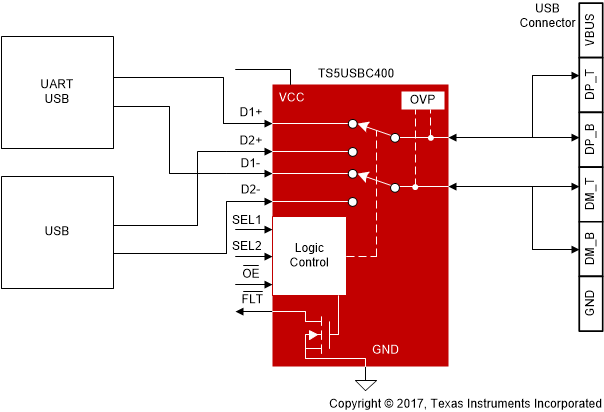

TS5USBC400

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 16V 过压保护功能的双路 2:1 USB 2.0 多路复用器/多路信号分离器或单端交叉点开关

Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.3 Ron (typ) (mΩ): 5600 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 18 Configuration: 2:1 SPDT Features: 16V Over Voltage Protection Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 100 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 1200 Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 更多

Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.3 Ron (typ) (mΩ): 5600 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 18 Configuration: 2:1 SPDT Features: 16V Over Voltage Protection Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 100 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 1200

TS5USBC402

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 20V 过压保护功能的双路 2:1 USB 2.0 多路复用器/多路信号分离器或单端交叉点开关

Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.3 Ron (typ) (mΩ): 5600 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 20 Configuration: 2:1 SPDT Features: 20V Over Voltage Protection Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 100 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 1200 Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 更多

Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.3 Ron (typ) (mΩ): 5600 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 20 Configuration: 2:1 SPDT Features: 20V Over Voltage Protection Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 100 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 1200

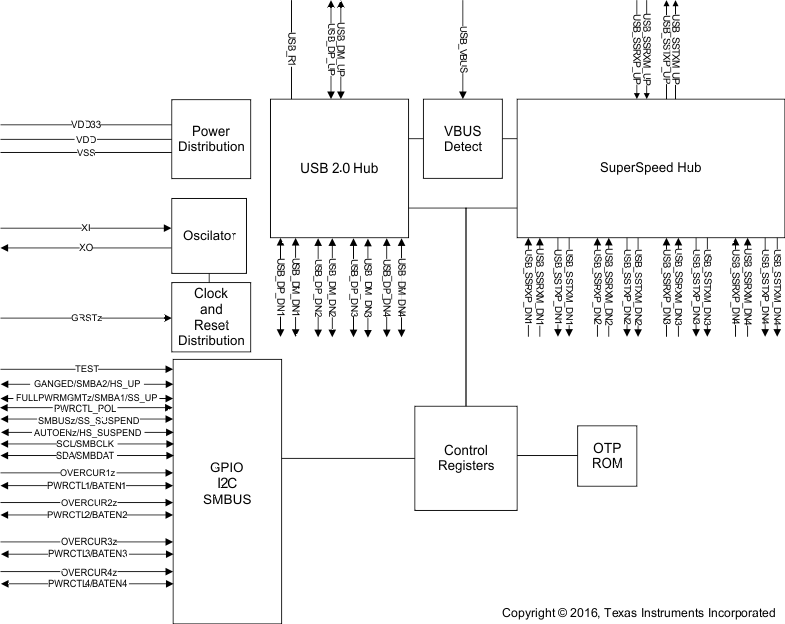

TUSB8041A

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 4 端口 SuperSpeed 5Gbps USB 3.1 集线器

Function: USB3 USB speed (Mbps): 5000 Type: Hub Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): 0 to 70 Function: USB3 USB speed (Mbps): 5000 Type: Hub Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): 0 to 70

TUSB8042

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 4 端口 SuperSpeed 5.0Gbps USB 3.1 集线器

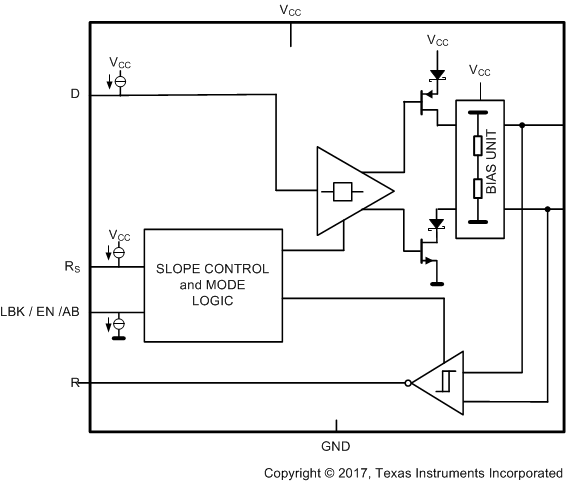

SN55HVD233-SP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有待机模式和环回功能的耐辐射加固保障 (RHA) 3.3V CAN 收发器

Protocols: CAN Number of channels: 1 Supply voltage (V): 3 to 3.6 Bus fault voltage (V): -18 to 18 Signaling rate (max) (bps): 1000000 Rating: Space Protocols: CAN Number of channels: 1 Supply voltage (V): 3 to 3.6 Bus fault voltage (V): -18 to 18 Signaling rate (max) (bps): 1000000 Rating: Space

TUSB564

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: USB Type-C™ 8.1Gbps DP 交替模式灌电流侧线性转接驱动器交叉点开关

Function: Type-C Type: Active mux Alternate mode: Yes External power-path control: No Data role: UFP USB speed (Mbps): 5000 Rating: Catalog Dead battery support: No Operating temperature range (°C): -40 to 85 Function: Type-C Type: Active mux Alternate mode: Yes External power-path control: No Data role: UFP USB speed (Mbps): 5000 Rating: Catalog Dead battery support: No Operating temperature range (°C): -40 to 85

THVD1550

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 ±18-kV IEC ESD 保护功能的 5V RS-485 收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 50 IEC 61000-4-2 contact (±V): 18000 Fault protection (V): -18 to 18 Common-mode range (V): -15 to 15 Number of nodes: 196 Features: Extended common mode, IEC ESD protection Isolated: No Supply current (max) (µA): 1000 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 50 IEC 61000-4-2 contact (±V): 18000 更多

Fault protection (V): -18 to 18 Common-mode range (V): -15 to 15 Number of nodes: 196 Features: Extended common mode, IEC ESD protection Isolated: No Supply current (max) (µA): 1000 Rating: Catalog Operating temperature range (°C): -40 to 125

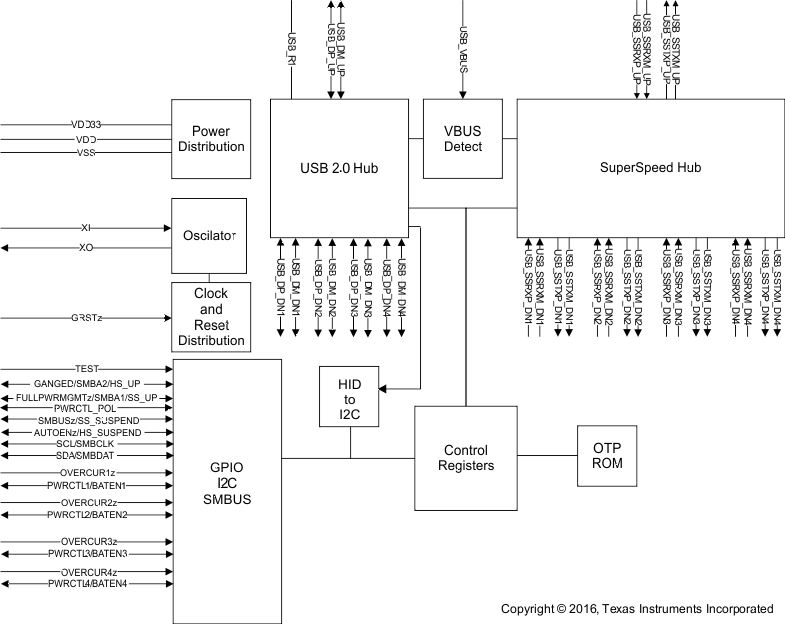

TUSB8043

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 HID/I2C 转换功能的 4 端口 SuperSpeed 5.0Gbps USB 3.1 集线器

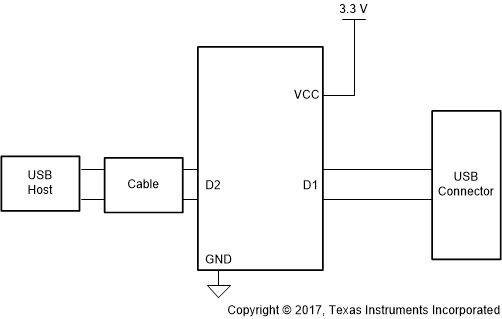

TUSB214

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有直流升压和集成式 CDP 的 USB 2.0 高速信号调节器

Type: Redriver USB speed (Mbps): 480 Number of channels: 1 Supply voltage (max) (V): 3.6 Supply voltage (min) (V): 3 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 3.6 Configuration: USB 2.0 Single-channel Features: USB 2.0 Redriver with 4 Meter Cable Redriving Strength with CDP Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 30000 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 240 Type: Redriver USB speed (Mbps): 480 Number of channels: 1 Supply voltage (max) (V): 3.6 Supply voltage (min) (V): 3 Input/output voltage (min) (V): 0 更多

Input/output voltage (max) (V): 3.6 Configuration: USB 2.0 Single-channel Features: USB 2.0 Redriver with 4 Meter Cable Redriving Strength with CDP Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 30000 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 240
