SN65HVD09-EP


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 9 通道 RS- 485 / RS- 422 收发器（增强型产品）

Number of receivers: 9 Number of transmitters: 9 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 20 Fault protection (V): -9 to 14 Common-mode range (V): -7 to 12 Number of nodes: 32 Isolated: No Supply current (max) (µA): 60000 Rating: HiRel Enhanced Product Operating temperature range (°C): -40 to 85 Number of receivers: 9 Number of transmitters: 9 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 20 Fault protection (V): -9 to 14 Common-mode range (V): -7 to 12 Number of nodes: 32
Isolated: No Supply current (max) (µA): 60000 Rating: HiRel Enhanced Product Operating temperature range (°C): -40 to 85

UA9638C-EP


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 双高速差分线路驱动器（增强型产品）

Number of receivers: 0 Number of transmitters: 2 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 15 Fault protection (V): -15 to 15 Common-mode range (V): -7 to 7 Number of nodes: 32 Isolated: No Supply current (max) (µA): 65000 Rating: HiRel Enhanced Product Operating temperature range (°C): -40 to 85 Number of receivers: 0 Number of transmitters: 2 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 15 Fault protection (V): -15 to 15 Common-mode range (V): -7 to 7 Number of nodes: 32
Isolated: No Supply current (max) (µA): 65000 Rating: HiRel Enhanced Product Operating temperature range (°C): -40 to 85

SN65HVD37


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 低功耗 3.3V 全双工 RS-485 驱动器/接收器

Number of receivers: 1 Number of transmitters: 1 Duplex: Full Supply voltage (nom) (V): 3.3 Signaling rate (max) (Mbps): 20 Fault protection (V): -13 to 13 Common-mode range (V): -7 to 12 Number of nodes: 256 Isolated: No Supply current (max) (µA): 800 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of receivers: 1 Number of transmitters: 1 Duplex: Full Supply voltage (nom) (V): 3.3 Signaling rate (max) (Mbps): 20 Fault protection (V): -13 to 13 Common-mode range (V): -7 to 12 Number of nodes: 256
Isolated: No Supply current (max) (µA): 800 Rating: Catalog Operating temperature range (°C): -40 to 85

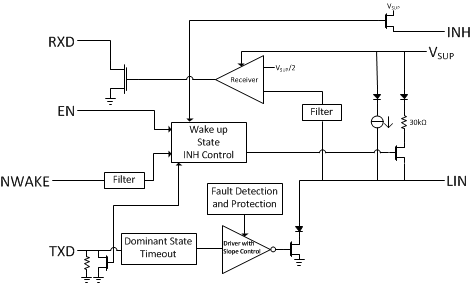

SN65HVDA100-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: LIN 物理接口

Protocols: LIN Number of channels: 1 Supply voltage (V): 5 to 27 Bus fault voltage (V): -27 to 45 Signaling rate (max) (bps): 100000 Rating: Automotive Protocols: LIN Number of channels: 1 Supply voltage (V): 5 to 27 Bus fault voltage (V): -27 to 45 Signaling rate (max) (bps): 100000 Rating: Automotive

TSU6111


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有集成阻抗和充电器检测的双 SP2T 微型 USB 开关

Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 Supply voltage (max) (V): 6.5 Supply voltage (min) (V): 3 Ron (typ) (mΩ): 8000 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 3.6 Configuration: 1:2 SPDT Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 75 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 920 Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 Supply voltage (max) (V): 6.5
Supply voltage (min) (V): 3 Ron (typ) (mΩ): 8000 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 3.6 Configuration: 1:2 SPDT Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 75 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 920

TUSB1106-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 汽车类高级通用串行总线收发器

Function: USB2 USB speed (Mbps): 12 Type: Transceiver Supply voltage (V): 5 Rating: Automotive Operating temperature range (°C): -40 to 85 Function: USB2 USB speed (Mbps): 12 Type: Transceiver Supply voltage (V): 5 Rating: Automotive Operating temperature range (°C): -40 to 85

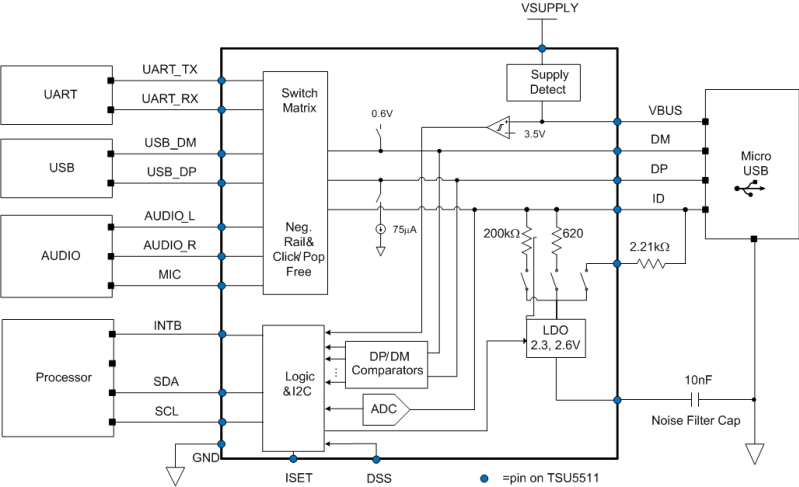

TSU5611


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 用于微型 USB 应用的 SP3T 开关，具有 USB、UART 和音频开关及集成阻抗

Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 Supply voltage (max) (V): 6.7 Supply voltage (min) (V): 2.8 Ron (typ) (mΩ): 4500 Input/output voltage (min) (V): -1.5 Input/output voltage (max) (V): 6 Configuration: 3:1 Rating: Catalog Operating temperature range (°C): -40 to 85 ESD HBM (typ) (kV): 1.5 Bandwidth (MHz): 830 Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 Supply voltage (max) (V): 6.7 Supply voltage (min) (V): 2.8
Ron (typ) (mΩ): 4500 Input/output voltage (min) (V): -1.5 Input/output voltage (max) (V): 6 Configuration: 3:1 Rating: Catalog Operating temperature range (°C): -40 to 85 ESD HBM (typ) (kV): 1.5 Bandwidth (MHz): 830

TCA9509


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有内部 1mA 拉电流的 2 位电平转换 400kHz I2C/SMBus 缓冲器/中继器

Features: Buffer, Enable pin Protocols: I2C Frequency (max) (MHz): 0.4 VCCA (min) (V): 0.9 VCCA (max) (V): 5.5 VCCB (min) (V): 2.7 VCCB (max) (V): 5.5 Supply restrictions: VCCA <= (VCCB-1) Rating: Catalog Operating temperature range (°C): -40 to 85 Features: Buffer, Enable pin Protocols: I2C Frequency (max) (MHz): 0.4 VCCA (min) (V): 0.9 VCCA (max) (V): 5.5 VCCB (min) (V): 2.7 VCCB (max) (V): 5.5 Supply restrictions: VCCA <= (VCCB-1) Rating: Catalog Operating temperature range (°C): -40 to 85

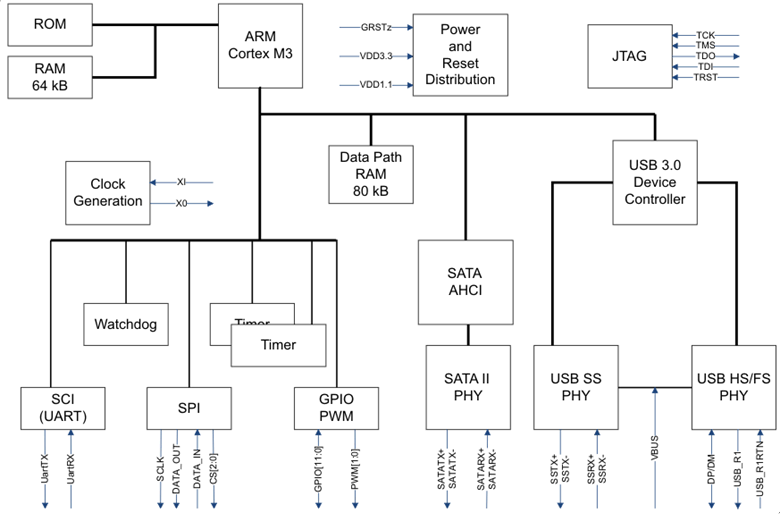

TUSB9261


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: USB 3.0 5Gbps 转 SATA 桥接器

Function: USB3 USB speed (Mbps): 5000 Type: Bridge Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85 Function: USB3 USB speed (Mbps): 5000 Type: Bridge Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85

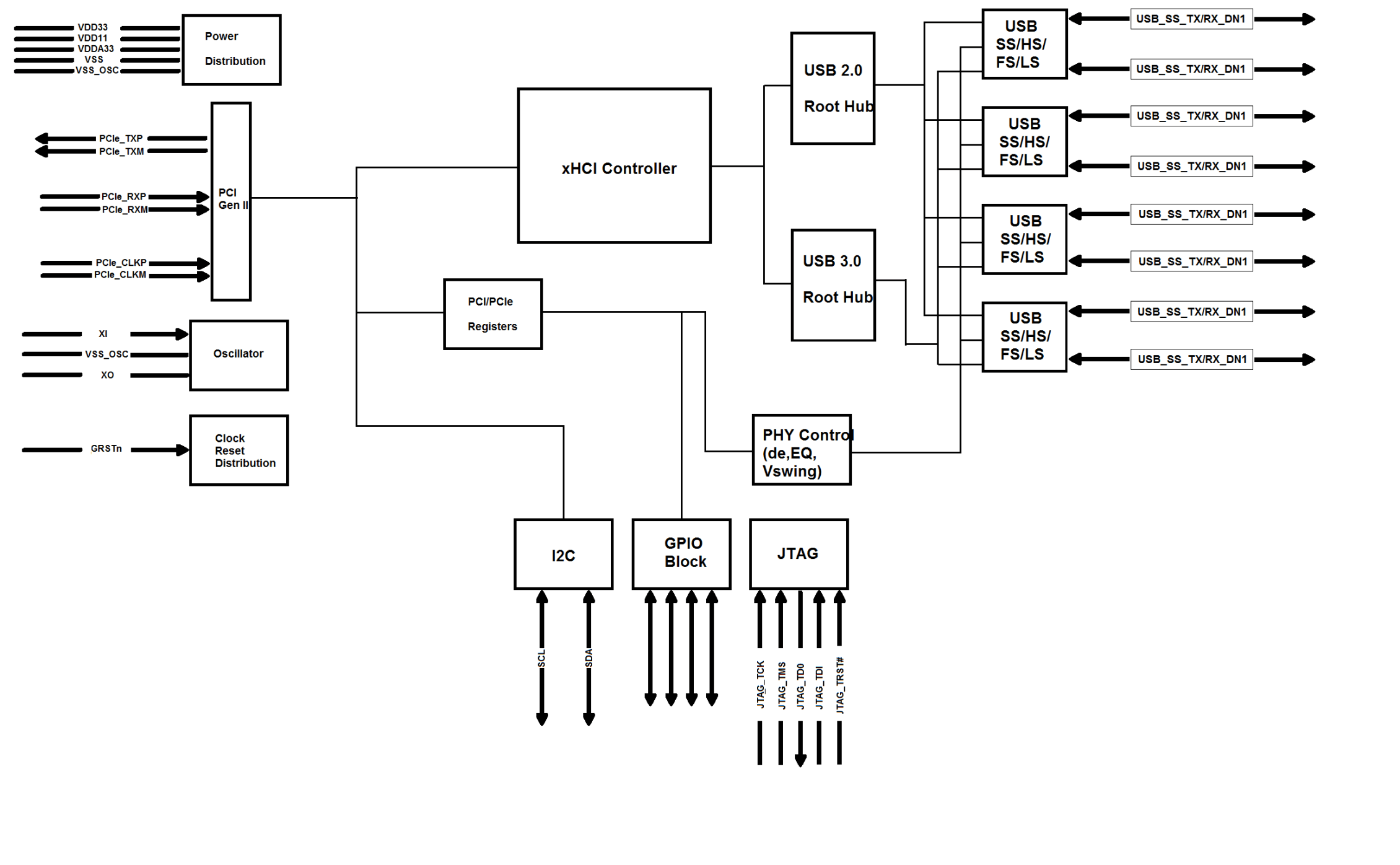

TUSB7320


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: SuperSpeed USB 3.0 2 端口 xHCI 主机控制器

Function: USB2 USB speed (Mbps): 5000 Type: Bridge Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85 Function: USB2 USB speed (Mbps): 5000 Type: Bridge Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85
