Sample rate (max) (Msps): 40 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 100 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 4 Power consumption (typ) (mW): 340 Architecture: Pipeline SNR (dB): 69.5 ENOB (Bits): 11.2 SFDR (dB): 86 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 40 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 100 更多

Sample rate (max) (Msps): 100 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 200 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 1.6 Power consumption (typ) (mW): 126 Architecture: Pipeline SNR (dB): 47 ENOB (Bits): 7.5 SFDR (dB): 63 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 100 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 200 更多

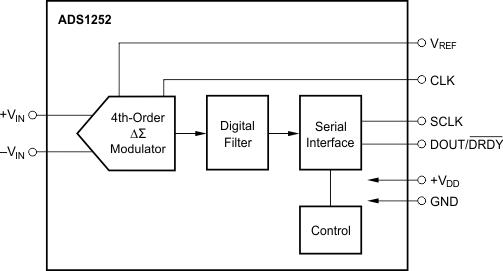

Resolution (Bits): 24 Sample rate (max) (ksps): 41 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 40 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 4.75 Digital supply (max) (V): 5.25 Resolution (Bits): 24 Sample rate (max) (ksps): 41 Number of input channels: 1 更多

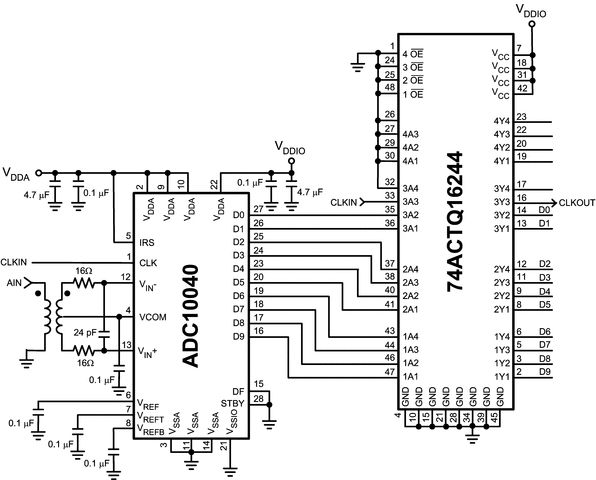

Sample rate (max) (Msps): 40 Resolution (Bits): 10 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 400 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 55.5 Architecture: Pipeline SNR (dB): 59.6 ENOB (Bits): 9.6 SFDR (dB): 80 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 40 Resolution (Bits): 10 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 400 更多

Sample rate (max) (Msps): 40 Resolution (Bits): 10 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 400 Features: Low Power Rating: Automotive Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 55.5 Architecture: Pipeline SNR (dB): 58.7 ENOB (Bits): 9.6 SFDR (dB): 80 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 40 Resolution (Bits): 10 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 400 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 100 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Pseudo-Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 3.2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 89 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 100 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 6000 Number of input channels: 4 Interface type: Parallel Architecture: Pipeline Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Military Reference mode: External, Internal Input voltage range (max) (V): 4 Input voltage range (min) (V): 1.4 Operating temperature range (°C): -55 to 125 Power consumption (typ) (mW): 186 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 69 Digital supply (min) (V): 3 Digital supply (max) (V): 5.25 Resolution (Bits): 12 Sample rate (max) (ksps): 6000 更多

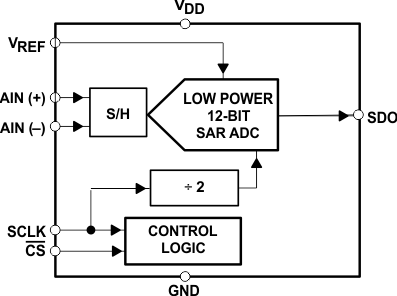

Resolution (Bits): 12 Sample rate (max) (ksps): 400 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 15 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 72 Digital supply (min) (V): 4.5 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 400 Number of input channels: 1 更多

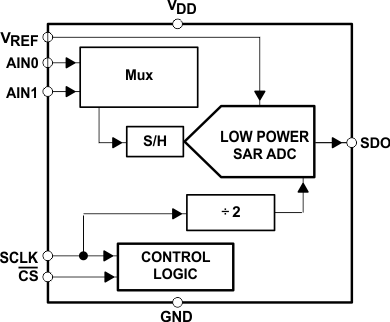

Resolution (Bits): 12 Sample rate (max) (ksps): 400 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 15 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 72 Digital supply (min) (V): 4.5 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 400 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 400 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Pseudo-Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 15 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 72 Digital supply (min) (V): 4.5 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 400 Number of input channels: 1 更多
