Sample rate (max) (Msps): 40
Resolution (Bits): 8
Number of input channels: 2
Interface type: Parallel CMOS
Analog input BW (MHz): 600
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 1.3
Power consumption (typ) (mW): 320
Architecture: Pipeline
SNR (dB): 42.7
ENOB (Bits): 6.9
SFDR (dB): 53
Operating temperature range (°C): -40 to 85
Input buffer: No
Sample rate (max) (Msps): 40
Resolution (Bits): 8
Number of input channels: 2
Interface type: Parallel CMOS
Analog input BW (MHz): 600
更多
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 1.3
Power consumption (typ) (mW): 320
Architecture: Pipeline
SNR (dB): 42.7
ENOB (Bits): 6.9
SFDR (dB): 53
Operating temperature range (°C): -40 to 85
Input buffer: No
TLC1514
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 10 位、400kSPS ADC，串行输出、SPI/DSP 兼容接口、断电模式、4 通道
Resolution (Bits): 10
Sample rate (max) (ksps): 400
Number of input channels: 4
Interface type: SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 10
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 4.5
Digital supply (max) (V): 5.5
Resolution (Bits): 10
Sample rate (max) (ksps): 400
更多
Number of input channels: 4
Interface type: SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 10
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 4.5
Digital supply (max) (V): 5.5

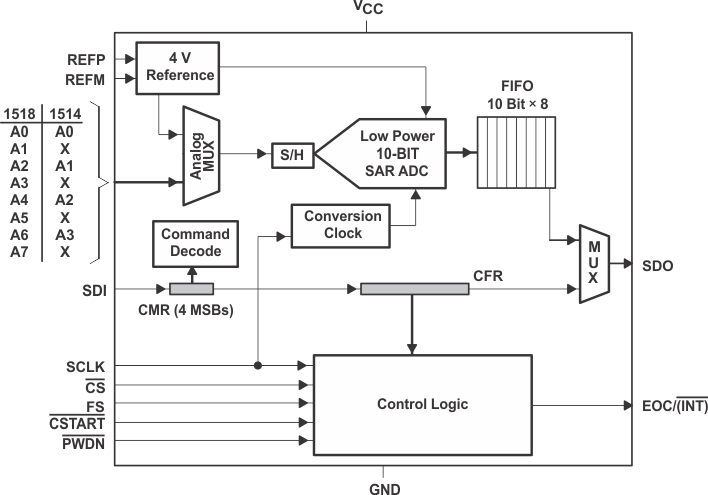

TLC1518
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 10 位、400kSPS ADC，串行输出、SPI/DSP 兼容接口、断电模式、8 通道
Resolution (Bits): 10
Sample rate (max) (ksps): 400
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 10
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 4.5
Digital supply (max) (V): 5.5
Resolution (Bits): 10
Sample rate (max) (ksps): 400
更多
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 10
Analog supply (min) (V): 4.5
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 4.5
Digital supply (max) (V): 5.5
TLV1504
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 10 位 200kSPS ADC，具有串行输出、硬件/软件/自动断电、可编程自动通道扫描 和 4 通道
Resolution (Bits): 10
Sample rate (max) (ksps): 200
Number of input channels: 4
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 3.3
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5
Resolution (Bits): 10
更多
Sample rate (max) (ksps): 200
Number of input channels: 4
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 3.3
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5
TLV1508
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 10 位 200kSPS ADC，具有串行输出、硬件/软件/自动断电、可编程自动通道扫描 和 8 通道
Resolution (Bits): 10
Sample rate (max) (ksps): 200
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 3.3
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5
Resolution (Bits): 10
更多
Sample rate (max) (ksps): 200
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 3.3
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
SNR (dB): 60
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5

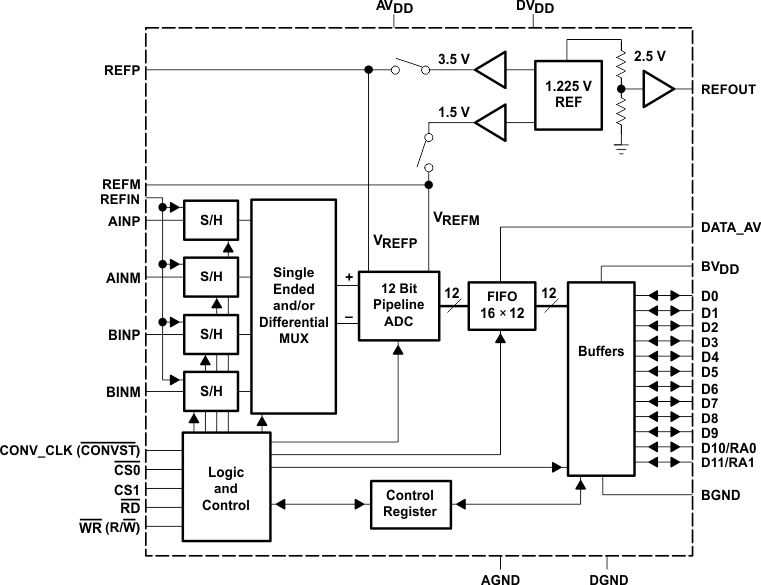

THS1206
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 12 位、6MSPS ADC，四通道（可配置）、DSP/uP 接口、集成16x FIFO、信道自动扫描功能和低功耗模式
Resolution (Bits): 12
Sample rate (max) (ksps): 6000
Number of input channels: 4
Interface type: Parallel
Architecture: Pipeline
Input type: Differential, Single-ended
Multichannel configuration: Simultaneous Sampling
Rating: Automotive, Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 4
Input voltage range (min) (V): 1.4
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 186
Analog supply (min) (V): 4.75
Analog supply voltage (max) (V): 5.25
SNR (dB): 69
Digital supply (min) (V): 3
Digital supply (max) (V): 5.25
Resolution (Bits): 12
Sample rate (max) (ksps): 6000
更多
Number of input channels: 4
Interface type: Parallel
Architecture: Pipeline
Input type: Differential, Single-ended
Multichannel configuration: Simultaneous Sampling
Rating: Automotive, Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 4
Input voltage range (min) (V): 1.4
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 186
Analog supply (min) (V): 4.75
Analog supply voltage (max) (V): 5.25
SNR (dB): 69
Digital supply (min) (V): 3
Digital supply (max) (V): 5.25

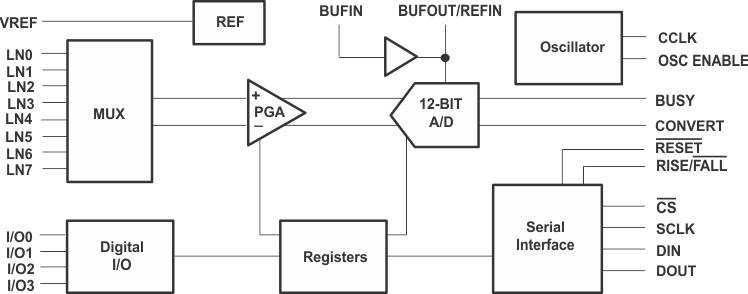

Resolution (Bits): 12
Sample rate (max) (ksps): 52
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, PGA
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 6
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5
Resolution (Bits): 12
Sample rate (max) (ksps): 52
更多
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, PGA
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 6
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5
Sample rate (max) (Msps): 75
Resolution (Bits): 10
Number of input channels: 1
Interface type: Parallel CMOS
Analog input BW (MHz): 300
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 1, 2
Power consumption (typ) (mW): 340
Architecture: Pipeline
SNR (dB): 58
ENOB (Bits): 9.3
SFDR (dB): 70
Operating temperature range (°C): -40 to 85
Input buffer: No
Sample rate (max) (Msps): 75
Resolution (Bits): 10
Number of input channels: 1
Interface type: Parallel CMOS
Analog input BW (MHz): 300
更多
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 1, 2
Power consumption (typ) (mW): 340
Architecture: Pipeline
SNR (dB): 58
ENOB (Bits): 9.3
SFDR (dB): 70
Operating temperature range (°C): -40 to 85
Input buffer: No

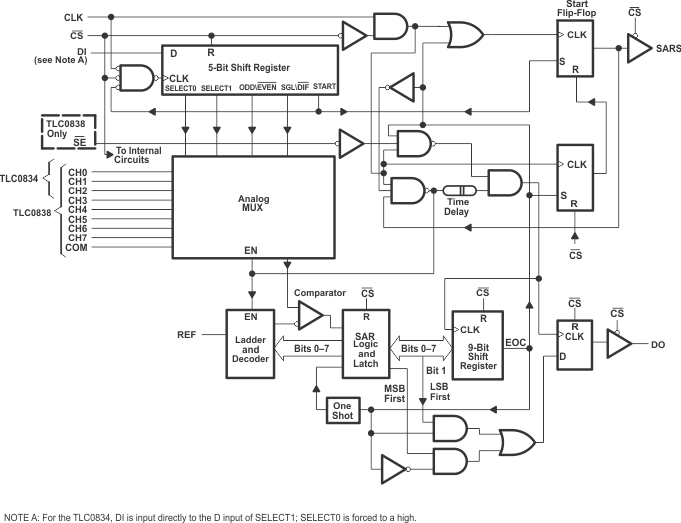

TLV0838
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 8 位 37.9kSPS ADC，串行输出、比例式运算或 Vcc 基准、TTL/MOS 输入输出兼容、8 通道
Resolution (Bits): 8
Sample rate (max) (ksps): 31
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Differential, Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 3.6
Input voltage range (min) (V): 0
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 0.66
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 3.6
Digital supply (min) (V): 2.7
Digital supply (max) (V): 3.6
Resolution (Bits): 8
Sample rate (max) (ksps): 31
Number of input channels: 8
更多
Interface type: SPI
Architecture: SAR
Input type: Differential, Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 3.6
Input voltage range (min) (V): 0
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 0.66
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 3.6
Digital supply (min) (V): 2.7
Digital supply (max) (V): 3.6
Sample rate (max) (Msps): 40
Resolution (Bits): 10
Number of input channels: 1
Interface type: Parallel CMOS
Analog input BW (MHz): 300
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 1, 2
Power consumption (typ) (mW): 200
Architecture: Pipeline
SNR (dB): 60
ENOB (Bits): 9.5
SFDR (dB): 72
Operating temperature range (°C): -40 to 85
Input buffer: No
Sample rate (max) (Msps): 40
Resolution (Bits): 10
Number of input channels: 1
Interface type: Parallel CMOS
Analog input BW (MHz): 300
更多
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 1, 2
Power consumption (typ) (mW): 200
Architecture: Pipeline
SNR (dB): 60
ENOB (Bits): 9.5
SFDR (dB): 72
Operating temperature range (°C): -40 to 85
Input buffer: No
