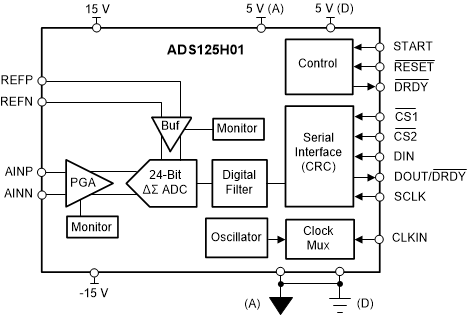

ADS125H01

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有低噪声 PGA 和 ±20V 输入的 24 位 40kSPS 单通道 Δ-Σ ADC

Resolution (Bits): 24 Sample rate (max) (ksps): 40 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 15.5 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection, Oscillator, PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 45 Analog supply (min) (V): -18, 0 Analog supply voltage (max) (V): 18, 36 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 24 Sample rate (max) (ksps): 40 更多

Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 15.5 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection, Oscillator, PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 45 Analog supply (min) (V): -18, 0 Analog supply voltage (max) (V): 18, 36 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25

ADS131B04-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 汽车类 24 位 32kSPS 4 通道同步采样 Δ-Σ ADC

Resolution (Bits): 24 Sample rate (max) (ksps): 32 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 2.4 Input voltage range (min) (V): -0.3 Features: PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 19.8 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 3.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6 Resolution (Bits): 24 更多

Sample rate (max) (ksps): 32 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 2.4 Input voltage range (min) (V): -0.3 Features: PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 19.8 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 3.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6

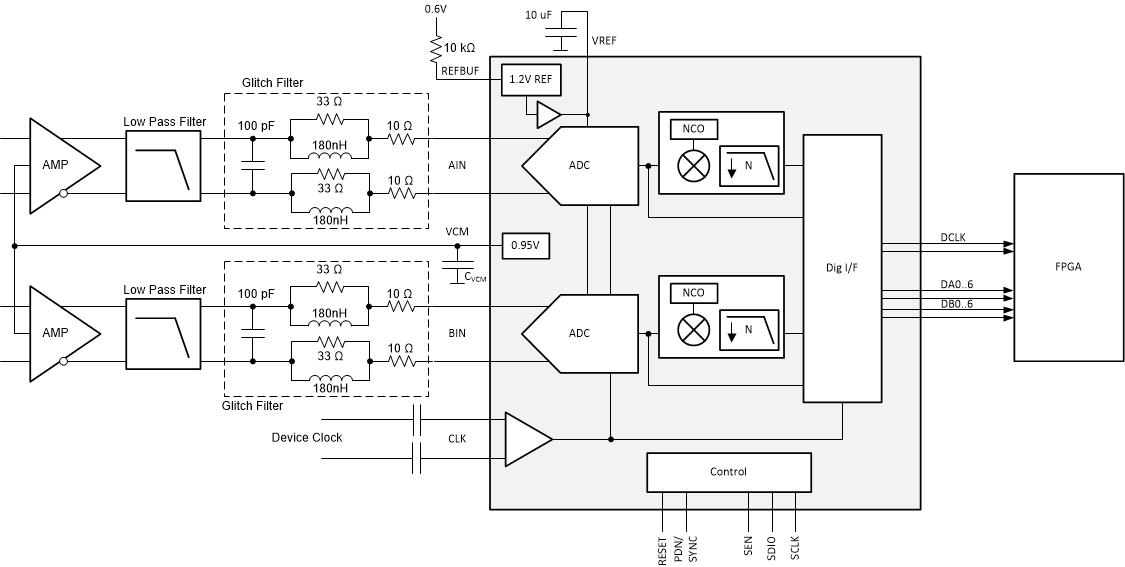

ADC3683

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 双通道、18 位、65MSPS、低噪声、超低功耗、低延迟 ADC

Sample rate (max) (Msps): 65 Resolution (Bits): 18 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 900 Features: High Dynamic Range, High Performance, Low Power Rating: Catalog Peak-to-peak input voltage range (V): 3.2 Power consumption (typ) (mW): 186 Architecture: SAR SNR (dB): 83.8 ENOB (Bits): 13.7 SFDR (dB): 89 Operating temperature range (°C): -40 to 105 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 18 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 900 更多

Features: High Dynamic Range, High Performance, Low Power Rating: Catalog Peak-to-peak input voltage range (V): 3.2 Power consumption (typ) (mW): 186 Architecture: SAR SNR (dB): 83.8 ENOB (Bits): 13.7 SFDR (dB): 89 Operating temperature range (°C): -40 to 105 Input buffer: No

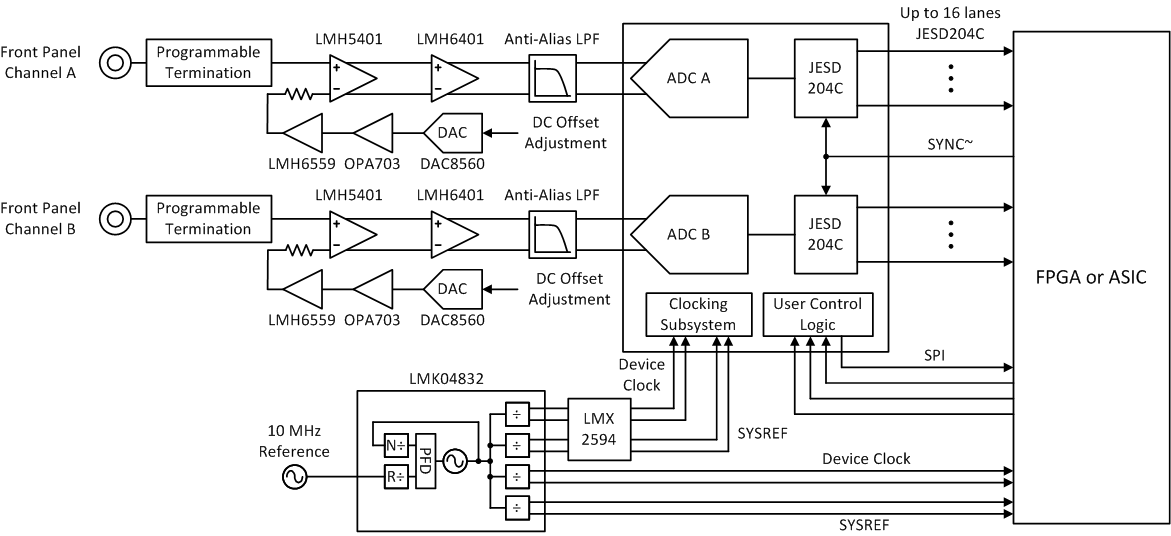

ADC12DJ5200RF

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有双通道 5.2GSPS 或单通道 10.4GSPS 的射频采样 12 位 ADC

Sample rate (max) (Msps): 5200, 10400 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: JESD204B, JESD204C Analog input BW (MHz): 7900 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.825 Power consumption (typ) (mW): 4000 Architecture: Folding Interpolating SNR (dB): 55.6 ENOB (Bits): 8.8 SFDR (dB): 65 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 5200, 10400 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: JESD204B, JESD204C Analog input BW (MHz): 7900 更多

Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.825 Power consumption (typ) (mW): 4000 Architecture: Folding Interpolating SNR (dB): 55.6 ENOB (Bits): 8.8 SFDR (dB): 65 Operating temperature range (°C): -40 to 85 Input buffer: Yes

ADC3664

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 SLVDS 接口的双通道、14 位、125MSPS、高 SNR、低功率 ADC

Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1400 Features: High Dynamic Range, High Performance, Low Power Rating: Catalog Peak-to-peak input voltage range (V): 3.2 Power consumption (typ) (mW): 200 Architecture: SAR SNR (dB): 77.5 ENOB (Bits): 12.6 SFDR (dB): 84 Operating temperature range (°C): -40 to 105 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1400 更多

Features: High Dynamic Range, High Performance, Low Power Rating: Catalog Peak-to-peak input voltage range (V): 3.2 Power consumption (typ) (mW): 200 Architecture: SAR SNR (dB): 77.5 ENOB (Bits): 12.6 SFDR (dB): 84 Operating temperature range (°C): -40 to 105 Input buffer: No

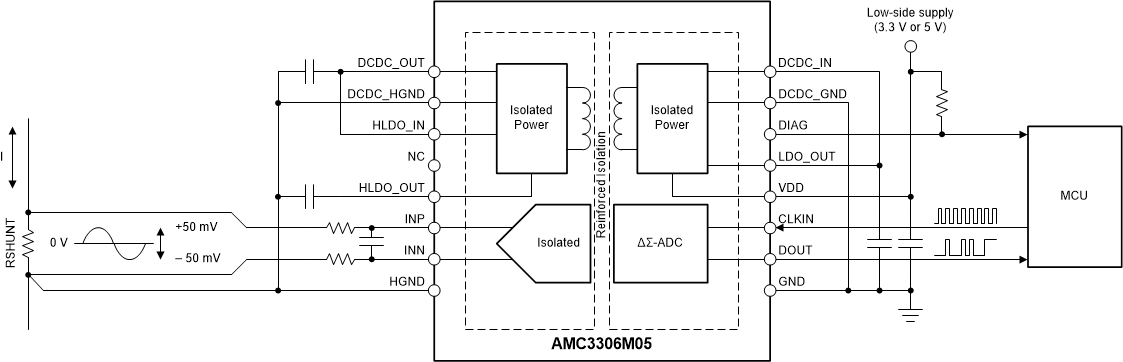

AMC3306M05

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有集成直流/直流的 ±50mV 输入、精密电流检测增强型隔离式调制器

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Catalog CMTI (min) (kV/µs): 75 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 77 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 85.8 SFDR (dB): 87 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 4250 Working isolation voltage (VIOWM) (Vrms): 1200 Transient isolation voltage (VIOTM) (VPK): 6 Creepage (min) (mm): 8 Clearance (min) (mm): 8 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多

Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Catalog CMTI (min) (kV/µs): 75 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 77 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 85.8 SFDR (dB): 87 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 4250 Working isolation voltage (VIOWM) (Vrms): 1200 Transient isolation voltage (VIOTM) (VPK): 6 Creepage (min) (mm): 8 Clearance (min) (mm): 8

ADS7038-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 SPI、GPIO 和 CRC 的汽车类 8 通道、1MSPS、12 位模数转换器 (ADC)

Resolution (Bits): 12 Sample rate (max) (ksps): 1000 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Supply Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Comparator, GPIO, Oscillator, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 1.5 Analog supply (min) (V): 2.35 Analog supply voltage (max) (V): 5.5 SNR (dB): 72.9 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 更多

ADS7138-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 I2C、GPIO 和 CRC 的汽车类 8 通道、140kSPS、12 位模数转换器 (ADC)

Resolution (Bits): 12 Sample rate (max) (ksps): 140 Number of input channels: 8 Interface type: I2C Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Supply Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.05 Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 5.5 SNR (dB): 69 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 12 更多

Sample rate (max) (ksps): 140 Number of input channels: 8 Interface type: I2C Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Supply Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.05 Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 5.5 SNR (dB): 69 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5

ADC3643

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 双通道 14 位 65MSPS 低噪声、超低功耗模数转换器 (ADC)

Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 2 Interface type: CMOS Analog input BW (MHz): 900 Features: High Performance, Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2.25 Power consumption (typ) (mW): 144 Architecture: SAR SNR (dB): 79 ENOB (Bits): 12.8 SFDR (dB): 93 Operating temperature range (°C): -40 to 105 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 2 Interface type: CMOS Analog input BW (MHz): 900 更多

Features: High Performance, Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2.25 Power consumption (typ) (mW): 144 Architecture: SAR SNR (dB): 79 ENOB (Bits): 12.8 SFDR (dB): 93 Operating temperature range (°C): -40 to 105 Input buffer: No

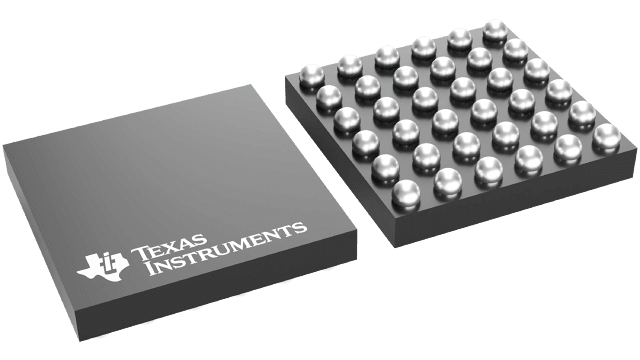

AFE4950

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于可穿戴设备、光学心率监测和 SpO2 的超小型集成式 AFE

Number of input channels: 4 Resolution (Bits): 22 Number of LEDs: 8 Interface type: I2C, SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Number of input channels: 4 Resolution (Bits): 22 Number of LEDs: 8 Interface type: I2C, SPI Operating temperature range (°C): -40 to 85 Rating: Catalog
