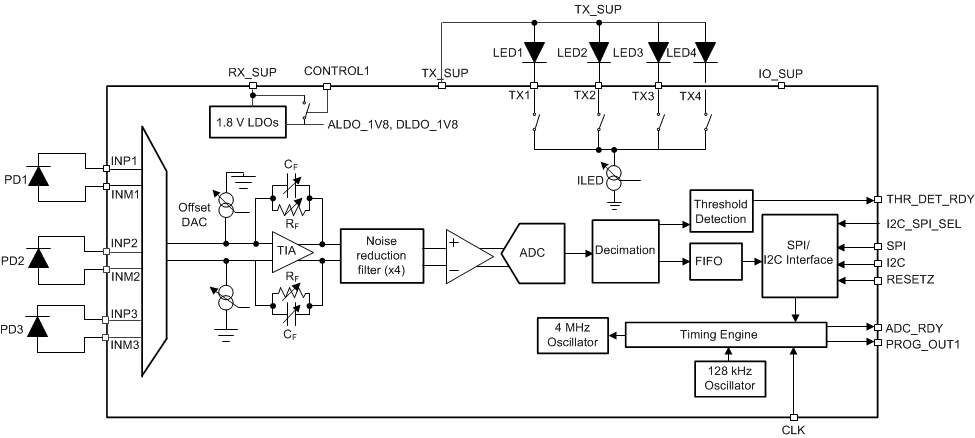

Applications: Optical-HRM Number of input channels: 3 Resolution (Bits): 22 Number of LEDs: 4 Interface type: I2C, SPI Operating temperature range (°C): -20 to 70 Rating: Catalog Applications: Optical-HRM Number of input channels: 3 Resolution (Bits): 22 Number of LEDs: 4 Interface type: I2C, SPI Operating temperature range (°C): -20 to 70 Rating: Catalog

Resolution (Bits): 14 Sample rate (max) (ksps): 2500 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 3.6 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 3.5 Analog supply (min) (V): 2.35 Analog supply voltage (max) (V): 3.6 SNR (dB): 74.9 Digital supply (min) (V): 1.65 Digital supply (max) (V): 3.6 Resolution (Bits): 14 Sample rate (max) (ksps): 2500 更多

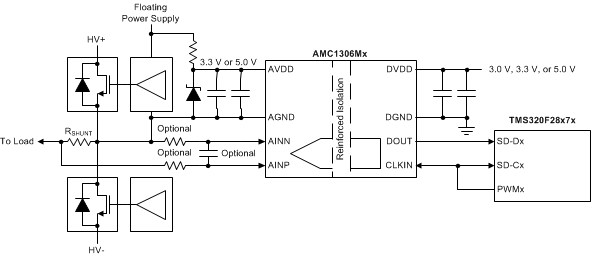

Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 82 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 45 SFDR (dB): 83 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 250mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 82 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 42.4 SFDR (dB): 83 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 250mV 更多

Sample rate (max) (Msps): 2600 Resolution (Bits): 14 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 3200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 1.35 Power consumption (typ) (mW): 5820 Architecture: Pipeline SNR (dB): 63.1 ENOB (Bits): 10 SFDR (dB): 79 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 2600 Resolution (Bits): 14 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 3200 更多

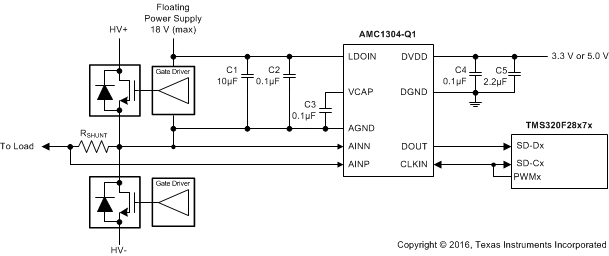

Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: CMOS, Serial Sample rate (max) (Msps): 20 Rating: Automotive CMTI (min) (kV/µs): 15 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 85 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 58.9 SFDR (dB): 90 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 250mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: Serial CMOS Sample rate (max) (Msps): 20 Rating: Automotive CMTI (min) (kV/µs): 15 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 85 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 36.1 SFDR (dB): 92 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 250mV 更多

Resolution (Bits): 10 Sample rate (max) (ksps): 2000 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Automotive Reference mode: Supply Input voltage range (max) (V): 3.6 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.6 Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 3.6 SNR (dB): 61 Digital supply (min) (V): 1.65 Digital supply (max) (V): 3.6 Resolution (Bits): 10 Sample rate (max) (ksps): 2000 更多

Resolution (Bits): 8 Sample rate (max) (ksps): 2000 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Automotive Reference mode: Supply Input voltage range (max) (V): 3.6 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.555 Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 3.6 SNR (dB): 49 Digital supply (min) (V): 1.65 Digital supply (max) (V): 3.6 Resolution (Bits): 8 Sample rate (max) (ksps): 2000 更多

Sample rate (max) (Msps): 3000 Resolution (Bits): 14 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 3200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 1.35 Power consumption (typ) (mW): 6400 Architecture: Pipeline SNR (dB): 63 ENOB (Bits): 10 SFDR (dB): 77 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 3000 Resolution (Bits): 14 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 3200 更多
