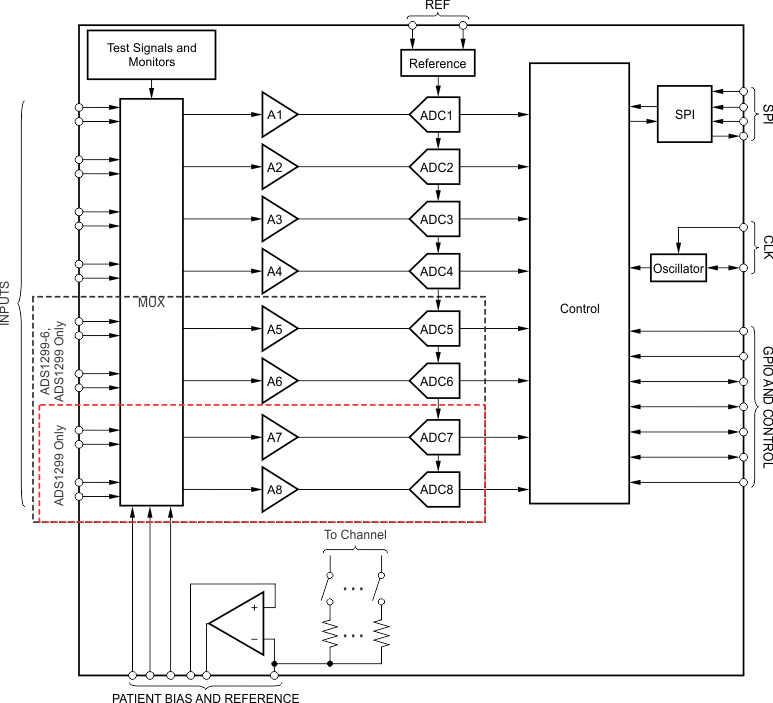

ADS1299-4

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于生物电势测量的低噪声、4 通道、24 位模数转换器

Applications: BIS, EAP, Fetal ECG, Sleep study monitor Number of input channels: 4 Resolution (Bits): 24 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: BIS, EAP, Fetal ECG, Sleep study monitor Number of input channels: 4 Resolution (Bits): 24 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

ADS1299-6

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于生物电势测量的低噪声、6 通道、24 位模数转换器

Applications: BIS, EAP, Fetal ECG, Sleep study monitor Number of input channels: 6 Resolution (Bits): 24 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: BIS, EAP, Fetal ECG, Sleep study monitor Number of input channels: 6 Resolution (Bits): 24 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

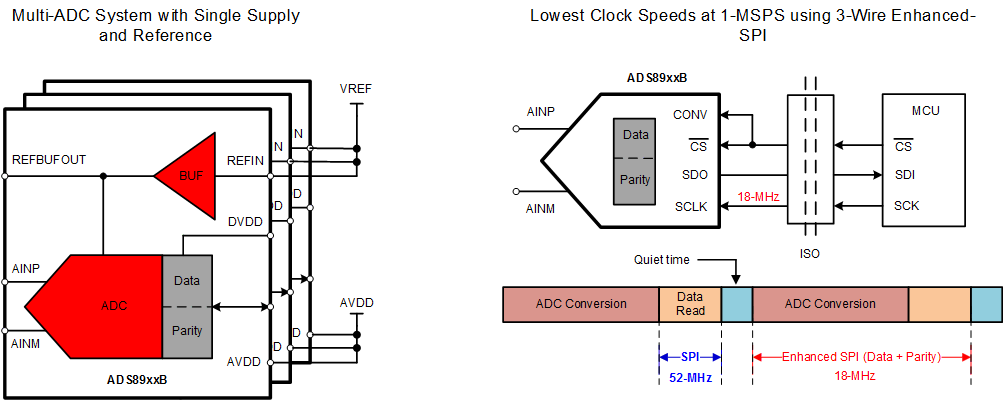

ADS9120

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有增强型 SPI 接口的 16 位、2.5MSPS、单通道 SAR ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 2500 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 15 Analog supply (min) (V): 1.65 Analog supply voltage (max) (V): 1.95 SNR (dB): 96 Digital supply (min) (V): 1.65 Digital supply (max) (V): 1.95 Resolution (Bits): 16 Sample rate (max) (ksps): 2500 更多

Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 15 Analog supply (min) (V): 1.65 Analog supply voltage (max) (V): 1.95 SNR (dB): 96 Digital supply (min) (V): 1.65 Digital supply (max) (V): 1.95

ADS8924B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有内部 VREF 缓冲器、内部 LDO 和增强型 SPI 的 16 位 250kSPS 单通道 SAR ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 250 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 14 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 96.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 250 更多

Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 14 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 96.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5

ADS8912B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有内部 VREF 缓冲器、内部 LDO 和增强型 SPI 接口的 18 位、500kSPS、1 通道 SAR ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 500 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 16 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 102.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 18 Sample rate (max) (ksps): 500 更多

Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 16 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 102.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5

ADS8914B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有内部 VREF 缓冲器、内部 LDO 和增强型 SPI 接口的 18 位、250kSPS、1 通道 SAR ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 250 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 14 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 102.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 18 Sample rate (max) (ksps): 250 更多

Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 14 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 102.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5

ADS8922B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有内部 VREF 缓冲器、内部 LDO 和增强型 SPI 的 16 位 500kSPS 单通道 SAR ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 500 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 16 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 96.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 500 更多

Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 16 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 96.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5

ADS131A02

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 24 位 128kSPS 2 通道同步采样 Δ-Σ ADC

Resolution (Bits): 24 Sample rate (max) (ksps): 128 Number of input channels: 2 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.5 Input voltage range (min) (V): -1.5 Features: Daisy-Chainable Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 6.2 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 115.2 Digital supply (min) (V): 1.65 Digital supply (max) (V): 3.6 Resolution (Bits): 24 更多

Sample rate (max) (ksps): 128 Number of input channels: 2 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.5 Input voltage range (min) (V): -1.5 Features: Daisy-Chainable Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 6.2 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 115.2 Digital supply (min) (V): 1.65 Digital supply (max) (V): 3.6

ADS8920B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有内部 VREF 缓冲器、内部 LDO 和增强型 SPI 的 16 位 1MSPS 单通道 SAR ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 21 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 96.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 1000 更多

Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 21 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 96.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5

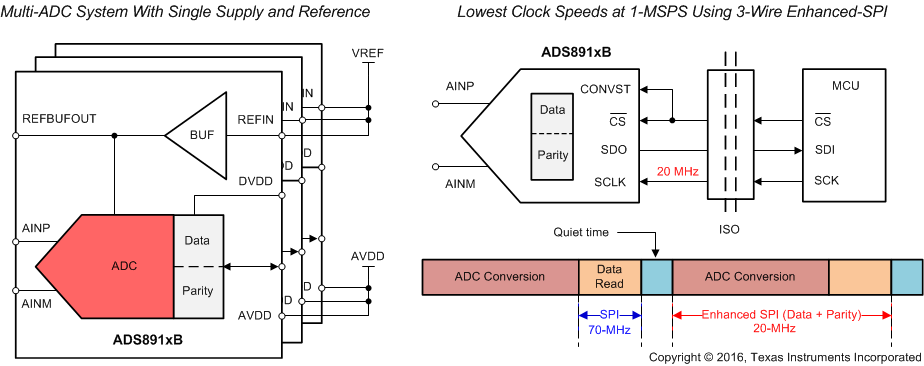

ADS8910B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有内部 VREF 缓冲器、内部 LDO 和增强型 SPI 接口的 18 位 1MSPS SAR ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 21 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 102.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 18 Sample rate (max) (ksps): 1000 更多

Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 21 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 102.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5
