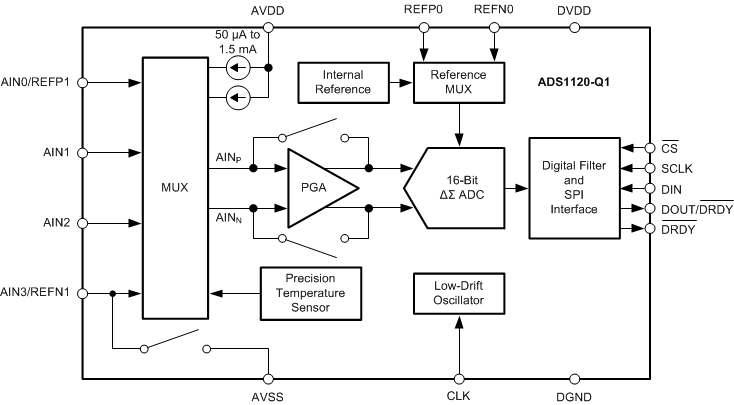

Resolution (Bits): 16 Sample rate (max) (ksps): 2 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: External, Internal, Supply Input voltage range (max) (V): 2.85, 5.6 Input voltage range (min) (V): -2.85, 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 1.4 Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 2 更多

Sample rate (max) (Msps): 1600 Resolution (Bits): 12 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.725 Power consumption (typ) (mW): 1600 Architecture: Folding Interpolating SNR (dB): 55.3 ENOB (Bits): 8.8 SFDR (dB): 75 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 1600 Resolution (Bits): 12 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 更多

Sample rate (max) (Msps): 2700 Resolution (Bits): 12 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.725 Power consumption (typ) (mW): 1800 Architecture: Folding Interpolating SNR (dB): 55.1 ENOB (Bits): 8.8 SFDR (dB): 72 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 2700 Resolution (Bits): 12 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: LVDS Sample rate (max) (Msps): 20 Rating: Catalog CMTI (min) (kV/µs): 15 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 85 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 49.3 SFDR (dB): 92 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 250mV 更多

Sample rate (max) (Msps): 4000 Resolution (Bits): 12 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.725 Power consumption (typ) (mW): 2000 Architecture: Folding Interpolating SNR (dB): 55 ENOB (Bits): 8.8 SFDR (dB): 71 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 4000 Resolution (Bits): 12 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 16 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 600 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Pseudo-Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 45 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 89 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 700 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 45 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 93 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 700 更多

Sample rate (max) (Msps): 160 Resolution (Bits): 14 Number of input channels: 4 Interface type: JESD204B Analog input BW (MHz): 450 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 812 Architecture: Pipeline SNR (dB): 72.7 ENOB (Bits): 11.8 SFDR (dB): 88 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 160 Resolution (Bits): 14 Number of input channels: 4 Interface type: JESD204B Analog input BW (MHz): 450 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 1000 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 14.5 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 71.7 Digital supply (min) (V): 1.7 Digital supply (max) (V): 5.25 Resolution (Bits): 12 更多
