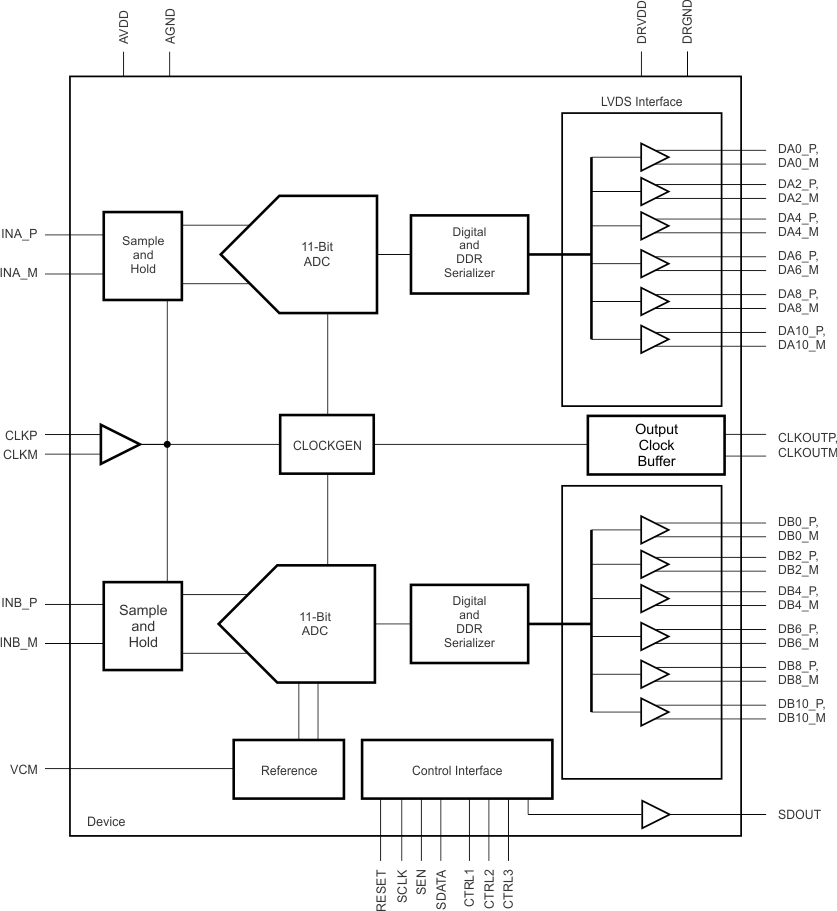

Sample rate (max) (Msps): 250 Resolution (Bits): 11 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 700 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1250 Architecture: Pipeline SNR (dB): 66.5 ENOB (Bits): 10.6 SFDR (dB): 98 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 250 Resolution (Bits): 11 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 700 更多

Sample rate (max) (Msps): 250 Resolution (Bits): 14 Number of input channels: 4 Interface type: DDR LVDS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1470 Architecture: Pipeline SNR (dB): 71.1 ENOB (Bits): 11.5 SFDR (dB): 87 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 250 Resolution (Bits): 14 Number of input channels: 4 Interface type: DDR LVDS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 800 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS Analog input BW (MHz): 1200 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 1 Power consumption (typ) (mW): 1200 Architecture: Pipeline SNR (dB): 61.8 ENOB (Bits): 9.8 SFDR (dB): 74 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 800 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS Analog input BW (MHz): 1200 更多

Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS Analog input BW (MHz): 1200 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 1 Power consumption (typ) (mW): 1600 Architecture: Pipeline SNR (dB): 60.8 ENOB (Bits): 9.8 SFDR (dB): 77 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS Analog input BW (MHz): 1200 更多

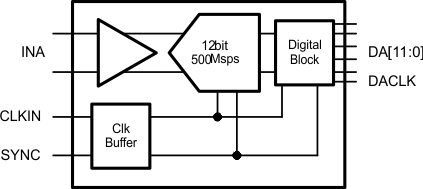

Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS Analog input BW (MHz): 1200 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 1 Power consumption (typ) (mW): 1040 Architecture: Pipeline SNR (dB): 60.8 ENOB (Bits): 9.8 SFDR (dB): 80 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS Analog input BW (MHz): 1200 更多

Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS Analog input BW (MHz): 1000 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 1 Power consumption (typ) (mW): 1350 Architecture: Pipeline SNR (dB): 63.8 ENOB (Bits): 10.3 SFDR (dB): 77 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS Analog input BW (MHz): 1000 更多

Sample rate (max) (Msps): 800 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS Analog input BW (MHz): 1200 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 1 Power consumption (typ) (mW): 2100 Architecture: Pipeline SNR (dB): 61.8 ENOB (Bits): 9.8 SFDR (dB): 74 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 800 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS Analog input BW (MHz): 1200 更多

Applications: Clinical fingertip pulse oximetry, SpO2 Number of input channels: 1 Resolution (Bits): 22 Number of LEDs: 2 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: Clinical fingertip pulse oximetry, SpO2 Number of input channels: 1 Resolution (Bits): 22 Number of LEDs: 2 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

Resolution (Bits): 12 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Rating: Automotive Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 72.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 12 Sample rate (max) (ksps): 1000 更多

Sample rate (max) (Msps): 1600, 3200 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2400 Features: Ultra High Speed Rating: Space Peak-to-peak input voltage range (V): 0.8 Power consumption (typ) (mW): 3880 Architecture: Folding Interpolating SNR (dB): 58.2 ENOB (Bits): 9.3 SFDR (dB): 67.3 Operating temperature range (°C): 25 to 25 Input buffer: Yes Radiation, TID (typ) (krad): 300 Radiation, SEL (MeV·cm2/mg): 120 Sample rate (max) (Msps): 1600, 3200 Resolution (Bits): 12 Number of input channels: 1, 2 更多
