ADS1292R


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有集成呼吸阻抗和 ECG 前端的 2 通道 24 位 ADC

Applications: 1-lead ECG, Patient monitoring, Respiration Number of input channels: 2 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: 1-lead ECG, Patient monitoring, Respiration Number of input channels: 2 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

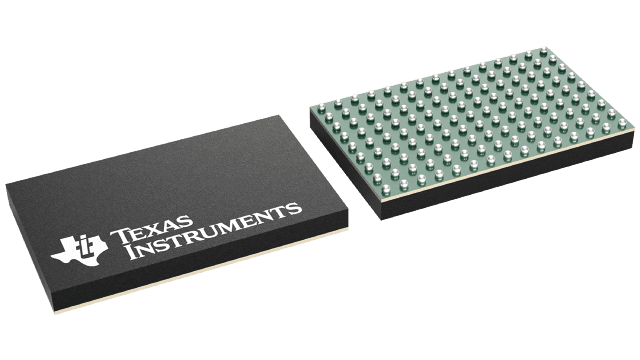

AFE5803


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 完全集成的 8 通道超声波模拟前端

Device type: Receiver Number of input channels: 8 Active supply current (typ) (mA): 133 Supply voltage (max) (V): 3.6 Operating temperature range (°C): 0 to 85 Interface type: Serial LVDS Features: Analog Front End (AFE) Rating: Catalog Device type: Receiver Number of input channels: 8 Active supply current (typ) (mA): 133 Supply voltage (max) (V): 3.6 Operating temperature range (°C): 0 to 85 Interface type: Serial LVDS Features: Analog Front End (AFE) Rating: Catalog

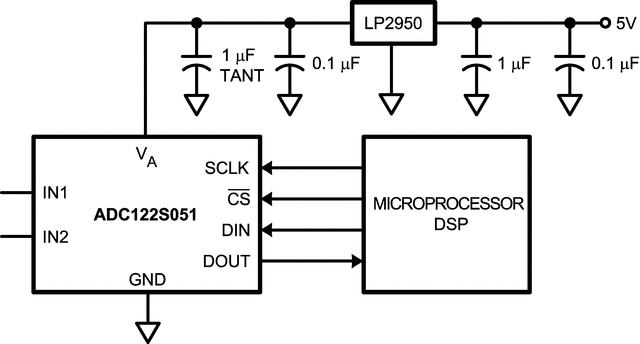

ADC122S051Q-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 双通道、200 ksps 至 500 ksps 12 位 A/D 转换器

Resolution (Bits): 12 Sample rate (max) (ksps): 500 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 3 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 72.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 12 Sample rate (max) (ksps): 500
Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 3 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 72.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25

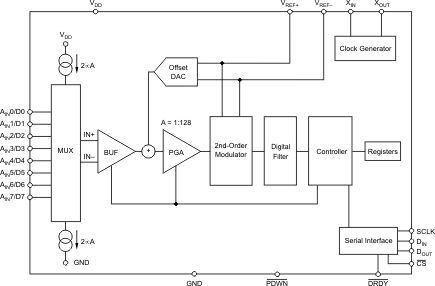

ADS1243-HT


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 高温 24 位 ADC - 8 通道、PGA 1:128、50/60Hz 陷波

Resolution (Bits): 24 Sample rate (max) (ksps): 0.015 Number of input channels: 8 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: High Temp Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection, GPIO, PGA Operating temperature range (°C): -55 to 210 Power consumption (typ) (mW): 0.6 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 124 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 24
Sample rate (max) (ksps): 0.015 Number of input channels: 8 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: High Temp Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection, GPIO, PGA Operating temperature range (°C): -55 to 210 Power consumption (typ) (mW): 0.6 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 124 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25

ADS7955-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 车用 10 位、1MSPS、8 通道、单端、SAR ADC

Resolution (Bits): 10 Sample rate (max) (ksps): 1000 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 11.5 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 60 Digital supply (min) (V): 1.7 Digital supply (max) (V): 5.25 Resolution (Bits): 10
Sample rate (max) (ksps): 1000 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 11.5 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 60 Digital supply (min) (V): 1.7 Digital supply (max) (V): 5.25

ADS1115-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 PGA、振荡器、VREF、比较器、I2C 的汽车类 16 位 860SPS 4 通道 Δ-Σ ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 0.86 Number of input channels: 4 Interface type: I2C Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Comparator, Oscillator, PGA Operating temperature range (°C): -40 to 125 Analog supply (min) (V): 2 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 0.86
Number of input channels: 4 Interface type: I2C Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Comparator, Oscillator, PGA Operating temperature range (°C): -40 to 125 Analog supply (min) (V): 2 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2 Digital supply (max) (V): 5.5

ADS1191


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于 ECG 应用的 16 位、1 通道、低功耗模拟前端 (AFE)

Applications: 1-lead ECG, ECG patch Number of input channels: 1 Resolution (Bits): 16 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: 1-lead ECG, ECG patch Number of input channels: 1 Resolution (Bits): 16 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

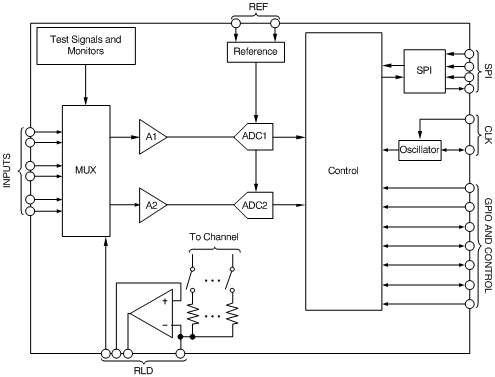

ADS1192


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于 ECG 应用的 16 位、2 通道、低功耗模拟前端 (AFE)

Number of input channels: 2 Resolution (Bits): 16 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Number of input channels: 2 Resolution (Bits): 16 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

ADS1291


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于 ECG 应用的 24 位、1 通道、低功耗模拟前端 (AFE)

Applications: 1-lead ECG, ECG patch Number of input channels: 1 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: 1-lead ECG, ECG patch Number of input channels: 1 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

ADS1292


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于 ECG 应用的 24 位、2 通道、低功耗模拟前端 (AFE)

Number of input channels: 2 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Number of input channels: 2 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog
