Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 2 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 250 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 360 Architecture: Pipeline SNR (dB): 69 ENOB (Bits): 11.1 SFDR (dB): 86 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 2 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 250 更多

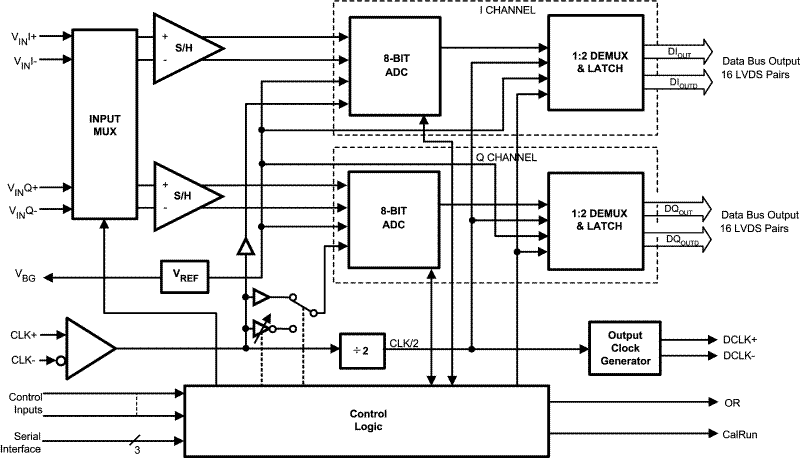

Sample rate (max) (Msps): 500, 1000 Resolution (Bits): 8 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 1700 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 0.87 Power consumption (typ) (mW): 1400 Architecture: Folding Interpolating SNR (dB): 48 ENOB (Bits): 7.5 SFDR (dB): 57 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 500, 1000 Resolution (Bits): 8 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 1700 更多

Resolution (Bits): 16 Number of input channels: 2 Interface type: Serial Architecture: Delta-Sigma Modulator Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 59 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 88.9 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Number of input channels: 2 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 750 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2.3 Power consumption (typ) (mW): 710 Architecture: Pipeline SNR (dB): 73.6 ENOB (Bits): 11.7 SFDR (dB): 86 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 750 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 750 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2.3 Power consumption (typ) (mW): 736 Architecture: Pipeline SNR (dB): 71 ENOB (Bits): 11.3 SFDR (dB): 86 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 750 更多

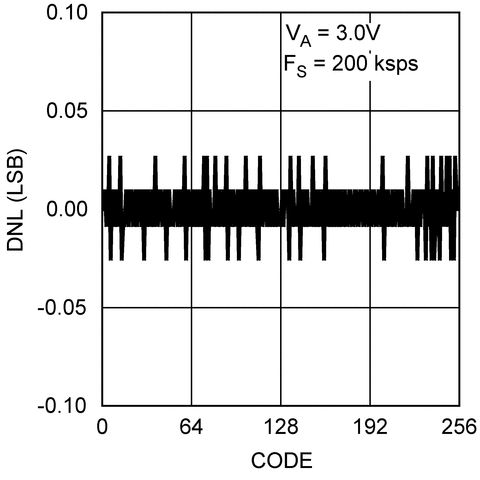

Resolution (Bits): 8 Sample rate (max) (ksps): 200 Number of input channels: 1 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 1.3 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 200 更多

Resolution (Bits): 8 Sample rate (max) (ksps): 500 Number of input channels: 1 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 1.6 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 500 更多

Resolution (Bits): 8 Sample rate (max) (ksps): 1000 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 3.2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 1000 更多

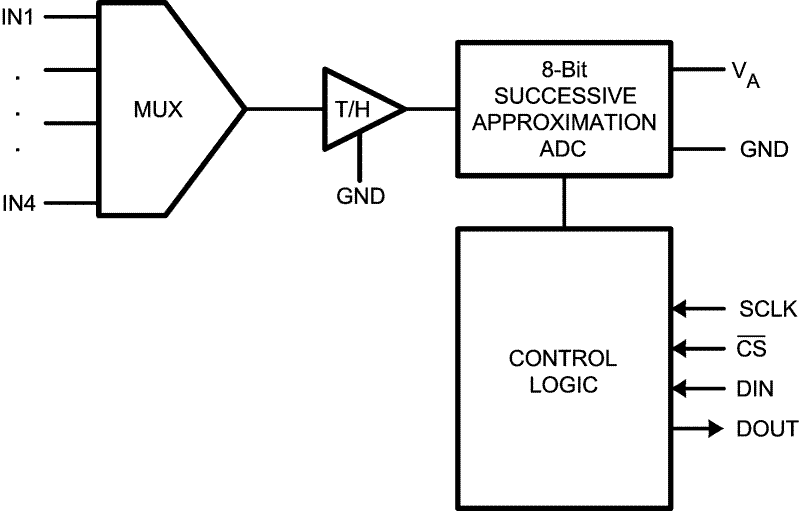

Resolution (Bits): 8 Sample rate (max) (ksps): 200 Number of input channels: 4 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 1.6 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 200 更多

Resolution (Bits): 8 Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 2.2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 500 更多
