Number of channels: 2
Architecture: DSL Line Driver
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 28
BW at Acl (MHz): 160
Acl, min spec gain (V/V): 2
Vn at flatband (typ) (nV√Hz): 2.5
Vn at 1 kHz (typ) (nV√Hz): 8.5
Iq per channel (typ) (mA): 21
Vos (offset voltage at 25°C) (max) (mV): 50
Rail-to-rail: No
Features: Adjustable BW/IQ/IOUT, Shutdown
Rating: Catalog
Operating temperature range (°C): -40 to 85
CMRR (typ) (dB): 65
Input bias current (max) (pA): 3000000
Offset drift (typ) (µV/°C): 110
GBW (typ) (MHz): 160
Iout (typ) (mA): 416
2nd harmonic (dBc): 100
更多
3rd harmonic (dBc): 89
Frequency of harmonic distortion measurement (MHz): 1
Number of channels: 2
Architecture: DSL Line Driver
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 28
BW at Acl (MHz): 160
Acl, min spec gain (V/V): 2
Vn at flatband (typ) (nV√Hz): 2.5
Vn at 1 kHz (typ) (nV√Hz): 8.5
Iq per channel (typ) (mA): 21
Vos (offset voltage at 25°C) (max) (mV): 50
Rail-to-rail: No
Features: Adjustable BW/IQ/IOUT, Shutdown
Rating: Catalog
Operating temperature range (°C): -40 to 85
CMRR (typ) (dB): 65
Input bias current (max) (pA): 3000000
Offset drift (typ) (µV/°C): 110
GBW (typ) (MHz): 160
Iout (typ) (mA): 416
2nd harmonic (dBc): 100
3rd harmonic (dBc): 89
Frequency of harmonic distortion measurement (MHz): 1

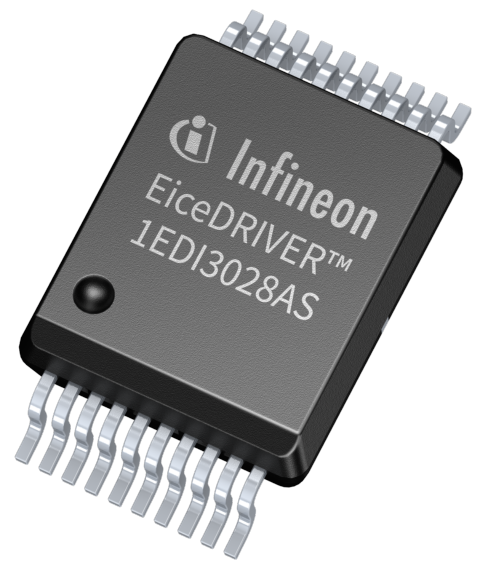

1EDI3028AS
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The EiceDRIVER™ 1EDI3028AS is an automotive qualified single channel high voltage gate driver optimized for IGBT technologies.
Classification: ISO 26262-compliant
Channels: 1.0
Configuration: High-side
Input Vcc max: 5.5V
Output Current(Sink): 15.0A
Output Current(Source): 15.0A
Package: PG-DSO-20
Qualification: Automotive
Voltage Class: 1200.0V
Turn Off Propagation Delay: 60.0ns
Turn On Propagation Delay: 60.0ns
Isolation Type: Galvanic isolation - Reinforced
Family: EiceDRIVER™ isolated gate driver ICs for EV
Currently planned availability until at least: 2038
1EDI3038AS
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The EiceDRIVER™ 1EDI3038AS is an automotive qualified single channel high voltage gate driver optimized for SiC MOSFET.
Channels: 1.0
Classification: ISO 26262-compliant
Configuration: High-side
Input Vcc max: 5.5V
Output Current(Sink): 15.0A
Output Current(Source): 15.0A
Package: PG-DSO-20
Qualification: Automotive
Voltage Class: 1200.0V
Turn Off Propagation Delay: 60.0ns
Turn On Propagation Delay: 60.0ns
Isolation Type: Galvanic isolation - Reinforced
Family: EiceDRIVER™ isolated gate driver ICs for EV
Currently planned availability until at least: 2038
1EDI3035AS
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The EiceDRIVER™ 1EDI3035AS is an automotive qualified single channel high voltage gate driver optimized for SiC MOSFET.
Channels: 1.0
Classification: ISO 26262-compliant
Configuration: High-side
Input Vcc max: 5.5V
Output Current(Sink): 20.0A
Output Current(Source): 20.0A
Package: PG-DSO-20
Qualification: Automotive
Voltage Class: 1200.0V
Turn Off Propagation Delay: 60.0ns
Turn On Propagation Delay: 60.0ns
Isolation Type: Galvanic isolation - Reinforced
Family: EiceDRIVER™ isolated gate driver ICs for EV
Currently planned availability until at least: 2038
1EDI3026AS
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The EiceDRIVER™ 1EDI3026AS is an automotive qualified single channel high voltage gate driver optimized for IGBT technologies.
Classification: ISO 26262-compliant
Channels: 1.0
Configuration: High-side
Input Vcc max: 5.5V
Output Current(Sink): 20.0A
Output Current(Source): 20.0A
Output Current(Source): 20.0A
Package: PG-DSO-20
Qualification: Automotive
Voltage Class: 1200.0V
Turn Off Propagation Delay: 60.0ns
Turn On Propagation Delay: 60.0ns
Isolation Type: Galvanic isolation - Reinforced
Currently planned availability until at least: 2038
Family: EiceDRIVER™ isolated gate driver ICs for EV
2ED3140MC12L
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 8.5 V UVLO
Channels: 2.0
Configuration: High-side
Input Vcc: NoneV
Isolation Type: Galvanic isolation - Reinforced
Output Current(Source): 6.0A
Output Current(Sink): 6.5A
Package: PG-DSO-14-71
Qualification: Industrial
Voltage Class: 2300.0V
Turn Off Propagation Delay: 39.0ns
Turn On Propagation Delay: 39.0ns
VBS UVLO(Off): 8.5V
VBS UVLO(On): 9.3V
2ED3141MC12L
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 11 V UVLO
Channels: 2.0
Configuration: High-side
Input Vcc: NoneV
Isolation Type: Galvanic isolation - Reinforced
Output Current(Source): 6.0A
Output Current(Sink): 6.5A
Package: PG-DSO-14-71
Qualification: Industrial
Voltage Class: 2300.0V
Turn Off Propagation Delay: 39.0ns
Turn On Propagation Delay: 39.0ns
VBS UVLO(Off): 11.0V
VBS UVLO(On): 12.0V
2ED3143MC12L
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 14.7 V UVLO
Channels: 2.0
Configuration: High-side
Input Vcc: NoneV
Isolation Type: Galvanic isolation - Reinforced
Output Current(Source): 6.0A
Output Current(Sink): 6.5A
Package: PG-DSO-14-71
Qualification: Industrial
Voltage Class: 2300.0V
Turn Off Propagation Delay: 39.0ns
Turn On Propagation Delay: 39.0ns
VBS UVLO(Off): 14.7V
VBS UVLO(On): 16.0V
2ED3142MC12L
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 12.5 V UVLO
Channels: 2.0
Configuration: High-side
Input Vcc: NoneV
Isolation Type: Galvanic isolation - Reinforced
Output Current(Source): 6.0A
Output Current(Sink): 6.5A
Package: PG-DSO-14-71
Qualification: Industrial
Voltage Class: 2300.0V
Turn Off Propagation Delay: 39.0ns
Turn On Propagation Delay: 39.0ns
VBS UVLO(Off): 12.5V
VBS UVLO(On): 13.6V
2ED3146MC12L
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 6.5 A, 5.7 kV (rms) dual-channel isolated gate driver with deadtime control, UL 1577 certified, 12.5 V UVLO
Channels: 2.0
Configuration: High-side
Input Vcc: NoneV
Isolation Type: Galvanic isolation - Reinforced
Output Current(Source): 6.0A
Output Current(Sink): 6.5A
Package: PG-DSO-14-71
Qualification: Industrial
Voltage Class: 2300.0V
Turn Off Propagation Delay: 39.0ns
Turn On Propagation Delay: 39.0ns
VBS UVLO(Off): 12.5V
VBS UVLO(On): 13.6V
