DRV8106-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: Automotive, 40V, half-bridge smart gate driver w/offline diagnostics and inline current sense amp

Number of full bridges: 1/2 Vs (min) (V): 4.5 Vs ABS (max) (V): 40 Sleep current (µA): 2.5 Control mode: PWM Control interface: Hardware (GPIO), SPI Features: Inline Current sense Amplifier, Smart Gate Drive Rating: Automotive Operating temperature range (°C): -40 to 125 Number of full bridges: 1/2 Vs (min) (V): 4.5 Vs ABS (max) (V): 40 Sleep current (µA): 2.5 Control mode: PWM Control interface: Hardware (GPIO), SPI Features: Inline Current sense Amplifier, Smart Gate Drive Rating: Automotive Operating temperature range (°C): -40 to 125

DRV8434A

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有集成式电流检测和失速检测功能的 48V、2.5A 双极步进电机驱动器（使用 GPIO 引脚）

Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 50 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 256 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 50 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 Control mode: STEP/DIR 更多

Control interface: Hardware (GPIO) Microstepping levels: 256 Rating: Catalog Operating temperature range (°C): -40 to 125

DRV8434

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有集成电流检测功能和 1/256 微步进的 48V、2.5A 双极步进电机驱动器

Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 50 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 256 Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 50 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 更多

Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 256 Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125

DRV8434E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有集成电流检测功能的 48V、2.5A 双极步进或双通道有刷电机驱动器

Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 50 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 Control mode: PH/EN, PWM Control interface: Hardware (GPIO) Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 50 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 Control mode: PH/EN, PWM 更多

Control interface: Hardware (GPIO) Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125

DRV8428

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有集成电流检测功能和 1/256 微步进的 35V、1A 双极步进电机驱动器

Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Full-scale current (A): 1 Peak output current (A): 1.7 RDS(ON) (HS + LS) (mΩ): 1500 Sleep current (µA): 2 Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 256 Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Full-scale current (A): 1 Peak output current (A): 1.7 RDS(ON) (HS + LS) (mΩ): 1500 Sleep current (µA): 2 更多

DRV8428E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有集成电流检测功能的 35V、1A 双极步进或双通道有刷电机驱动器

Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Full-scale current (A): 1 Peak output current (A): 1.7 RDS(ON) (HS + LS) (mΩ): 1500 Sleep current (µA): 2 Control mode: PH/EN, PWM Control interface: Hardware (GPIO) Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Full-scale current (A): 1 Peak output current (A): 1.7 RDS(ON) (HS + LS) (mΩ): 1500 Sleep current (µA): 2 Control mode: PH/EN, PWM 更多

Control interface: Hardware (GPIO) Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125

UCC27284-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO 的汽车类 3A、120V 半桥栅极驱动器

Bootstrap supply voltage (max) (V): 120 Power switch: MOSFET Input supply voltage (min) (V): 5.5 Input supply voltage (max) (V): 16 Peak output current (A): 3.5 Operating temperature range (°C): -40 to 125 Undervoltage lockout (typ) (V): 5 Rating: Automotive Propagation delay time (µs): 0.016 Rise time (ns): 12 Fall time (ns): 10 Iq (mA): 0.002 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): -14 Features: Enable TI functional safety category: Functional Safety-Capable Driver configuration: Dual inputs Bootstrap supply voltage (max) (V): 120 Power switch: MOSFET 更多

Input supply voltage (min) (V): 5.5 Input supply voltage (max) (V): 16 Peak output current (A): 3.5 Operating temperature range (°C): -40 to 125 Undervoltage lockout (typ) (V): 5 Rating: Automotive Propagation delay time (µs): 0.016 Rise time (ns): 12 Fall time (ns): 10 Iq (mA): 0.002 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): -14 Features: Enable TI functional safety category: Functional Safety-Capable Driver configuration: Dual inputs

DRV8932

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有电流检测功能的 35V、1A 四通道独立半桥驱动器

Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Peak output current (A): 1.5 RDS(ON) (HS + LS) (mΩ): 900 Sleep current (µA): 2 Control mode: PWM Control interface: Hardware (GPIO) Features: Current Regulation, Integrated Current Sensing Rating: Catalog Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Peak output current (A): 1.5 RDS(ON) (HS + LS) (mΩ): 900 Sleep current (µA): 2 Control mode: PWM Control interface: Hardware (GPIO) Features: Current Regulation, Integrated Current Sensing 更多

Rating: Catalog Operating temperature range (°C): -40 to 125

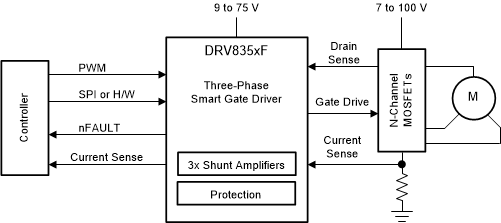

DRV8353F

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 3 个 CSA 的最大 102V 三相功能安全质量管理型智能栅极驱动器

Rating: Catalog Architecture: Gate driver Control interface: 1xPWM, 3xPWM, 6xPWM Gate drive (A): 1 Vs (min) (V): 9 Vs ABS (max) (V): 102 Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety Quality-Managed Rating: Catalog Architecture: Gate driver Control interface: 1xPWM, 3xPWM, 6xPWM Gate drive (A): 1 Vs (min) (V): 9 Vs ABS (max) (V): 102 Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety Quality-Managed

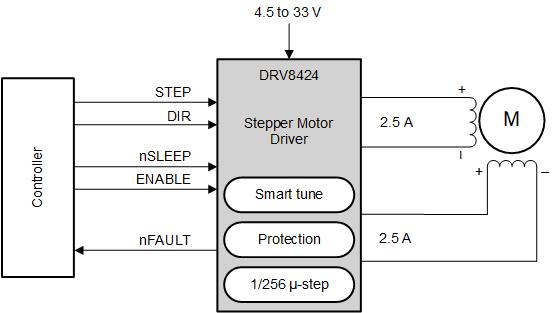

DRV8424

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有集成电流检测功能和 1/256 微步进的 35V、2.5A 双极步进驱动器

Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 256 Features: Current Regulation, Integrated Current Sensing, Smart Tune Rating: Catalog Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 4.5 Vs ABS (max) (V): 35 Full-scale current (A): 2.5 Peak output current (A): 4 RDS(ON) (HS + LS) (mΩ): 330 Sleep current (µA): 2 更多
