IRS2890DS
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 600 V half-bridge gate driver IC with fault reporting, integrated bootstrap FET and over current protection
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Sink): 0.48A
Output Current(Source): 0.22A
Turn Off Propagation Delay: 500.0ns
Turn On Propagation Delay: 500.0ns
VCC UVLO(Off): 7.7V
VCC UVLO(On): 8.9V
VBS UVLO(Off): 7.7V
VBS UVLO(On): 8.9V
IRS2111S
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 600 V half-bridge gate driver IC with shoot through protection
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.29A
Output Current(Sink): 0.6A
Turn Off Propagation Delay: 150.0ns
Turn On Propagation Delay: 750.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.6V
VBS UVLO(Off): 8.2V
VBS UVLO(On): 8.6V
Input Vcc: NoneV
Channels: 1.0
Configuration: Low-side
Voltage Class: 25.0V
Qualification: Industrial
Isolation Type: Non-isolated
Output Current(Sink): 1.5A
Output Current(Source): 1.5A
Turn Off Propagation Delay: 50.0ns
Turn On Propagation Delay: 50.0ns
VCC UVLO(Off): 9.2V
VCC UVLO(On): 10.2V
VBS UVLO(Off): 9.2V
Input Vcc: NoneV
Channels: 2.0
Configuration: Low-side
Voltage Class: 25.0V
Qualification: Industrial
Isolation Type: Non-isolated
Output Current(Sink): 3.3A
Output Current(Source): 2.3A
Turn Off Propagation Delay: 50.0ns
Turn On Propagation Delay: 50.0ns
IRS44262S
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 25 V dual-channel low-side gate driver IC with under-voltage lockout protection
Input Vcc: NoneV
Channels: 2.0
Configuration: Low-side
Voltage Class: 25.0V
Qualification: Industrial
Isolation Type: Non-isolated
Output Current(Sink): 3.3A
Output Current(Source): 2.3A
Turn Off Propagation Delay: 50.0ns
Turn On Propagation Delay: 50.0ns
VCC UVLO(Off): 9.2V
VCC UVLO(On): 10.2V
VBS UVLO(Off): 9.2V
IRS2118S
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 600 V single high-side gate driver IC with single input
Input Vcc: NoneV
Channels: 1.0
Configuration: High-side
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Source): 0.29A
Output Current(Sink): 0.6A
Turn Off Propagation Delay: 105.0ns
Turn On Propagation Delay: 125.0ns
VCC UVLO(Off): 8.2V
VCC UVLO(On): 8.6V
VBS UVLO(Off): 8.2V
VBS UVLO(On): 8.6V
Input Vcc: NoneV
Channels: 2.0
Configuration: Low-side
Voltage Class: 25.0V
Qualification: Industrial
Isolation Type: Non-isolated
Output Current(Sink): 3.3A
Output Current(Source): 2.3A
Turn Off Propagation Delay: 50.0ns
Turn On Propagation Delay: 50.0ns
Channels: 6.0
Configuration: Three Phase
Isolation Type: Non-isolated
Package: PG-LQFP-64
Input Vcc: NoneV
Voltage Class: 90.0V
Output Current: 2.0A
Turn Off Propagation Delay: 35.0ns
Turn On Propagation Delay: 35.0ns
VBS UVLO(Off): 6.5V
Technology: MOTIX™ Driver
Supply Voltage: NoneV
Current Sense Amplifier: 2xCSA
Driving Capability: 300nC at 20kHz
Diagnostics: UV, OV, SCD, OT, VDHP , VCC, CP
Qualification: Automotive
Temperature: None°C
Classification: ISO ready
TLE92104-232QX
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

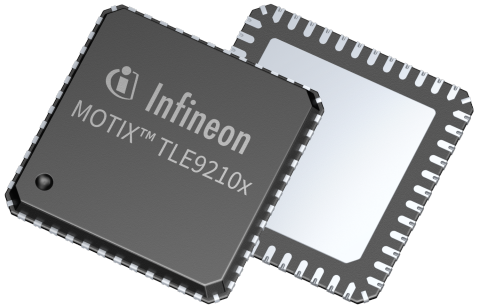

描述: The TLE92104-232QX is a MOTIX™ Multi MOSFET Driver IC with an adaptive multi-stage MOSFET gate control
Brake Mode: Yes
Diagnostics: OC
Diagnostics: TW
Diagnostics: TSD
Diagnostics: PSF
Diagnostics: SPI_ERR
Diagnostics: NPOR
Diagnostics: CSA
Gate Driver Source / Sink Current: 100.0mA
Number of CSA: 2.0
Number of Half-Bridges: 4.0
Protect: SC
Protect: OT
Protect: UV
Protect: OV
Standby Current: 2 µA
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Technology: MOTIX™ Driver
Language: SPICE
更多
Product Category: Motor Control ICs
Marketing Priority: 89
Currently planned availability until at least: 2038
Family: MOTIX™ multi MOSFET gate driver ICs
Interfaces: SPI
Qualification: Automotive
Classification: ISO26262-ready
Temperature max: 150.0°C
Gate current max: 100.0mA
Supply Voltage absolute max ratings: 40.0V
Supply Voltage max: 28.0V
IRS21531DS
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 600 V half-bridge gate driver IC with oscillator, integrated bootstrap FET, programmable frequency and programmable shutdown
Input Vcc: NoneV
Channels: 2.0
Configuration: Half Bridge
Voltage Class: 600.0V
Qualification: Industrial
Isolation Type: Functional levelshift
Output Current(Sink): 0.26A
Output Current(Source): 0.18A
VCC UVLO(On): 11.0V
VCC UVLO(Off): 9.0V
VBS UVLO(Off): 8.0V
VBS UVLO(On): 9.0V
