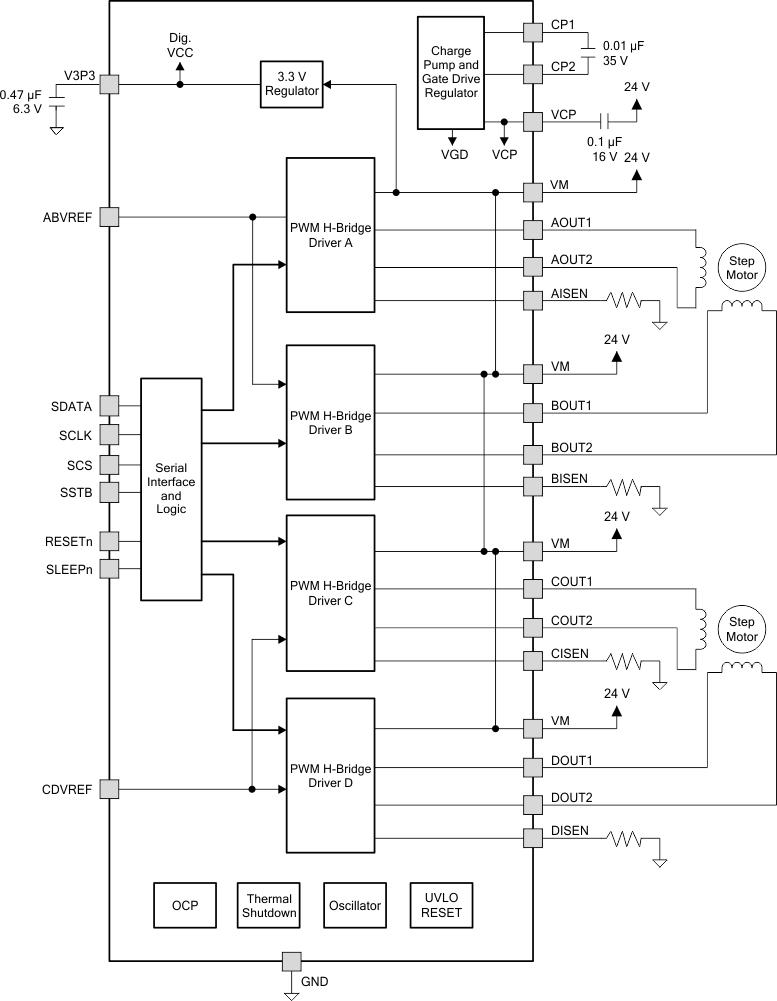

Number of full bridges: 4 Vs (min) (V): 8 Vs ABS (max) (V): 34 Full-scale current (A): 1 Peak output current (A): 1.5 RDS(ON) (HS + LS) (mΩ): 550 Sleep current (µA): 12 Control mode: Serial Control interface: Serial Microstepping levels: 8 Features: Current Regulation Rating: Catalog Operating temperature range (°C): -40 to 85 Number of full bridges: 4 Vs (min) (V): 8 Vs ABS (max) (V): 34 Full-scale current (A): 1 Peak output current (A): 1.5 RDS(ON) (HS + LS) (mΩ): 550 Sleep current (µA): 12 更多

Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4 Input supply voltage (max) (V): 15 Features: Enable pin Operating temperature range (°C): -40 to 125 Rise time (ns): 20 Fall time (ns): 15 Propagation delay time (µs): 0.025 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: Automotive Driver configuration: Inverting, Non-Inverting Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4 Input supply voltage (max) (V): 15 更多

Number of full bridges: 4 Vs (min) (V): 8 Vs ABS (max) (V): 34 Full-scale current (A): 1.5 Peak output current (A): 1.5 RDS(ON) (HS + LS) (mΩ): 550 Sleep current (µA): 20 Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 8 Features: Current Regulation Rating: Catalog Operating temperature range (°C): -40 to 85 Number of full bridges: 4 Vs (min) (V): 8 Vs ABS (max) (V): 34 Full-scale current (A): 1.5 Peak output current (A): 1.5 RDS(ON) (HS + LS) (mΩ): 550 Sleep current (µA): 20 更多

Number of full bridges: 2 Vs (min) (V): 8 Vs ABS (max) (V): 40 Full-scale current (A): 1.9 Peak output current (A): 2.5 RDS(ON) (HS + LS) (mΩ): 1000 Sleep current (µA): 12 Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 8 Features: Current Regulation Rating: Catalog Operating temperature range (°C): -40 to 85 Number of full bridges: 2 Vs (min) (V): 8 Vs ABS (max) (V): 40 Full-scale current (A): 1.9 Peak output current (A): 2.5 RDS(ON) (HS + LS) (mΩ): 1000 Sleep current (µA): 12 更多

Rating: Catalog Architecture: Gate driver Control topology: Sensored, Trapezoidal Control interface: 1xPWM Vs (min) (V): 6 Vs ABS (max) (V): 18 Features: Rotor Lock Protection, Tach/FG Feedback Operating temperature range (°C): -40 to 85 Rating: Catalog Architecture: Gate driver Control topology: Sensored, Trapezoidal Control interface: 1xPWM Vs (min) (V): 6 Vs ABS (max) (V): 18 Features: Rotor Lock Protection, Tach/FG Feedback Operating temperature range (°C): -40 to 85

Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4 Input supply voltage (max) (V): 15 Features: Enable pin Operating temperature range (°C): -40 to 125 Rise time (ns): 20 Fall time (ns): 15 Propagation delay time (µs): 0.025 Input threshold: CMOS, TTL Channel input logic: Inverting Input negative voltage (V): 0 Rating: Automotive Driver configuration: Dual inputs Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4 Input supply voltage (max) (V): 15 更多

Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4 Input supply voltage (max) (V): 15 Features: Enable pin Operating temperature range (°C): -40 to 125 Fall time (ns): 15 Input threshold: CMOS, TTL Channel input logic: Non-Inverting Input negative voltage (V): 0 Rating: Automotive Driver configuration: Non-Inverting Number of channels: 2 Power switch: IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4 Input supply voltage (max) (V): 15 Features: Enable pin Operating temperature range (°C): -40 to 125 更多

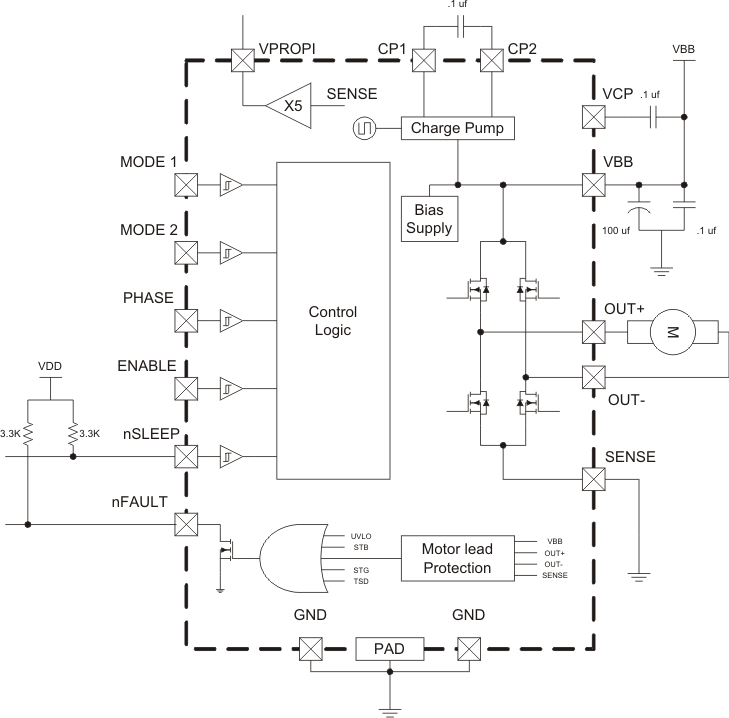

Number of full bridges: 1 Vs (min) (V): 8 Vs ABS (max) (V): 40 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 830 Sleep current (µA): 10 Control mode: PH/EN Control interface: Hardware (GPIO) Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Push-Pull Number of full bridges: 1 Vs (min) (V): 8 Vs ABS (max) (V): 40 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 830 Sleep current (µA): 10 Control mode: PH/EN Control interface: Hardware (GPIO) Rating: Catalog 更多

Number of full bridges: 1 Vs (min) (V): 8 Vs ABS (max) (V): 40 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 830 Sleep current (µA): 10 Control mode: PH/EN Control interface: Hardware (GPIO) Features: Current sense Amplifier Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Push-Pull Number of full bridges: 1 Vs (min) (V): 8 Vs ABS (max) (V): 40 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 830 Sleep current (µA): 10 Control mode: PH/EN Control interface: Hardware (GPIO) 更多

Number of full bridges: 4 Vs (min) (V): 7 Vs ABS (max) (V): 50 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 550 Sleep current (µA): 7000 Control mode: PH/EN Control interface: Hardware (GPIO) Rating: Catalog Operating temperature range (°C): -10 to 50 Number of full bridges: 4 Vs (min) (V): 7 Vs ABS (max) (V): 50 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 550 Sleep current (µA): 7000 Control mode: PH/EN Control interface: Hardware (GPIO) Rating: Catalog Operating temperature range (°C): -10 to 50
